15.6″ Embedded Pedestal Kiosk (S905)

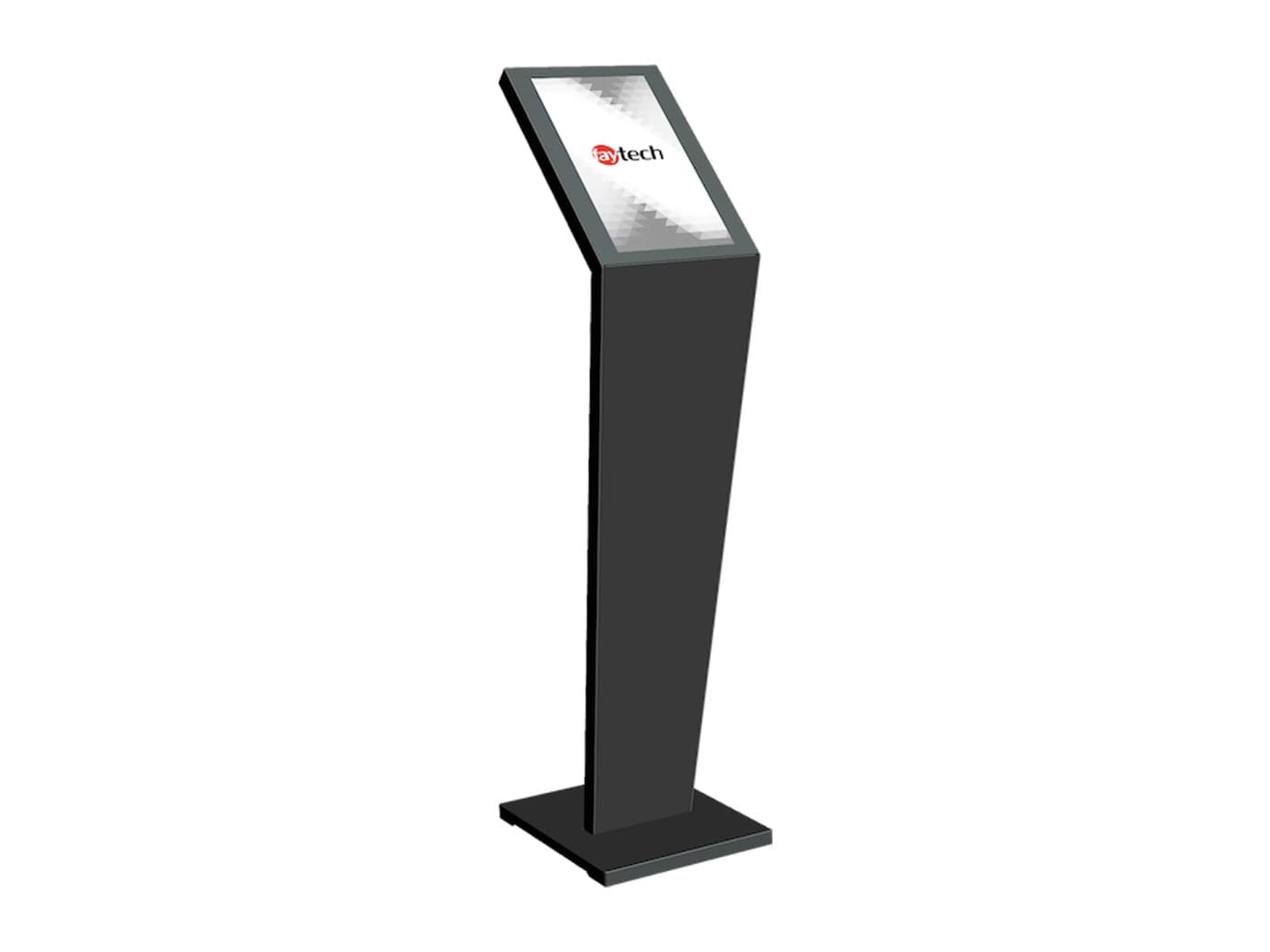

The 15.6″ ARM Touch Kiosk (S905D3 Basic) is a slim, free-standing interactive kiosk designed for modern indoor environments where a compact footprint, bright visuals, and reliable 24/7 operation are essential. Featuring a 15.6″ full HD display (1920×1080) with 500 cd/m² brightness and an 800:1 contrast ratio, it delivers crisp, high-definition content that is ideal for digital signage, wayfinding, infotainment, and point-of-sale applications.

Powered by an integrated Amlogic S905D3 Quad-Core Cortex-A53 processor, 2 GB LPDDR4 RAM, and 64 GB eMMC 5.1 storage, the kiosk runs Android 9 as standard, with optional Linux distributions such as Ubuntu or Debian available on request. Built-in Wi-Fi, Bluetooth 4.0, Gigabit Ethernet, USB (USB 3.0, USB 2.0, USB OTG), RS232, and an SD card slot provide flexible connectivity for peripherals, networks, and content updates, while the integrated 2 × 2 W loudspeakers support audio-driven interactions.

The projected capacitive 10-point multi-touch panel is manufactured with 1.1 mm thermally strengthened cover glass, anti-glare surface treatment, and IK07 impact protection for durability in public spaces. faytech’s ClearBond® optical bonding improves readability and contrast by minimizing reflections and enhancing mechanical stability of the front glass. With a front IP65 rating and IP40 at the rear, the kiosk is well suited for busy indoor environments where dust, occasional splashes, and frequent user interaction are expected.

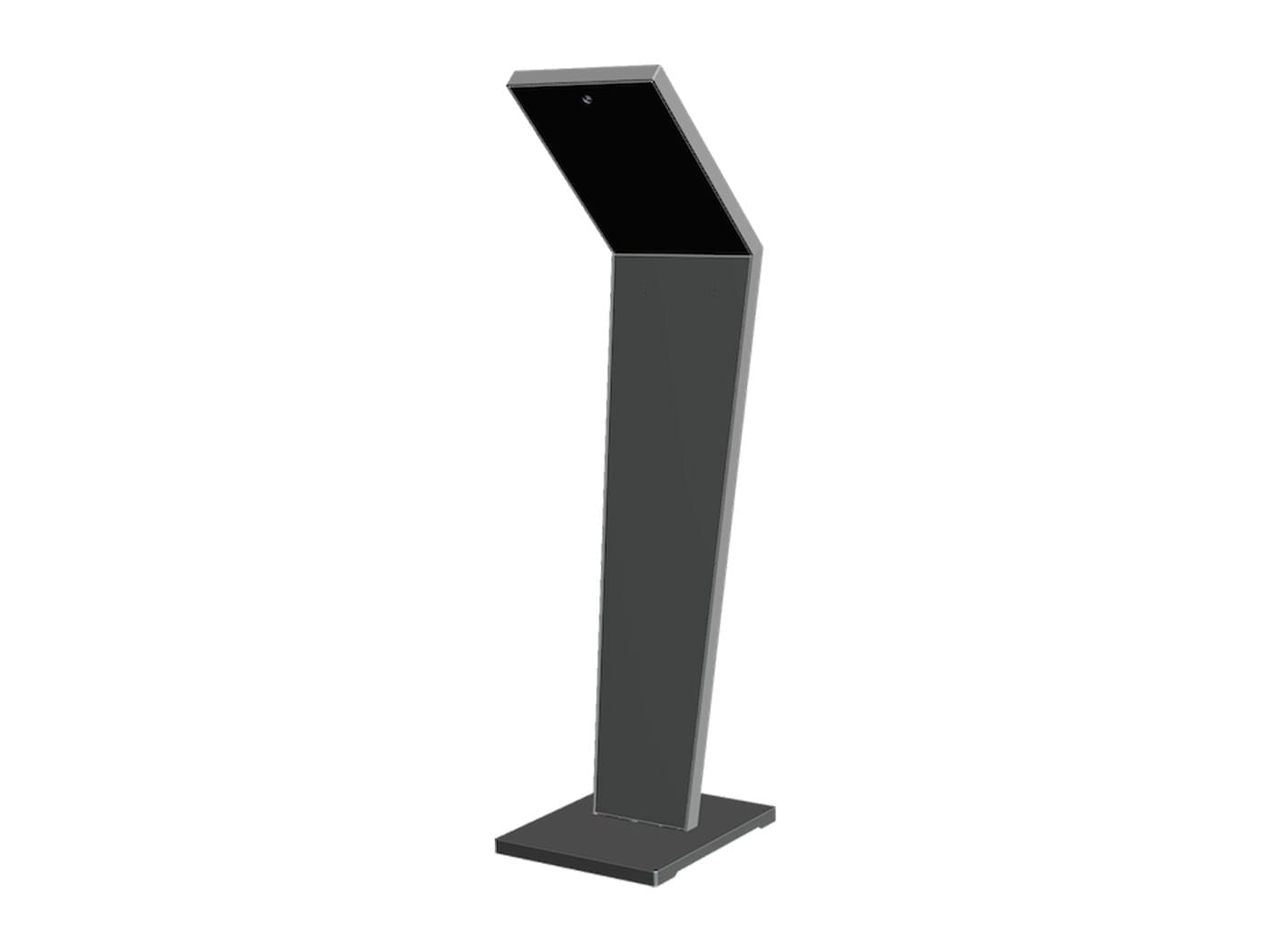

The housing combines glass and aluminum with a powder-coated RAL9004 (black) finish, creating a clean, modern aesthetic that fits seamlessly into retail stores, hotel lobbies, corporate offices, museums, and healthcare facilities. The stable base and 1196.9 mm overall height position the screen at a comfortable viewing and touch angle for standing users, making it ideal for self-service check-in, product configurators, interactive catalogs, and information points.

Designed for continuous indoor use within an operating range of –10 °C to 60 °C and certified to CE and FCC standards, this 15.6″ ARM Touch Kiosk offers a robust, energy-efficient (25 W typical) platform for your interactive projects. As with other faytech solutions, customization options—such as branding, peripherals, and software integration—are available to tailor the kiosk to your specific application and deployment environment.
