Engineered Display Solutions Built to Perform Beyond the Building Envelope
Explore Our Reliable Outdoor Touch Solutions
When a touch screen leaves the controlled climate of an indoor environment, it faces an entirely different set of physical challenges. Direct sunlight, thermal cycling, humidity, dust ingress, wind-driven rain, freezing temperatures, glove operation, and surface contamination can each compromise a standard display in ways that may not appear until weeks or months into deployment. faytech North America designs, integrates, and supports outdoor-capable touch screen monitors and touch PCs that are engineered from the panel up to operate reliably in these conditions across North American climate zones — from coastal Florida humidity to high-desert solar load to upper-Midwest winters.
This page outlines the layered technologies that make our outdoor displays work, the deployment scenarios they were built for, and how our engineering team supports OEMs, integrators, and end users in selecting the right configuration.
Understanding CoolCrystal® Technology

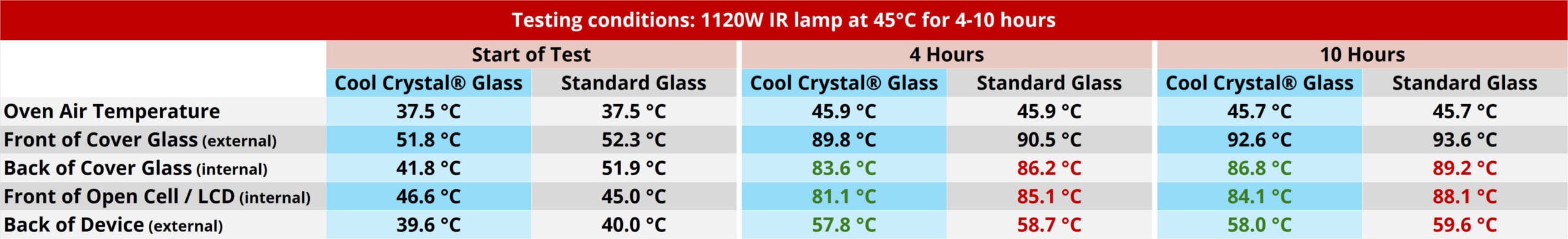

CoolCrystal® is a patented dual-layer optically bonded glass assembly engineered by faytech and integrated into many of the outdoor displays supplied by faytech North America. The assembly sits between the projected capacitive touch sensor and the LCD panel, replacing the standard single bonding layer with a precision-laminated stack that does two jobs at once: it filters a significant portion of incoming ultraviolet and infrared radiation before it reaches the LCD, and it removes the optical air gap that causes glare and reflection washout in direct sunlight.
The Core Challenge: Sunlight, Heat, and Visibility
Enhanced UV and IR Filtration
The dual-layer bonded glass stack absorbs a meaningful share of the solar spectrum before it reaches sensitive display components, reducing the radiation load that drives long-term yellowing, polarizer degradation, and backlight stress in outdoor installations for commercial and industrial use.
Slower Thermal Rise Under Heat
The added glass mass increases the assembly’s effective thermal capacity, so the display heats up more gradually when exposed to direct sunlight. That extra thermal headroom helps the LCD stay within its rated operating window during peak afternoon hours and across summer duty cycles.
Brighter, Truer Output
By eliminating the optical air gap and improving light transmission through the front stack, the same backlight delivers a sharper, more saturated image to the viewer — letting the display achieve effective sunlight readability without pushing the LEDs harder, which is what shortens their service life.
The Core Challenge: Sunlight, Heat, and Visibility
A consumer-grade monitor in direct sunlight typically becomes unreadable not because the screen is too dim in absolute terms, but because ambient light overwhelms the panel’s contrast ratio. The display is also absorbing significant solar energy — solar irradiance at ground level can approach roughly 1,000 W/m² on a clear day — which raises the internal temperature of the LCD stack and accelerates component aging, isotropic point shift, and backlight degradation.
faytech North America addresses this through a multi-layer engineering approach rather than relying on backlight brightness alone:
- High-brightness LED backlights ranging from 700 to 1,500 nits, depending on the model, deliver readable contrast under direct sunlight while staying within thermal and power envelopes appropriate for unattended deployments.
- Optical bonding (Clear-Bond) eliminates the air gap between the LCD and the cover glass. This removes the internal reflection layer that causes washout, improves contrast, prevents condensation between layers in humid environments, and reduces parallax for more accurate touch response.
- Wide operating temperature ranges of -20 °C to 70 °C on extended-temp configurations, with storage tolerance down to -30 °C, allow the same hardware to be specified for parking structures in Phoenix and EV charging canopies in Minneapolis.
Sealing, Ruggedization, and Ingress Protection
Outdoor enclosures fail at the seams. faytech’s outdoor monitor and touch PC lines are built with sealed bezels and gasketed connectors rated for industrial and washdown environments:
- IP65 — Fully dust-tight; protected against water jets from any direction. Suitable for most outdoor kiosks, transit installations, and covered exterior mounts.
- IP69K — Protected against high-pressure, high-temperature wash-down. Specified for car-wash payment terminals, food processing perimeters, and any environment where sanitation cycles use heated pressure washers.
For installations exposed to vibration, shock, or physical contact, our rugged MIL-STD configurations include reinforced housings, anti-vandalism IK08-rated cover glass, and fanless cooling — eliminating one of the most common failure points in dust-exposed deployments.
More Information
Projected Capacitive Touch in Outdoor Conditions
Capacitive touch performance changes outdoors. Water droplets, gloves, sunscreen residue, and surface temperature all affect sensor accuracy. Our outdoor-rated PCAP controllers are tuned for these realities and support multi-touch input through water films, with optional thick-glove and stylus modes. For applications where reliable input through heavy rain or operator gloves is non-negotiable — agricultural equipment, marine helm controls, and outdoor industrial HMIs are typical examples — we can also configure 5-wire resistive panels that respond to pressure regardless of contact medium.
How Outdoor Touch Screens Are Being Deployed
The following are representative deployment categories our outdoor product lines are engineered to serve. Specifications vary by use case; our engineering team can recommend the appropriate brightness, IP rating, and processor configuration based on the application.

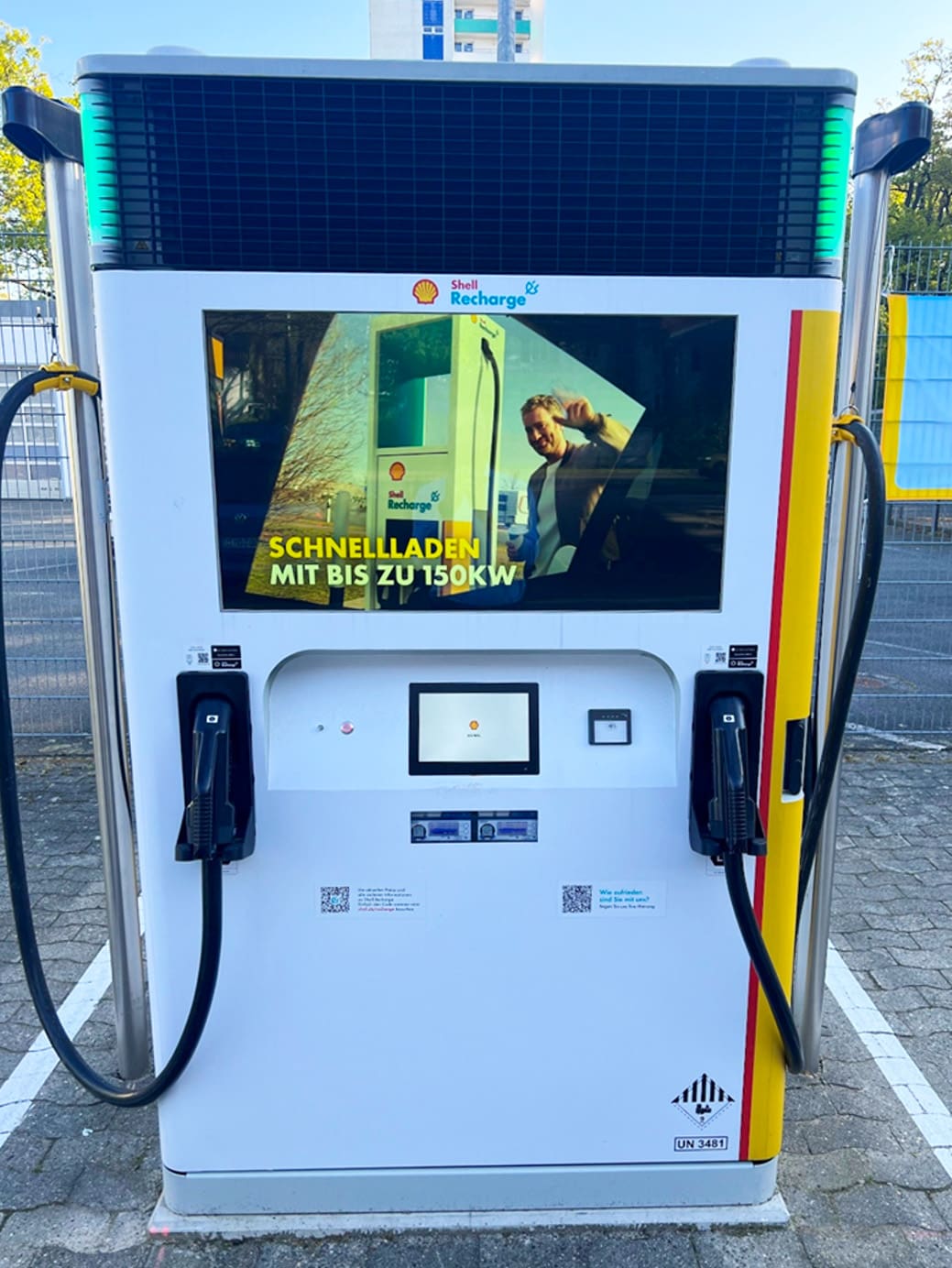

- EV charging stations — Hypothetically, a charging network operator deploying along an interstate corridor needs displays that remain readable at noon, function in winter cold soaks, and resist tampering at unattended sites. A 15″ or 21.5″ IP65 sunlight-readable monitor with optical bonding and extended-temp rating fits this profile.
- Drive-through and QSR menu boards — Sunlight readability through windshields, glove operation, and continuous 16+ hour duty cycles drive specifications toward high-brightness, fanless touch PCs.
- Self-service kiosks and wayfinding — Airport curbside, parking structures, transit shelters, and outdoor retail benefit from vandal-resistant front glass and PCAP touch tuned for accuracy at any angle.
- Agricultural and construction equipment — Cab-mounted and exterior-mounted displays must survive vibration, dust, washdown, and full-spectrum solar load while remaining glove-operable.
- Marine and dockside applications — Salt spray, UV exposure, and humidity demand sealed enclosures and corrosion-resistant materials.
- Outdoor industrial HMIs — Wastewater, oil and gas, and utilities use ruggedized panels at well sites, lift stations, and gate controls where on-site climate control isn’t an option.
OEM Customization for Outdoor Programs
Most outdoor deployments are not off-the-shelf. faytech North America’s OEM and ODM programs allow integrators and product manufacturers to specify cover glass thickness and treatment, bezel materials and color, connector layout, mounting geometry, branded silk-screening, and embedded operating systems. Our engineering team in the US works directly with customers on design reviews, sample evaluations, and field validation before volume production.
Built for the Long Cycle
Outdoor displays aren’t replaced as easily as indoor ones — they’re often embedded in pedestals, enclosures, or vehicle dashboards. We design for that reality. faytech monitors and touch PCs are backed by a three-year standard warranty, ISO 9001-certified manufacturing, and US-based technical support. Standard products typically ship in 2 to 4 weeks; custom outdoor configurations generally run 6 to 12 weeks depending on the modifications requested.
Talk to Engineering About Your Outdoor Application
Every outdoor deployment has a specific combination of sunlight angle, temperature swing, contact frequency, and integration footprint. Share your application details and our team will recommend a configuration — or design one — that’s specified for the environment, not adapted to it.
