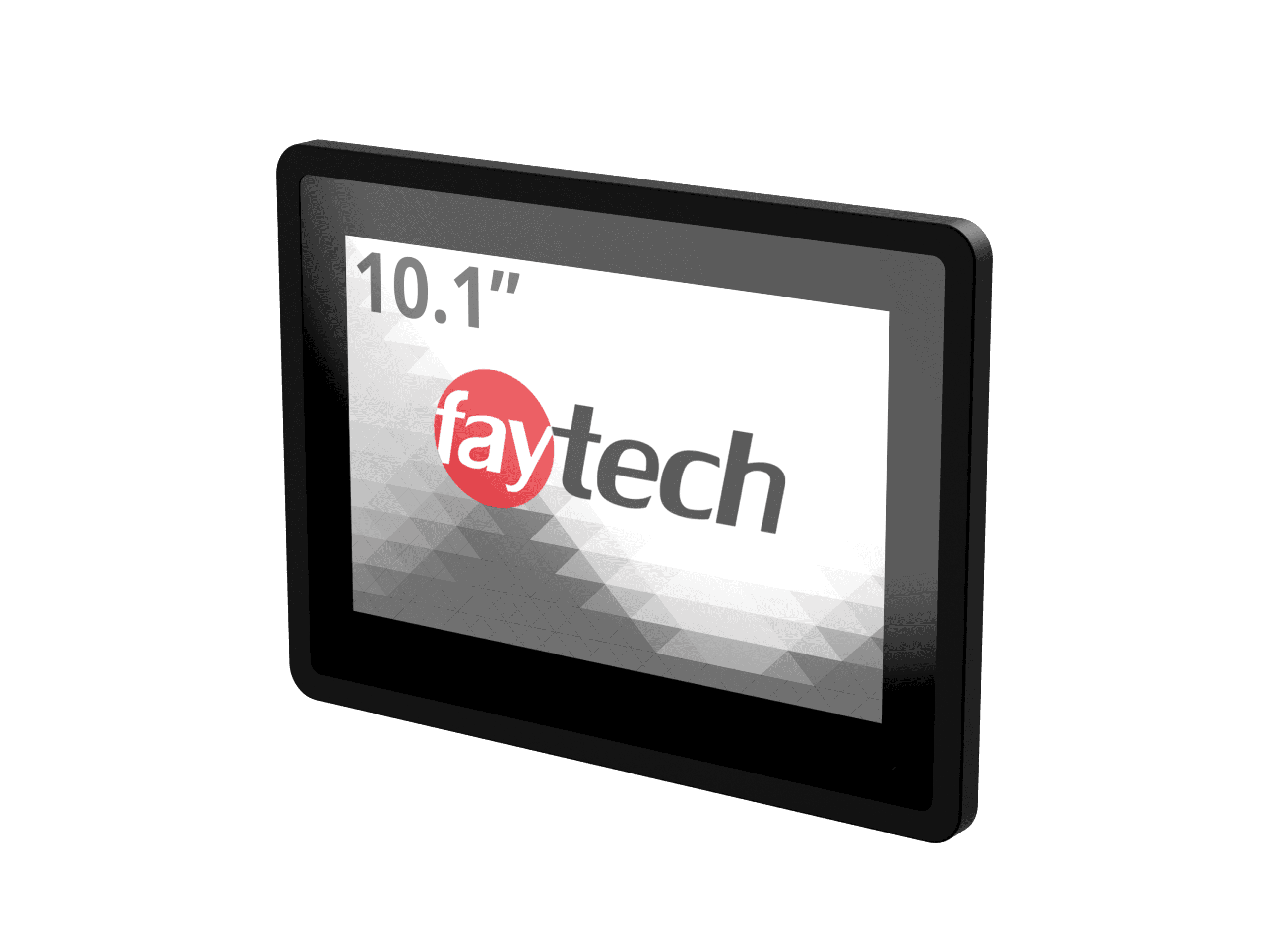

10.1″ Industrial Touch PC X6413E (Large Case)

The 10.1″ Capacitive Touch PC X6413E (Large Case) is faytech's Atom-based industrial touch PC in the Large Case form factor at 10.1″ widescreen — engineered as the cost-effective alternative to the upcoming Core i5 sibling for deployments where platform demands are well within Atom Quad-Core capability and buyers prioritize value over premium compute headroom. This is the right product for modern web-based HMI workstations, fleet kiosk deployments, equipment OEM integration projects with competitive unit-cost requirements, building automation interfaces, and any commercial deployment where the Atom platform is operationally adequate but the modern 16:10 aspect ratio is required.

Same Large Case Form Factor — Different Compute Tier

This product implements the identical chassis architecture, modular Front Kit + Back Kit design, connectivity layout, and mounting infrastructure as the rest of faytech's Large Case Touch PC family. The difference is the internal compute platform: this product uses the Intel Atom x6413E (Elkhart Lake) Quad-Core processor, while the Core i5 Large Case siblings use the Intel Core i5-1145G7E (Tiger Lake U) vPro processor. The Atom and i5 Large Case products install identically into the same mounting infrastructure, offer identical connectivity, and ship in the same packaging. The buying decision is purely about compute tier and cost.

When to choose this Atom version:

• Modern web-based HMI workstations running browser-based industrial interfaces within Atom-class capability
• Dedicated-function kiosks — visitor management, ticket dispensing, queue management, information displays
• Fleet deployments at scale where per-unit cost savings multiply meaningfully across hundreds of installations
• Equipment OEM integration where unit cost drives the buy decision and OEM software targets Atom-class platforms
• Edge IoT and building automation deployments where workloads are well-defined and Atom compute is appropriate
• Cost-sensitive refresh projects where the new Atom platform comfortably exceeds the legacy hardware's compute capability

When the Core i5 Large Case sibling is the better choice:

• Multi-application operator workstations running SCADA + document management + corporate productivity concurrently
• Computer-vision augmented inspection software or AI-assisted predictive maintenance applications
• vPro remote management requirements for IT fleet management across distributed facilities
• Higher storage requirements — the i5 Large Case siblings ship with 240 GB SSD vs 120 GB on this Atom version

Intel Atom Industrial Compute Platform

The platform is built around the Intel® Atom® x6413E processor from Intel's Elkhart Lake family — a modern Quad-Core x86 SoC designed specifically for industrial IoT, edge computing, and dedicated-function commercial deployment. The Atom x6413E offers a deliberate balance of performance and power efficiency: enough compute headroom to run industrial software, web-based HMI applications, dedicated-function POS systems, and signage management at exceptionally low power consumption (12.5W under typical load).

Paired with 8 GB DDR4 RAM and a 120 GB SSD (proper SSD, not eMMC), the platform handles industrial control software, signage content management, kiosk applications, and modern web frameworks within Atom-appropriate workload boundaries. For workloads beyond this envelope, the Core i5 Large Case sibling is the appropriate choice within the same physical form factor.

Operating System Options

Debian 12 ships pre-installed as standard (note: Pyramid Computer GmbH is not affiliated with Debian; Debian is a registered trademark owned by Software in the Public Interest, Inc.). Additional OS options are available on request with an additional fee: Linux Ubuntu 22.4 LTS, Windows 10, and Windows 11. For Linux-based dedicated-function deployment, the Atom platform performs well within its workload boundaries. For Windows-heavy multi-application deployments, the Core i5 Large Case version is the better choice.

Display — 10.1″ WXGA in Modern 16:10 Aspect Ratio

The display is purpose-built for modern interface design: 10.1″ across the diagonal, 1280×800 WXGA resolution, and 16:10 aspect ratio. The 16:10 ratio is the contemporary standard for web-based dashboards, productivity software, and vertical-scrolling interfaces — providing more vertical workspace than 16:9 widescreen, which matters for forms, lists, document workflows, and dashboard layouts.

Brightness is 350 cd/m² (notably higher than the smaller 4:3 sibling at 300 cd/m²), contrast 800:1, viewing angles 170°/170°. LED backlight lifetime is 30,000 hours, supporting continuous 24/7 deployment scenarios. The display uses LVDS interface internally.

Touch System

The 10-point projected capacitive multi-touch panel is built on 1.1 mm thermally strengthened cover glass with AG anti-glare surface treatment (chemical etching), IK08 impact protection, and faytech's proprietary Clear Bond® optical bonding. The EXC81W60 touch controller communicates via USB with touch resolution of 39 RX × 24 TX. Multi-touch supports modern gesture-driven interfaces including pinch-to-zoom, two-finger scrolling, and rotation gestures.

Industrial Connectivity

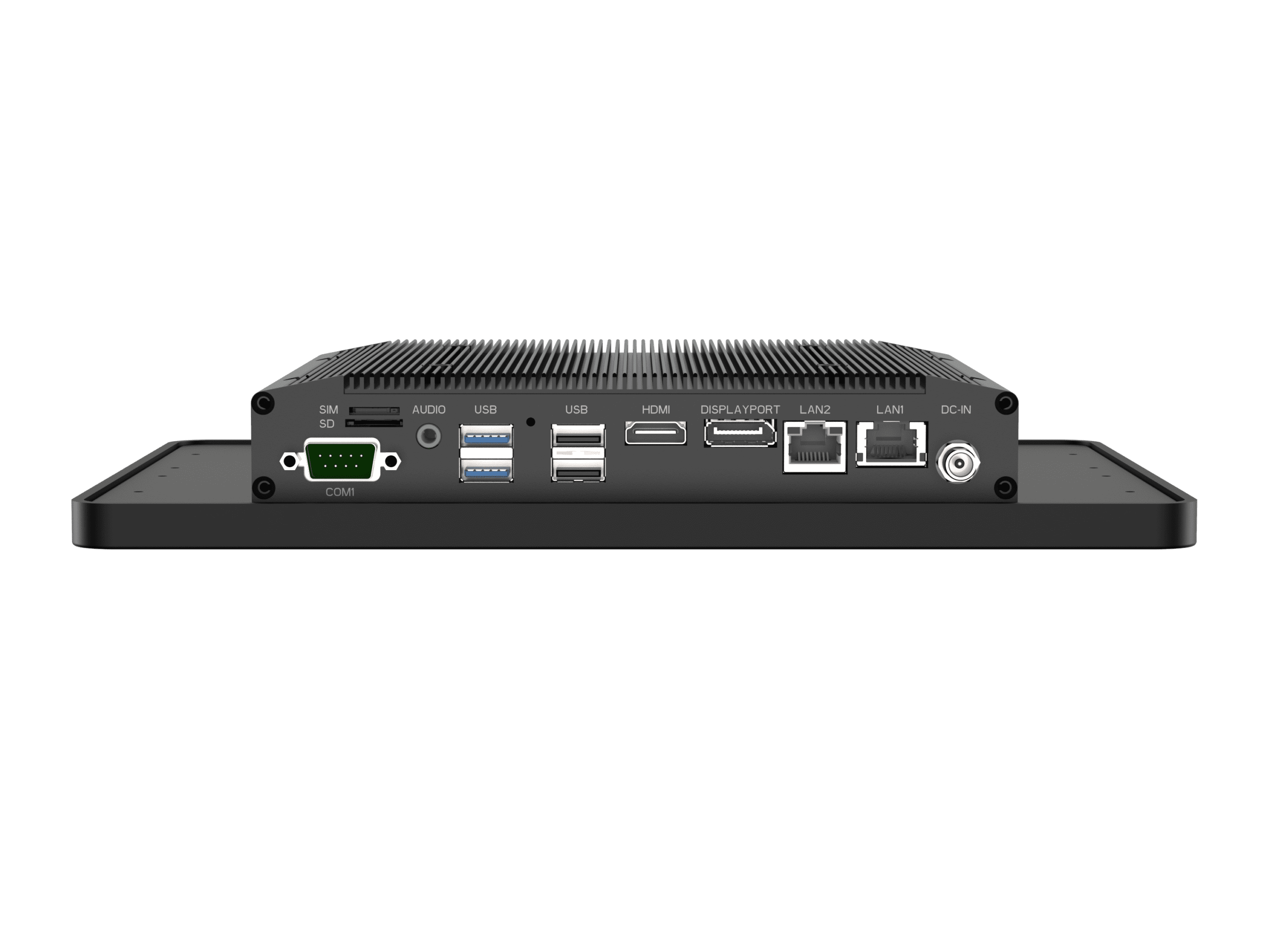

Network: 2× 10/100/1000 Mbit Gigabit Ethernet RJ45 ports (Realtek® 8111H) supporting network segmentation between operational technology (OT) networks and information technology (IT) networks — critical for industrial cybersecurity. Wi-Fi via Intel® AC 3168 module with included RP-SMA female antenna. Power over Ethernet (PoE) is available upon request.

USB: 2× USB 3.0 + 2× USB 2.0 for peripheral integration (barcode scanners, payment terminals, RFID readers, signature pads, configuration storage devices, service-tool laptops).

Video Output: 1× HDMI + 1× DisplayPort for external display extension — supporting dual-display HMI configurations, second-monitor signage, or external display mirroring.

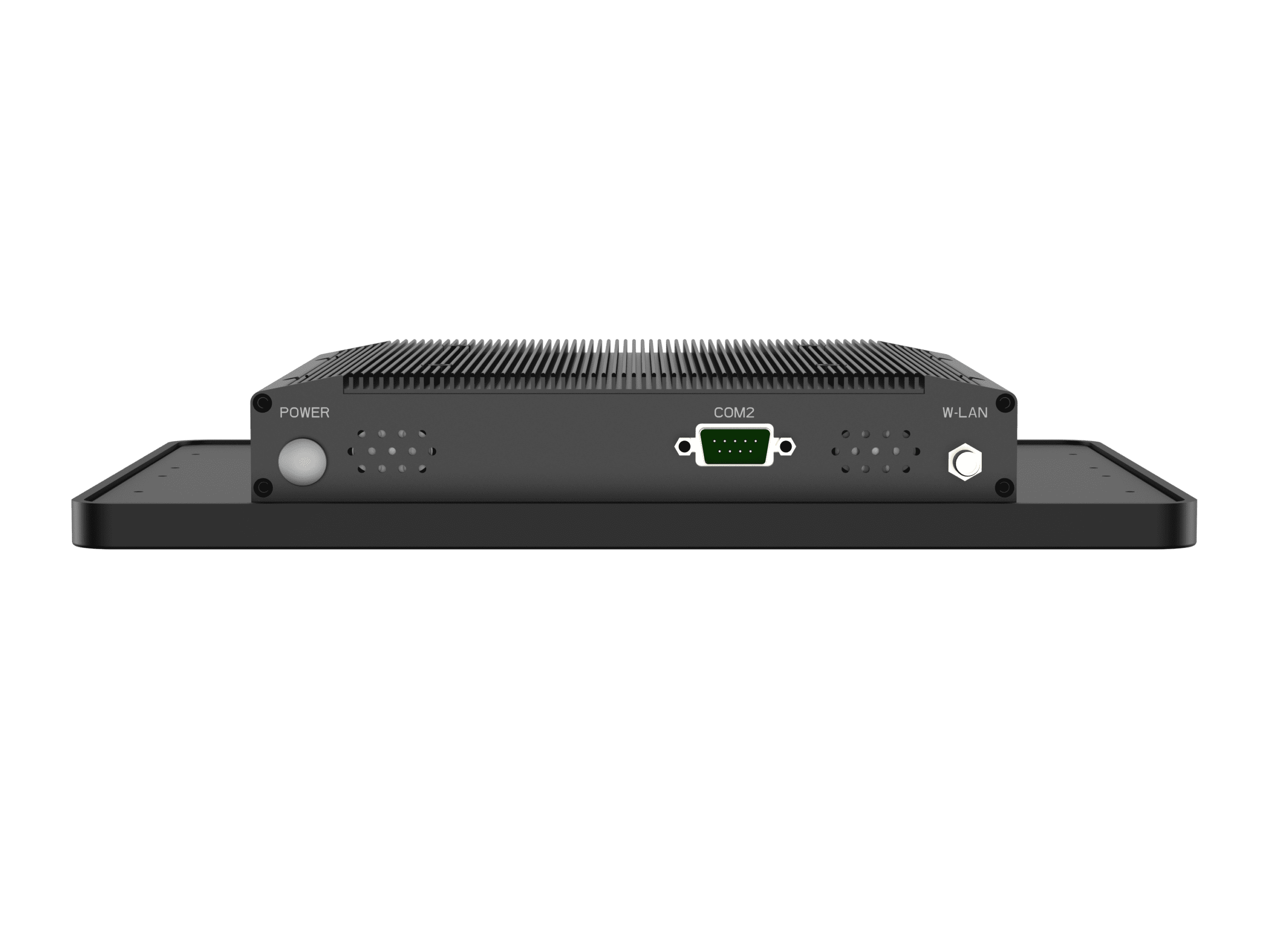

Industrial Serial: 2× RS-232 COM ports (RX/TX only, DSUB9) for legacy industrial equipment integration including PLCs, motor controllers, weigh scales, RFID readers, and serial sensors. Standard pinout: Pin 2 RXD1, Pin 3 TXD1, Pins 5/10/11 GND.

Audio: 1× Audio In/Out (3.5 mm) via Realtek® ALC897 Audio CODEC + 2× 2W integrated loudspeakers for transaction confirmations, alert tones, and audio prompts.

Storage Expansion: 1× SD card slot for removable storage and 1× SIM card slot for cellular connectivity options.

Modular Front Kit + Large IPC Back Kit Design

This product implements faytech's modular Front Kit + Back Kit architecture with the Large IPC Back Kit (X6413E) — the same chassis design used across the entire Large Case family, configured here with the Atom processor:

• 10.1″ Rubber Frame Front Kit: Contains the 10.1″ WXGA display panel, projected capacitive touch sensor, cover glass with Clear Bond® optical bonding, rubber frame structural assembly, and the IP65 sealing system.

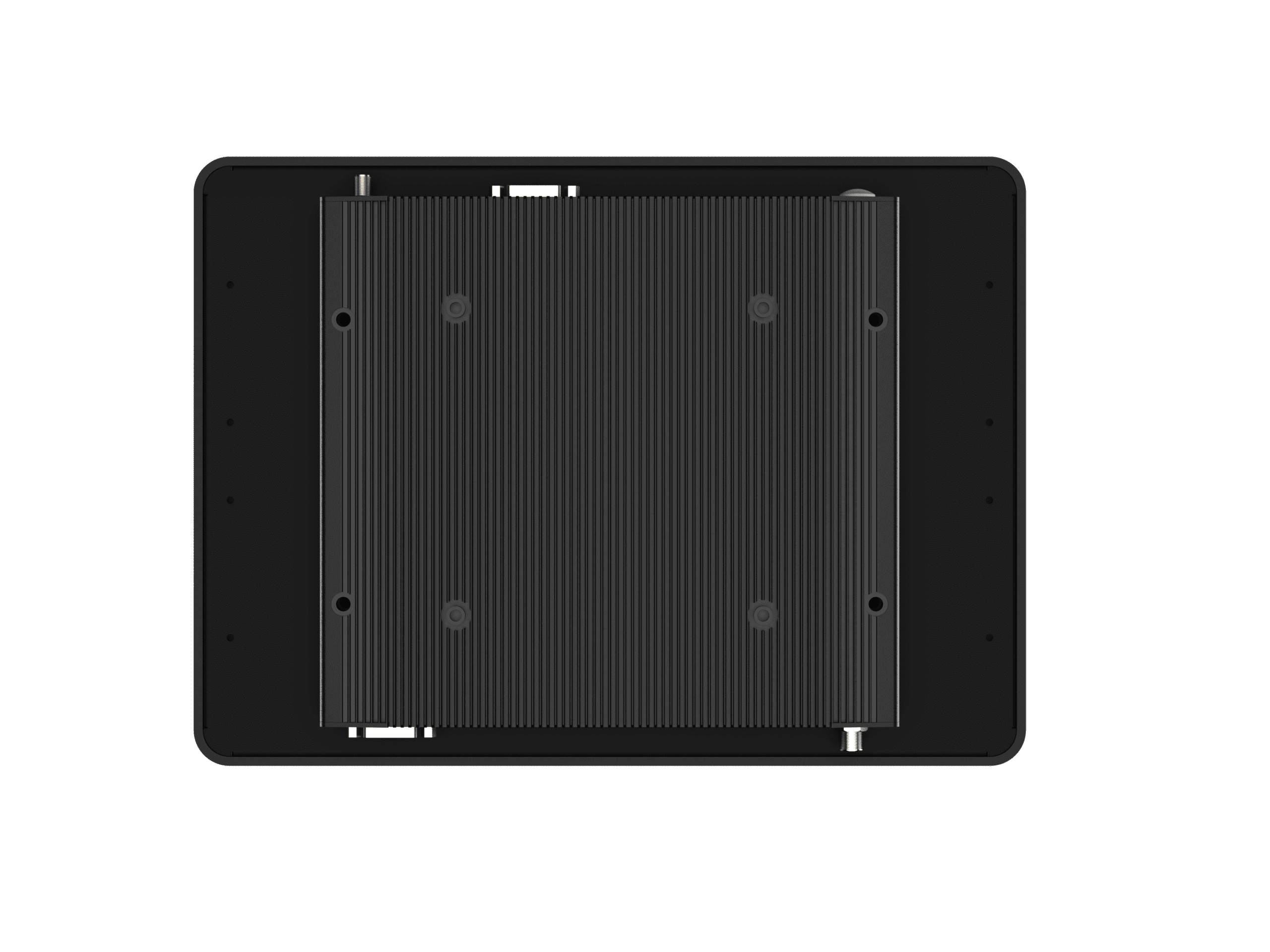

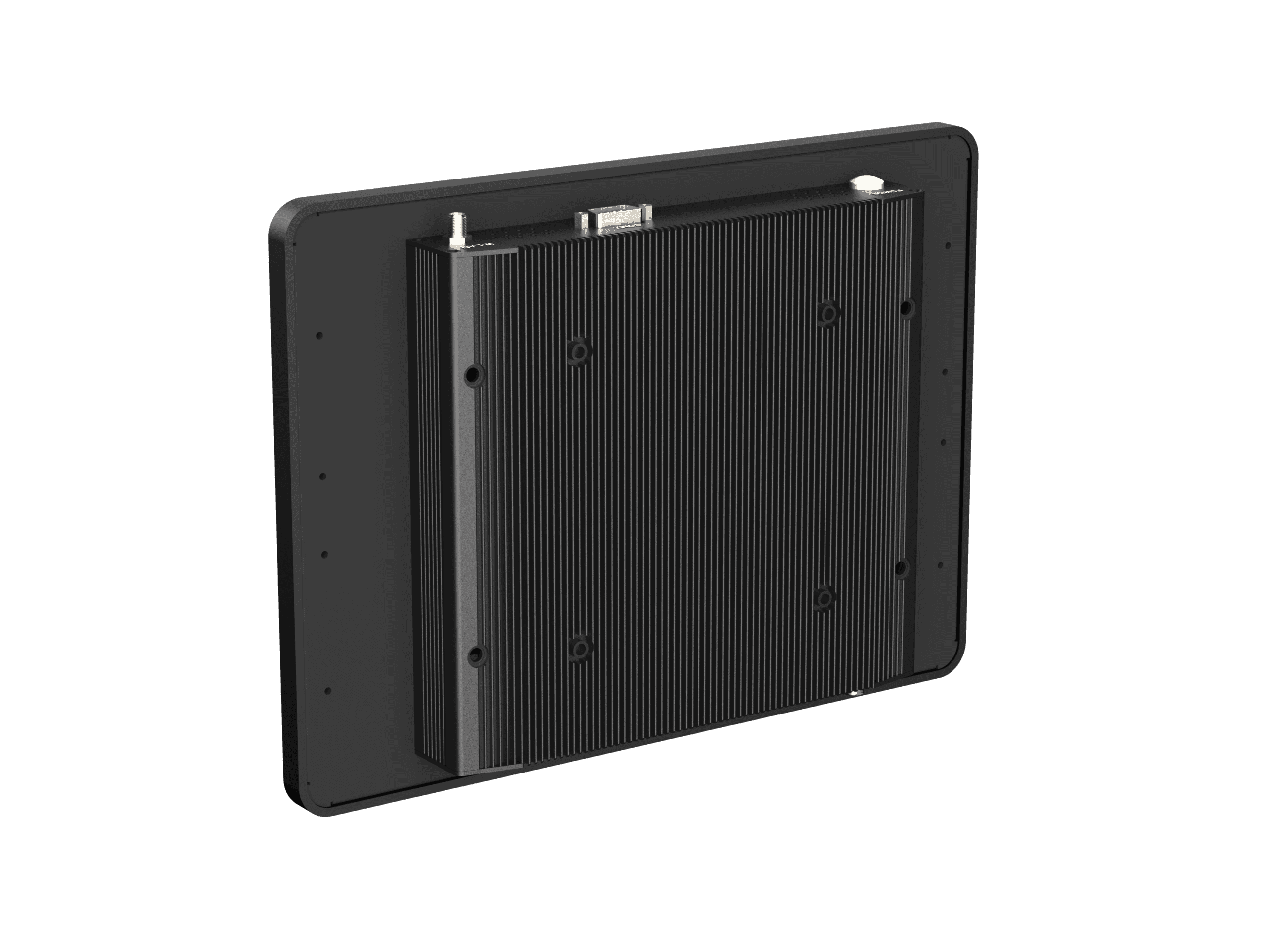

• Large IPC Back Kit (X6413E): Contains the Intel Atom x6413E compute platform, all external connectivity, network hardware, storage, and the aluminum IPC back case with passive thermal management fins. Same physical chassis as the Core i5 Large Back Kit, configured with the Atom platform.

The shared physical infrastructure between the Atom and i5 Large Case families is operationally meaningful: organizations deploying mixed Atom and i5 Touch PCs can use the same mounting hardware, the same kiosk enclosures, the same cut-out templates, and the same service inventory infrastructure. The compute platform decision is independent of the physical integration decision.

Independent kit replacement during service supports:

• Compute platform refresh as Intel processor generations advance — replace only the back kit while keeping the original front kit, display, and physical integration
• Field damage replacement of cracked cover glass without retiring the working back kit and configured OS image
• OEM integration projects where custom enclosures house the back kit separately from the front kit
• Cross-compute service flexibility — organizations can upgrade from Atom to Core i5 in the same physical infrastructure if compute requirements grow

Note: Front Kit + Back Kit assembly to be done by a professional to maintain IP65 seal integrity.

Mounting Options

• VESA 100 × 100 mounting: Standard wall-mount arms, articulating mounts, monitor stands, and industrial pole mounts.
• 4-clamp open-frame integration: Installation into custom kiosk enclosures, retail counters, industrial control panels, vehicle dashboards, or built-in HMI positions via a 264.0 × 196.0 mm cut-out, secured by 4 clamps. Maximum clamp wall thickness is 5.0 mm.

Wide Power Input & Environmental

The platform accepts 9-36V DC wide power input — supporting standard 12V industrial DC, vehicle 24V systems, 48V battery backup systems (regulated), and the PoE option. The included 100-240V AC active-switching adapter outputs 12V DC. Operating power consumption is just 12.5W with under 1W standby — significantly lower than the Core i5 sibling and ideal for solar-powered installations, battery-backed deployments, and any deployment scenario where power budget matters.

Operating temperature range is -10°C to +60°C with 10–90% humidity tolerance. IP65 Front + IP40 Back protection. CE and FCC certified.

Intended use: Industrial-grade touchscreen touch PC for indoor use as control panel, digital signage, wayfinding, POS, and similar applications. Protect from direct sunlight. Operation outside specified temperature ranges is not covered by warranty.

Included in the Delivery

Power adapter (100-240V AC active switching, 12V DC-Out), Wi-Fi antenna (RP-SMA female), short installation manual.

Hypothetical Application Scenarios

Cost-Effective Modern HMI Fleet Deployment: Picture a manufacturing facility deploying dozens of browser-based HMI workstations at machine stations and line operator positions. The Atom platform handles the web-based SCADA client and equipment control software adequately; the 12.5W power consumption simplifies installation power requirements; the per-unit cost savings multiply meaningfully across the fleet; the shared Large Case form factor with Core i5 siblings means supervisor positions can use i5 hardware while line positions use Atom hardware, all in the same mounting infrastructure.

Visitor Management & Reception Kiosks at Scale: Corporate campuses, hospitals, and government facilities deploying visitor management kiosks across dozens of building entrances benefit from the Atom Large Case's cost efficiency. The 10.1″ widescreen format is ideal for visitor sign-in flows, photo capture interfaces, and badge printing workflows. The IP65 front supports public-facing deployment with regular cleaning protocols.

Equipment OEM Integration — Mid-Tier Product Lines: Equipment manufacturers building products with integrated HMI panels at competitive price points can use the Atom Large Case as the compute platform — same physical integration as the Core i5 version but at lower cost, allowing the OEM to offer Atom-based products in their entry/mid-tier and Core i5 versions in their premium tier without changing the physical equipment design.

Building Automation — Floor-Level Control Distribution: Building automation systems deploying floor-level HVAC, lighting, security, and energy management interfaces at scale benefit from the Atom Large Case's per-unit cost optimization. The PoE option (upon request) simplifies installation by eliminating separate power runs; the dual Ethernet supports building automation network plus IT network segregation; the 12.5W consumption minimizes energy overhead across distributed installation points.

Fleet & Vehicle-Mount Deployment: Delivery fleets, service vehicles, and industrial mobile equipment deploying in-vehicle touch computing benefit from the 9-36V wide-range DC input that accepts vehicle electrical systems directly. The 12.5W consumption is appropriate for battery-powered scenarios; the IP65 front handles cabin environment cleaning; the rugged aluminum chassis withstands vehicle vibration; the 16:10 widescreen format suits route management and dispatch applications.

Solar-Powered Remote Monitoring Stations: Remote monitoring installations (utility metering, agricultural sensor networks, infrastructure monitoring) powered by solar + battery benefit from the exceptionally low 12.5W operating power. The wide-range 9-36V input matches typical 12V/24V solar system outputs directly; the cellular SIM slot supports remote data uplink; the Atom platform runs lightweight monitoring software within its power and compute envelope.

Educational & Training Facility Workstations: Technical schools, corporate training programs, and vocational facilities equipping multiple training stations benefit from the per-unit cost savings of the Atom platform. The 10.1″ widescreen format matches modern device proportions students will encounter in industry; the Core i5 alternative is available for advanced training positions in the same physical infrastructure where it's appropriate.

Retail — Dedicated-Function POS & Service Positions: Retail chains can use this Atom Large Case at lower-tier POS positions (back-office kiosks, employee terminals, single-function customer service stations) while reserving Core i5 Touch PCs for higher-traffic primary customer-facing positions. The 10.1″ widescreen format suits modern POS software designed for contemporary aspect ratios. Mixed deployment within the same store using shared physical infrastructure.

Healthcare — Dedicated Function Bedside & Auxiliary Stations: Hospitals deploying dedicated-function bedside devices, auxiliary nursing station terminals, and patient-facing information displays can use the Atom platform where the workload is bounded. Same IP65 cleaning protocols as the Core i5 sibling; cost-optimized for high-quantity deployment; the 16:10 widescreen format suits modern healthcare application interfaces.

Wayfinding & Information Display Networks: Transit hubs, hospital campuses, university buildings, and corporate facilities deploying networked wayfinding and information display points at scale benefit from the Atom Large Case's cost efficiency. The 10.1″ widescreen format is appropriate for floor-plan rendering, schedule displays, and information lookup interfaces; the dual Ethernet supports content management network plus directory service network; the 30,000-hour LED lifetime supports continuous deployment.

For OEM volume programs, modular Front Kit / Large IPC Back Kit purchasing arrangements, alternative OS pre-installation requests, PoE configuration, custom industrial integration consultation, mixed Atom/i5 fleet planning, or pre-sales technical discussion, request a quote from the faytech North America engineering team.
