10″ Industrial Touch PC i5 (Large Case)

The 10″ Capacitive Touch PC I5-1145G7E (Large Case) is faytech's high-performance compact industrial touch PC — engineered for the deployment scenarios where a small-footprint touch interface needs serious compute power behind it: industrial automation control stations, manufacturing line HMI panels, process equipment local interfaces, mobile equipment dashboards, medical equipment integrated displays, and any commercial deployment where 21.5″ touch PCs are too large but Atom-class compute platforms aren't enough. The combination of a small 244.9 × 195.8 mm chassis footprint with a genuine Intel® Core™ i5 industrial processor is uncommon in this market — most compact industrial touch PCs settle for low-power SoCs that limit software flexibility.

Intel Core i5 Industrial Compute Platform

The platform is built around the Intel® Core™ i5-1145G7E (Tiger Lake U) — a genuine industrial vPro embedded processor, not a low-power Atom or Celeron SoC. The i5-1145G7E offers full Intel Core architecture with significantly more compute performance, larger cache, faster memory subsystems, and better single-thread performance than the Atom and Celeron alternatives common in this product category. Paired with 8 GB DDR4 RAM and a 240 GB SSD (proper SSD, not eMMC), the platform handles demanding industrial software with margin to spare.

This compute spec matters operationally because modern industrial software is increasingly resource-intensive: browser-based HMI panels running multiple WebSocket connections, real-time data dashboards with high-frequency telemetry, computer-vision-augmented inspection software, AI-assisted predictive maintenance interfaces, and the multi-application workloads common in operator stations that simultaneously run SCADA clients, document management systems, and corporate productivity software. Atom-class platforms struggle with these workloads; the i5-1145G7E handles them as a workstation-class device should.

The 1145G7E is also a vPro processor, supporting Intel's enterprise remote management features (AMT, vPro Manageability Engine) — meaningful for IT teams managing fleets of industrial workstations remotely, particularly across geographically distributed facilities.

Operating System Options

Debian 12 ships pre-installed as standard (note: Pyramid Computer GmbH is not affiliated with Debian; Debian is a registered trademark owned by Software in the Public Interest, Inc.). Additional OS options available on request (with additional fee): Linux Ubuntu 22.4 LTS for the broader Ubuntu ecosystem alignment, Windows 10 for legacy Windows industrial software, and Windows 11 for current Windows commercial software. The Linux-first default reflects modern industrial deployment trends toward open-source OS platforms; Windows availability handles the substantial legacy of Windows-based industrial control software still in production.

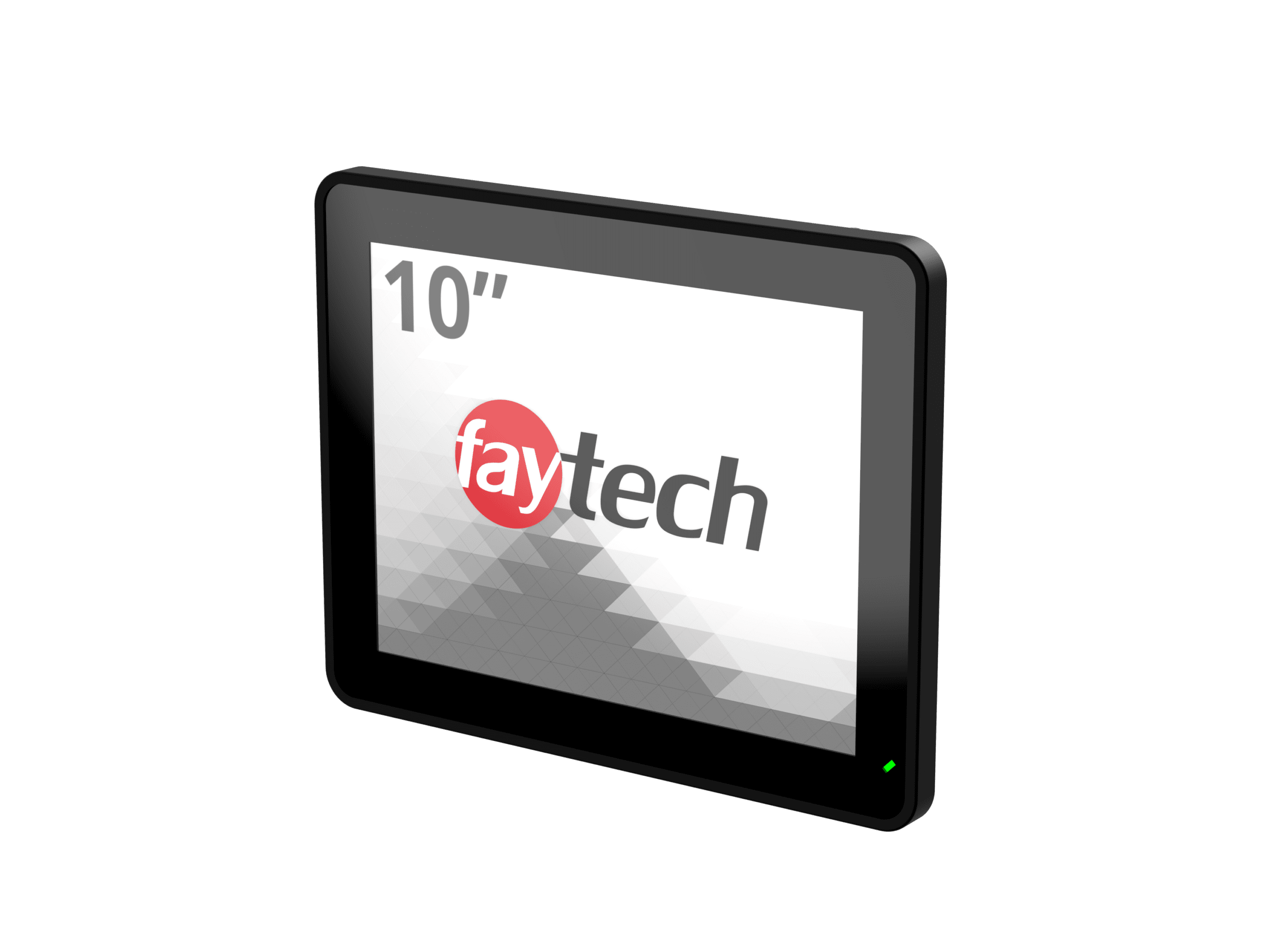

Display – 9.7″ XGA in 4:3 Aspect Ratio

The display is a deliberate specification choice: 9.7″ across the diagonal, 1024×768 XGA resolution, and 4:3 aspect ratio. The 4:3 aspect is specifically meaningful for industrial HMI applications because:

• Legacy software compatibility: Most industrial HMI software interfaces — SCADA clients, PLC programming environments, machine vision software, equipment control interfaces — were designed when 4:3 was the standard aspect ratio. Running these on widescreen displays creates unused screen real estate or stretched/distorted graphics. The 4:3 panel renders these interfaces correctly without compromise.
• Compact deployment fit: 4:3 panels at this size are more compact in their long dimension than equivalent widescreen displays, fitting industrial enclosures and control panel cutouts designed for traditional aspect ratios.
• Vertical screen utility: Industrial diagnostic tools, log readouts, and tabular data displays use vertical screen space efficiently — 4:3 provides more vertical pixels per inch than widescreen at the same diagonal.

Brightness is 300 cd/m², contrast 800:1, viewing angles 170°/170° — appropriate for indoor industrial environments under standard factory lighting. LED backlight lifetime is 20,000 hours, supporting continuous deployment though somewhat shorter than the 30,000–40,000 hour ratings on some faytech models. The 9.7″ display uses an LVDS interface internally.

Touch System

The 10-point projected capacitive multi-touch panel is built on 1.1 mm thermally strengthened cover glass with AG (chemical etching) anti-glare surface treatment, IK08 impact protection, and faytech's Clear Bond® optical bonding. The EXC81W60 touch controller communicates via USB. Touch resolution is 36 RX × 27 TX. The optical bonding eliminates the air gap between touch sensor and LCD panel, improving optical clarity, reducing reflections in industrial lighting, and increasing mechanical durability against operator impacts — critical for factory floor and operator station deployment.

Comprehensive Industrial Connectivity

Network: 2× 10/100/1000 Mbit Gigabit Ethernet RJ45 ports (Realtek® 8111H) supporting network segmentation common in industrial OT/IT separation. Wi-Fi via Intel® AC 3168 module with included RP-SMA female antenna. Power over Ethernet (PoE) is available upon request — meaningful for installations where running new AC power is impractical (retrofit installations, machinery mounting, ceiling-mounted operator stations).

USB: 2× USB 3.0 (high-speed peripherals: external storage, barcode scanners, high-bandwidth instruments) + 2× USB 2.0 (standard industrial peripherals).

Video Output: 1× HDMI + 1× DisplayPort for external display extension — useful for operator stations with both primary touch interface and secondary information displays.

Industrial Serial: 2× RS-232 COM ports (RX/TX only, DSUB9). The dual COM port specification matters for industrial integration: many industrial deployments require simultaneous communication with multiple legacy devices (PLC + barcode scanner, scale + label printer, machine controller + data logger). Two ports avoids the need for external serial expansion hardware. The pinout follows standard RS-232 convention: Pin 2 RXD1, Pin 3 TXD1, Pin 5/10/11 GND.

Additional connectors: 1× Audio In/Out (Realtek® ALC897 Audio CODEC), 1× SD card slot for local data logging and removable storage, 1× SIM card slot for cellular connectivity in installations where Wi-Fi/Ethernet isn't appropriate.

Modular Front Kit + Back Kit Design

This product implements faytech's modular Front Kit + Back Kit architecture:

• 10″ Rubber Frame Front Kit: Contains the 9.7″ display panel, projected capacitive touch sensor, cover glass with Clear Bond® optical bonding, rubber frame structural assembly, and the IP65 sealing system.

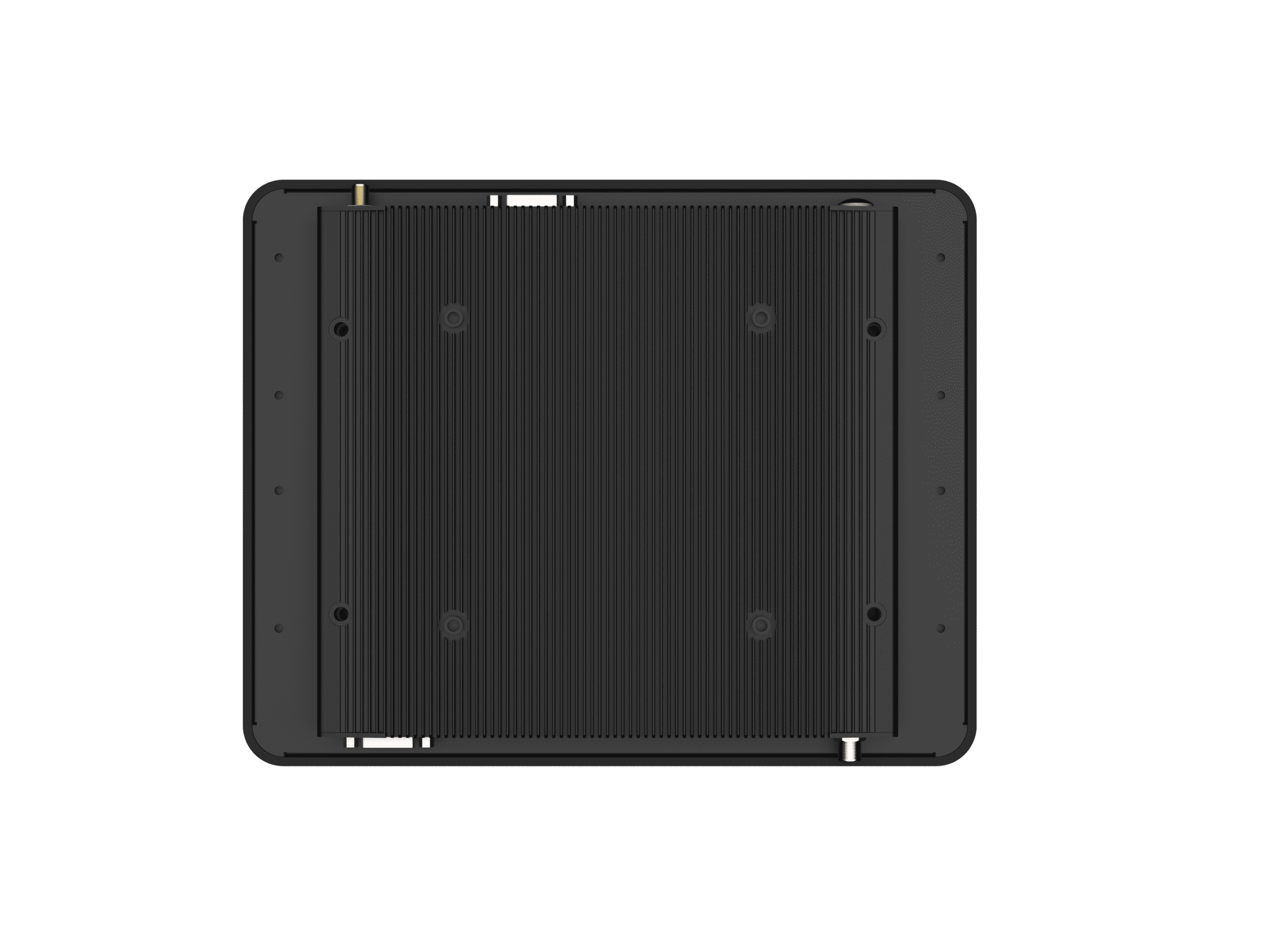

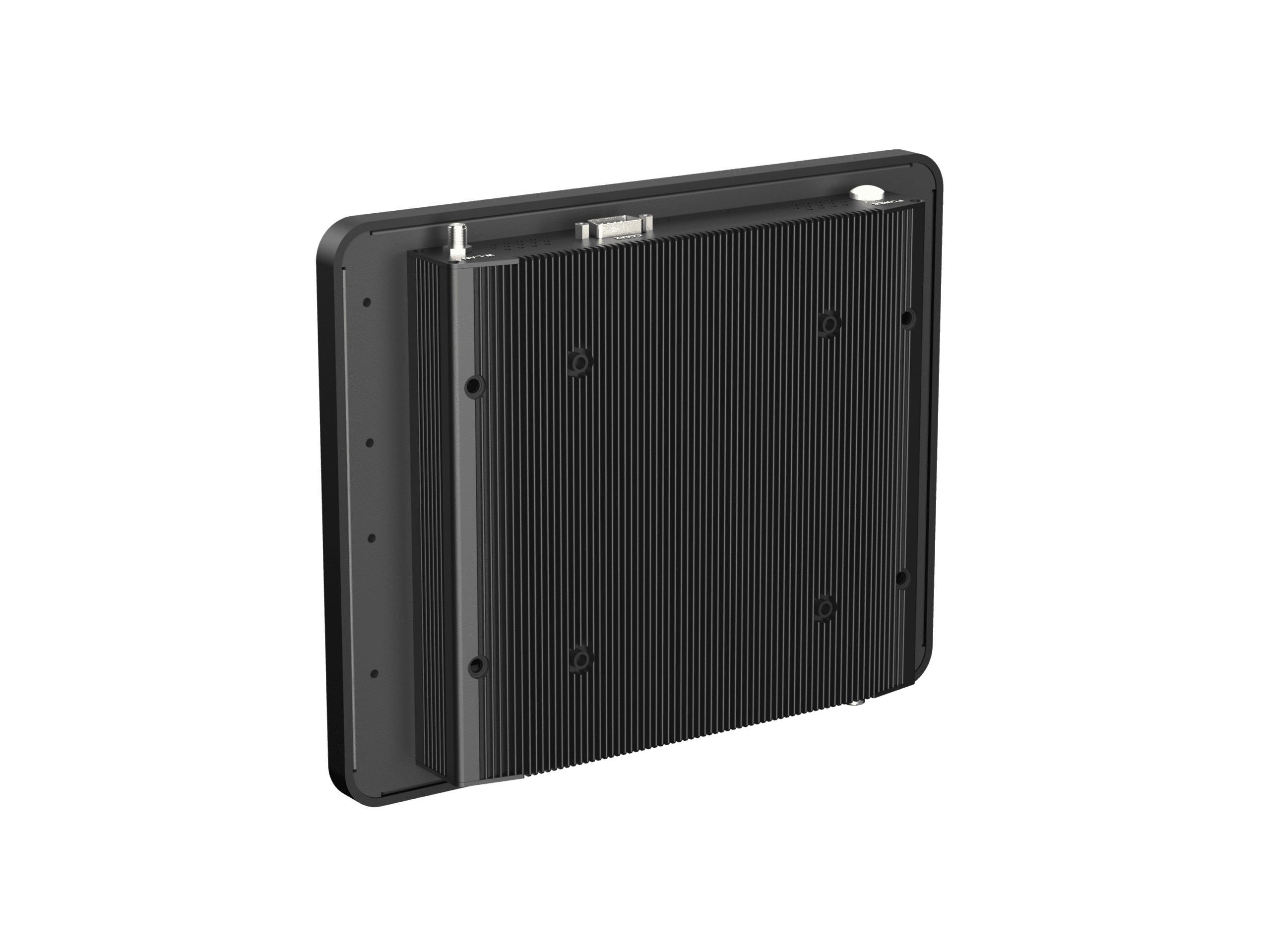

• Large IPC Back Kit (i5-1145G7E): Contains the Intel Core i5 compute platform, all external connectivity, network hardware, storage, and the aluminum IPC back case with passive thermal management fins (visible in the chassis design as the heat-dissipating side fins).

The two kits can be ordered pre-assembled (deployment-ready) or separately packaged (for OEM integration), connected through various standardized connectors. Independent replacement during service supports:

• Compute platform refresh as Intel Core processor generations advance, without replacing the more expensive front kit
• Field damage replacement of cracked cover glass without retiring the working back kit and configured OS image
• OEM integration projects where custom enclosures house the back kit separately from the front kit
• Service inventory optimization with separate kit stocking

Note: Front Kit + Back Kit assembly to be done by a professional to maintain IP65 seal integrity.

Mounting Options

• VESA 100 × 100 mounting: Standard wall-mount arms, articulating mounts, monitor stands, and industrial pole mounts.
• 4-clamp open-frame integration: Installation into custom kiosk enclosures, retail counters, industrial control panels, or built-in HMI positions via a 231.0 × 190.0 mm cut-out, secured by 4 clamps. Maximum clamp wall thickness is 5.0 mm.

Wide Power Input & Environmental

The platform accepts 9-36V DC wide power input — supporting standard 12V industrial DC, vehicle 24V systems, 48V battery backup systems (regulated), and the PoE option (when configured). The included 100-240V AC active-switching adapter outputs 12V DC for standard mains deployment. Operating power consumption is 26W with under 1W standby — efficient for continuous 24/7 deployment. Operating temperature range is -10°C to +60°C with 10–90% humidity tolerance, suitable for partially-conditioned industrial environments.

IP65 Front + IP40 Back protection. CE and FCC certified.

Intended use: Industrial-grade touchscreen touch PC for indoor use as control panel, digital signage, wayfinding, POS, and similar applications. Protect from direct sunlight. Operation outside specified temperature ranges is not covered by warranty.

Included in the Delivery

Power adapter (100-240V AC active switching, 12V DC-Out), Wi-Fi antenna (RP-SMA female), short installation manual.

Hypothetical Application Scenarios

Industrial Automation – Compact HMI for Machinery & Production Lines: Picture a manufacturing line where space at each machine station is limited but the operator needs full HMI capability: SCADA client running continuously, real-time data dashboards, machine vision interface, and quality documentation entry. The compact 10″ form factor fits machine-mounted positions where 15″+ panels don't; the i5 compute platform handles the multi-application workload without lag; the 4:3 aspect renders legacy HMI software correctly; the dual RS-232 ports connect to the machine PLC plus an inline barcode scanner.

Process Equipment Local Interfaces: Process equipment manufacturers (pumps, valves, instrumentation, packaging machinery) can integrate the touch PC as the local operator interface for their equipment. The compact footprint fits equipment enclosures; the i5 processor runs the OEM control software without compromise; the dual Ethernet supports both equipment-internal network and customer-network connectivity; the PoE option (upon request) simplifies installation in customer facilities.

Mobile Equipment Dashboards — Vehicle Mount, AGV, Forklift Operations: Mobile industrial equipment can use the touch PC as integrated operator dashboard. The 9-36V DC wide power input handles vehicle electrical systems directly; the compact form factor fits vehicle cab installations; the rugged IK08 cover glass tolerates vibration and operator impact; the SIM card slot supports cellular telemetry for fleet management; the 4:3 aspect fits cab-mounted positions where horizontal space is limited.

Medical Equipment Integration — Diagnostic & Patient Bedside Devices: Medical equipment manufacturers can integrate the touch PC into diagnostic devices, patient bedside terminals, and clinical workstations. The compact footprint fits medical cart and bedside mounting; the i5 compute platform handles medical imaging and clinical software; the IP65 front supports hospital cleaning protocols; the multiple OS options (Debian/Ubuntu/Windows) align with diverse medical IT standardizations.

Laboratory Instrument Interfaces: Laboratory instruments — analyzers, chromatography systems, spectrometers, automated liquid handlers — can use the touch PC as the local operator interface. The i5 compute platform handles the data processing and software workloads typical of lab instrument control; the dual RS-232 supports legacy instrument-to-instrument communication; the 4:3 aspect ratio fits traditional lab instrument software interfaces.

Building Automation & HVAC Control Panels: Building automation systems can use the touch PC as floor-level HVAC, lighting, and security control interfaces. The compact wall-mount footprint fits utility room and corridor placements; the PoE option (upon request) simplifies installation in buildings with established PoE infrastructure; the dual Ethernet supports building automation network plus IT network connectivity.

Energy Sector – Substation and Field Control Interfaces: Electric utilities, gas operations, and renewable energy facilities can deploy the touch PC at substation control panels, field service depot workstations, and renewable installation monitoring stations. The wide -10°C to +60°C operating range tolerates unconditioned substation environments; the 9-36V DC wide power input supports the diverse DC power systems in energy infrastructure; the dual RS-232 supports legacy SCADA and protection relay integration.

Retail – Compact POS & Self-Service Stations: Retailers can deploy the touch PC at compact POS positions (small-format retail, kiosk shops, fuel stations, convenience stores) where 15"+ POS terminals are too large. The i5 compute platform supports modern Windows-based POS software stacks; the 4:3 aspect ratio fits traditional POS software interfaces; the IP65 front handles spills and cleaning protocols.

Public Transportation – Driver Information & Operator Stations: Public transit vehicles (buses, light rail, regional trains) can integrate the touch PC as driver information system, ticket validator operator interface, or maintenance technician interface. The 9-36V DC wide power input handles vehicle electrical systems; the rugged IK08 cover glass tolerates vibration; the compact form factor fits vehicle cab installation.

For OEM volume programs, modular Front Kit / Back Kit purchasing arrangements, alternative OS pre-installation requests, PoE configuration, custom industrial integration consultation, or pre-sales technical discussion, request a quote from the faytech North America engineering team. For larger-format touch PC requirements, see the 21.5″ Capacitive Touch PC X6413E; for non-PC touch monitor applications, see the 24″ Capacitive Touch Monitor RTD2556 (Small Case).
