13.3″ Industrial Touch PC i5 (Large Case)

The 13.3″ Capacitive Touch PC I5-1145G7E (Large Case) is faytech's mid-compact, Full HD industrial touch PC — engineered for deployment scenarios where 10″ devices are too small for the application but a full 15″ or 21.5″ touch PC is too large. At 13.3″ with Full HD resolution in 16:9 widescreen, this is the sweet spot for modern industrial software, contemporary POS deployments, and operator workstations where content density and interaction comfort both matter.

Full HD Display in Compact Form Factor

The display delivers 1920×1080 Full HD resolution across a 293.76 × 165.24 mm active area — the first product in faytech's compact Core i5 Touch PC line to offer true Full HD. At 13.3″ diagonal, Full HD resolution produces approximately 166 PPI pixel density — meaningfully sharper than typical industrial displays. This pixel density is meaningful for:

• Text-heavy applications: SCADA event logs, alarm lists, process data tables, and clinical documentation read with crisp clarity at typical operator viewing distances.
• Detailed schematics and process diagrams: Engineering drawings, P&IDs, electrical schematics, and process flow diagrams display without pixelation, supporting on-screen reference work.
• Multi-window operations: Operator workstations running multiple software windows simultaneously benefit from the higher resolution — multiple panels fit on screen without losing legibility.
• Modern web applications: Contemporary web-based HMI and dashboard software is designed for Full HD displays. Lower-resolution panels show software with smaller-than-intended content; Full HD shows it at design intent.

Brightness is 300 cd/m², contrast 800:1, viewing angles 170°/170° — appropriate for indoor industrial environments under standard factory and commercial lighting. The display uses eDP (Embedded DisplayPort) interface internally — a more modern, higher-bandwidth interface than the LVDS used in the smaller siblings, supporting the Full HD bandwidth requirement reliably.

Note on LED lifetime: The LED backlight is rated for 15,000 hours, which is shorter than the 30,000-hour rating on the 10.1″ widescreen sibling. For continuous 24/7 deployment, plan backlight assessment around the 20-month mark; for typical 12-hour business-day usage, the backlight supports approximately 3.4 years of full-brightness operation. The 2-year warranty covers backlight failures within the warranty period.

Intel Core i5 Industrial Compute Platform

The platform is built around the Intel® Core™ i5-1145G7E (Tiger Lake U) — a genuine industrial vPro embedded processor, not a low-power Atom or Celeron SoC. The i5-1145G7E offers full Intel Core architecture with significantly more compute performance, larger cache, faster memory subsystems, and better single-thread performance than the Atom and Celeron alternatives common in this product category. Paired with 8 GB DDR4 RAM and a 240 GB SSD (proper SSD, not eMMC), the platform handles demanding industrial software with margin to spare.

This compute spec matters operationally because modern industrial software is increasingly resource-intensive: browser-based HMI panels running multiple WebSocket connections, real-time data dashboards with high-frequency telemetry, computer-vision-augmented inspection software, AI-assisted predictive maintenance interfaces, and the multi-application workloads common in operator stations that simultaneously run SCADA clients, document management systems, and corporate productivity software. Atom-class platforms struggle with these workloads; the i5-1145G7E handles them as a workstation-class device should.

The 1145G7E is also a vPro processor, supporting Intel's enterprise remote management features (AMT, vPro Manageability Engine) — meaningful for IT teams managing fleets of industrial workstations remotely across geographically distributed facilities. Power consumption is just 18.8W under operating load — remarkably efficient for a Core i5-class compute platform driving a Full HD display.

Operating System Options

Debian 12 ships pre-installed as standard (note: Pyramid Computer GmbH is not affiliated with Debian; Debian is a registered trademark owned by Software in the Public Interest, Inc.). Additional OS options available on request (with additional fee): Linux Ubuntu 22.4 LTS for the broader Ubuntu ecosystem alignment, Windows 10 for legacy Windows industrial software, and Windows 11 for current Windows commercial software. The Linux-first default reflects modern industrial deployment trends toward open-source OS platforms; Windows availability handles the substantial legacy of Windows-based industrial control software still in production.

Touch System

The 10-point projected capacitive multi-touch panel is built on 1.1 mm thermally strengthened cover glass with AG (chemical etching) anti-glare surface treatment, IK08 impact protection, and faytech's Clear Bond® optical bonding. The EXC81W84 touch controller communicates via USB. Touch resolution is 53 RX × 30 TX. The optical bonding eliminates the air gap between touch sensor and LCD panel, improving optical clarity at the high pixel density Full HD provides, reducing reflections in industrial lighting, and increasing mechanical durability against operator impacts.

Comprehensive Industrial Connectivity

Network: 2× 10/100/1000 Mbit Gigabit Ethernet RJ45 ports (Realtek® 8111H) supporting network segmentation common in industrial OT/IT separation. Wi-Fi via Intel® AC 3168 module with included RP-SMA female antenna. Power over Ethernet (PoE) is available upon request — meaningful for installations where running new AC power is impractical.

USB: 2× USB 3.0 (high-speed peripherals: external storage, barcode scanners, high-bandwidth instruments) + 2× USB 2.0 (standard industrial peripherals).

Video Output: 1× HDMI + 1× DisplayPort for external display extension — useful for operator stations with both primary touch interface and secondary information displays.

Industrial Serial: 2× RS-232 COM ports (RX/TX only, DSUB9). The dual COM port specification matters for industrial integration: many industrial deployments require simultaneous communication with multiple legacy devices (PLC + barcode scanner, scale + label printer, machine controller + data logger). The pinout follows standard RS-232 convention: Pin 2 RXD1, Pin 3 TXD1, Pin 5/10/11 GND.

Additional connectors: 1× Audio In/Out (Realtek® ALC897 Audio CODEC), 1× SD card slot for local data logging and removable storage, 1× SIM card slot for cellular connectivity in installations where Wi-Fi/Ethernet isn't appropriate.

Modular Front Kit + Back Kit Design

This product implements faytech's modular Front Kit + Back Kit architecture:

• 13.3″ Rubber Frame Front Kit: Contains the 13.3″ Full HD display panel, projected capacitive touch sensor, cover glass with Clear Bond® optical bonding, rubber frame structural assembly, and the IP65 sealing system.

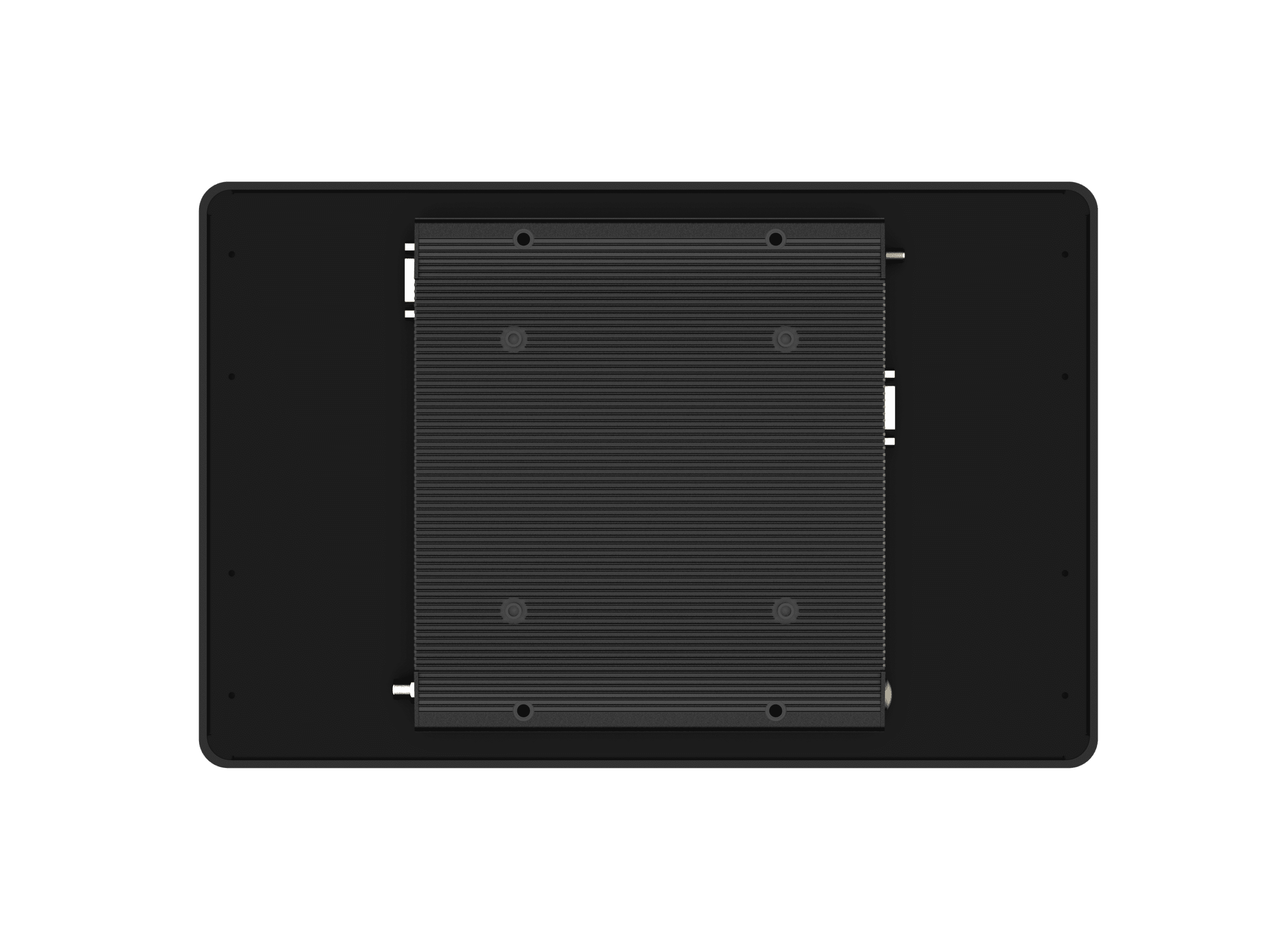

• Large IPC Back Kit (i5-1145G7E): Contains the Intel Core i5 compute platform, all external connectivity, network hardware, storage, and the aluminum IPC back case with passive thermal management fins. This is the same back kit shared across the 10″, 10.1″, and 13.3″ Touch PC products in this line.

The two kits can be ordered pre-assembled (deployment-ready) or separately packaged (for OEM integration), connected through various standardized connectors. Independent replacement during service supports:

• Compute platform refresh as Intel Core processor generations advance, without replacing the more expensive front kit
• Field damage replacement of cracked cover glass without retiring the working back kit and configured OS image
• OEM integration projects where custom enclosures house the back kit separately from the front kit
• Service inventory optimization with separate kit stocking — the shared Large IPC Back Kit across multiple front kit sizes simplifies fleet inventory management

Note: Front Kit + Back Kit assembly to be done by a professional to maintain IP65 seal integrity.

Mounting Options

• VESA 100 × 100 mounting: Standard wall-mount arms, articulating mounts, monitor stands, and industrial pole mounts.
• 4-clamp open-frame integration: Installation into custom kiosk enclosures, retail counters, industrial control panels, or built-in HMI positions via a 322.0 × 196.0 mm cut-out, secured by 4 clamps. Maximum clamp wall thickness is 5.0 mm.

Wide Power Input & Environmental

The platform accepts 9-36V DC wide power input — supporting standard 12V industrial DC, vehicle 24V systems, 48V battery backup systems (regulated), and the PoE option (when configured). The included 100-240V AC active-switching adapter outputs 12V DC for standard mains deployment. Operating power consumption is 18.8W with under 1W standby — remarkably efficient for a Core i5-class device driving a Full HD display, supporting continuous 24/7 deployment with minimal heat generation. Operating temperature range is -10°C to +60°C with 10–90% humidity tolerance, suitable for partially-conditioned industrial environments.

IP65 Front + IP40 Back protection. CE and FCC certified.

Intended use: Industrial-grade touchscreen touch PC for indoor use as control panel, digital signage, wayfinding, POS, and similar applications. Protect from direct sunlight. Operation outside specified temperature ranges is not covered by warranty.

Included in the Delivery

Power adapter (100-240V AC active switching, 12V DC-Out), Wi-Fi antenna (RP-SMA female), short installation manual.

Hypothetical Application Scenarios

Modern Industrial Automation – Full HD HMI Workstations: Picture a manufacturing facility deploying contemporary HMI software at operator stations where content density matters: SCADA with multiple panels visible, real-time data dashboards with high-resolution charts, machine vision interfaces, and concurrent quality documentation. The 13.3″ Full HD display renders all of this with appropriate clarity; the Core i5 platform handles the multi-application workload without lag; the dual RS-232 ports connect to existing PLC infrastructure; the 18.8W power consumption keeps operating costs minimal across deployments at scale.

Process Control Rooms — Operator Stations: Power generation, water treatment, and chemical processing operations can use the touch PC as operator stations where the screen needs to display rich graphical interfaces with detailed P&IDs and process schematics. The Full HD resolution renders complex process graphics with appropriate detail; the dual Gigabit Ethernet supports OT/IT network segmentation; the 4K external display output (via HDMI/DP) drives secondary monitors for additional process data; the Linux Ubuntu pre-installation supports open-source SCADA platforms.

Modern POS & Restaurant Terminals: Restaurants, retail chains, and hospitality operators can deploy the touch PC as full-feature POS terminals running modern Windows or Linux-based POS software. The 13.3″ Full HD display is comfortable for both staff and customer-facing applications; the Core i5 processor handles modern POS workloads with margin; the IP65 front tolerates food service spills and cleaning protocols; the multiple OS options align with diverse POS platform requirements.

Healthcare — Clinical Workstations & EHR Documentation: Hospitals and clinics can deploy the touch PC as clinical workstations, bedside terminals, and nursing station auxiliary computers. The Full HD resolution renders modern EHR interfaces (Epic, Cerner, athenahealth) at design fidelity; the Core i5 compute platform handles the multi-tab clinical workflows; the IP65 front supports the alcohol-based disinfectant and bleach-wipe cleaning protocols required in healthcare; the OS flexibility (Debian/Ubuntu/Windows) aligns with diverse hospital IT standards.

Laboratory Instrument Interfaces: Modern laboratory instruments — analyzers, chromatography systems, spectrometers, automated liquid handlers — can use the touch PC as the local operator interface. The Full HD display renders detailed analytical data, complex chromatograms, and high-density data tables clearly; the Core i5 compute platform handles the data processing typical of lab instrument control; the dual RS-232 supports instrument-to-instrument communication.

Engineering & Design Workstation Augmentation: Engineering offices, design studios, and architectural firms can use the touch PC as auxiliary workstations for drawing review, markup, and documentation. The Full HD display renders detailed schematics and CAD drawings appropriately; the Core i5 handles drawing-review software; the touch interface supports markup and annotation workflows.

Transportation Operations Centers: Transit agencies, fleet management depots, and logistics operations can deploy the touch PC at dispatch stations, route planning workstations, and maintenance technician interfaces. The Full HD display fits modern dispatch software design; the 9-36V DC wide power input supports vehicle electrical systems for mobile installations; the SIM card slot supports cellular telemetry; the dual Ethernet supports network segmentation.

Visitor Management & Reception Terminals: Corporate offices, government facilities, and major venues can deploy the touch PC as visitor management terminals. The 13.3″ Full HD display provides comfortable interaction size for standing visitors; the Core i5 handles the photo capture, ID verification, and badge printing workflows modern VMS systems require; the modular Front Kit + Back Kit design supports easy front kit replacement after wear.

Building Automation & Energy Management: Commercial buildings, campuses, and energy management deployments can use the touch PC as floor-level HVAC, lighting, and energy monitoring interfaces. The Full HD resolution renders building automation software interfaces clearly; the PoE option (upon request) simplifies installation; the dual Ethernet supports building automation network plus IT network.

For OEM volume programs, modular Front Kit / Back Kit purchasing arrangements, alternative OS pre-installation requests, PoE configuration, custom industrial integration consultation, or pre-sales technical discussion, request a quote from the faytech North America engineering team.
