13.3″ Industrial Touch PC X6413E (Large Case)

The 13.3″ Capacitive Touch PC X6413E (Large Case) is faytech's Atom-based industrial touch PC at the popular 13.3″ Full HD widescreen size — engineered as the cost-effective alternative to the Core i5 sibling for deployments where platform demands are well within Atom Quad-Core capability and buyers prioritize value and high-resolution widescreen real estate over premium compute headroom. The 13.3″ Full HD size has become a contemporary standard for browser-based HMI, modern web-based control software, multi-pane dashboards, and information-dense application interfaces — and this product is positioned for fleet kiosk deployments, building automation interfaces, equipment OEM integration projects, and any commercial deployment where Full HD resolution and modern aspect ratio matter alongside cost efficiency.

Same Large Case Form Factor — Different Compute Tier

This product implements faytech's standard Large Case architecture — identical Large IPC Back Kit design, modular Front Kit + Back Kit construction, connectivity layout, and mounting infrastructure as the rest of the Large Case Touch PC family. The difference is the internal compute platform: this product uses the Intel Atom x6413E (Elkhart Lake) Quad-Core processor, while the Core i5 Large Case siblings use the Intel Core i5-1145G7E (Tiger Lake U) vPro processor. The Atom and i5 Large Case products install identically into the same mounting infrastructure, offer identical connectivity, and share the same modular service infrastructure. The buying decision is purely about compute tier and cost.

When to choose this Atom version:

• Modern web-based HMI workstations running browser-based industrial interfaces within Atom-class capability
• Dedicated-function kiosks — visitor management, ticket dispensing, queue management, information displays, self-service POS
• Fleet deployments at scale where per-unit cost savings multiply meaningfully across dozens or hundreds of installations
• Equipment OEM integration where unit cost drives the buy decision and OEM software targets Atom-class platforms
• Building automation interfaces at floor-level deployment points where Atom compute is appropriate
• Digital signage with interactive elements where Full HD resolution matters but compute requirements are bounded

When the Core i5 Large Case sibling is the better choice:

• Multi-application operator workstations running SCADA + document management + corporate productivity concurrently
• Computer-vision augmented inspection software or AI-assisted predictive maintenance applications
• vPro remote management requirements for IT fleet management across distributed facilities
• Higher storage requirements — Core i5 Large Case siblings ship with 240 GB SSD vs 120 GB on this Atom version

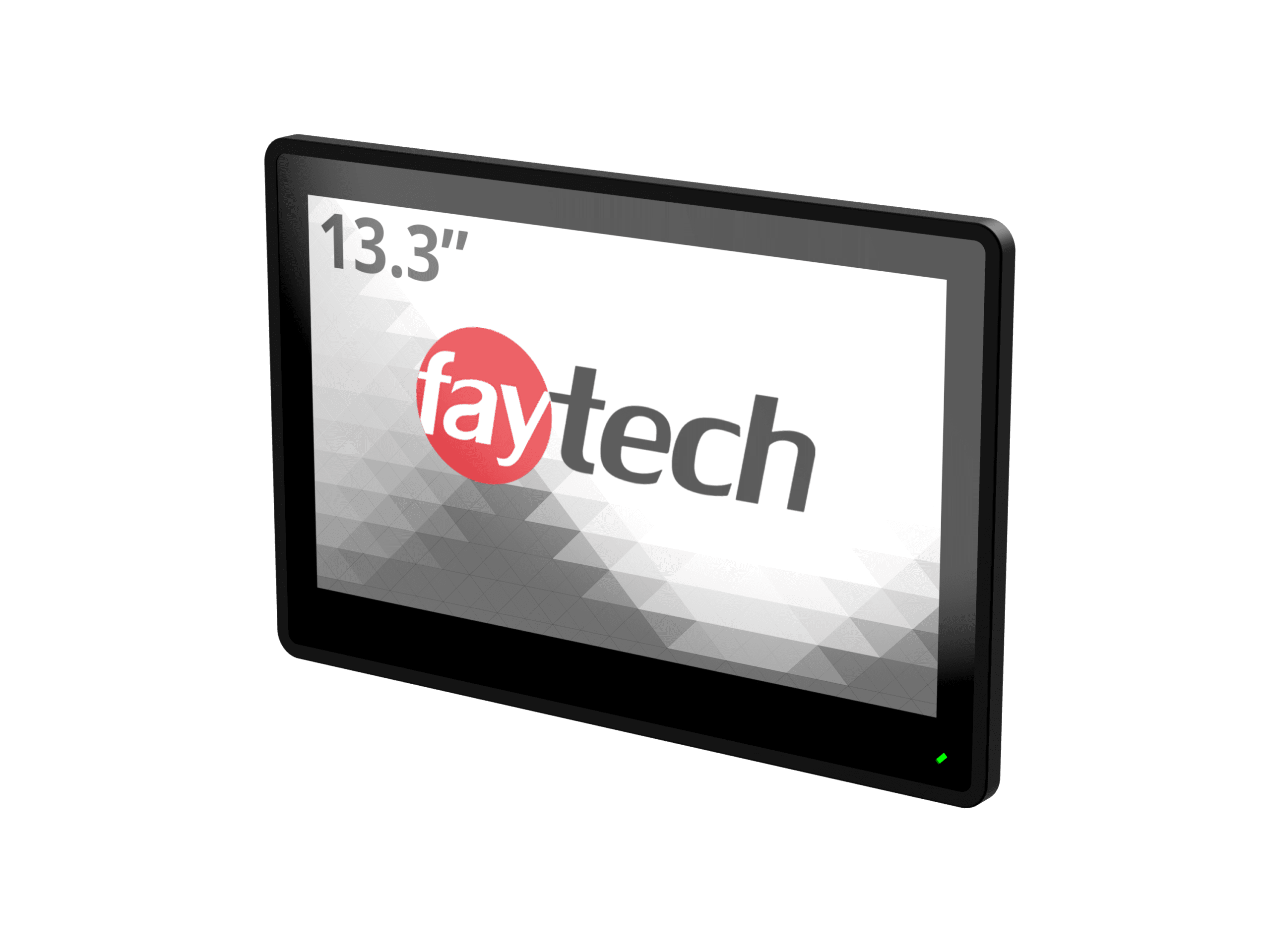

Full HD Resolution on a 13.3″ Widescreen Panel

The display is purpose-built for modern interface design: 13.3″ across the diagonal, 1920×1080 Full HD resolution, and 16:9 aspect ratio. This combination delivers approximately 166 PPI — significantly higher pixel density than typical industrial XGA panels, supporting:

• Multi-pane HMI layouts with simultaneous SCADA, trend graphs, alarm lists, and operator controls visible at once
• Browser-based modern web HMI designed around 1080p as the baseline resolution
• Video content playback — surveillance feeds, training videos, marketing content, instructional media at native Full HD
• High-density information displays — schedule boards, queue management systems, transit information
• Modern POS software designed for widescreen 1080p displays with rich product imagery and detailed transaction interfaces

Brightness is 300 cd/m², contrast 800:1, viewing angles 170°/170°. The display uses eDP (embedded DisplayPort) interface internally — a modern panel interface standard supporting higher resolutions and refresh rates than legacy LVDS. LED backlight lifetime is 15,000 hours.

Intel Atom Industrial Compute Platform

The platform is built around the Intel® Atom® x6413E processor from Intel's Elkhart Lake family — a modern Quad-Core x86 SoC designed specifically for industrial IoT, edge computing, and dedicated-function commercial deployment. The Atom x6413E offers a deliberate balance of performance and power efficiency: enough compute headroom to run industrial software, web-based HMI applications, dedicated-function POS systems, digital signage with Full HD content playback, and signage management at exceptionally low power consumption (12.8W under typical load).

Paired with 8 GB DDR4 RAM and a 120 GB SSD (proper SSD, not eMMC), the platform handles industrial control software, signage content management, kiosk applications, and modern web frameworks within Atom-appropriate workload boundaries. For workloads beyond this envelope, the Core i5 Large Case sibling is the appropriate choice within the same physical form factor.

Operating System Options

Debian 12 ships pre-installed as standard (note: Pyramid Computer GmbH is not affiliated with Debian; Debian is a registered trademark owned by Software in the Public Interest, Inc.). Additional OS options are available on request with an additional fee: Linux Ubuntu 22.4 LTS, Windows 10, and Windows 11. For Linux-based dedicated-function deployment, the Atom platform performs well within its workload boundaries. For Windows-heavy multi-application deployments, the Core i5 Large Case version is the better choice.

Touch System

The 10-point projected capacitive multi-touch panel is built on 1.1 mm thermally strengthened cover glass with AG anti-glare surface treatment (chemical etching), IK08 impact protection, and faytech's proprietary Clear Bond® optical bonding. The EXC81W84 touch controller communicates via USB with touch resolution of 53 RX × 30 TX. Multi-touch supports modern gesture-driven interfaces including pinch-to-zoom, two-finger scrolling, and rotation gestures.

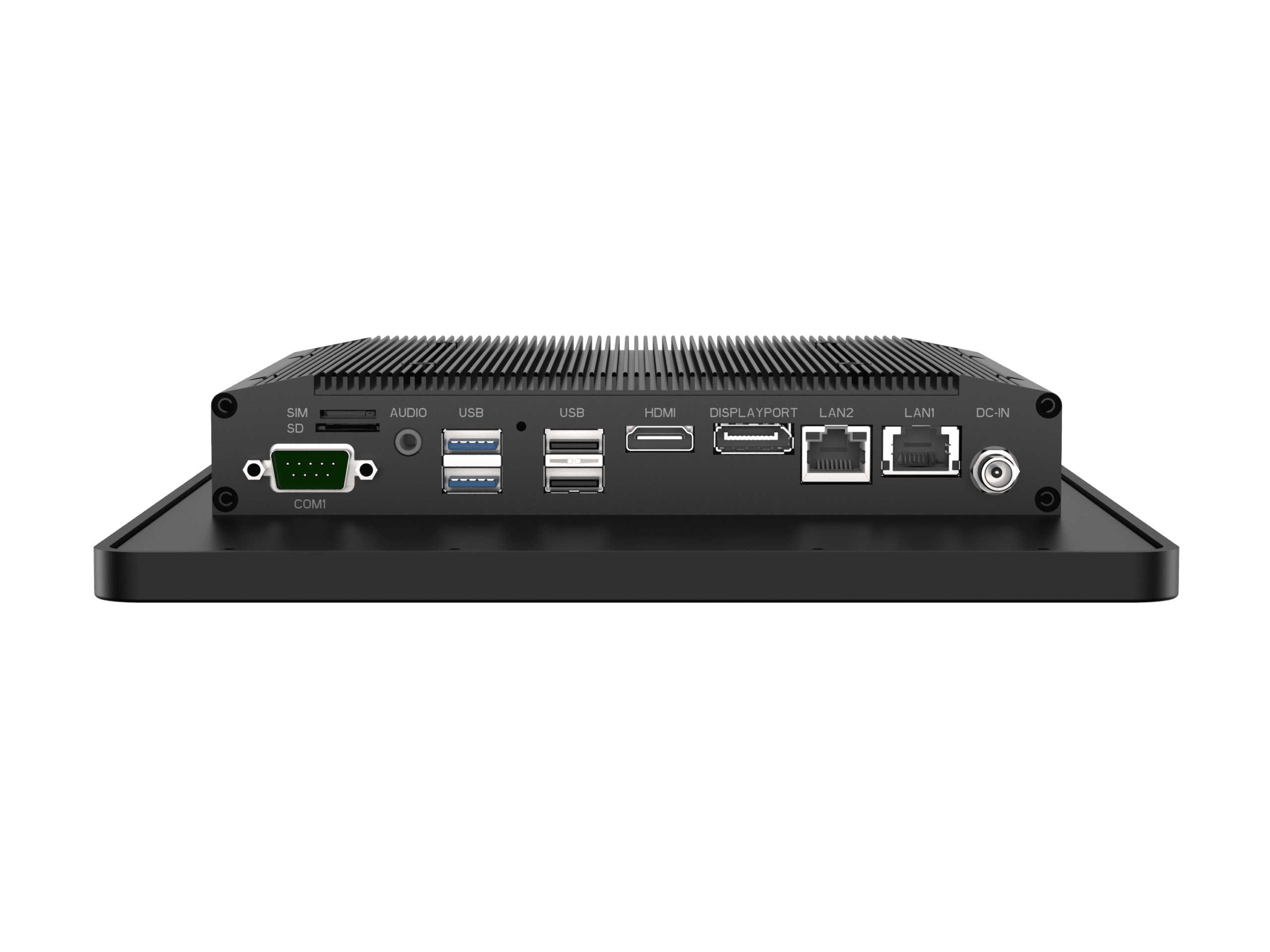

Industrial Connectivity

Network: 2× 10/100/1000 Mbit Gigabit Ethernet RJ45 ports (Realtek® 8111H) supporting network segmentation between operational technology (OT) networks and information technology (IT) networks — critical for industrial cybersecurity. Wi-Fi via Intel® AC 3168 module with included RP-SMA female antenna. Power over Ethernet (PoE) is available upon request.

USB: 2× USB 3.0 + 2× USB 2.0 for peripheral integration (barcode scanners, payment terminals, RFID readers, signature pads, configuration storage devices, service-tool laptops).

Video Output: 1× HDMI + 1× DisplayPort for external display extension — supporting dual-display configurations, second-monitor signage, or external display mirroring.

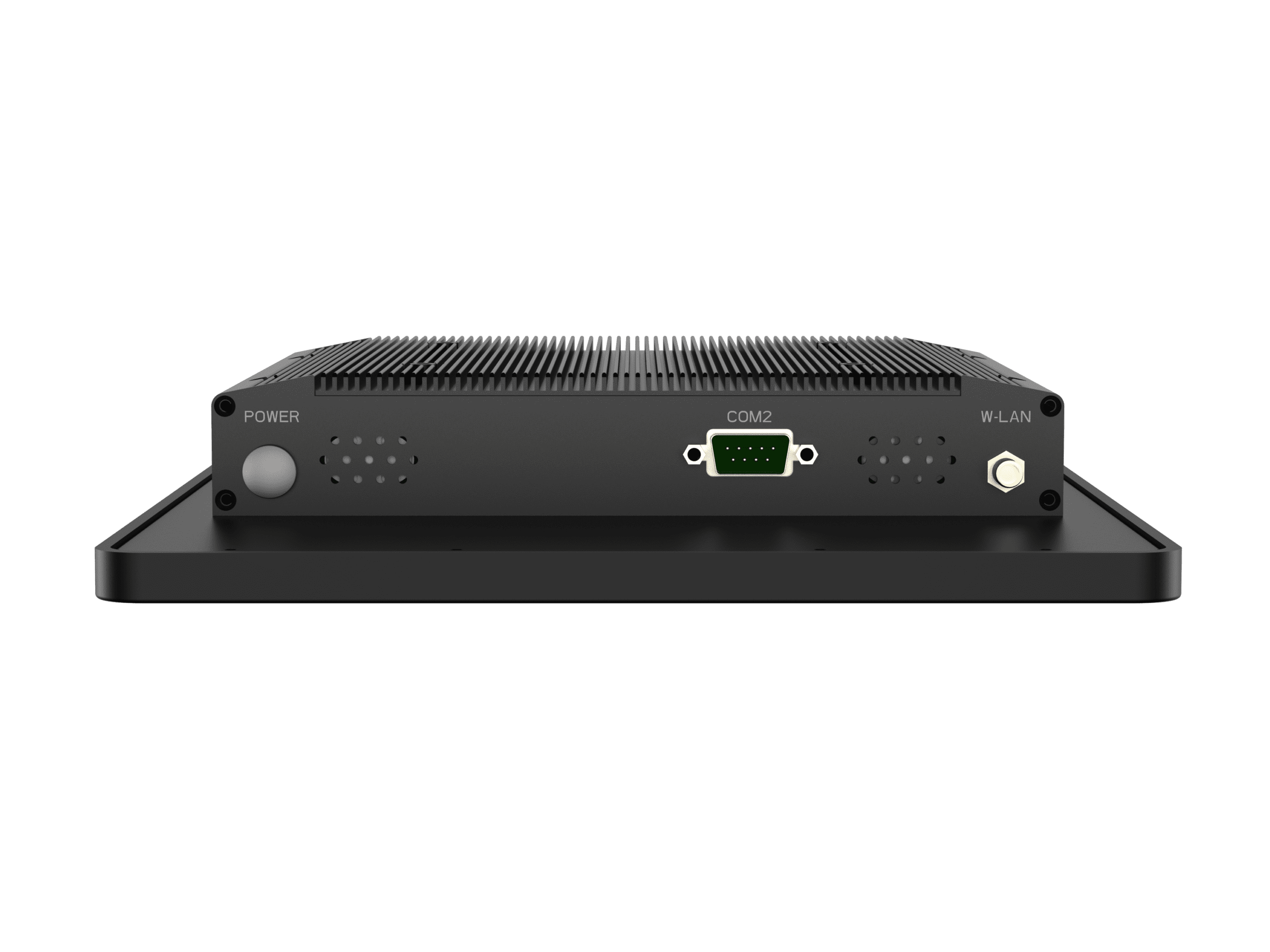

Industrial Serial: 2× RS-232 COM ports (RX/TX only, DSUB9) for legacy industrial equipment integration including PLCs, motor controllers, weigh scales, RFID readers, and serial sensors. Standard pinout: Pin 2 RXD1, Pin 3 TXD1, Pins 5/10/11 GND.

Audio: 1× Audio In/Out (3.5 mm) via Realtek® ALC897 Audio CODEC + 2× 2W integrated loudspeakers for transaction confirmations, alert tones, and audio prompts.

Storage Expansion: 1× SD card slot for removable storage and 1× SIM card slot for cellular connectivity options.

Modular Front Kit + Large IPC Back Kit Design

This product implements faytech's modular Front Kit + Back Kit architecture with the Large IPC Back Kit (X6413E) — the same chassis design used across the entire Large Case family, configured here with the Atom processor:

• 13.3″ Rubber Frame Front Kit: Contains the 13.3″ Full HD display panel, projected capacitive touch sensor, cover glass with Clear Bond® optical bonding, rubber frame structural assembly, and the IP65 sealing system.

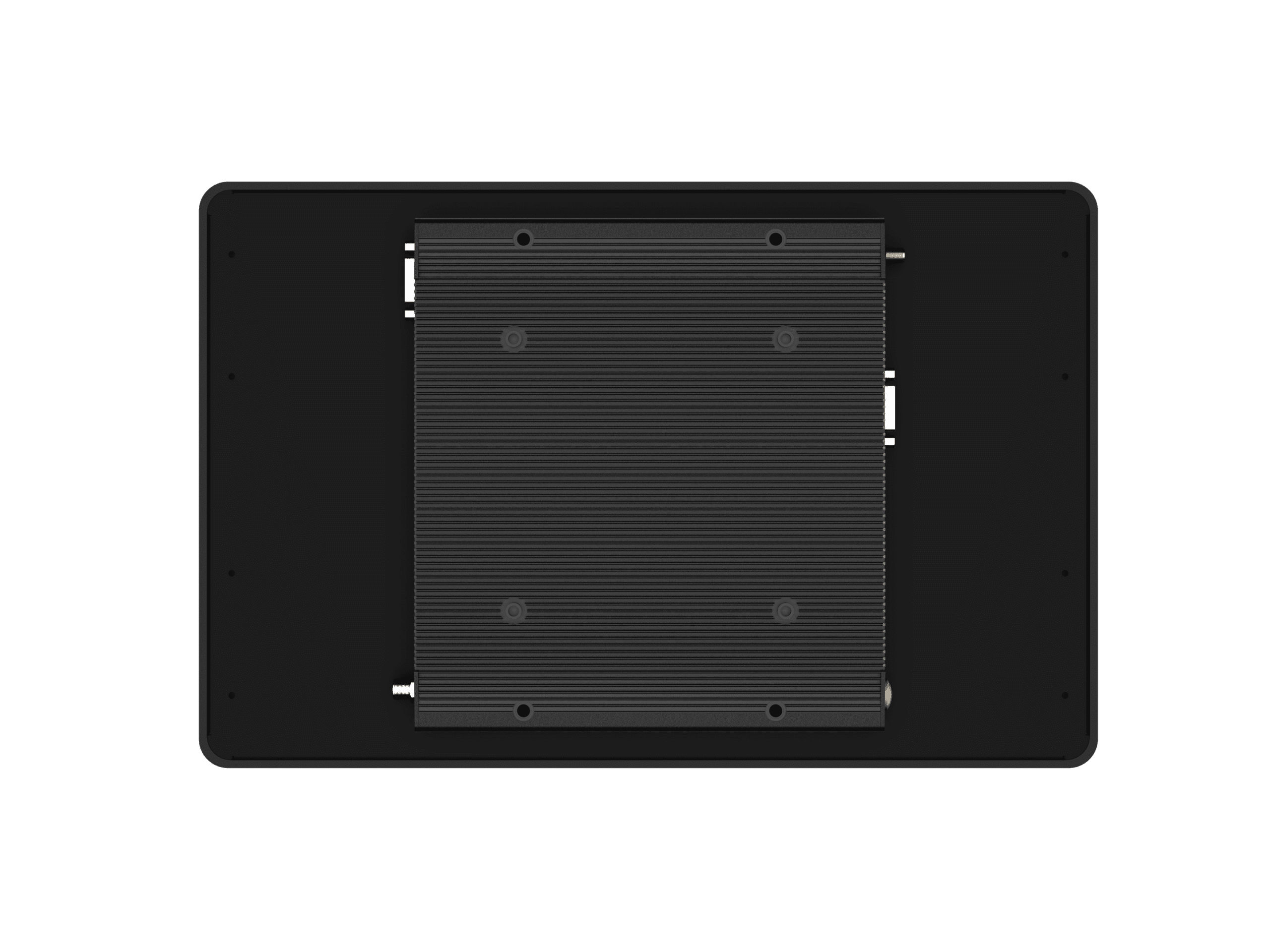

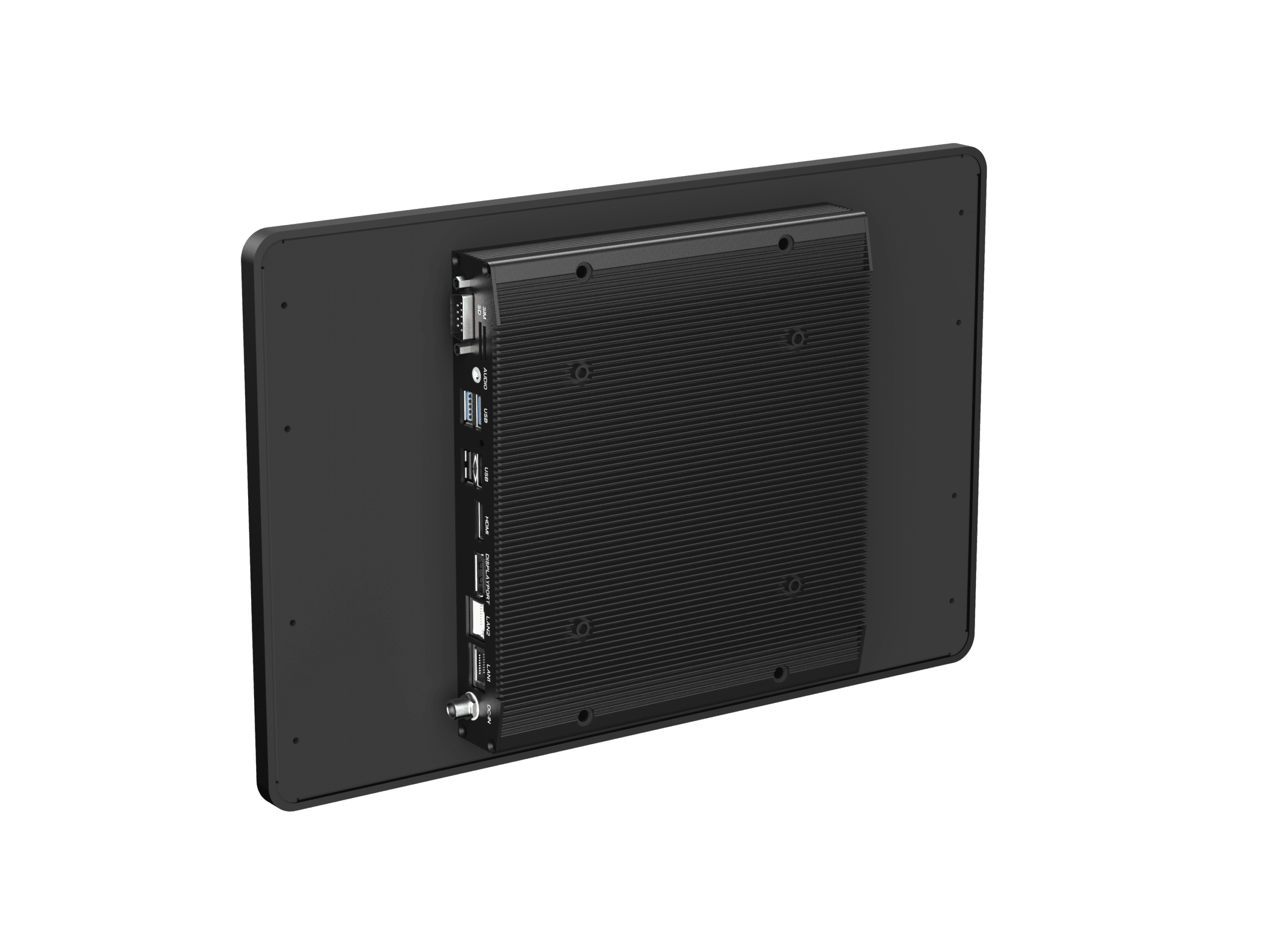

• Large IPC Back Kit (X6413E): Contains the Intel Atom x6413E compute platform, all external connectivity, network hardware, storage, and the aluminum IPC back case with passive thermal management fins. Same physical chassis as the Core i5 Large Back Kit, configured with the Atom platform.

The shared physical infrastructure between the Atom and i5 Large Case families is operationally meaningful: organizations deploying mixed Atom and i5 Touch PCs can use the same mounting hardware, the same kiosk enclosures, the same cut-out templates, and the same service inventory infrastructure. The compute platform decision is independent of the physical integration decision.

Independent kit replacement during service supports:

• Compute platform refresh as Intel processor generations advance — replace only the back kit while keeping the original front kit, display, and physical integration
• Field damage replacement of cracked cover glass without retiring the working back kit and configured OS image
• OEM integration projects where custom enclosures house the back kit separately from the front kit
• Cross-compute service flexibility — organizations can upgrade from Atom to Core i5 in the same physical infrastructure if compute requirements grow

Note: Front Kit + Back Kit assembly to be done by a professional to maintain IP65 seal integrity.

Mounting Options

• VESA 100 × 100 mounting: Standard wall-mount arms, articulating mounts, monitor stands, and industrial pole mounts.
• 4-clamp open-frame integration: Installation into custom kiosk enclosures, retail counters, industrial control panels, vehicle dashboards, or built-in HMI positions via a 322.0 × 196.0 mm cut-out, secured by 4 clamps. Maximum clamp wall thickness is 5.0 mm.

Wide Power Input & Environmental

The platform accepts 9-36V DC wide power input — supporting standard 12V industrial DC, vehicle 24V systems, 48V battery backup systems (regulated), and the PoE option. The included 100-240V AC active-switching adapter outputs 12V DC. Operating power consumption is just 12.8W with under 1W standby — exceptionally efficient for a 13.3″ Full HD industrial touch PC and substantially lower than typical Core i5 Large Case siblings. This low-power profile is ideal for solar-powered installations, battery-backed deployments, vehicle-mount applications, and any deployment scenario where power budget matters.

Operating temperature range is -10°C to +60°C with 10–90% humidity tolerance. IP65 Front + IP40 Back protection. CE and FCC certified.

Intended use: Industrial-grade touchscreen touch PC for indoor use as control panel, digital signage, wayfinding, POS, and similar applications. Protect from direct sunlight. Operation outside specified temperature ranges is not covered by warranty.

Included in the Delivery

Power adapter (100-240V AC active switching, 12V DC-Out), Wi-Fi antenna (RP-SMA female), short installation manual.

Hypothetical Application Scenarios

Self-Service Kiosk Fleet — Quick-Service Restaurants: Quick-service restaurant chains deploying self-order kiosks across dozens or hundreds of locations benefit from the Atom Large Case at 13.3″. The Full HD resolution supports rich menu imagery and modern POS interface design; the Atom platform handles QSR ordering software adequately; the per-unit cost savings versus Core i5 multiply meaningfully across the fleet; the IP65 front handles customer-facing deployment and regular cleaning.

Visitor Management & Reception — Modern Office Environments: Corporate offices, hospitals, and government facilities deploying modern visitor management kiosks at building entrances benefit from the 13.3″ Full HD widescreen format. The contemporary aspect ratio matches modern visitor management software design; the screen size is comfortable for forms-based check-in flows and photo capture interfaces; the IP65 front supports public-facing deployment with regular cleaning protocols; the Atom platform handles VMS software within its workload envelope.

Building Automation — Floor-Level Control Distribution: Building automation systems deploying floor-level HVAC, lighting, security, and energy management interfaces at scale benefit from the Atom Large Case's cost optimization. The 13.3″ Full HD format supports multi-pane control interfaces with system status, schedules, and overrides visible simultaneously; the PoE option simplifies installation by eliminating separate power runs; the dual Ethernet supports building automation network plus IT network segregation; the 12.8W consumption minimizes energy overhead across distributed installation points.

Equipment OEM Integration — Modern Product Lines: Equipment manufacturers building products with integrated modern HMI panels at competitive price points can use the Atom Large Case at 13.3″ Full HD — same physical integration as the Core i5 version but at lower cost, allowing the OEM to offer Atom-based products in their entry/mid-tier and Core i5 versions in their premium tier without changing the physical equipment design. The Full HD resolution supports modern HMI software designed for current-generation display standards.

Interactive Digital Signage Network: Retail chains, transit hubs, museums, and corporate campuses deploying interactive digital signage benefit from the 13.3″ Full HD format. Video content plays at native resolution; the touch interface supports browsable content navigation; the 15,000-hour LED lifetime supports continuous deployment; the dual Ethernet supports content management network plus directory service; the Atom platform handles signage management software within its workload envelope; cellular SIM slot enables remote installations with cellular content updates.

Healthcare — Patient Engagement & Bedside Information: Hospitals deploying patient engagement systems, bedside information displays, and family-facing communication terminals benefit from the 13.3″ Full HD format and the Atom Large Case cost positioning. The IP65 front supports hospital cleaning protocols; the modular Front+Back Kit design supports rapid service replacement in 24/7 environments; the Atom platform handles patient-facing software within its workload envelope; cost optimization is meaningful for hospital-wide bedside deployment.

Education — Classroom & Lab Workstations: Schools, universities, and corporate training facilities deploying classroom interactive stations and lab workstations benefit from the 13.3″ Full HD format and per-unit cost optimization. The Full HD resolution supports modern educational software and web-based learning platforms; the Atom platform handles classroom workloads adequately; cost positioning supports deployment at scale; the Core i5 alternative is available for advanced positions where it's appropriate.

Quick-Service Retail — Customer-Facing Endpoints: Retail chains deploying customer-facing touch points at scale (gift registry kiosks, in-store wayfinding, product information lookup, loyalty enrollment) benefit from the Atom Large Case at 13.3″. The Full HD format supports modern retail UI with product imagery; the IP65 front handles public-facing deployment; the dual GbE supports POS network plus customer Wi-Fi network; cost-efficient per-unit pricing supports broad in-store deployment.

Fleet & Vehicle-Mount Industrial: Material handling vehicles, service vehicles, mobile equipment, and rail transit applications deploying in-vehicle touch computing benefit from the 9-36V wide-range DC input. The 13.3″ Full HD format supports route management software, dispatch interfaces, and customer-facing applications; the 12.8W consumption is appropriate for battery-powered vehicles; the rugged aluminum chassis withstands vehicle vibration; the IP65 front handles cabin environment cleaning.

Solar-Powered Remote Stations: Remote monitoring installations (utility metering, environmental monitoring, agricultural systems, infrastructure monitoring) powered by solar + battery benefit from the exceptionally low 12.8W operating power. The wide-range 9-36V input matches typical 12V/24V solar system outputs directly; the cellular SIM slot supports remote data uplink; the Full HD format supports detailed status displays; the Atom platform runs lightweight monitoring software within its power and compute envelope.

For OEM volume programs, modular Front Kit / Large IPC Back Kit purchasing arrangements, alternative OS pre-installation requests, PoE configuration, custom industrial integration consultation, mixed Atom/i5 fleet planning, or pre-sales technical discussion, request a quote from the faytech North America engineering team.
