15.6″ Capacitive Touch PC I5-1145G7E (Large Case)

The 15.6″ Capacitive Touch PC I5-1145G7E (Large Case) is faytech's modern widescreen industrial touch PC at the standard laptop-size class — engineered for deployment scenarios where the contemporary 15.6″ 16:9 form factor matches modern software design, current operator workstation expectations, and the productive screen real estate that today's multi-application workflows require. This is the widescreen complement to the 15″ 4:3 industrial standard model, serving deployments that have moved (or are moving) to current widescreen software stacks.

Full HD Widescreen Display

The display delivers 1920×1080 Full HD resolution across a 344.16 × 193.59 mm active area, in 16:9 widescreen aspect ratio at 15.6″ diagonal — the same panel size class as a typical business laptop, making this a familiar form factor for operators transitioning from laptop-based workstations to dedicated touch PC hardware. At 15.6″ Full HD, the pixel density is approximately 141 PPI, supporting sharp text rendering for data-heavy industrial applications, modern HMI dashboards, and contemporary POS interfaces.

The display uses eDP (Embedded DisplayPort) interface internally — a modern, higher-bandwidth display interface that supports the Full HD signal reliably and provides better power management than legacy LVDS. Contrast 800:1, viewing angles 170°/170°.

Display brightness and LED lifetime — honest specifications: Brightness is 220 cd/m², which is the lowest in the Core i5 Touch PC family and lower than typical commercial monitors. This is appropriate for controlled indoor environments — modern office spaces, climate-controlled retail interiors, hospital and healthcare facilities, classroom and education environments — but not for high-ambient-light industrial settings where the 420 cd/m² 15″ 4:3 sibling would be the better choice. LED backlight lifetime is rated at 15,000 hours — for continuous 24/7 deployment, plan backlight assessment around the 20-month mark; for typical 12-hour business-day usage, the backlight supports approximately 3.4 years of full-brightness operation. The 2-year warranty covers backlight failures within the warranty period.

Intel Core i5 Industrial Compute Platform

The platform is built around the Intel® Core™ i5-1145G7E (Tiger Lake U) — a genuine industrial vPro embedded processor, not a low-power Atom or Celeron SoC. The i5-1145G7E offers full Intel Core architecture with significantly more compute performance than the Atom and Celeron alternatives common in this product category. Paired with 8 GB DDR4 RAM and a 240 GB SSD (proper SSD, not eMMC), the platform handles demanding industrial software with margin to spare.

This compute spec matters operationally because modern industrial software is increasingly resource-intensive: browser-based HMI panels running multiple WebSocket connections, real-time data dashboards with high-frequency telemetry, computer-vision-augmented inspection software, AI-assisted predictive maintenance interfaces, and the multi-application workloads common in operator stations that simultaneously run SCADA clients, document management systems, and corporate productivity software.

The 1145G7E is also a vPro processor, supporting Intel's enterprise remote management features (AMT, vPro Manageability Engine) — meaningful for IT teams managing fleets of industrial workstations remotely across geographically distributed facilities. Power consumption is just 19.6W under operating load — remarkably efficient for a Core i5-class device driving a Full HD widescreen display.

Operating System Options

Debian 12 ships pre-installed as standard (note: Pyramid Computer GmbH is not affiliated with Debian; Debian is a registered trademark owned by Software in the Public Interest, Inc.). Additional OS options available on request (with additional fee): Linux Ubuntu 22.4 LTS for the broader Ubuntu ecosystem alignment, Windows 10 for legacy Windows industrial software, and Windows 11 for current Windows commercial software. The Linux-first default reflects modern industrial deployment trends toward open-source OS platforms; Windows availability handles the substantial legacy of Windows-based industrial control software still in production.

Touch System

The 10-point projected capacitive multi-touch panel is built on 1.1 mm thermally strengthened cover glass with AG (chemical etching) anti-glare surface treatment, IK08 impact protection, and faytech's Clear Bond® optical bonding. The EXC81W84 touch controller communicates via USB. Touch resolution is 53 RX × 30 TX. The optical bonding eliminates the air gap between touch sensor and LCD panel, improving optical clarity at the Full HD pixel density, reducing reflections in commercial lighting, and increasing mechanical durability against operator impacts.

Comprehensive Industrial Connectivity

Network: 2× 10/100/1000 Mbit Gigabit Ethernet RJ45 ports (Realtek® 8111H) supporting network segmentation common in industrial OT/IT separation. Wi-Fi via Intel® AC 3168 module with included RP-SMA female antenna. Power over Ethernet (PoE) is available upon request — meaningful for installations where running new AC power is impractical.

USB: 2× USB 3.0 (high-speed peripherals: external storage, barcode scanners, high-bandwidth instruments) + 2× USB 2.0 (standard industrial peripherals).

Video Output: 1× HDMI + 1× DisplayPort for external display extension — useful for operator stations with both primary touch interface and secondary information displays.

Industrial Serial: 2× RS-232 COM ports (RX/TX only, DSUB9). The dual COM port specification matters for industrial integration: many industrial deployments require simultaneous communication with multiple legacy devices (PLC + barcode scanner, scale + label printer, machine controller + data logger). The pinout follows standard RS-232 convention: Pin 2 RXD1, Pin 3 TXD1, Pin 5/10/11 GND.

Additional connectors: 1× Audio In/Out (Realtek® ALC897 Audio CODEC), 1× SD card slot for local data logging and removable storage, 1× SIM card slot for cellular connectivity in installations where Wi-Fi/Ethernet isn't appropriate.

Modular Front Kit + Back Kit Design

This product implements faytech's modular Front Kit + Back Kit architecture:

• 15.6″ Rubber Frame Front Kit: Contains the 15.6″ Full HD display panel, projected capacitive touch sensor, cover glass with Clear Bond® optical bonding, rubber frame structural assembly, and the IP65 sealing system.

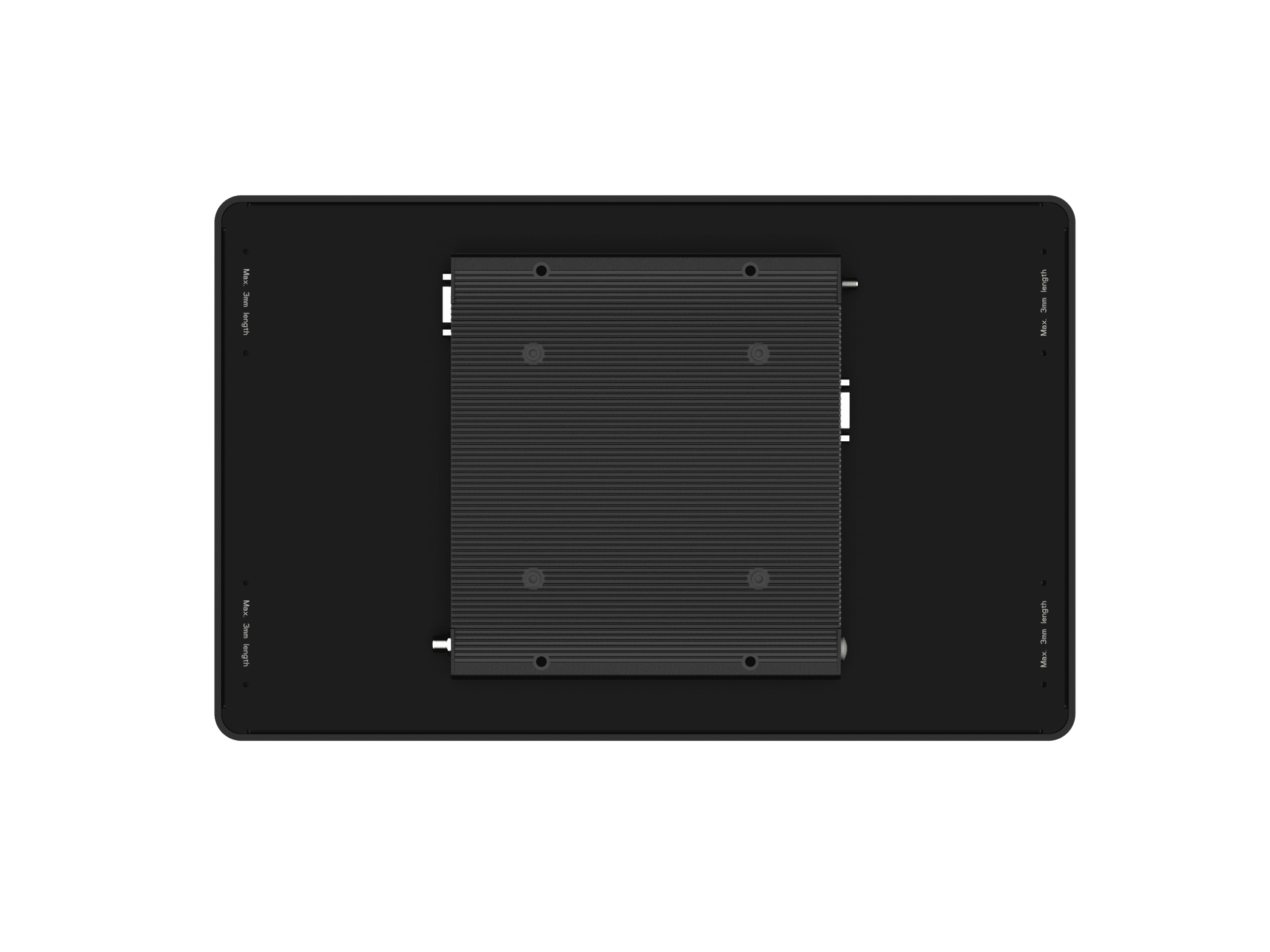

• Large IPC Back Kit (i5-1145G7E): Contains the Intel Core i5 compute platform, all external connectivity, network hardware, storage, and the aluminum IPC back case with passive thermal management fins. This is the same back kit shared across the 10″, 10.1″, 13.3″, 15″, and 15.6″ Touch PC products in this line.

The two kits can be ordered pre-assembled (deployment-ready) or separately packaged (for OEM integration), connected through various standardized connectors. Independent replacement during service supports:

• Compute platform refresh as Intel Core processor generations advance, without replacing the more expensive front kit
• Field damage replacement of cracked cover glass without retiring the working back kit and configured OS image
• OEM integration projects where custom enclosures house the back kit separately from the front kit
• Service inventory optimization with separate kit stocking — the shared Large IPC Back Kit across multiple front kit sizes simplifies fleet inventory management for organizations operating mixed-size Touch PC deployments

Note: Front Kit + Back Kit assembly to be done by a professional to maintain IP65 seal integrity.

Mounting Options

• VESA 100 × 100 mounting: Standard wall-mount arms, articulating mounts, monitor stands, and industrial pole mounts.
• 4-clamp open-frame integration: Installation into custom kiosk enclosures, retail counters, industrial control panels, or built-in HMI positions via a 371.0 × 218.0 mm cut-out, secured by 4 clamps. Maximum clamp wall thickness is 5.0 mm.

Wide Power Input & Environmental

The platform accepts 9-36V DC wide power input — supporting standard 12V industrial DC, vehicle 24V systems, 48V battery backup systems (regulated), and the PoE option (when configured). The included 100-240V AC active-switching adapter outputs 12V DC for standard mains deployment. Operating power consumption is 19.6W with under 1W standby. Operating temperature range is -10°C to +60°C with 10–90% humidity tolerance, suitable for partially-conditioned industrial environments.

IP65 Front + IP40 Back protection. CE and FCC certified.

Intended use: Industrial-grade touchscreen touch PC for indoor use as control panel, digital signage, wayfinding, POS, and similar applications. Protect from direct sunlight. Operation outside specified temperature ranges is not covered by warranty.

Included in the Delivery

Power adapter (100-240V AC active switching, 12V DC-Out), Wi-Fi antenna (RP-SMA female), short installation manual.

Hypothetical Application Scenarios

Modern Industrial Automation – Widescreen HMI Workstations: Picture a manufacturing facility deploying contemporary HMI software at operator stations where the modern 15.6″ widescreen form factor matches the current software interface design. The Full HD resolution renders modern dashboards with appropriate detail; the Core i5 platform handles the multi-application workload; the dual RS-232 ports connect to existing PLC infrastructure; the 19.6W power consumption keeps operating costs minimal across deployments at scale.

Retail POS & Customer Service Terminals: Retailers and hospitality operators can deploy the touch PC as full-feature POS terminals running modern Windows or Linux-based POS software. The 15.6″ Full HD widescreen display is comfortable for both staff and customer-facing applications; the Core i5 processor handles modern POS workloads with margin; the IP65 front tolerates restaurant and retail spills and cleaning; the multiple OS options align with diverse POS platform requirements.

Healthcare – Clinical Workstations & EHR Documentation: Hospitals and clinics can deploy the touch PC as clinical workstations, bedside terminals, and nursing station auxiliary computers. The Full HD resolution renders modern EHR interfaces (Epic, Cerner, athenahealth) at design fidelity; the Core i5 compute platform handles the multi-tab clinical workflows; the IP65 front supports the alcohol-based disinfectant and bleach-wipe cleaning protocols required in healthcare; the OS flexibility (Debian/Ubuntu/Windows) aligns with diverse hospital IT standards. The 220 cd/m² brightness is appropriate for typical hospital lighting conditions.

Visitor Management & Reception Terminals: Corporate offices, government facilities, and major venues can deploy the touch PC as visitor management terminals. The 15.6″ Full HD widescreen provides comfortable interaction size for standing visitors; the Core i5 handles the photo capture, ID verification, and badge printing workflows modern VMS systems require; the modular Front Kit + Back Kit design supports easy front kit replacement after wear; the 220 cd/m² brightness suits indoor lobby lighting.

Education – Smart Classroom & Lab Workstations: Schools, universities, and training facilities can deploy the touch PC as smart classroom interfaces, lab control workstations, and library research terminals. The 15.6″ Full HD widescreen matches the educational software design language; the Core i5 platform handles modern educational applications including video, interactive content, and multimedia. The Linux/Windows OS flexibility aligns with diverse educational IT standards.

Engineering & Drafting Workstations — Design Office Auxiliary Terminals: Engineering offices, architectural firms, and design studios can use the touch PC as auxiliary workstations for drawing review, markup, and documentation. The Full HD display renders detailed schematics and CAD drawings appropriately; the Core i5 handles drawing-review software; the touch interface supports markup and annotation workflows; the modern widescreen aspect matches current CAD software interface design.

Hospitality – Front Desk & Property Management: Hotels can deploy the touch PC as front desk workstations, property management system terminals, and concierge workstations. The Full HD widescreen supports modern PMS interface design; the Core i5 platform handles the multi-application workflows typical of hospitality operations; the 220 cd/m² brightness suits indoor hospitality lighting; the modular design supports easy service replacement.

Logistics & Warehouse Operations: Warehouse operations, distribution centers, and logistics facilities can deploy the touch PC as pick-pack workstations, receiving stations, and inventory management terminals. The 15.6″ Full HD widescreen supports modern WMS (Warehouse Management System) interfaces; the dual Ethernet supports WMS network plus management network; the dual USB 3.0 supports barcode scanners and label printers.

Telemedicine & Remote Care Stations: Healthcare facilities expanding telemedicine capabilities can deploy the touch PC as patient-facing telemedicine stations. The 15.6″ Full HD display supports video conferencing software interfaces; the Core i5 handles the video processing and concurrent EHR access; the IP65 front supports clinical cleaning between patients; the multiple OS options align with telemedicine platform requirements.

Building Automation & Energy Management: Commercial buildings, campuses, and energy management deployments can use the touch PC as floor-level HVAC, lighting, and energy monitoring interfaces. The Full HD resolution renders building automation software interfaces clearly; the PoE option (upon request) simplifies installation; the dual Ethernet supports building automation network plus IT network.

For OEM volume programs, modular Front Kit / Back Kit purchasing arrangements, alternative OS pre-installation requests, PoE configuration, custom industrial integration consultation, or pre-sales technical discussion, request a quote from the faytech North America engineering team.
