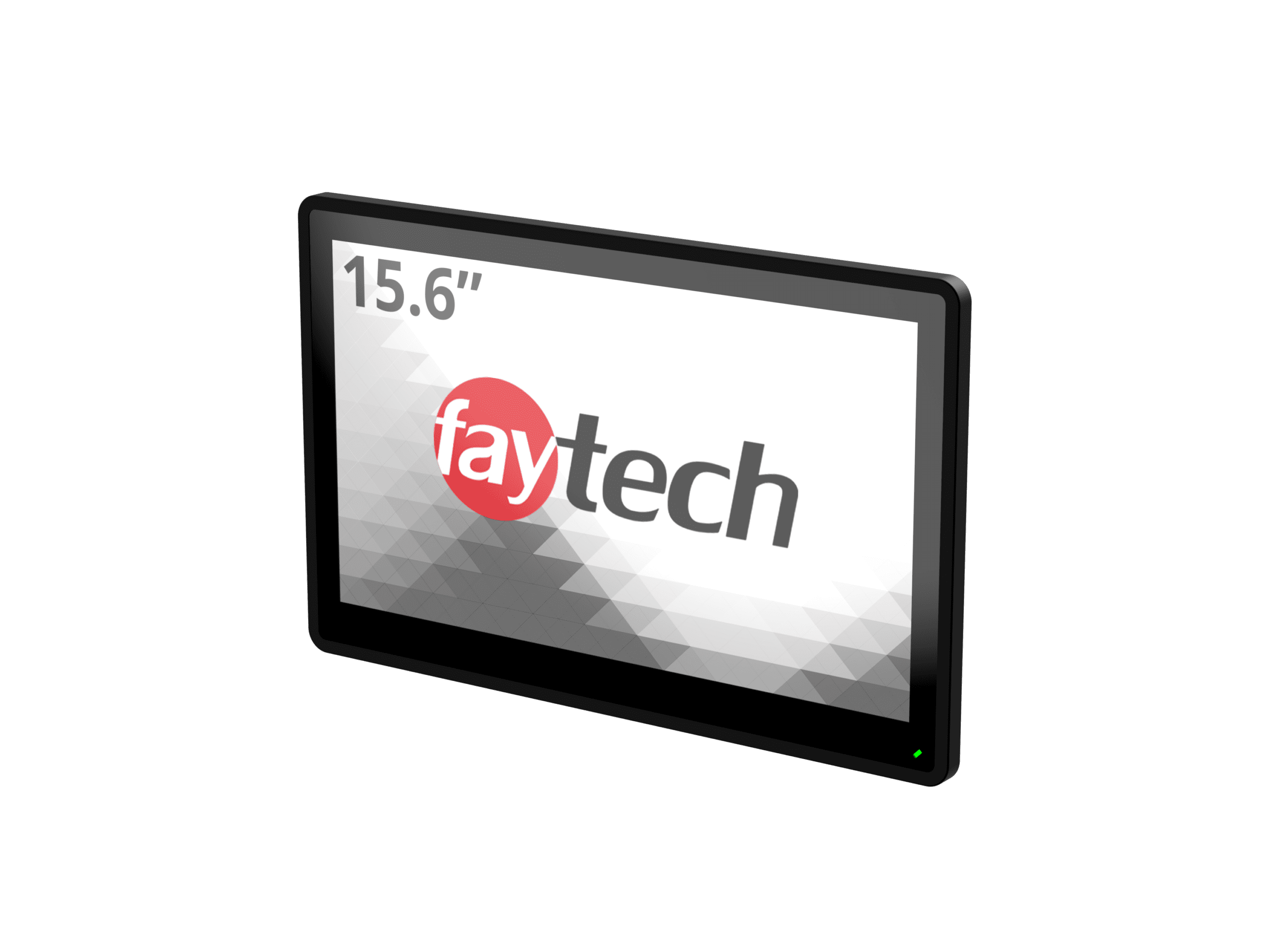

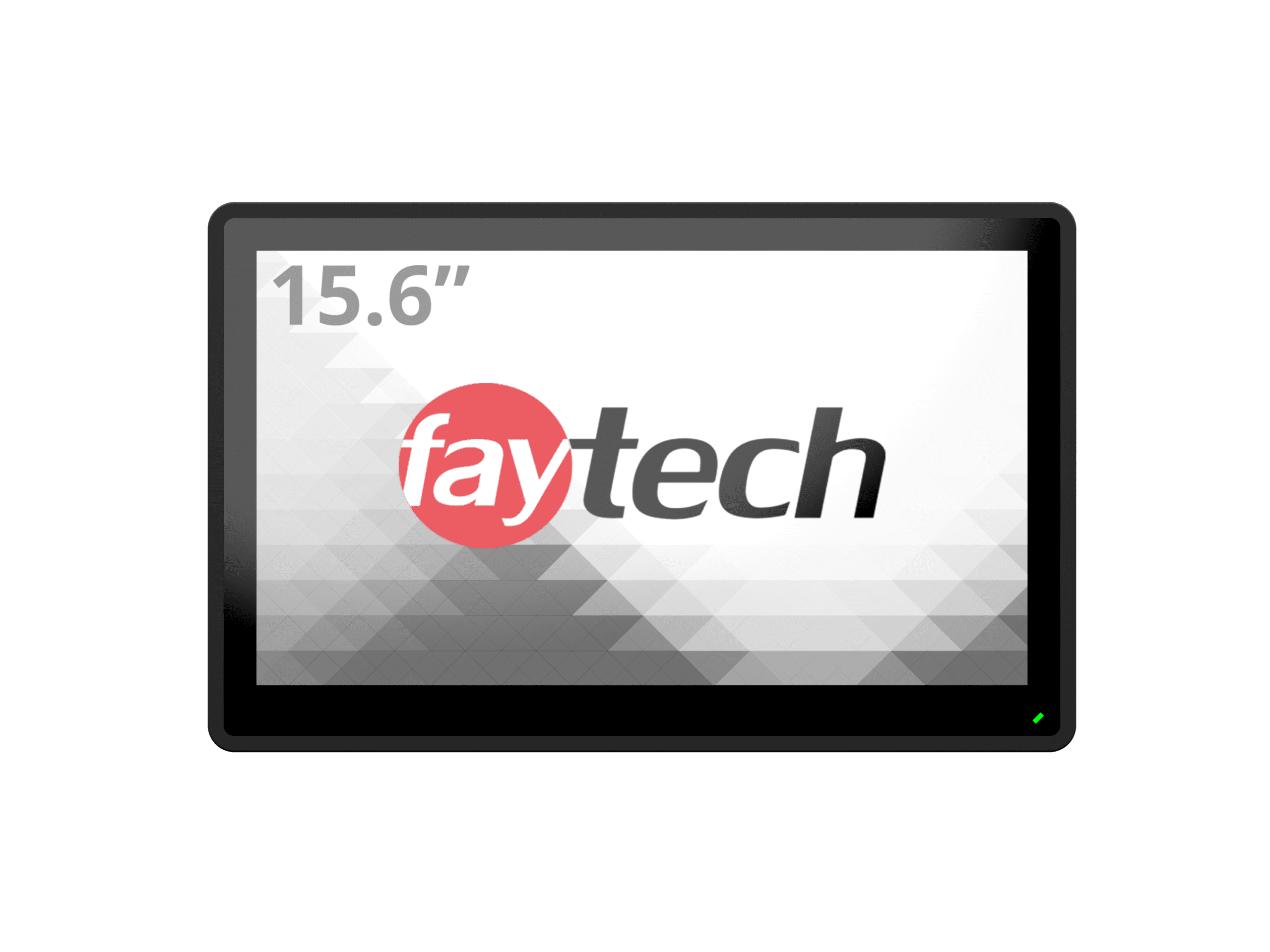

15.6″ Industrial Touch PC X6413E (Large Case)

The 15.6″ Capacitive Touch PC X6413E (Large Case) is faytech's Atom-based industrial touch PC at the popular 15.6″ Full HD widescreen size — engineered as the cost-effective alternative to the Core i5 sibling for deployments where platform demands are well within Atom Quad-Core capability and buyers prioritize value, modern Full HD resolution, and laptop-equivalent screen size over premium compute headroom. The 15.6″ Full HD form factor matches the dominant laptop and consumer display size, making it intuitive for end users and well-supported by software designed for contemporary display standards. This product is positioned for self-service kiosk fleets, quick-service restaurant ordering, retail customer-facing endpoints, interactive digital signage, modern web-based HMI, and equipment OEM integration at competitive price points.

Same Large Case Form Factor — Different Compute Tier

This product implements faytech's standard Large Case architecture — identical Large IPC Back Kit design, modular Front Kit + Back Kit construction, connectivity layout, and mounting infrastructure as the rest of the Large Case Touch PC family. The difference is the internal compute platform: this product uses the Intel Atom x6413E (Elkhart Lake) Quad-Core processor, while the Core i5 Large Case siblings use the Intel Core i5-1145G7E (Tiger Lake U) vPro processor. The Atom and i5 Large Case products install identically into the same mounting infrastructure, offer identical connectivity, and share the same modular service infrastructure. The buying decision is purely about compute tier and cost.

When to choose this Atom version:

• Self-service kiosk fleets — QSR ordering, ticket dispensing, visitor management, queue management, retail self-checkout
• Modern web-based HMI workstations running browser-based industrial interfaces within Atom-class capability
• Interactive digital signage with Full HD video content and touch-driven navigation
• Fleet deployments at scale where per-unit cost savings multiply meaningfully across hundreds of installations
• Equipment OEM integration where unit cost drives the buy decision and OEM software targets Atom-class platforms
• Retail customer-facing endpoints — gift registries, product configurators, loyalty enrollment, store-locator kiosks

When the Core i5 Large Case sibling is the better choice:

• Multi-application operator workstations running SCADA + document management + corporate productivity concurrently
• Computer-vision augmented inspection software or AI-assisted predictive maintenance applications
• vPro remote management requirements for IT fleet management across distributed facilities
• Higher storage requirements — Core i5 Large Case siblings ship with 240 GB SSD vs 120 GB on this Atom version

Full HD Resolution on a 15.6″ Widescreen Panel

The display is purpose-built for modern interface design: 15.6″ across the diagonal, 1920×1080 Full HD resolution, and 16:9 aspect ratio. The 15.6″ Full HD format is the dominant laptop display size and the most widely-deployed touch screen size in self-service kiosk fleets globally. This combination delivers approximately 141 PPI — comfortable pixel density for at-arm's-length viewing typical of kiosk and HMI deployment, supporting:

• Modern self-service software designed for 1920×1080 baseline resolution — QSR ordering platforms, visitor management systems, ticket dispensing kiosks, retail self-checkout
• Multi-pane HMI layouts with simultaneous SCADA, trend graphs, alarm lists, and operator controls visible at once
• Browser-based modern web HMI designed around 1080p as the baseline resolution
• Video content playback — surveillance feeds, training videos, marketing content, advertising rotation, instructional media at native Full HD
• High-density information displays — schedule boards, queue management systems, transit information, dashboard signage
• Modern POS software designed for widescreen 1080p displays with rich product imagery and detailed transaction interfaces

Brightness is 220 cd/m², contrast 800:1, viewing angles 170°/170°. The display uses eDP (embedded DisplayPort) interface internally — a modern panel interface standard supporting higher resolutions and refresh rates than legacy LVDS. LED backlight lifetime is 15,000 hours. The 220-nit brightness is appropriate for typical indoor commercial deployment with controlled lighting; for installations with bright ambient lighting (windows, skylights, high-bay lighting), consider higher-brightness siblings or external lighting management.

Intel Atom Industrial Compute Platform

The platform is built around the Intel® Atom® x6413E processor from Intel's Elkhart Lake family — a modern Quad-Core x86 SoC designed specifically for industrial IoT, edge computing, and dedicated-function commercial deployment. The Atom x6413E offers a deliberate balance of performance and power efficiency: enough compute headroom to run modern self-service software, web-based HMI applications, dedicated-function POS systems, digital signage with Full HD content playback, and signage management at exceptionally low power consumption (13.6W under typical load).

Paired with 8 GB DDR4 RAM and a 120 GB SSD (proper SSD, not eMMC), the platform handles self-service applications, signage content management, kiosk applications, and modern web frameworks within Atom-appropriate workload boundaries. For workloads beyond this envelope, the Core i5 Large Case sibling is the appropriate choice within the same physical form factor.

Operating System Options

Debian 12 ships pre-installed as standard (note: Pyramid Computer GmbH is not affiliated with Debian; Debian is a registered trademark owned by Software in the Public Interest, Inc.). Additional OS options are available on request with an additional fee: Linux Ubuntu 22.4 LTS, Windows 10, and Windows 11. For Linux-based dedicated-function deployment, the Atom platform performs well within its workload boundaries. For Windows-heavy multi-application deployments, the Core i5 Large Case version is the better choice.

Touch System

The 10-point projected capacitive multi-touch panel is built on 1.1 mm thermally strengthened cover glass with AG anti-glare surface treatment (chemical etching), IK08 impact protection, and faytech's proprietary Clear Bond® optical bonding. The EXC81W84 touch controller communicates via USB with touch resolution of 53 RX × 30 TX. Multi-touch supports modern gesture-driven interfaces including pinch-to-zoom, two-finger scrolling, and rotation gestures — well-suited to consumer-facing self-service software designed for smartphone-equivalent interaction patterns.

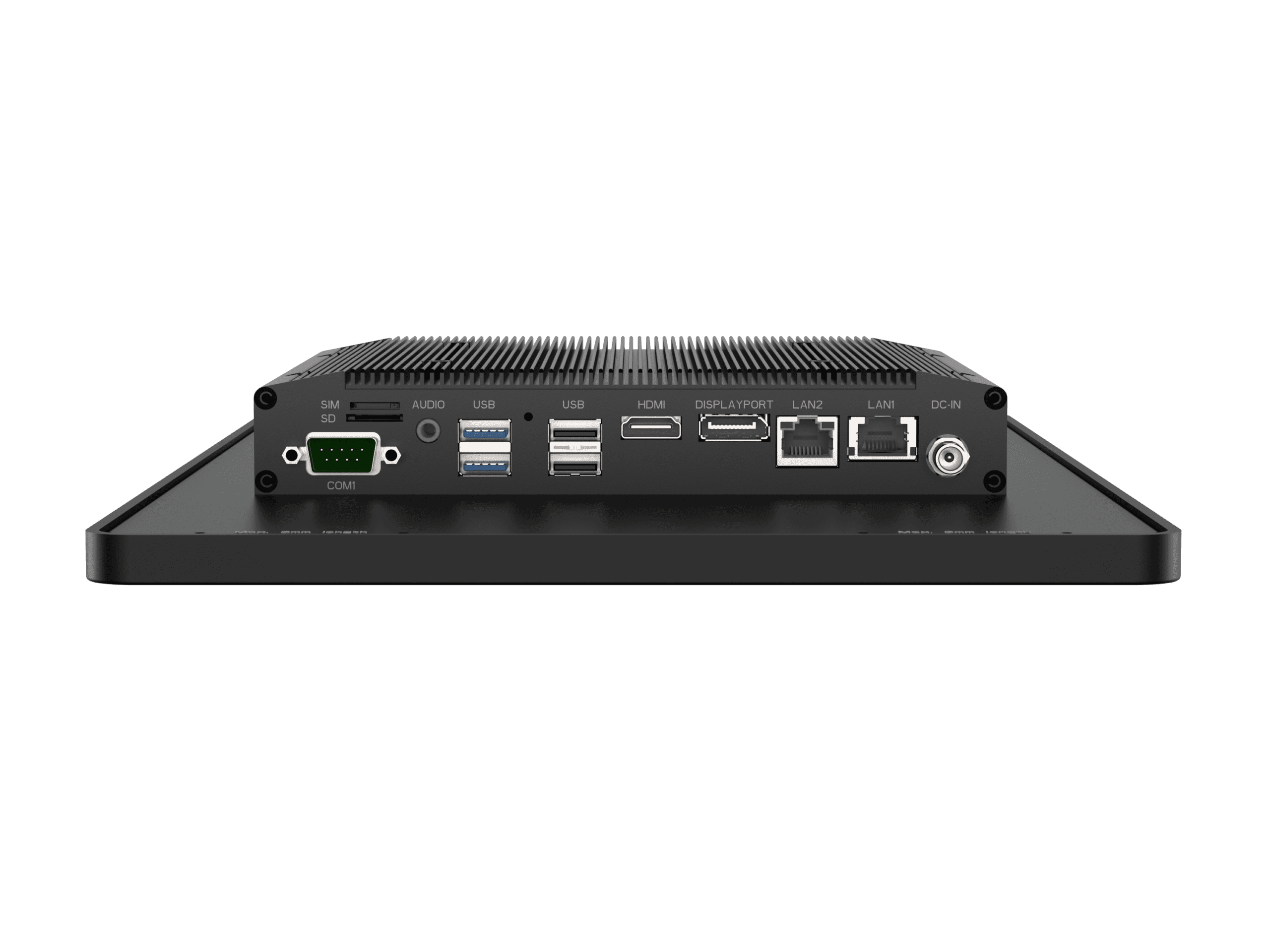

Industrial Connectivity

Network: 2× 10/100/1000 Mbit Gigabit Ethernet RJ45 ports (Realtek® 8111H) supporting network segmentation between operational technology (OT) networks and information technology (IT) networks — critical for PCI-DSS scope segmentation in retail POS deployment and industrial cybersecurity in HMI deployment. Wi-Fi via Intel® AC 3168 module with included RP-SMA female antenna. Power over Ethernet (PoE) is available upon request.

USB: 2× USB 3.0 + 2× USB 2.0 for peripheral integration (barcode scanners, payment terminals, RFID readers, signature pads, receipt printers, cash drawers, configuration storage devices, service-tool laptops).

Video Output: 1× HDMI + 1× DisplayPort for external display extension — supporting dual-display configurations (operator + customer-facing displays in retail POS, primary + auxiliary monitor in HMI deployment, content + interactive panel in digital signage).

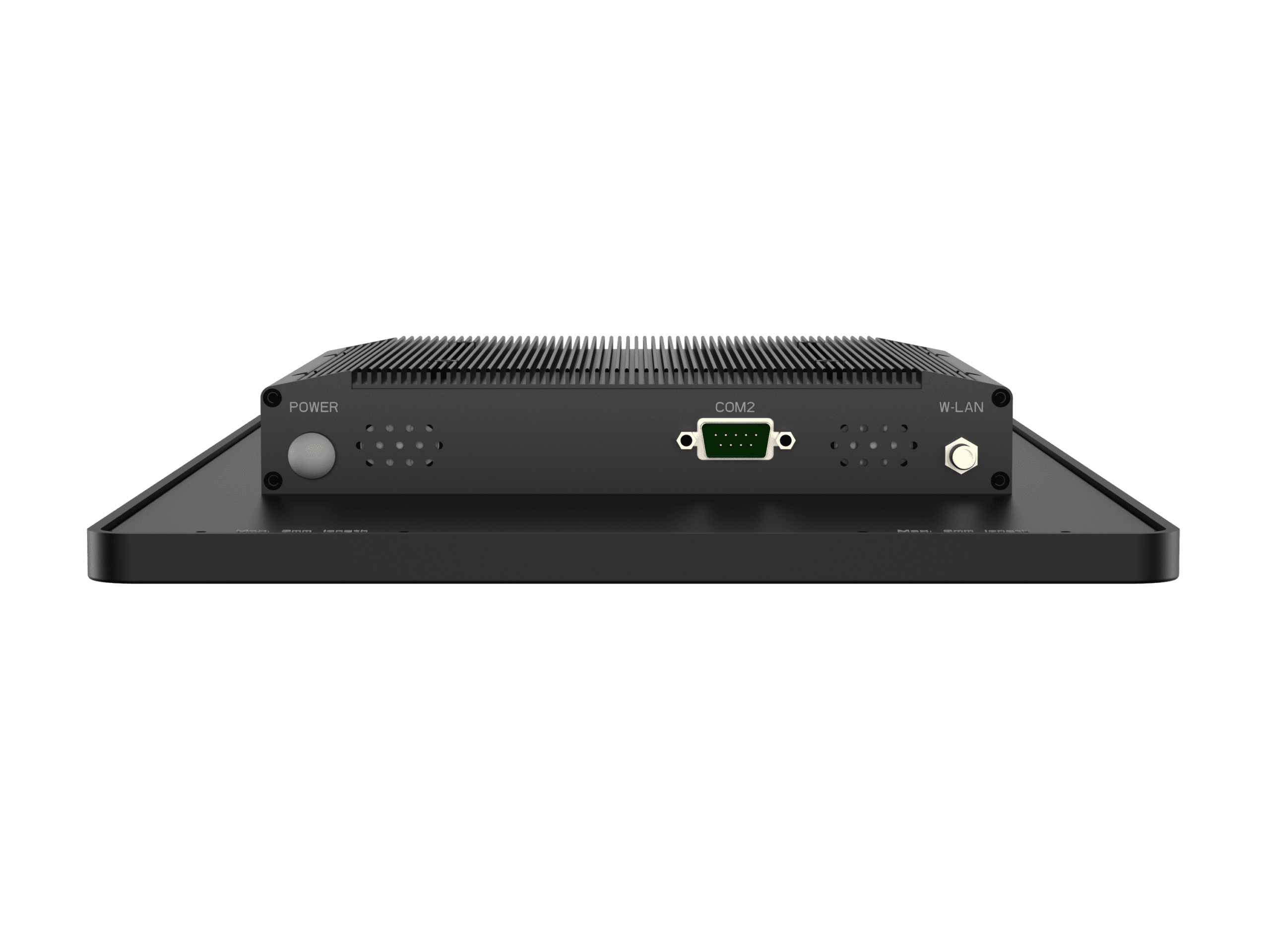

Industrial Serial: 2× RS-232 COM ports (RX/TX only, DSUB9) for legacy industrial equipment integration including PLCs, motor controllers, weigh scales, RFID readers, serial sensors, and legacy POS peripherals (cash drawers, kitchen printers, customer displays). Standard pinout: Pin 2 RXD1, Pin 3 TXD1, Pins 5/10/11 GND.

Audio: 1× Audio In/Out (3.5 mm) via Realtek® ALC897 Audio CODEC + 2× 2W integrated loudspeakers for transaction confirmations, alert tones, audio prompts, signage audio content, and accessibility audio (for visually-impaired users).

Storage Expansion: 1× SD card slot for removable storage and 1× SIM card slot for cellular connectivity options.

Modular Front Kit + Large IPC Back Kit Design

This product implements faytech's modular Front Kit + Back Kit architecture with the Large IPC Back Kit (X6413E) — the same chassis design used across the entire Large Case family, configured here with the Atom processor:

• 15.6″ Rubber Frame Front Kit: Contains the 15.6″ Full HD display panel, projected capacitive touch sensor, cover glass with Clear Bond® optical bonding, rubber frame structural assembly, and the IP65 sealing system.

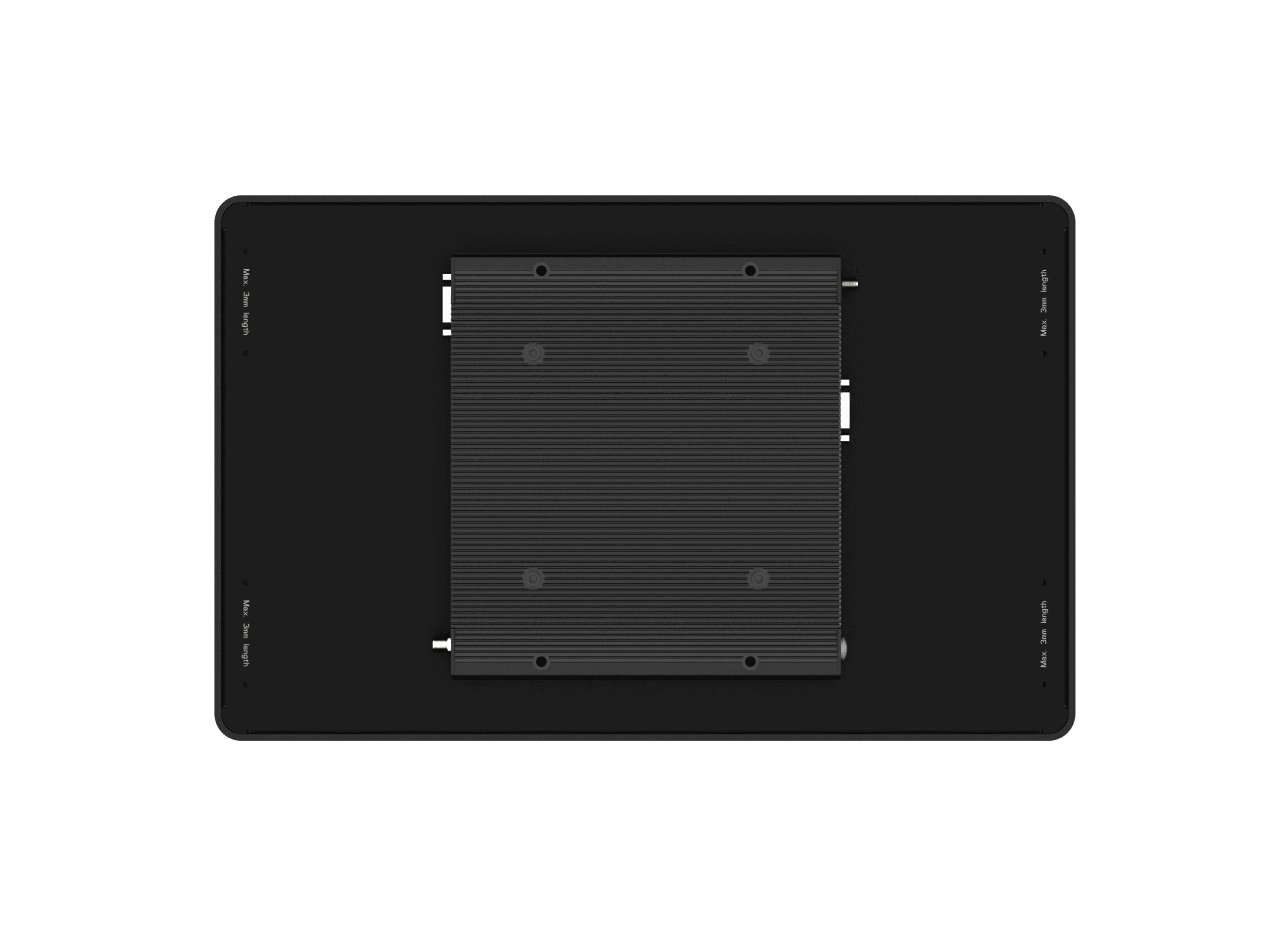

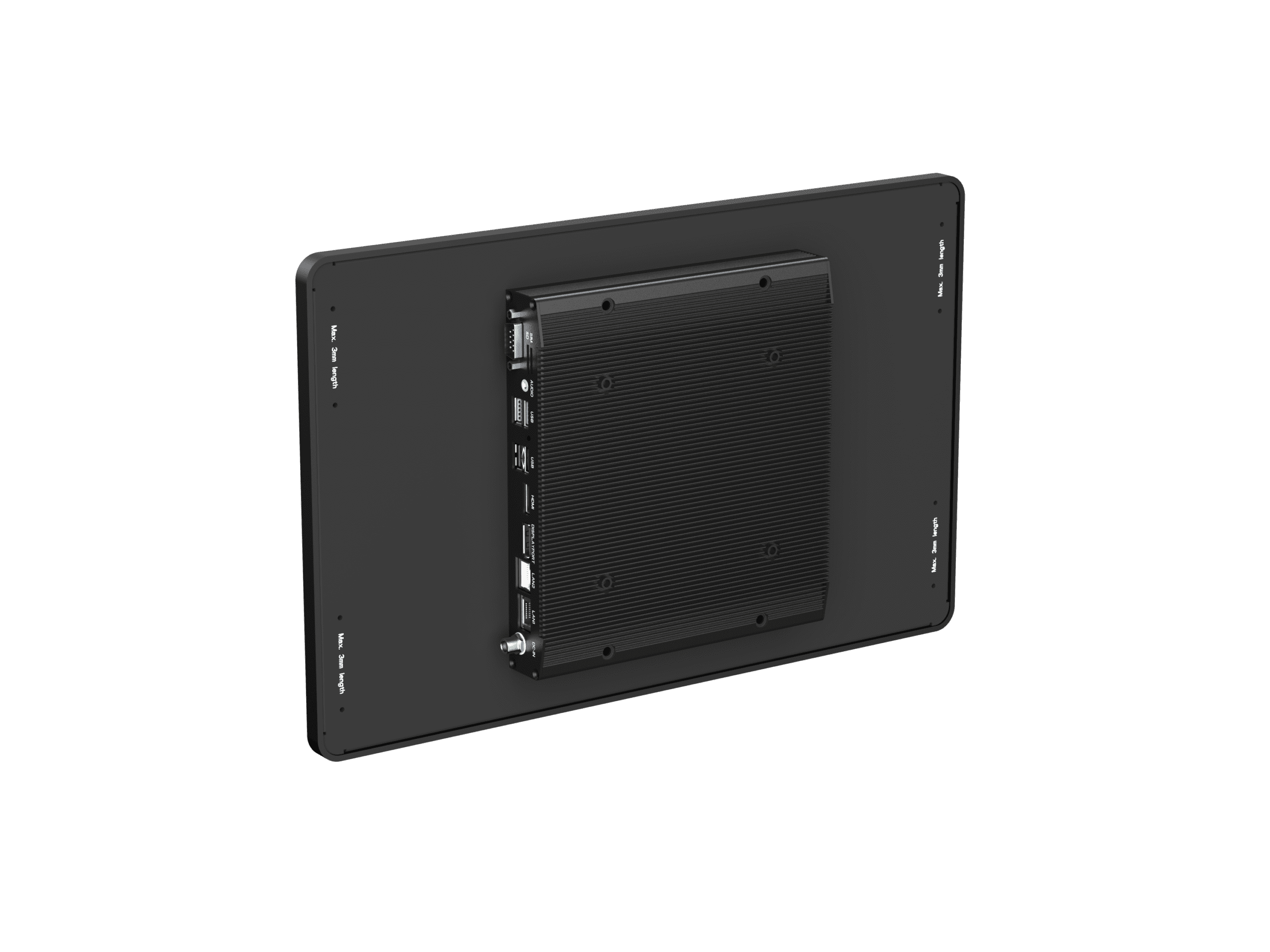

• Large IPC Back Kit (X6413E): Contains the Intel Atom x6413E compute platform, all external connectivity, network hardware, storage, and the aluminum IPC back case with passive thermal management fins. Same physical chassis as the Core i5 Large Back Kit, configured with the Atom platform.

The shared physical infrastructure between the Atom and i5 Large Case families is operationally meaningful: organizations deploying mixed Atom and i5 Touch PCs can use the same mounting hardware, the same kiosk enclosures, the same cut-out templates, and the same service inventory infrastructure. The compute platform decision is independent of the physical integration decision.

Independent kit replacement during service supports:

• Compute platform refresh as Intel processor generations advance — replace only the back kit while keeping the original front kit, display, and physical integration
• Field damage replacement of cracked cover glass without retiring the working back kit and configured OS image — critical for high-traffic public-facing deployment where glass damage is a real risk
• OEM integration projects where custom enclosures house the back kit separately from the front kit
• Cross-compute service flexibility — organizations can upgrade from Atom to Core i5 in the same physical infrastructure if compute requirements grow

Note: Front Kit + Back Kit assembly to be done by a professional to maintain IP65 seal integrity.

Mounting Options

• VESA 100 × 100 mounting: Standard wall-mount arms, articulating mounts, monitor stands, floor stands, and industrial pole mounts.
• 4-clamp open-frame integration: Installation into custom kiosk enclosures, retail counters, industrial control panels, vehicle dashboards, or built-in HMI positions via a 371.0 × 218.0 mm cut-out, secured by 4 clamps. Maximum clamp wall thickness is 5.0 mm.

Wide Power Input & Environmental

The platform accepts 9-36V DC wide power input — supporting standard 12V industrial DC, vehicle 24V systems, 48V battery backup systems (regulated), and the PoE option. The included 100-240V AC active-switching adapter outputs 12V DC. Operating power consumption is just 13.6W with under 1W standby — exceptionally efficient for a 15.6″ Full HD industrial touch PC and substantially lower than typical Core i5 Large Case siblings. This low-power profile matters for fleet deployment economics (aggregate power across hundreds of kiosks), PoE-powered installations (within standard PoE budget), solar-powered installations, and any deployment scenario where power budget matters.

Operating temperature range is -10°C to +60°C with 10–90% humidity tolerance. IP65 Front + IP40 Back protection. CE and FCC certified.

Intended use: Industrial-grade touchscreen touch PC for indoor use as control panel, digital signage, wayfinding, POS, and similar applications. Protect from direct sunlight. Operation outside specified temperature ranges is not covered by warranty.

Included in the Delivery

Power adapter (100-240V AC active switching, 12V DC-Out), Wi-Fi antenna (RP-SMA female), short installation manual.

Hypothetical Application Scenarios

Quick-Service Restaurant Self-Order Kiosk Fleet: Quick-service restaurant chains deploying self-order kiosks across dozens or hundreds of locations benefit substantially from the Atom Large Case at 15.6″ Full HD. The Full HD resolution supports rich menu imagery and modern QSR ordering UI; the 15.6″ size is comfortable for customer interaction at counter height; the Atom platform handles QSR ordering software adequately; the per-unit cost savings versus Core i5 multiply meaningfully across the fleet (typically $200-500 per unit, multiplied across 500-5000 unit deployments); the IP65 front handles customer-facing deployment with regular sanitization protocols; the dual GbE supports POS network plus customer Wi-Fi segregation.

Visitor Management & Reception — Corporate, Hospital, Government: Corporate offices, hospitals, and government facilities deploying modern visitor management kiosks at building entrances benefit from the 15.6″ Full HD widescreen format. The size matches consumer laptop expectations (intuitive for visitors); the screen real estate accommodates visitor sign-in flows, photo capture interfaces, ID document scanning previews, badge preview, and host notification displays simultaneously; the IP65 front supports public-facing deployment with regular cleaning protocols; the Atom platform handles VMS software within its workload envelope; cellular SIM slot supports cloud-based VMS at locations without facility network access.

Retail Self-Service & Customer-Facing Endpoints: Retail chains deploying self-service kiosks (price lookup, gift registry, product configurators, loyalty enrollment, store directories, customer service self-help) at scale benefit from the Atom Large Case at 15.6″ Full HD. The Full HD format supports modern retail UI with rich product imagery; the 15.6″ size handles both quick-glance pricing lookups and longer-form interactions like gift registry creation; the IP65 front handles public-facing deployment; cost-efficient per-unit pricing supports broad in-store deployment across hundreds of stores; the dual GbE supports POS network plus customer Wi-Fi segregation; the Atom platform handles retail self-service software within its workload envelope.

Interactive Digital Signage with Full HD Content: Retail chains, transit hubs, museums, corporate campuses, and entertainment venues deploying interactive digital signage benefit from the 15.6″ Full HD format. Video content plays at native resolution; the touch interface supports browsable content navigation, wayfinding, schedule queries, and information lookup; the 13.6W power consumption supports power-budgeted deployments (PoE, solar, battery backup); the dual Ethernet supports content management network plus directory service; the Atom platform handles signage management software (Brightsign, ScreenCloud, NoviSign, Yodeck, etc.) within its workload envelope; cellular SIM slot enables remote installations with cellular content updates.

Healthcare — Patient Engagement & Bedside Information: Hospitals deploying patient engagement systems, bedside information displays, family-facing communication terminals, and patient-room entertainment systems benefit from the 15.6″ Full HD format and Atom Large Case cost positioning. The size matches consumer tablet/laptop expectations (intuitive for patients and families); the IP65 front supports hospital cleaning protocols; the modular Front+Back Kit design supports rapid service replacement in 24/7 environments; the Atom platform handles patient-facing software within its workload envelope; the cost optimization is meaningful for hospital-wide bedside deployment (typically hundreds to thousands of bedside endpoints per hospital).

Quick-Service Banking & Financial Self-Service: Banks, credit unions, and financial services facilities deploying self-service kiosks (account inquiry, loan application, document scanning, queue management, customer service tablet) benefit from the 15.6″ Full HD format. The size accommodates document-heavy forms and signature capture interfaces; the IP65 front supports public-facing deployment; the dual GbE supports financial network plus customer Wi-Fi segregation (critical for PCI compliance); the Atom platform handles financial self-service software within its workload envelope; cellular backup supports business continuity if primary network fails.

Equipment OEM Integration — Modern Self-Service Equipment: Equipment manufacturers building self-service equipment (vending kiosks, ticket dispensers, parking payment stations, transit fare gates, building access stations, locker management terminals) at the 15.6″ Full HD size can use this Atom Large Case as the compute platform. Equipment can be offered in Atom (this product) or Core i5 trim using identical mechanical design; the OEM can position Atom-based products at competitive price points without changing physical equipment design.

Education — Classroom Interactive Stations: Schools, universities, and corporate training facilities deploying classroom interactive stations and computer lab workstations benefit from the 15.6″ Full HD format (matching consumer laptop expectations students are familiar with) and per-unit cost optimization. The Full HD resolution supports modern educational software and web-based learning platforms; the touch interface supports interactive curriculum; the Atom platform handles classroom workloads adequately; cost positioning supports deployment at scale.

Hospitality & Hotel Self-Service: Hotels deploying self-service check-in kiosks, in-room concierge tablets, restaurant ordering stations, and event signage benefit from the 15.6″ Full HD format. The size matches consumer device expectations (guests find interaction intuitive); the IP65 front supports hospitality cleaning protocols; the Atom platform handles hotel self-service PMS interfaces within its workload envelope; cost optimization supports property-wide deployment across hundreds of touchpoints in larger properties.

Fleet & Vehicle-Mount Industrial: Material handling vehicles, service vehicles, mobile equipment, transit buses, and rail applications deploying in-vehicle touch computing benefit from the 9-36V wide-range DC input. The 15.6″ Full HD format supports route management software, dispatch interfaces, customer-facing applications, and fare collection; the 13.6W consumption is appropriate for battery-powered vehicles; the rugged aluminum chassis withstands vehicle vibration; the IP65 front handles cabin environment cleaning.

For OEM volume programs, modular Front Kit / Large IPC Back Kit purchasing arrangements, alternative OS pre-installation requests, PoE configuration, custom kiosk integration consultation, mixed Atom/i5 fleet planning, or pre-sales technical discussion, request a quote from the faytech North America engineering team.
