15.6″ Ultra Slim USB-C Monitor

The 15.6″ Ultra Slim LCD Monitor (Type-C) is faytech's purpose-built single-cable display for environments where installation simplicity, premium aesthetic, and reliable commercial-grade operation all matter equally. Powered and signaled through a single USB Type-C connection, this ultra-thin monitor (14.4 mm thick, ~1.10 kg) eliminates the dual-cable installation complexity of conventional commercial displays — a meaningful operational improvement for retail merchandising teams installing displays at scale, hospitality operators retrofitting digital signage into existing room infrastructure, system integrators building modern POS workstations, and any organization where the visible cable run from display to source is part of the visual design they're trying to achieve.

USB-C Single-Cable Operation

The defining technical feature of this monitor is its single USB Type-C connection that simultaneously handles both power input (via USB Power Delivery) and video signal (via DisplayPort Alt Mode). This is operationally significant for several deployment patterns:

• Direct connection to modern laptops, tablets, and mini-PCs: Any host device with USB-C DP Alt Mode output can power and drive this monitor with one cable. Modern Apple MacBooks, Microsoft Surface devices, Intel NUCs, Mac mini, ASUS PN-series mini-PCs, and most current business laptops support this directly without dock or adapter hardware.
• Single-cable signage and POS installations: A media player or POS PC connected via USB-C runs both power and content through one cable, dramatically simplifying cable management and reducing the visible cable count at customer-facing display positions.
• Powered USB-C hub integration: The monitor can be powered from a USB-C hub or dock that's already supplying power to the host system, consolidating the entire workstation onto a single power source.
• Wall-mount installations with concealed cabling: Single-cable installation means one cable to route inside walls, behind millwork, or through floor channels — vs. the traditional power-cord-plus-video-cable installation that requires two separate runs.

Working power input is 5–20V, supporting the standard USB-PD voltage range. Power consumption is just 6.5W operating — extremely efficient for a 15.6″ display, supported by the modest 300 cd/m² brightness and modern LED backlight. Standby consumption is under 0.5W. The low power profile means the monitor can be powered from modest USB-C sources (a typical laptop's USB-C output, a USB-C hub's downstream port) without requiring high-wattage power delivery.

Ultra-Slim Form Factor

The chassis dimensions are deliberately specified for premium installation contexts:

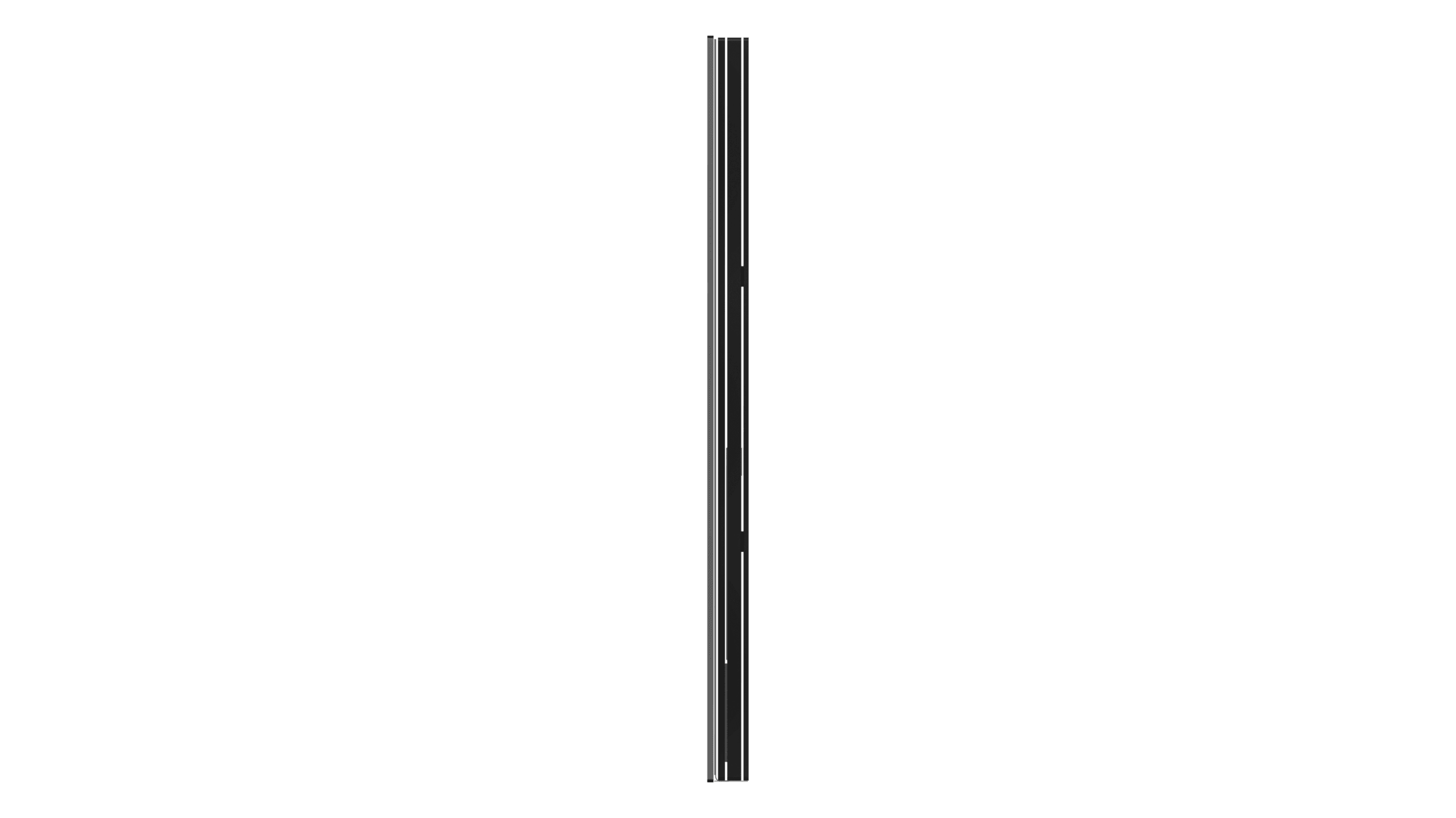

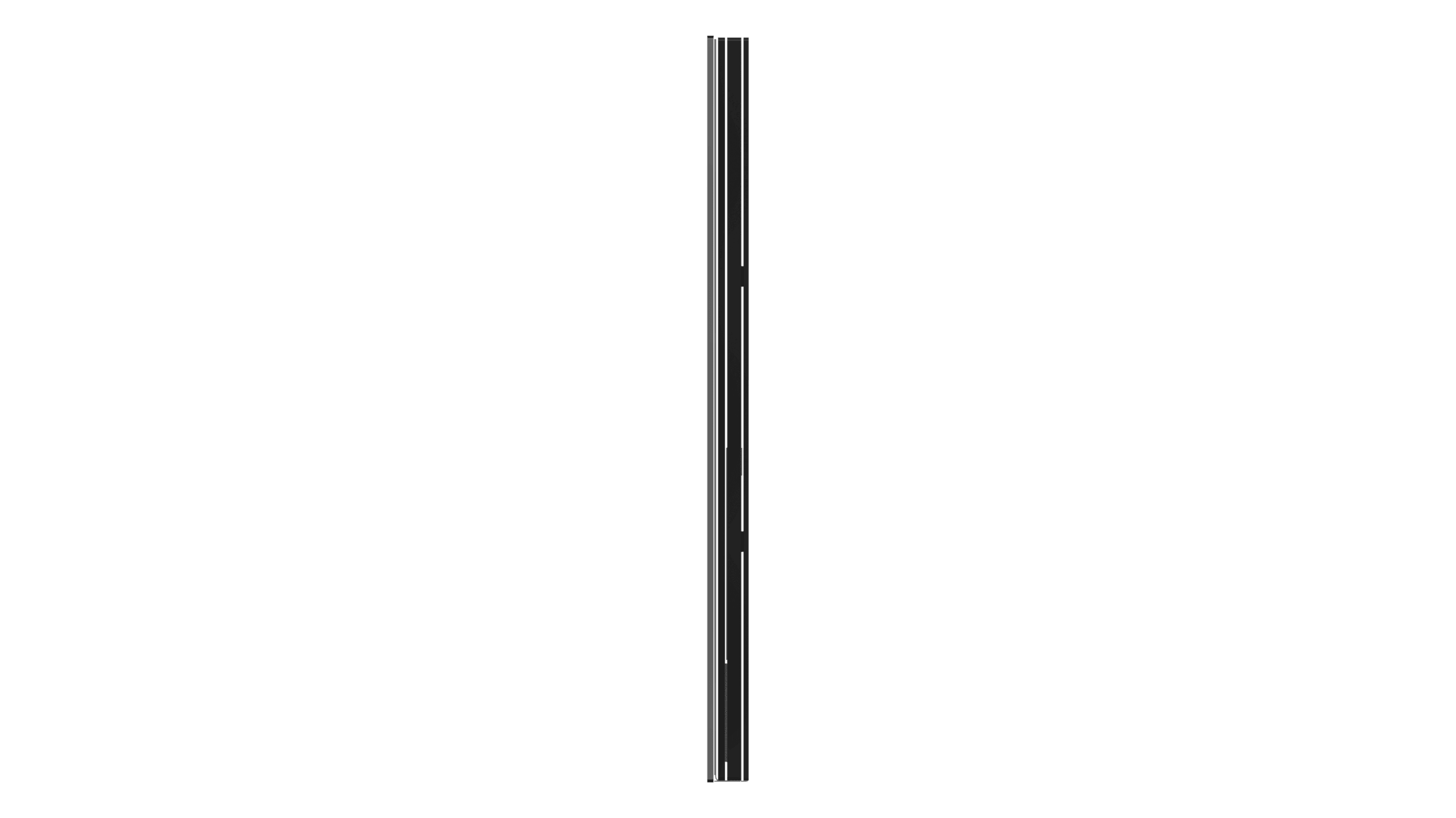

• Thickness: 14.4 mm — just over half an inch, allowing near-flush wall mounting and integration into spaces where conventional 40+ mm thick monitors won't fit
• Net weight: ~1.10 kg (2.43 lbs) — light enough for direct adhesive mounting in some applications, low load for thin VESA arms, and easy single-person installation

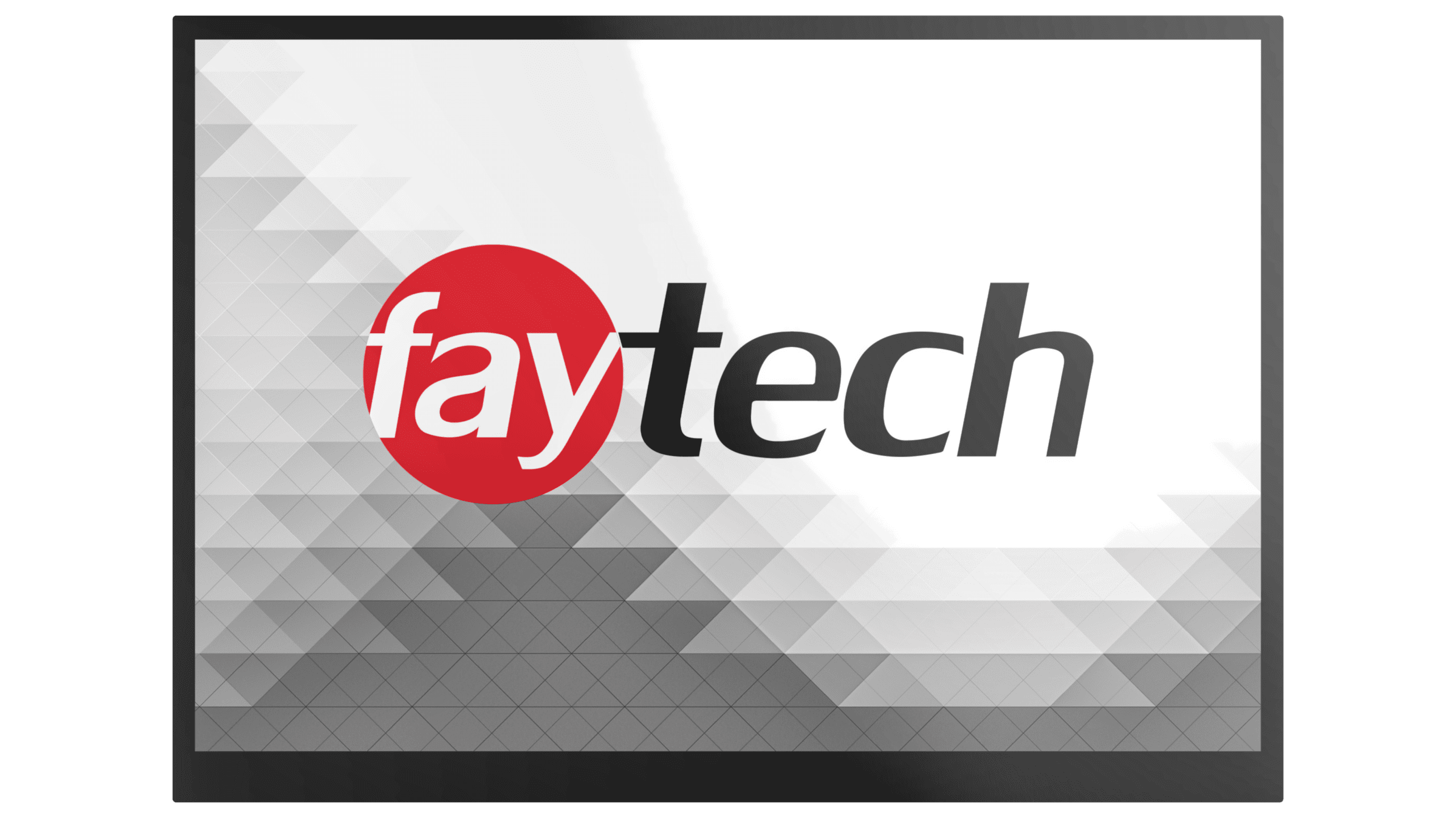

• Side bezels: 12.5 mm | Top bezel: 11.2 mm — slim edge-to-edge aesthetic that fits modern minimalist design language
• Aluminum housing — premium material choice that communicates quality and supports thermal management without active cooling

External chassis dimensions are 370.2 × 222.8 × 14.4 mm. The slim profile distinguishes this monitor from conventional commercial displays in installations where the back-of-display visibility matters — retail merchandising end-caps, hospitality lobby walls, restaurant menu displays where the monitor is visible from multiple angles, museum exhibit installations, and corporate meeting room displays where the form factor is part of the environmental design.

Display & Cover Glass Specifications

The 15.6″ display delivers 1920×1080 Full HD resolution across a 344.16 × 193.59 mm active area, with a 0.17925 × 0.17925 mm pixel pitch supporting crisp text rendering for menu boards, signage, and POS applications where readability matters. Brightness is 300 cd/m² with an 800:1 contrast ratio, appropriate for indoor commercial environments — substantially better than typical consumer monitors but not engineered for direct sunlight or extreme high-ambient placement. The 170°/170° viewing angles support viewing from approach paths in retail and hospitality contexts. Response time is 15/15 ms (Tr/Tf) — appropriate for signage, menu, and information display content but not optimized for fast-motion video or gaming applications. The LED backlight has a minimum 15,000-hour lifetime — supporting continuous operation but worth noting that this is shorter than the 30,000+ hour ratings on some faytech industrial displays. For 24/7 deployments at full brightness, plan for backlight assessment around the 2-year mark.

The cover glass is 2.0 mm chemically strengthened with anti-glare (AG) chemical etching surface treatment, 7H surface hardness, and IK07 impact protection — appropriate protection for commercial deployment, though not at the IK08 / outdoor-grade level of higher-end products. faytech's Clear Bond® optical bonding eliminates the air gap between cover glass and LCD panel, improving optical clarity, reducing reflections, and increasing mechanical durability against the inevitable bumps of public-facing placement.

Mounting — VESA Only

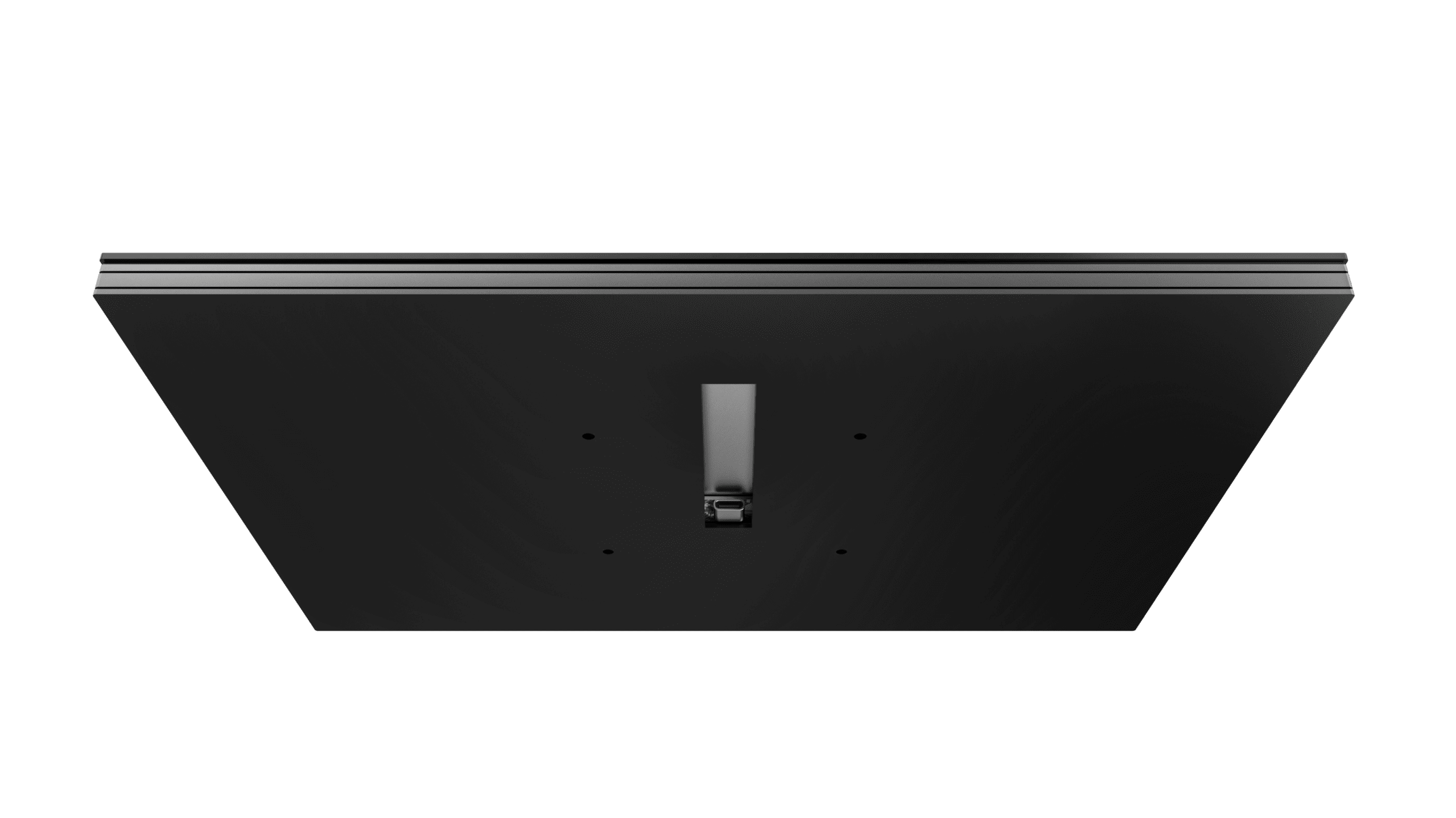

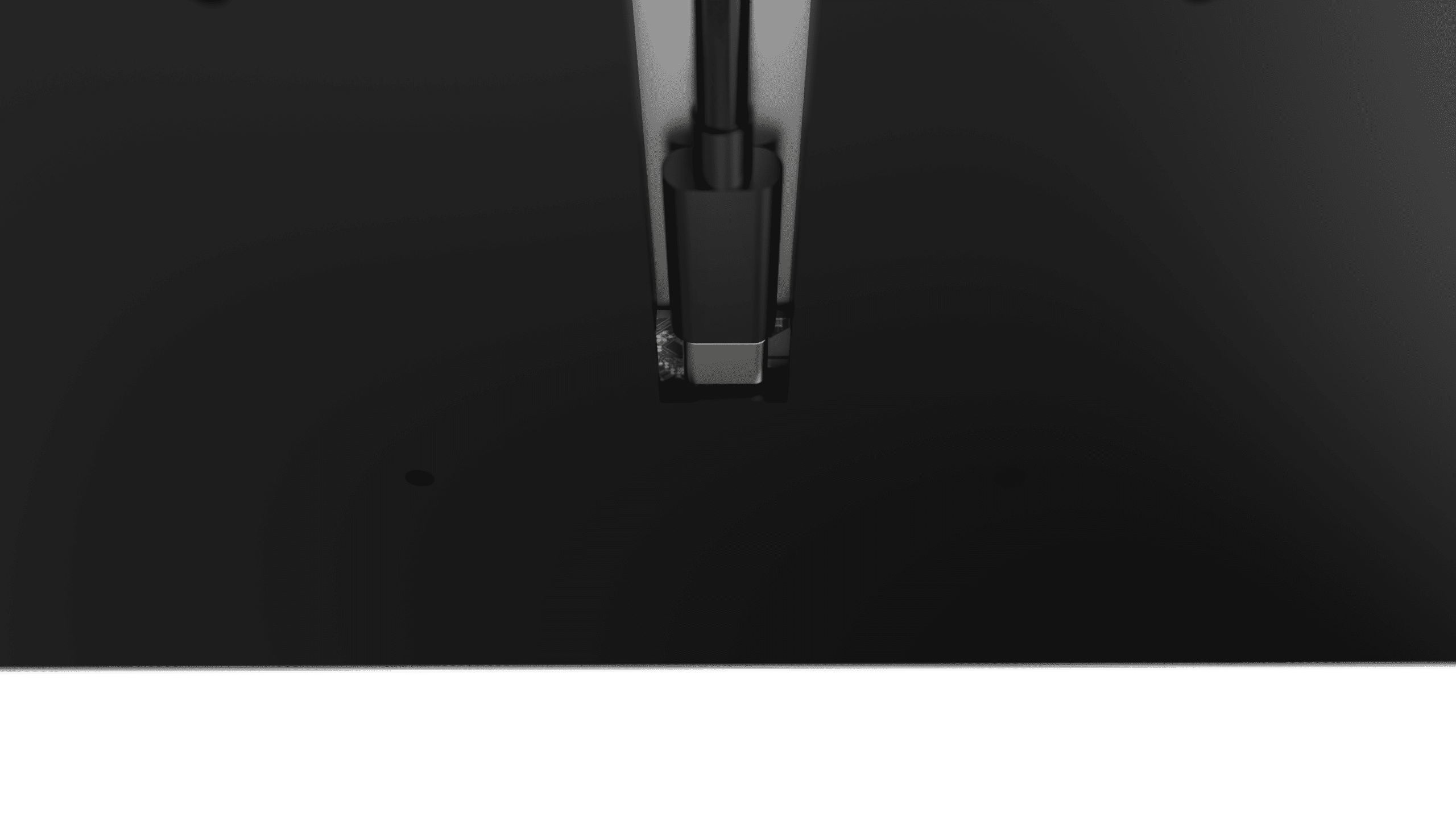

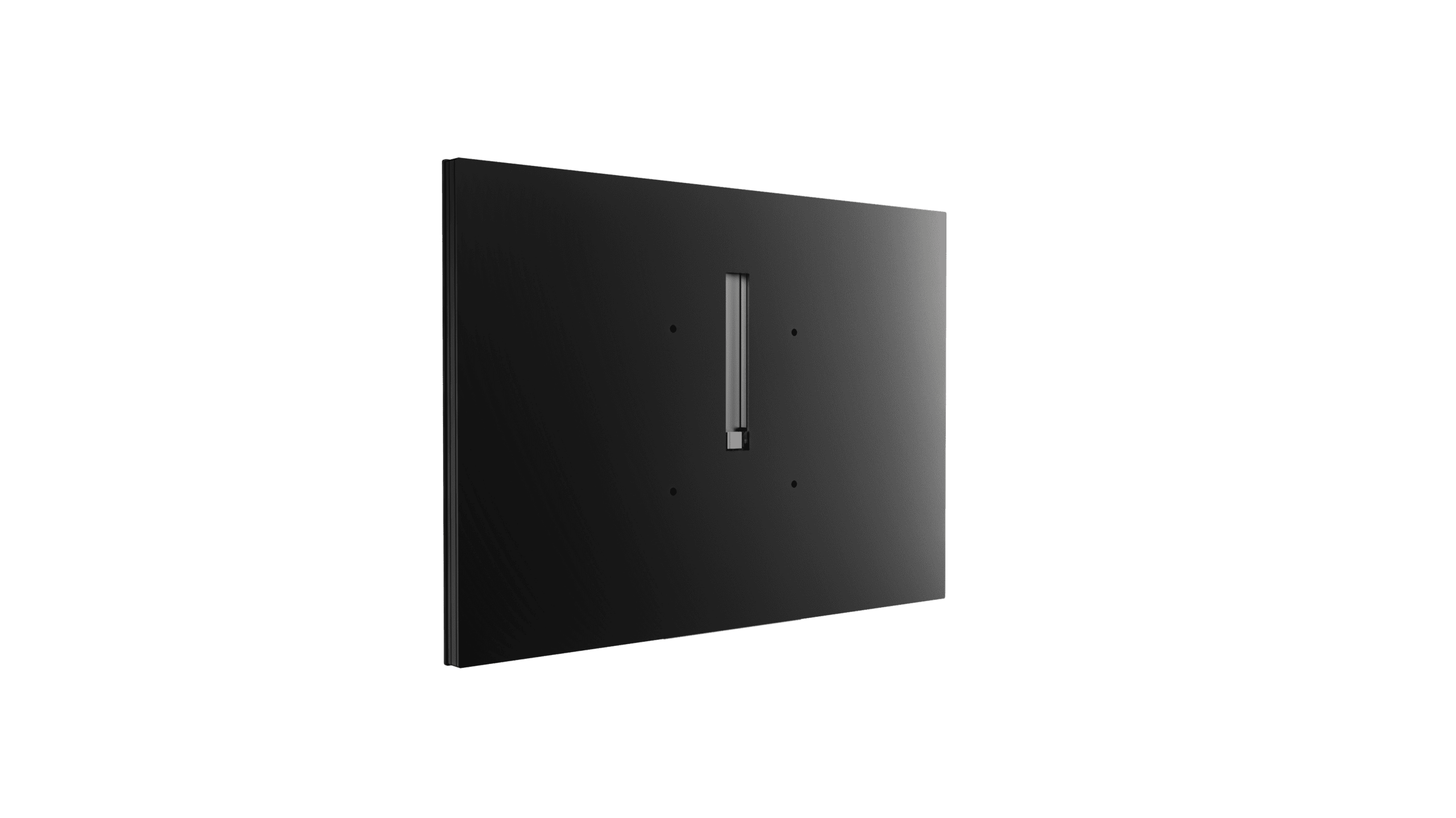

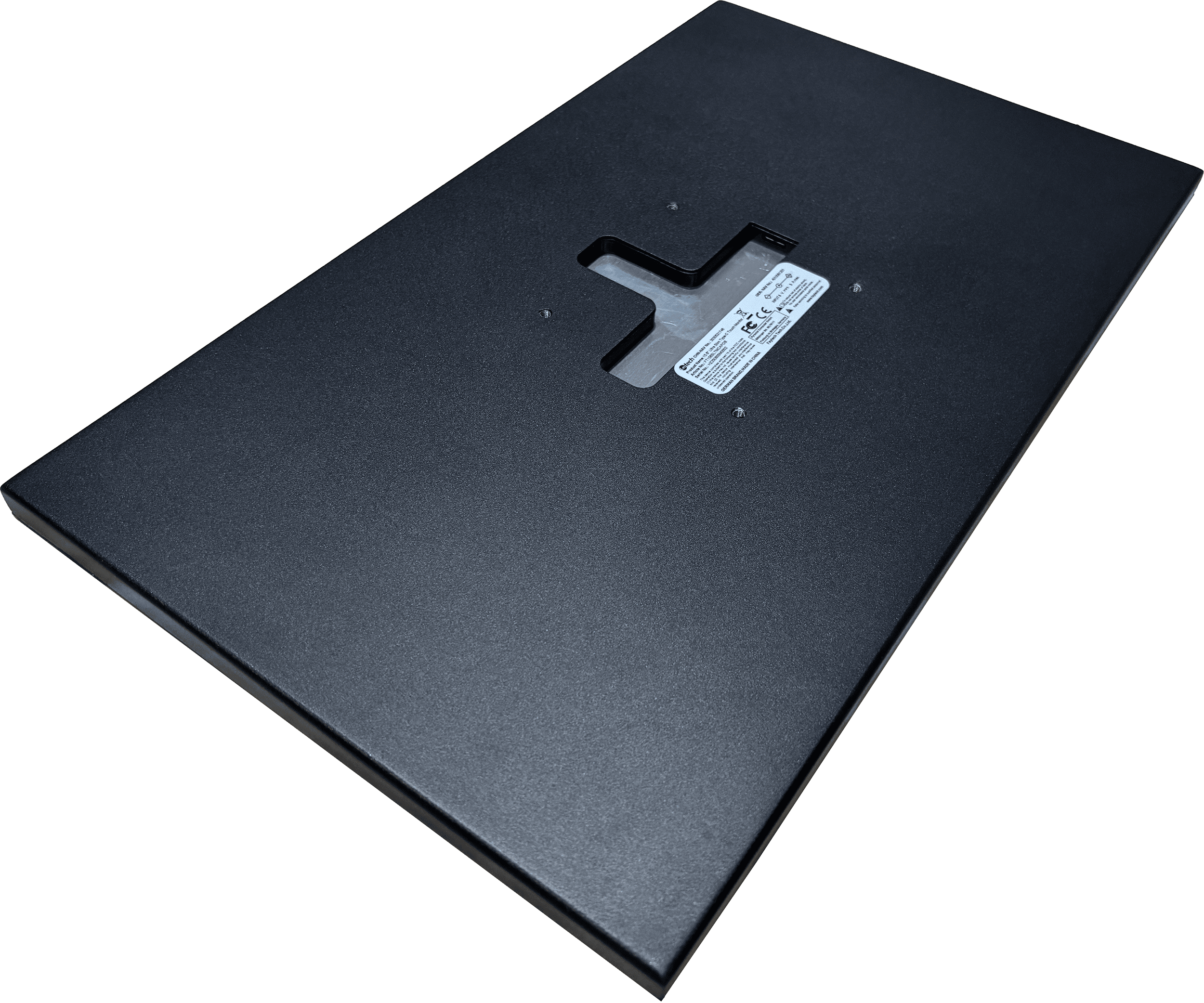

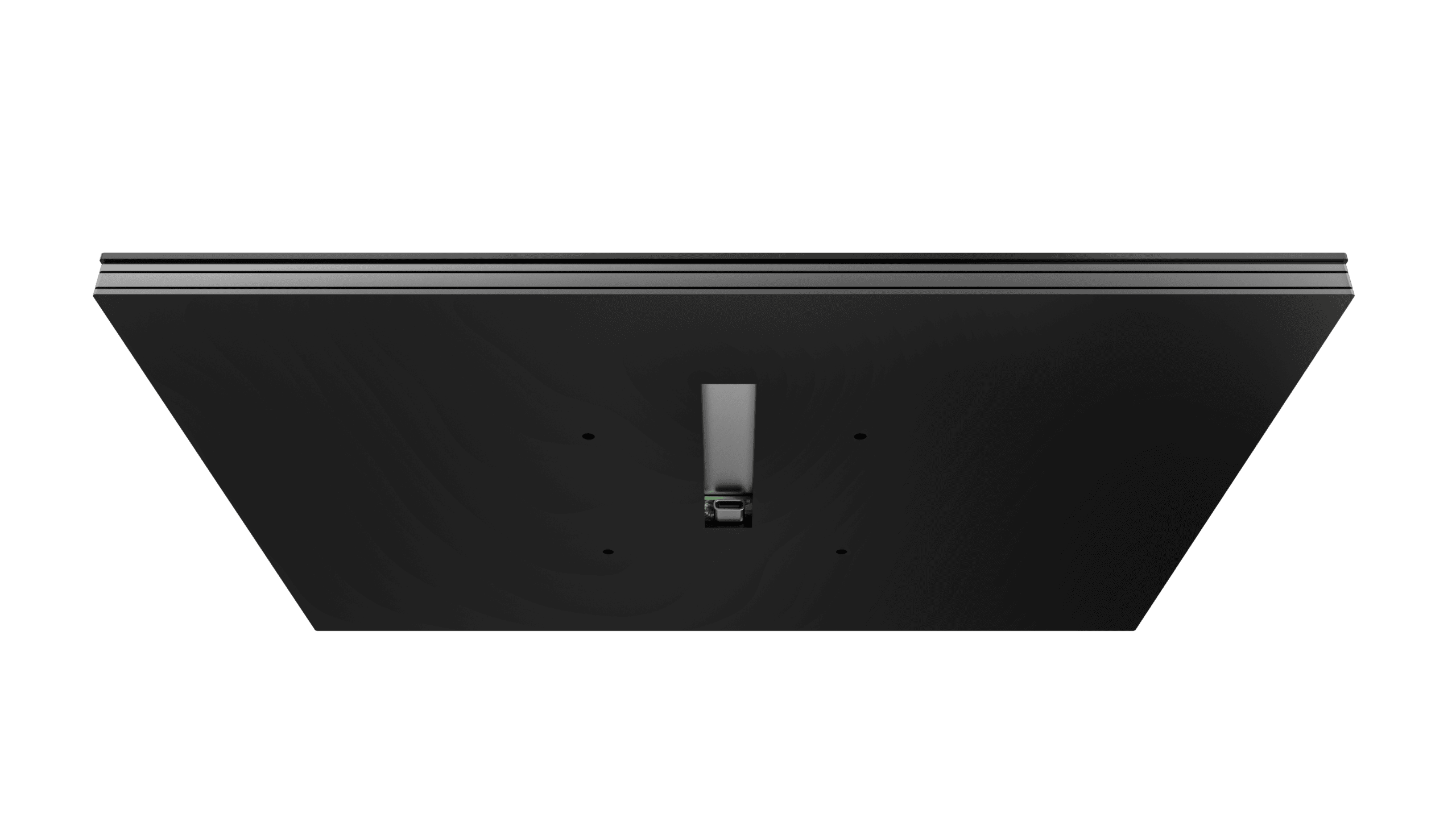

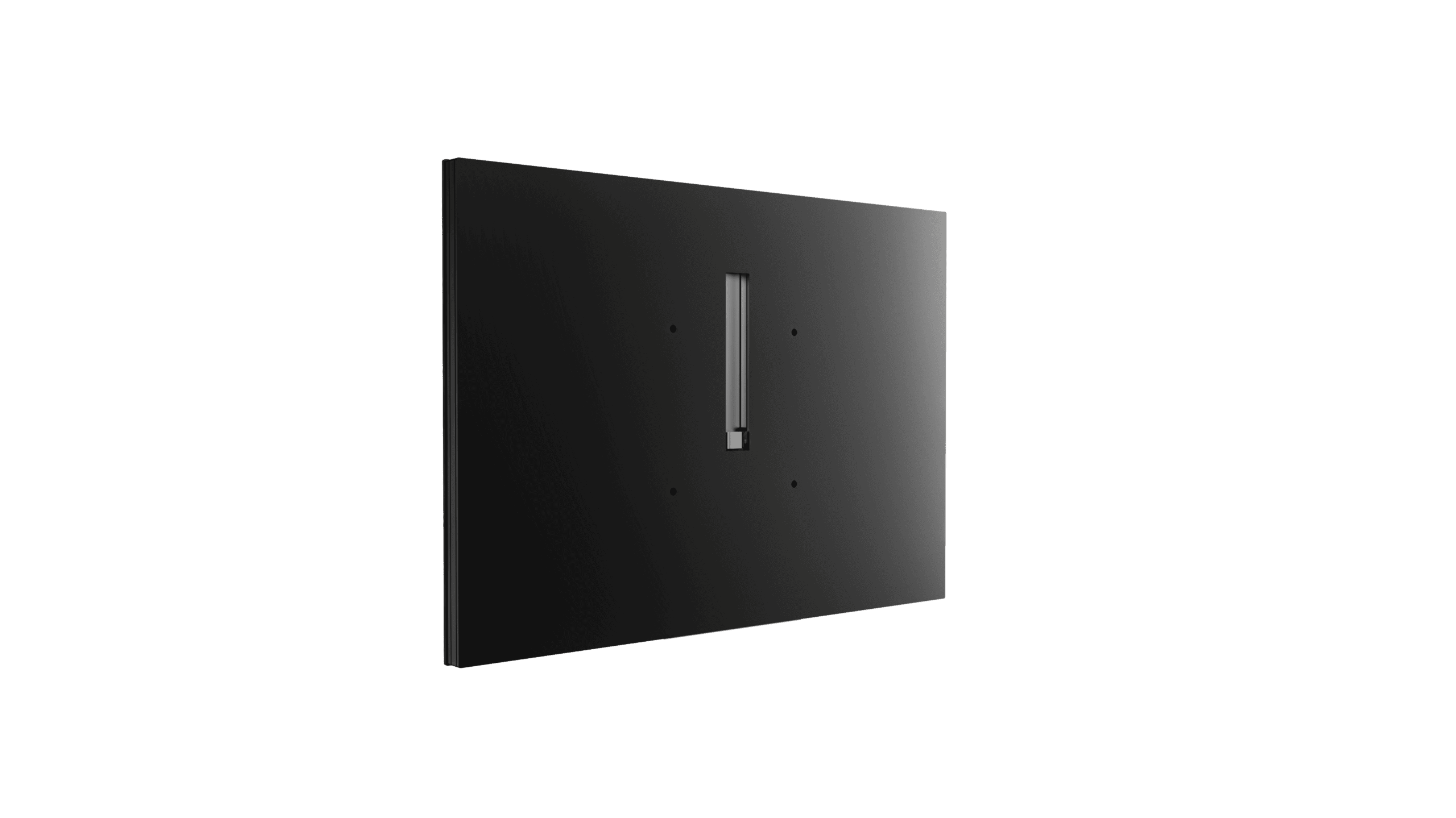

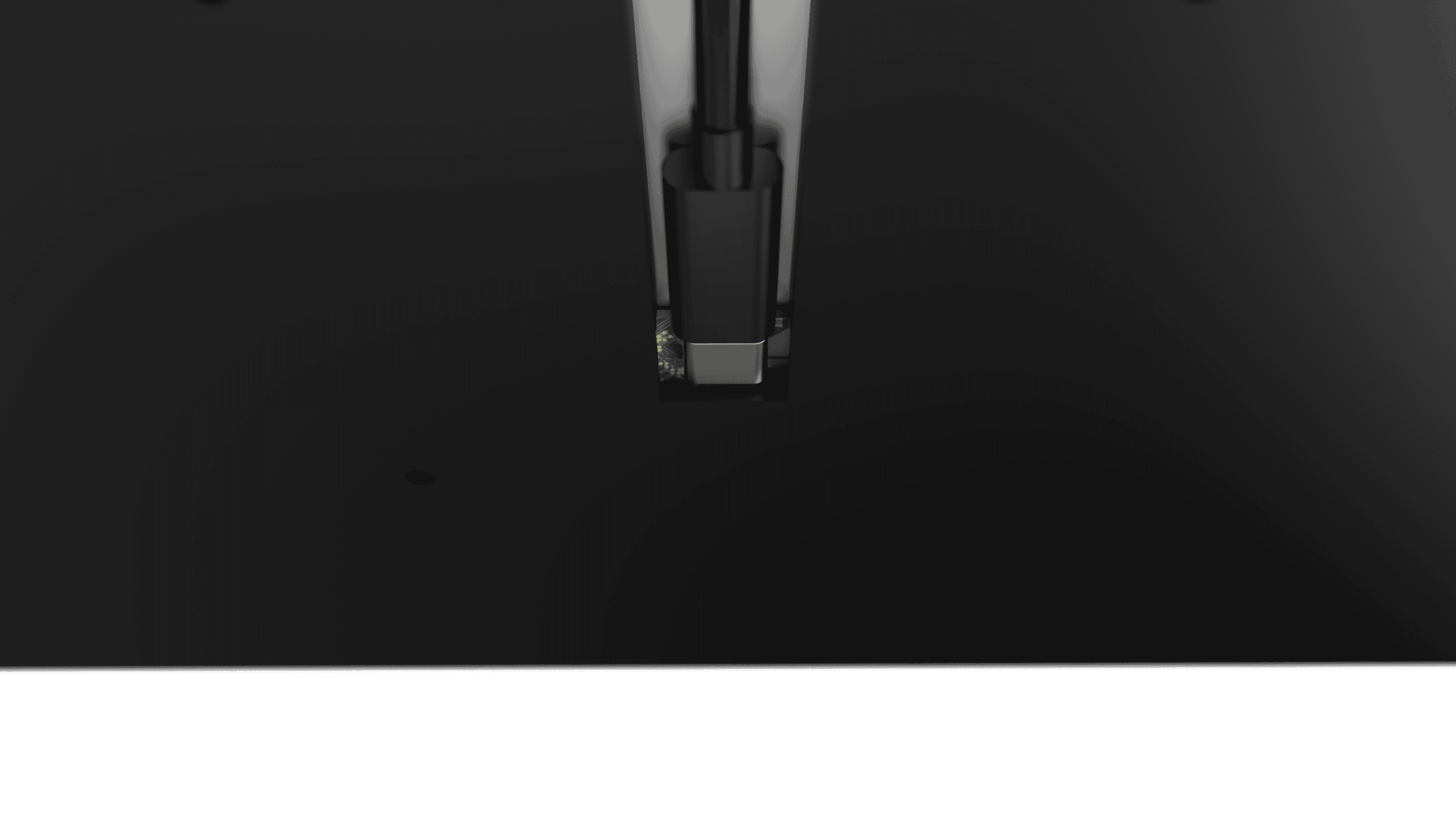

The monitor supports VESA 75 × 75 mm mounting with a thoughtfully designed cable space cutout in the rear plate to accommodate the USB-C cable routing behind the display when wall-mounted. This is the standard small-monitor VESA pattern, compatible with most commercial monitor arms, wall mounts, and articulating mount hardware.

Important note for integrators: Unlike some faytech monitors that support open-frame clamp integration into custom enclosures, this monitor does not support clamp mounting for kiosk integration. The intended deployment is as a finished monitor mounted via VESA 75 — wall, arm, stand, or desktop. If your integration requires open-frame clamp installation into a custom kiosk shell, consider the 24″ Capacitive Touch Monitor RTD2556 (Small Case) or other faytech products specifically designed for that integration pattern.

Important: Non-Touch Display

This product is a non-touch LCD monitor. While faytech is best known for touch displays, this Ultra Slim line addresses the substantial commercial demand for premium-aesthetic non-touch displays in digital signage, menu boards, information displays, secondary POS customer displays, and architectural integration where touch capability isn't required (or isn't wanted, in cases where touch would be a maintenance liability). If touch capability is required for your deployment, faytech offers a range of dedicated touch monitors and touch kiosks at various sizes — contact faytech sales for the right product match.

Connectivity

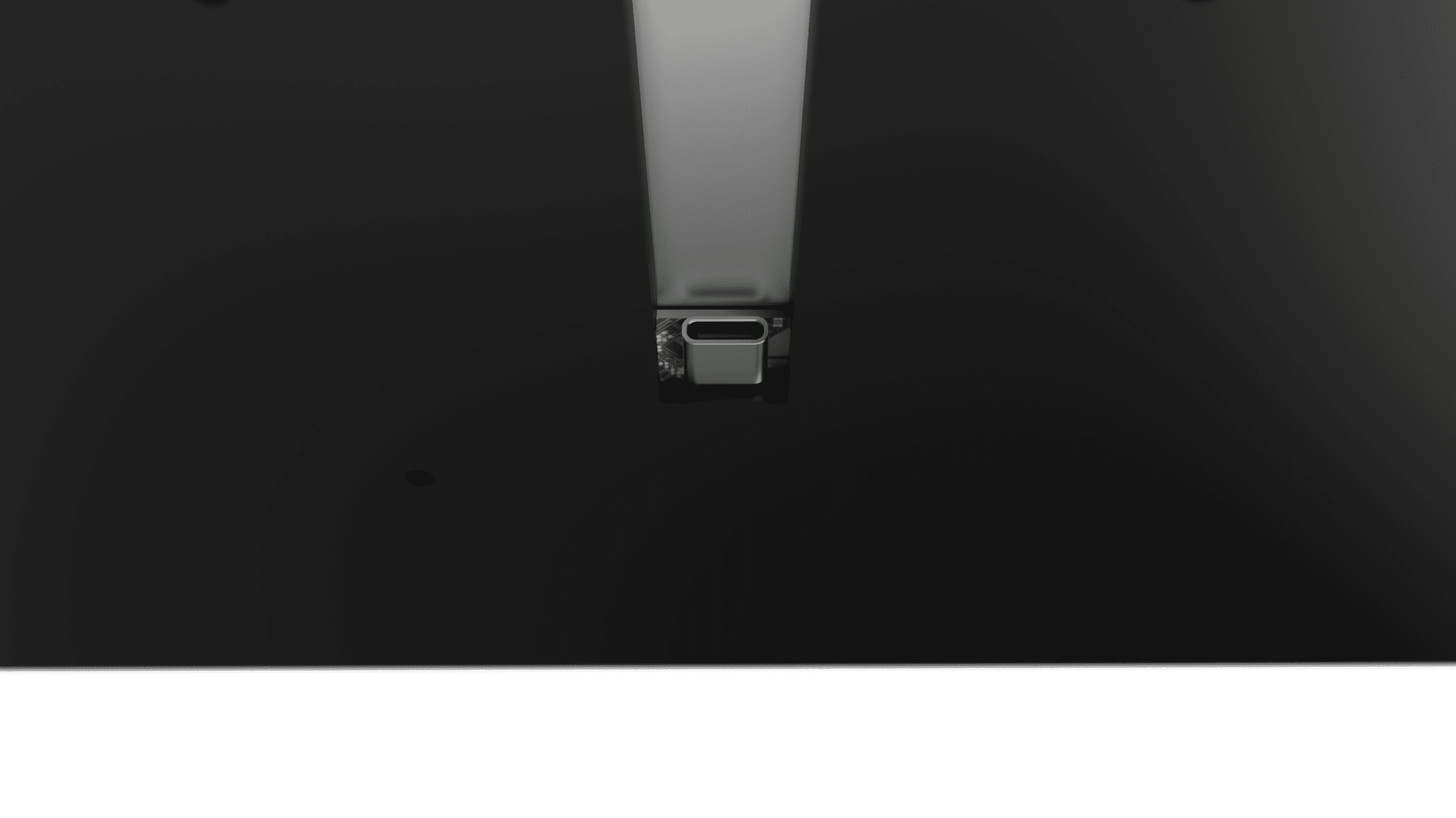

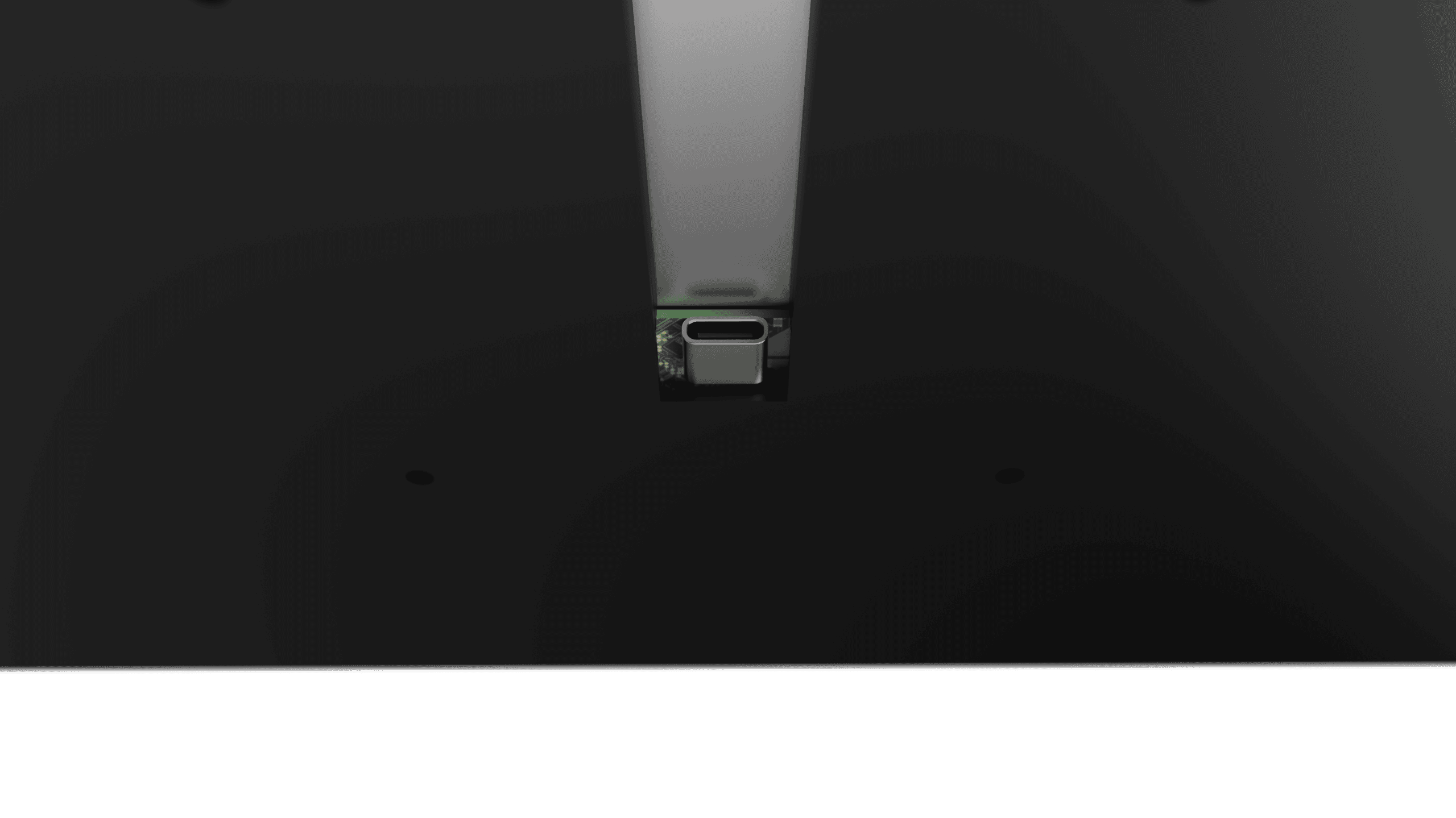

External connectivity is intentionally minimal: 1× USB Type-C port handling both power and video. This deliberate simplicity supports the single-cable design philosophy and reduces failure points in commercial deployment. The included USB Type-C cable is supplied in the box; integrators wanting longer cable runs or specific cable specifications can source standards-compliant USB-C cables (USB 3.1 Gen 1 or higher with DP Alt Mode support, USB-PD rated for the working voltage range).

Environmental & Certifications

Operating temperature range is 0°C to +50°C with 10–90% humidity tolerance — narrower than the wider-range industrial faytech products, appropriate to climate-controlled indoor commercial environments (retail, hospitality, corporate, education) but not for unconditioned warehouse, vestibule, or semi-outdoor deployment. Storage temperature is -10°C to +60°C. IP40 rating provides indoor dust ingress protection appropriate for controlled environments. The product is rated for 2-year warranty covering 24/7 operation — meaningful for continuous-deployment signage and commercial display contexts.

Included in the Box

USB Type-C cable (power + video).

Hypothetical Application Scenarios

Retail Digital Signage & Menu Boards: Picture a specialty coffee shop or fast-casual restaurant deploying the monitor as menu board hardware. The slim form factor (14.4 mm thick) sits flush against the back-bar wall with minimal visual intrusion; the 1.10 kg weight allows straightforward VESA arm mounting without heavy structural support; the single USB-C cable routes cleanly through a small wall penetration to a back-of-house Raspberry Pi or Intel NUC media player; the 300 cd/m² brightness handles bright restaurant interior lighting; the 6.5W power consumption keeps utility costs negligible across dozens of locations.

Hospitality – Hotel Room & Lobby Information Displays: Hotels can deploy the monitor as in-room information displays (replacing the dated printed room information binder), as lobby event boards, as elevator-bank floor information displays, and as concierge counter customer displays. The slim form factor and aluminum housing fit modern hospitality interior design; the single USB-C cable supports the clean architectural integration that premium properties invest in.

POS Customer-Facing Display: Retail and restaurant POS systems benefit from a secondary customer-facing display showing order detail, loyalty points, and payment confirmation. The monitor's USB-C single-cable connection plugs directly into modern POS terminals (Square Stand, Toast, Clover, or PC-based POS) that have USB-C outputs, eliminating the cable clutter that traditionally surrounds POS counters. The 15.6″ size is comfortable for customer reading distance without dominating the counter aesthetic.

Corporate Meeting Room & Conference Room Displays: Small meeting rooms, huddle spaces, and conference room ancillary displays (showing agenda, time remaining, or video conference participants) can use the monitor with single USB-C connection to a modern laptop or video conferencing system. The slim form factor mounts cleanly on wall or pole; the VESA 75 supports standard articulating arms; the low weight allows mounting in environments where heavier displays would require structural reinforcement.

Education – Classroom Secondary Displays & Lab Stations: Schools and universities can deploy the monitor as classroom presenter confidence displays, student lab workstation monitors, library research station displays, and as portable monitors for teacher-laptop extensions. The 24/7 warranty supports the continuous classroom-environment use; the single USB-C connection works with the modern educational hardware (Chromebooks, iPads, MacBooks) that has standardized on USB-C connectivity.

Industrial Automation & Manufacturing — Information Displays: Manufacturing facilities can use the monitor as production line status displays, andon boards, quality metric displays, and shift information boards. The IK07 cover glass tolerates production environment bumps; the IP40 rating handles controlled production environments (not for high-dust or coolant-spray environments — use higher-rated faytech industrial monitors for those). The single USB-C cable simplifies installation in spaces where running new wiring is expensive or disruptive.

Healthcare — Nursing Station Secondary Displays & Patient Information: Hospital nursing stations can use the monitor as secondary patient information displays, shift handoff boards, and bed-management displays. The slim form factor fits the constrained spaces typical of nursing station consoles; the easy cleaning (no exposed cabling, single cover glass surface) supports infection control protocols; the 24/7 warranty supports continuous hospital operation. Note: IP40 means this is for controlled hospital interior spaces, not high-cleaning-frequency clinical environments — use higher-IP-rated faytech displays for those.

Transportation — Vehicle Mount & Mobile Workspace Displays: Service vehicles, mobile work trucks, and field service vans can use the monitor as auxiliary displays for technician laptops, dispatch information, and route planning. The 5–20V USB-PD power range and low 6.5W consumption make the monitor compatible with vehicle USB-C power systems and modest mobile power supplies. The light weight and slim form factor suit vehicle interior installation where every cubic inch matters.

Trade Show Booths & Brand Activations: Trade show exhibitors can use the monitor for product information displays, lead capture interfaces, and ambient brand content. The slim form factor packs efficiently for trade show transport; the single USB-C cable simplifies booth setup (one cable from each display to the booth's central media player); the low weight allows lightweight pop-up booth mounting that heavier displays cannot use.

Architectural Integration & Premium Interior Design: Interior designers and architects increasingly specify integrated displays as part of premium retail, hospitality, and residential design. The 14.4 mm thickness and clean aluminum housing support flush wall integration; the single USB-C cable supports the concealed-wiring installations that premium design demands; the VESA 75 mount with cable space cutout reflects thoughtful design for this exact integration scenario.

For OEM volume programs, custom cable length specifications, system integration consultation, or pre-sales technical discussion of single-cable display deployment, request a quote from the faytech North America engineering team.
