16″ Hololuminescent™ Touch Display

The 16″ Hololuminescent™ Touch Display is a category-defining product that brings light-field holographic visualization to retail, brand experience, and premium signage applications. Powered by Looking Glass light-field technology, the display creates the illusion of three-dimensional spatial presence from standard video sources — content does not just play on the screen but appears to occupy real volume within it. Headphones, watches, sneakers, perfume bottles, automotive parts, scientific specimens, or any visually striking product can be rendered as a floating, dimensional presentation that conventional flat LCDs and even transparent displays cannot match. For brands competing for attention at a retail counter, in a flagship boutique, or on a trade-show floor, the effect is genuinely unfamiliar to most viewers — and unfamiliar is what makes people stop.

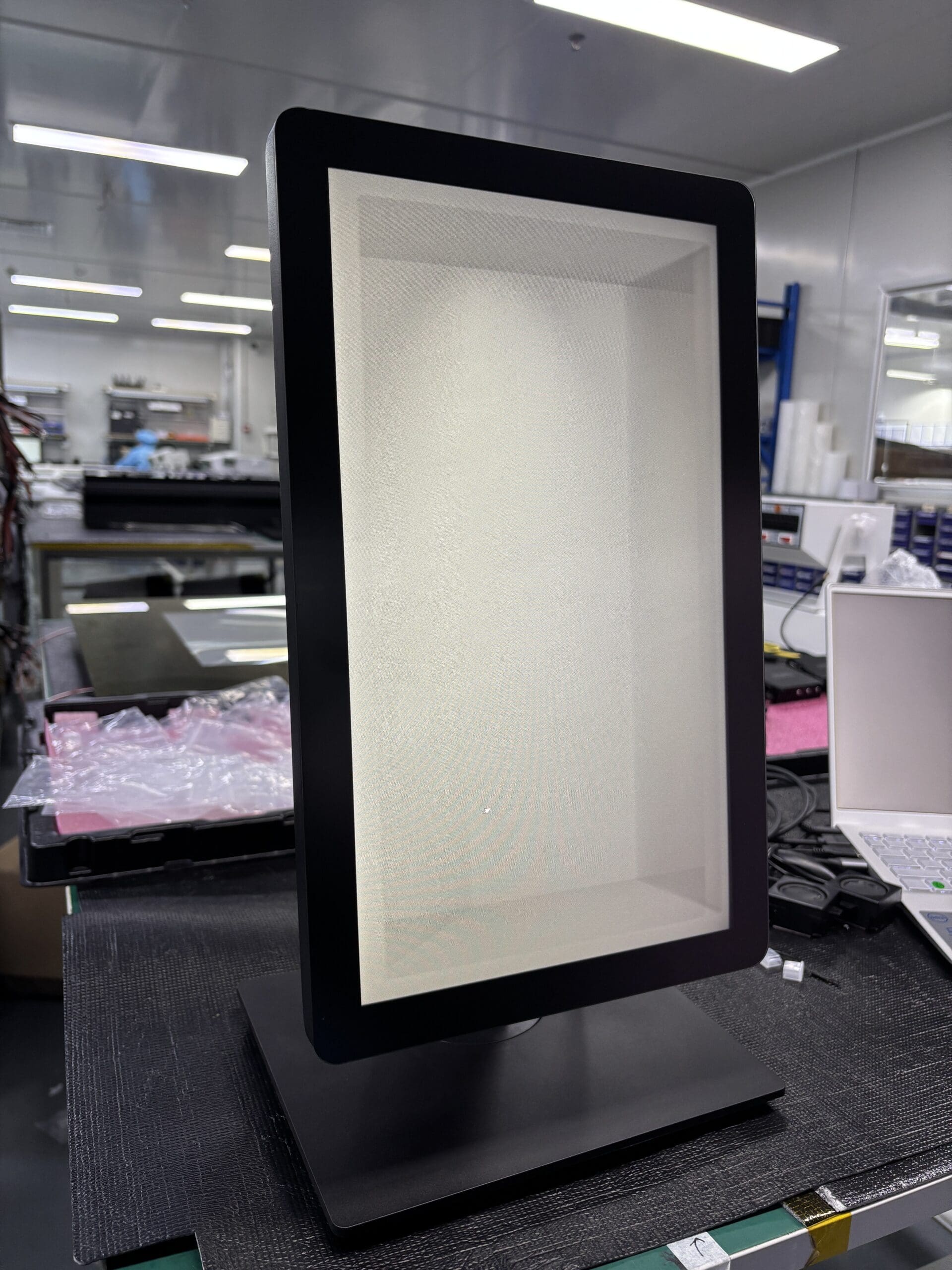

The display is built around a 15.6″ portrait-oriented LCD panel with 1080×1920 resolution, 600 cd/m² brightness, a 1,000:1 contrast ratio, and 8-bit color depth (16.2 million colors). The 170°/170° viewing angles support the holographic effect from multiple approach angles — important for retail-counter and product-showcase placement where customers approach from varied positions. Refresh rate is 60 Hz with a 25 ms response time and 179.25 μm pixel pitch. The display is engineered specifically for content that benefits from the Hololuminescent™ presentation: product showcases, brand films, ambient art, and slow-pan dimensional video. It is not optimized for fast-action content (gaming, sports, high-motion video), where the response time and the light-field rendering pipeline are better suited to deliberate, designed content rather than real-time motion.

Touch input is handled by a 10-point projected capacitive multi-touch panel built on 2.0 mm thermally strengthened cover glass with several layers of protection appropriate for unattended retail use: 7H surface hardness (resistant to scratching from keys, jewelry, and casual abrasion), IK08 impact protection (tolerates the bumps and brushes of high-traffic counter placement), and AG (chemical etching) anti-glare surface treatment to control reflections from overhead retail lighting. faytech's Clear Bond® optical bonding eliminates the air gap between the touch sensor and the display panel — particularly critical for light-field displays, where any optical artifact between the viewer and the panel degrades the dimensional illusion.

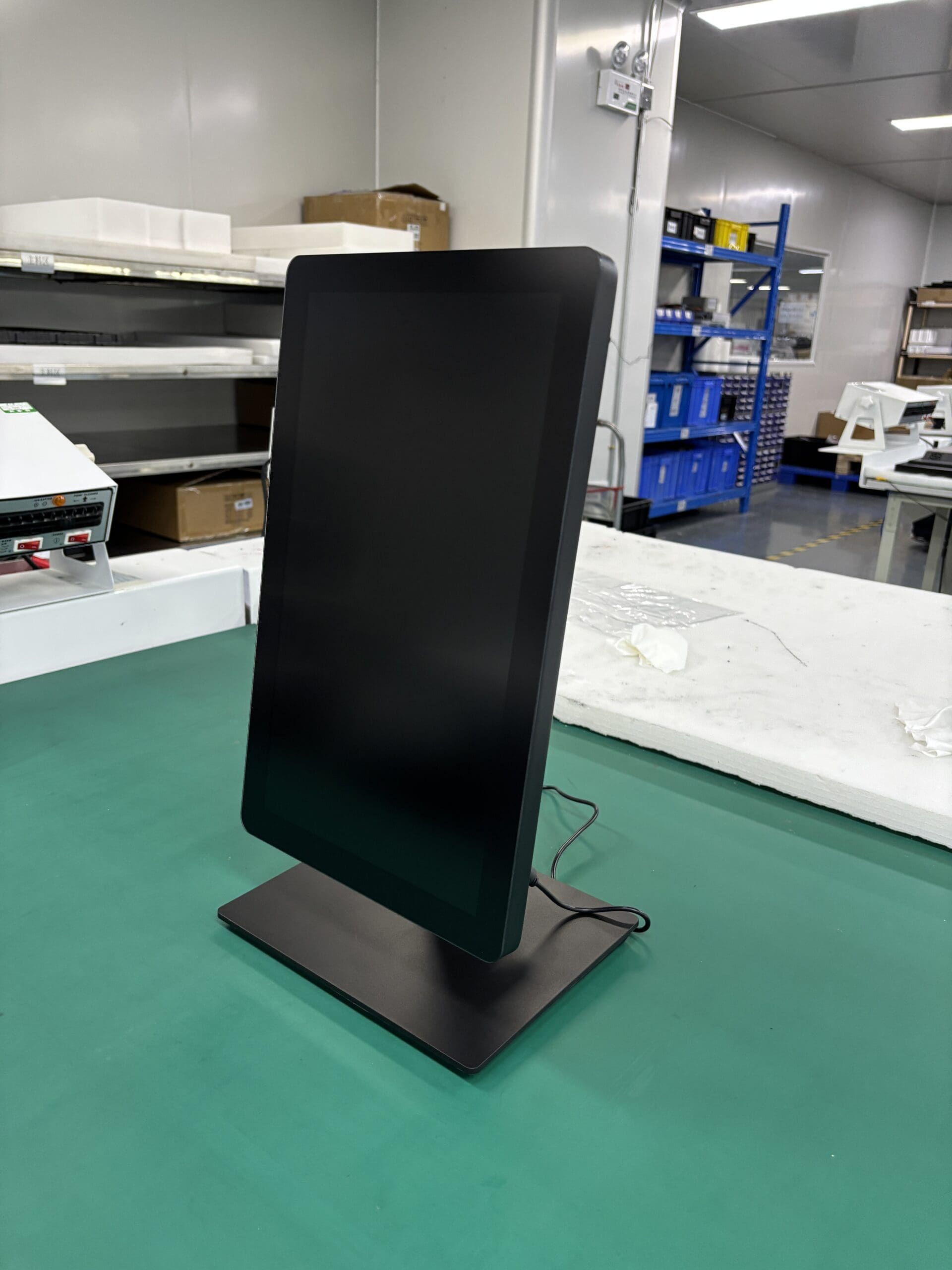

The chassis is an aluminum-and-reinforced-glass enclosure finished in black, measuring 235 × 386 × 42.1 mm. The 42.1 mm depth is genuinely thin for a display in this category — light-field and dimensional display technologies historically required significant chassis depth to accommodate their optical stacks, and this slim profile is what makes the unit suitable for retail-counter, desktop, and integrated-furniture placement where bulkier displays cannot fit. IP65 front protection is a meaningful specification for a desktop and counter-mounted display: it protects against dust ingress and water jets from any direction, accommodating spilled drinks at café counters, cleaning protocols in beauty retail, humidity in hospitality lobbies, and the general environmental stress of public placement. The back is rated IP40 for indoor protection.

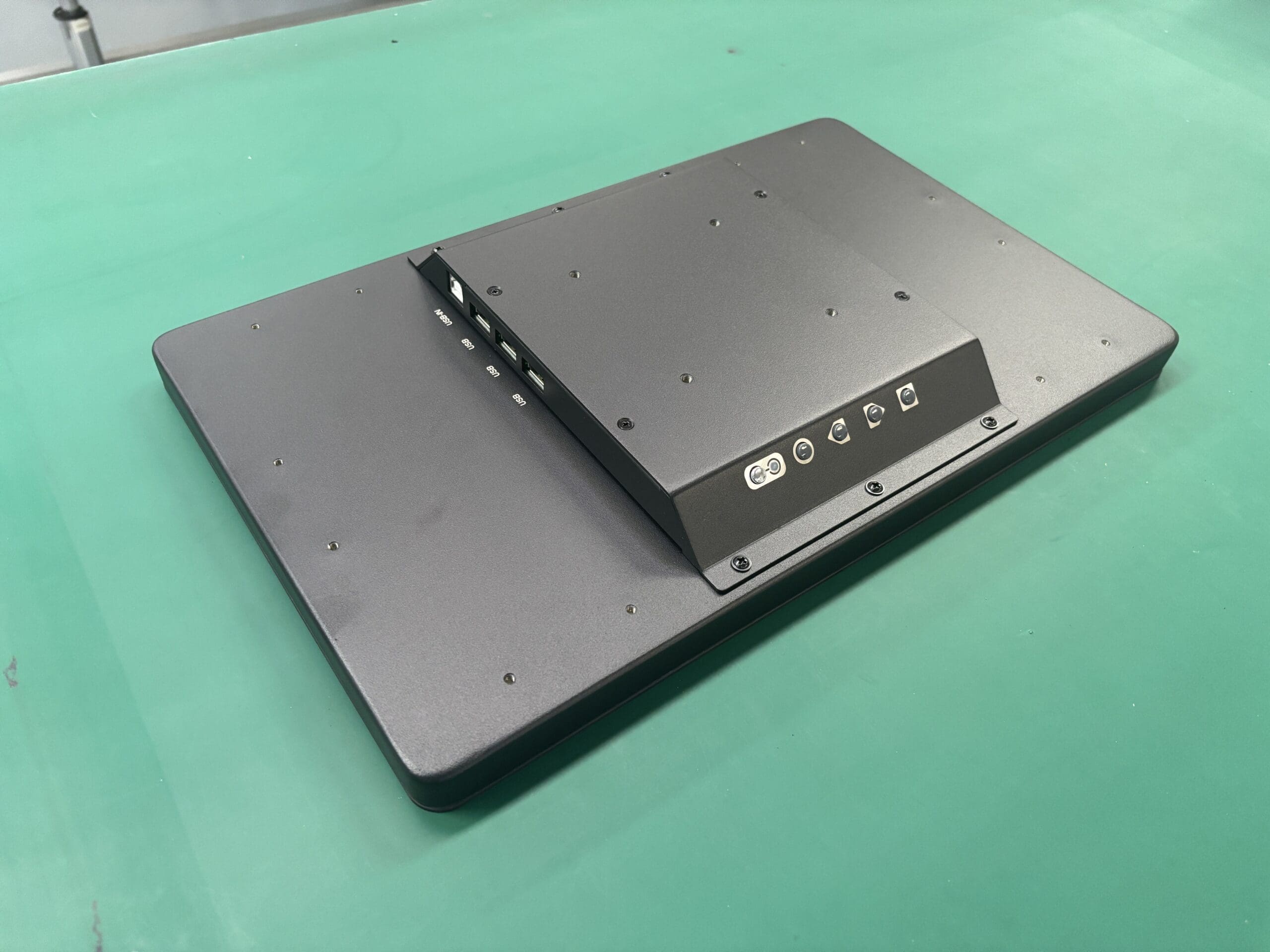

Mounting is intentionally flexible. The display ships with standard VESA 75 × 75 mounting (M4 × 4) for arm, wall, and stand attachment, and additionally supports a 6-clamp installation system designed for flush integration into custom retail furniture, kiosk shells, museum display cases, and brand activation builds with wall thickness up to 5 mm. This dual-mount approach matters operationally: most experiential retail installations want the display to disappear into the architecture rather than read as a bolted-on screen, and the clamp system supports the cut-out installation methods that visual merchandisers and exhibit fabricators actually use.

The display has no built-in PC controller — content is driven by an external source connected via 1× HDMI 1.4 or 1× DisplayPort 1.2. Important integrator note: Hololuminescent™ light-field rendering benefits from a capable external GPU and the appropriate Looking Glass software pipeline (Looking Glass Bridge, the Looking Glass SDK, or compatible content tooling). Buyers should confirm their content production workflow and the technical requirements of the Looking Glass platform with faytech and Looking Glass before deploying at scale. Conventional 2D video will display on the panel but will not produce the holographic effect; the Hololuminescent™ presentation requires content authored or processed for light-field rendering.

Audio and peripheral connectivity includes 1× USB-B (for touch return to the host PC), 3× USB 2.0 ports for connecting peripherals such as cameras, NFC readers, scanners, or media playback devices, and a 3.5mm AUX audio output for external speakers or sound systems. The display operates on 12V DC supplied by the included external 5A power adapter, with under 1 W standby consumption. Operating temperature range is 0°C to 40°C (narrower than typical industrial displays — appropriate to the climate-controlled indoor retail and exhibit environments this product is designed for). The display ships with CE and FCC certifications.

Important deployment note: the display is intended for indoor use and must be protected from direct sunlight, which can push the device beyond its specified storage and operating temperatures. Storefront window placement should include UV filtering or northern-exposure orientation. Operation outside specified temperature ranges is not covered by warranty.

Hypothetical Application Scenarios

Premium Retail Counter – Product Hero Display: Picture a luxury fragrance counter where a single bottle is staged on the counter alongside the Hololuminescent™ display, which renders a dimensional, slow-rotating presentation of the same bottle — perhaps showing the liquid's color in motion, the engraved glass detail, the brand history, the perfumer's signature. The customer touches the screen to select notes ("show me how it opens," "the heart notes," "the dry-down"), and the holographic presentation responds. The razor-thin 42.1 mm depth and 6-clamp flush-mount system let the display sit on the counter without disrupting the surface aesthetics that luxury beauty retail invests heavily in.

Watch & Jewelry Boutiques: Watchmakers can present a featured timepiece in dimensional form alongside the physical watch in a display case — showing the movement's complications, the sweep of the seconds hand, the inner workings that are invisible to the customer from outside the case. Because the holographic effect creates the impression of looking into the object rather than at a flat image of it, it bridges the gap between catalog photography and the physical presence customers travel to flagships to experience. The 7H surface hardness and IK08 rating accommodate the inevitable taps from jewelry, watches, and accessories during interaction.

Headphones, Audio & Consumer Electronics: The sample image on the datasheet itself shows headphones rendered in the display — appropriate, because premium audio products live and die on the perception of craftsmanship. The Hololuminescent™ display can rotate a 3D model of a headphone showing the driver, the materials, the cup detail, the foldable mechanism, in a way that a video loop cannot. For audio retail (headphone bars, hi-fi specialists, in-airport premium electronics kiosks), the visual impact justifies the higher price point of flagship products.

Automotive Showrooms – Component & Accessory Display: Premium automotive brands can display key components — turbochargers, brake calipers, transmission internals, EV battery cells — as dimensional holograms at the dealership reception desk or in a brand-experience zone. The portrait orientation works for tall components (gear shifters, suspension elements) while the touch interface lets customers explore performance characteristics and engineering details. The thin chassis fits dealership reception desks and accessory display areas without dominating them.

Hospitality – Concierge & Boutique Hotel Lobby Showcase: Boutique and luxury hotels can use the display as a concierge-counter or lobby feature, rotating between hotel signature objects (a heritage piece, the property's signature cocktail, the spa's featured product), wayfinding, and local recommendations. The IP65 front rating handles the inevitable champagne flute incident and the regular cleaning protocols of premium hospitality. The black aluminum chassis reads as designer hardware rather than retail signage.

Museum & Cultural Institutions – Object Visualization: Museums can use the Hololuminescent™ display next to delicate or behind-glass artifacts to show what cannot be safely shown in person — the inside of an Egyptian canopic jar, the underside of a manuscript, the layers within a painting revealed by X-ray, the missing parts of a fragmentary sculpture digitally reconstructed. The portrait orientation suits tall objects and standing visitor interaction; the touch interface supports multilingual interpretation; the IK08 cover glass handles school-group enthusiasm.

Trade Shows & Brand Activations: Exhibitors competing for booth attention in convention halls full of identical LCD screens can use the Hololuminescent™ display as an instant differentiator. Where every other booth has a video loop on a flat panel, this booth has objects that appear to float in space. Visitors stop, look, ask questions — exactly the conversion-funnel start that trade-show budgets are spent to produce. The 6-clamp mounting system supports flush integration into custom booth builds.

Pharmaceutical & Medical Device Exhibits: Trade-show booths and corporate visitor centers for medical device manufacturers can display devices — implants, surgical instruments, diagnostic equipment — as dimensional holograms with overlaid clinical data, regulatory approvals, and mechanism-of-action animations. The visualization adds clinical credibility to product presentations that flat-panel video cannot match.

Real Estate & Architectural Visualization: Premium real estate offices and architectural firms can display dimensional renderings of properties, developments, or proposed builds at reception desks and client-meeting areas. Touch interaction lets prospects rotate through views, floor levels, and time-of-day lighting conditions. The display becomes a conversation piece that justifies the firm's positioning at the top of the market.

As with all faytech interactive platforms, the 16″ Hololuminescent™ Touch Display supports customization options including chassis modifications, software integration, and bespoke content development support in partnership with Looking Glass. For OEM volume programs, custom installation guidance, content production workflow consultation, or pre-sales technical discussion of holographic retail strategy, request a quote from the faytech North America engineering team.
