19″ Industrial Touch PC X6413E (Large Case)

The 19″ Capacitive Touch PC X6413E (Large Case) is faytech's Atom-based industrial touch PC at the dominant 19″ SXGA enterprise size — engineered as the cost-effective alternative to the Core i5 sibling for deployments where platform demands are well within Atom Quad-Core capability and buyers prioritize value, the traditional 5:4 aspect ratio, high contrast, and IPS-class wide viewing angles over premium compute headroom. The 19″ SXGA 5:4 form factor is the most widely-installed enterprise display size in financial services, healthcare, and large-scale legacy enterprise software environments — and remains specified by major automation, financial, and healthcare software vendors as a reference workstation size. This product is positioned for financial trading floors, healthcare clinical workstations, industrial automation supervisor stations, legacy 19″ enterprise hardware refresh, and equipment OEM integration.

Same Large Case Form Factor — Different Compute Tier

This product implements faytech's standard Large Case architecture — identical Large IPC Back Kit design, modular Front Kit + Back Kit construction, connectivity layout, and mounting infrastructure as the rest of the Large Case Touch PC family. The difference is the internal compute platform: this product uses the Intel Atom x6413E (Elkhart Lake) Quad-Core processor, while the Core i5 Large Case siblings use the Intel Core i5-1145G7E (Tiger Lake U) vPro processor. The Atom and i5 Large Case products install identically into the same mounting infrastructure, offer identical connectivity, and share the same modular service infrastructure. The buying decision is purely about compute tier and cost.

When to choose this Atom version:

• Financial back-office and operations workstations running trade reconciliation, compliance monitoring, account management, and risk software designed for 5:4 screens
• Healthcare clinical workstations for medication management, EMR access, charting, and nursing-station documentation
• Industrial automation supervisor stations running well-optimized SCADA, MES, and alarm management software within Atom-class capability
• Legacy 19″ enterprise hardware refresh where the new Atom platform exceeds the legacy hardware's compute capability
• Fleet deployments at scale where per-unit cost savings multiply meaningfully across hundreds of installations
• Equipment OEM integration where unit cost drives the buy decision and OEM software targets Atom-class platforms
• Multi-operator workstations requiring wide viewing angles for collaborative review — physician + nurse + technician, supervisor + operator + maintenance

When the Core i5 Large Case sibling is the better choice:

• Multi-application operator workstations running SCADA + document management + corporate productivity concurrently
• Multi-monitor active trading desks running real-time market data feeds, order entry, news, and analytics simultaneously
• Computer-vision augmented inspection software or AI-assisted predictive maintenance applications
• vPro remote management requirements for IT fleet management across distributed facilities
• Higher storage requirements — Core i5 Large Case siblings ship with 240 GB SSD vs 120 GB on this Atom version

178°/178° IPS-Class Viewing Angles — Widest in the Family

The most operationally significant spec on this product is the 178°/178° viewing angles — the widest in the entire Atom Large Case family (surpassing even the 15″ at 176°/176°). These IPS-class viewing angles deliver consistent color and brightness across nearly any viewing position, which matters in real deployment contexts:

• Collaborative healthcare workstations — physician, nurse, and patient all view the display during clinical rounds without color shift or brightness loss
• Financial trading collaboration — trader and supervisor reviewing positions together, or junior trader observing senior trader workflow
• Industrial control room collaborative analysis — operator + supervisor + engineer reviewing alarms or trend data
• Customer-facing service positions — bank teller workstations, healthcare reception, retail customer service where customer + staff both view the screen
• Training environments — instructor + trainees viewing the same workstation
• Quality inspection collaborative review — inspector + supervisor + quality engineer

Combined with the 1000:1 contrast ratio (the highest in the Atom Large Case family alongside the 17″ sibling), this product offers genuine workstation-grade visual quality at industrial touch PC pricing. The display panel is an IPS-class technology with significantly better off-axis performance than the TN-class panels used in some smaller siblings.

5:4 Aspect Ratio — The Enterprise Display Standard

The 5:4 aspect ratio at 1280×1024 SXGA resolution is intentional: it provides more vertical screen real estate per unit of horizontal footprint than widescreen alternatives, matching the design heritage of enterprise software ecosystems built around the CRT-era display standards. This is the most widely-deployed display size in legacy enterprise computing, and it remains operationally critical in:

• Financial trading software — order books, price ladders, depth-of-market displays, watchlists, and trade blotters were designed around vertical-format screens
• Medical imaging workstations — radiology, pathology, and diagnostic imaging software historically targets 5:4 displays for full-frame image review
• Enterprise applications — legacy ERP (SAP GUI, Oracle Forms), MES, CRM, and database-driven business applications designed for 5:4 displays
• Industrial HMI — many SCADA platforms predate the widescreen transition and render natively on 5:4 panels
• Document-heavy workflows — vertical-format documents (forms, reports, contracts, medical records) display naturally on 5:4 panels without scrolling
• Healthcare information systems — Epic, Cerner, Meditech, AllScripts clinical workstations were historically deployed on 19″ 5:4 hardware

The 19″ SXGA 5:4 standard remains widely specified by financial institutions, healthcare systems, government agencies, and industrial automation vendors. This product is a drop-in compatible upgrade for legacy 19″ enterprise hardware reaching end-of-life across these industries.

Intel Atom Industrial Compute Platform

The platform is built around the Intel® Atom® x6413E processor from Intel's Elkhart Lake family — a modern Quad-Core x86 SoC designed specifically for industrial IoT, edge computing, and dedicated-function commercial deployment. The Atom x6413E offers a deliberate balance of performance and power efficiency: enough compute headroom to run enterprise software, industrial software, web-based HMI applications, and dedicated-function applications at modest power consumption (23.2W under typical load — note this is higher than smaller Atom Large Case siblings due to the larger panel backlight).

Paired with 8 GB DDR4 RAM and a 120 GB SSD (proper SSD, not eMMC), the platform handles enterprise workstation software, industrial control software, clinical workstation applications, and modern web frameworks within Atom-appropriate workload boundaries. For workloads beyond this envelope — particularly active multi-monitor trading desks or AI-augmented clinical decision support — the Core i5 Large Case sibling is the appropriate choice within the same physical form factor.

Operating System Options

Debian 12 ships pre-installed as standard (note: Pyramid Computer GmbH is not affiliated with Debian; Debian is a registered trademark owned by Software in the Public Interest, Inc.). Additional OS options are available on request with an additional fee: Linux Ubuntu 22.4 LTS, Windows 10, and Windows 11. For Linux-based dedicated-function deployment, the Atom platform performs well within its workload boundaries. For Windows-heavy multi-application enterprise deployments, the Core i5 Large Case version is the better choice — particularly relevant for healthcare and financial environments where Windows ecosystem integration is mandatory.

Touch System

The 10-point projected capacitive multi-touch panel is built on 1.1 mm thermally strengthened cover glass with AG anti-glare surface treatment (chemical etching), IK08 impact protection, and faytech's proprietary Clear Bond® optical bonding. The EXC81W84 touch controller communicates via USB with touch resolution of 59 RX × 46 TX. Multi-touch supports modern gesture-driven interfaces including pinch-to-zoom (relevant for radiology image review and chart analysis), two-finger scrolling, and rotation gestures.

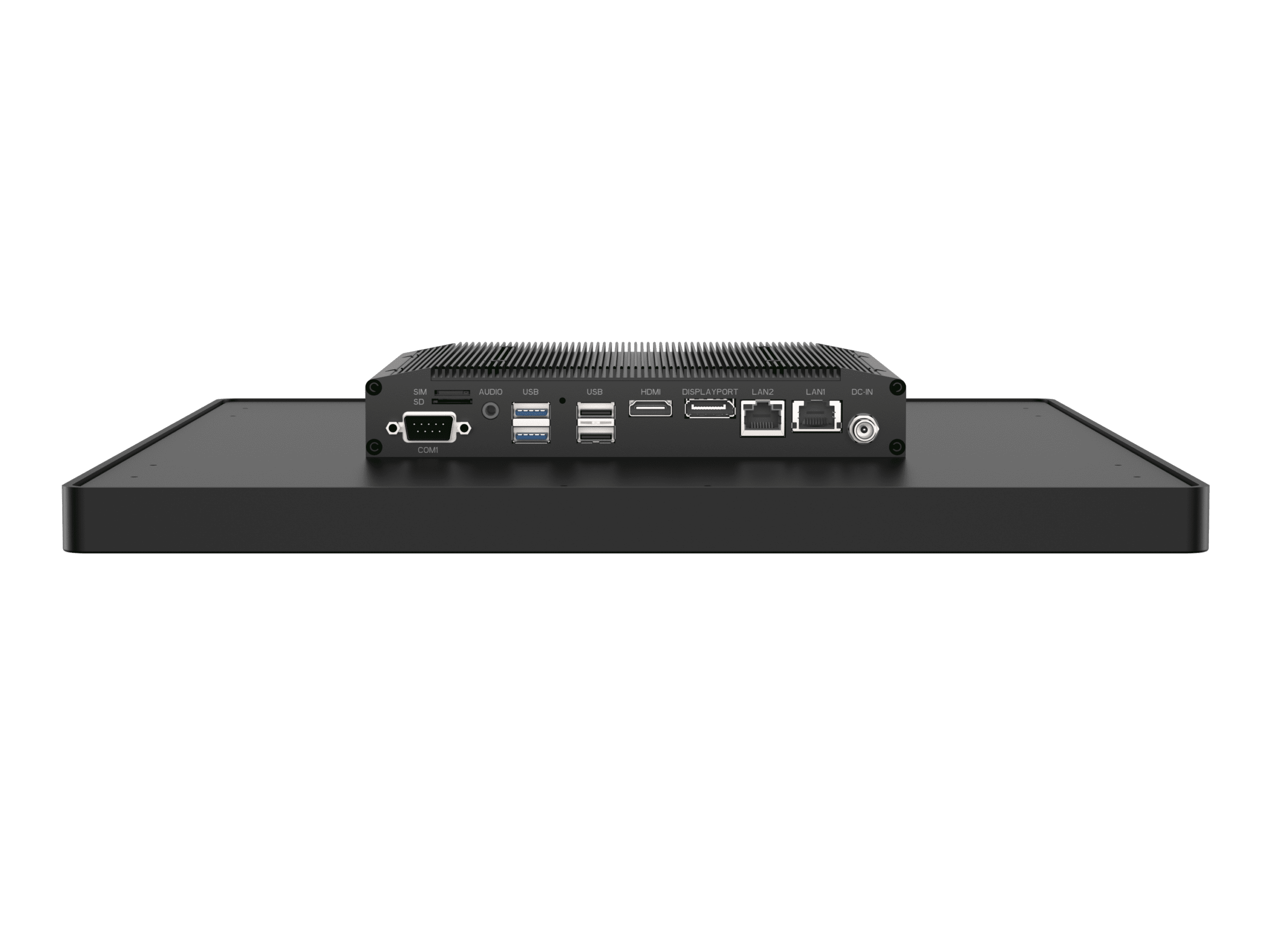

Industrial Connectivity

Network: 2× 10/100/1000 Mbit Gigabit Ethernet RJ45 ports (Realtek® 8111H) supporting network segmentation between operational technology (OT) networks and information technology (IT) networks — critical for industrial cybersecurity, healthcare HIPAA-segmented networks, and financial trading network isolation. Wi-Fi via Intel® AC 3168 module with included RP-SMA female antenna. Power over Ethernet (PoE) is available upon request.

USB: 2× USB 3.0 + 2× USB 2.0 for peripheral integration (barcode scanners for clinical medication verification, payment terminals, RFID/smart card readers for badge-based authentication, signature pads, biometric devices, service-tool laptops).

Video Output: 1× HDMI + 1× DisplayPort for external display extension — supporting dual-display configurations (primary 5:4 workstation + secondary widescreen for trading multi-monitor, primary clinical display + reference image display in healthcare, primary HMI + supervisor overview in industrial).

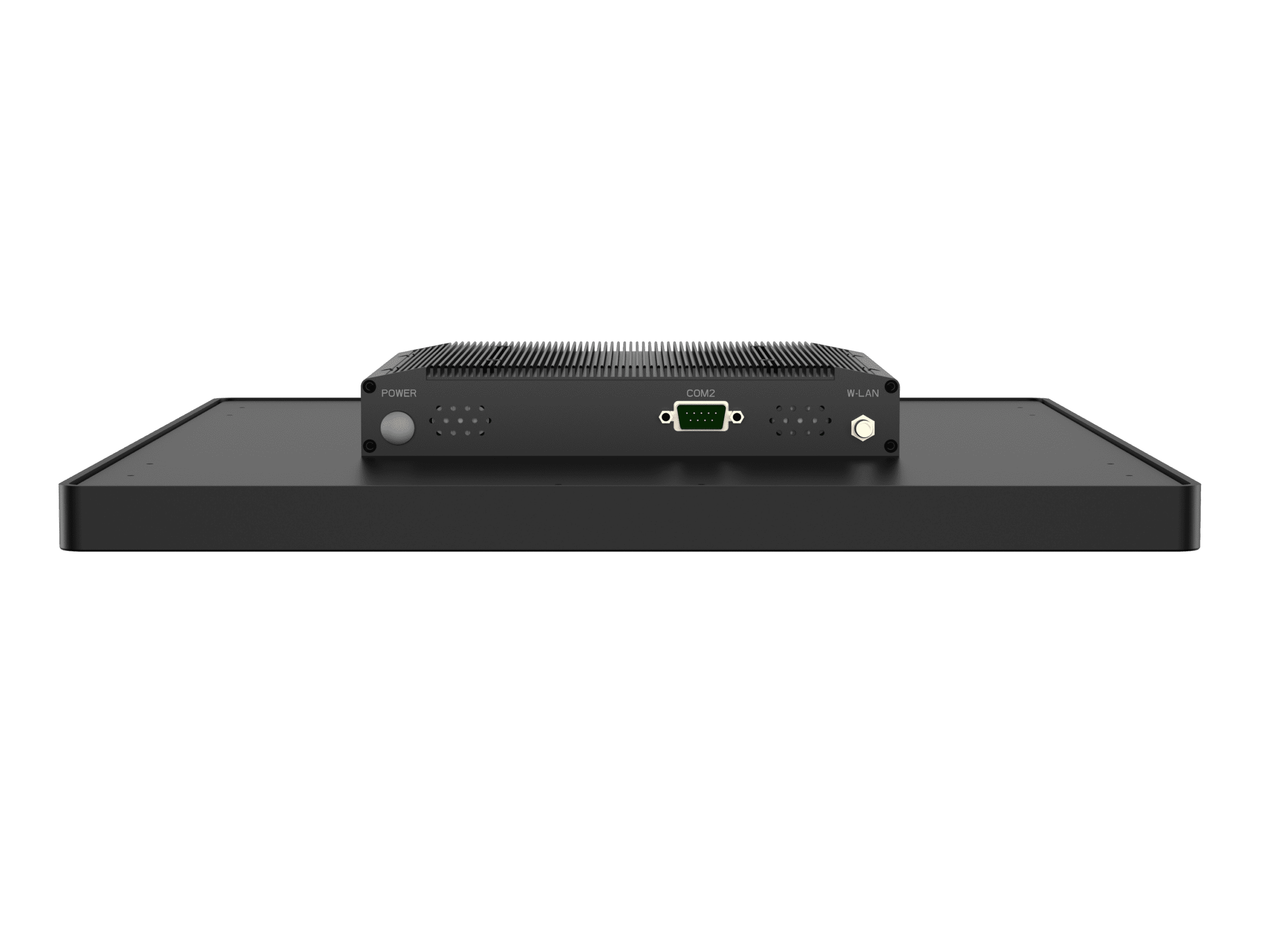

Industrial Serial: 2× RS-232 COM ports (RX/TX only, DSUB9) for legacy industrial equipment integration including PLCs, motor controllers, weigh scales, RFID readers, serial sensors, and legacy enterprise peripherals (receipt printers, customer displays, laboratory instruments). Standard pinout: Pin 2 RXD1, Pin 3 TXD1, Pins 5/10/11 GND.

Audio: 1× Audio In/Out (3.5 mm) via Realtek® ALC897 Audio CODEC + 2× 2W integrated loudspeakers for transaction confirmations, alert tones, audio prompts, and accessibility audio.

Storage Expansion: 1× SD card slot for removable storage and 1× SIM card slot for cellular connectivity options.

Modular Front Kit + Large IPC Back Kit Design

This product implements faytech's modular Front Kit + Back Kit architecture with the Large IPC Back Kit (X6413E) — the same chassis design used across the entire Large Case family, configured here with the Atom processor:

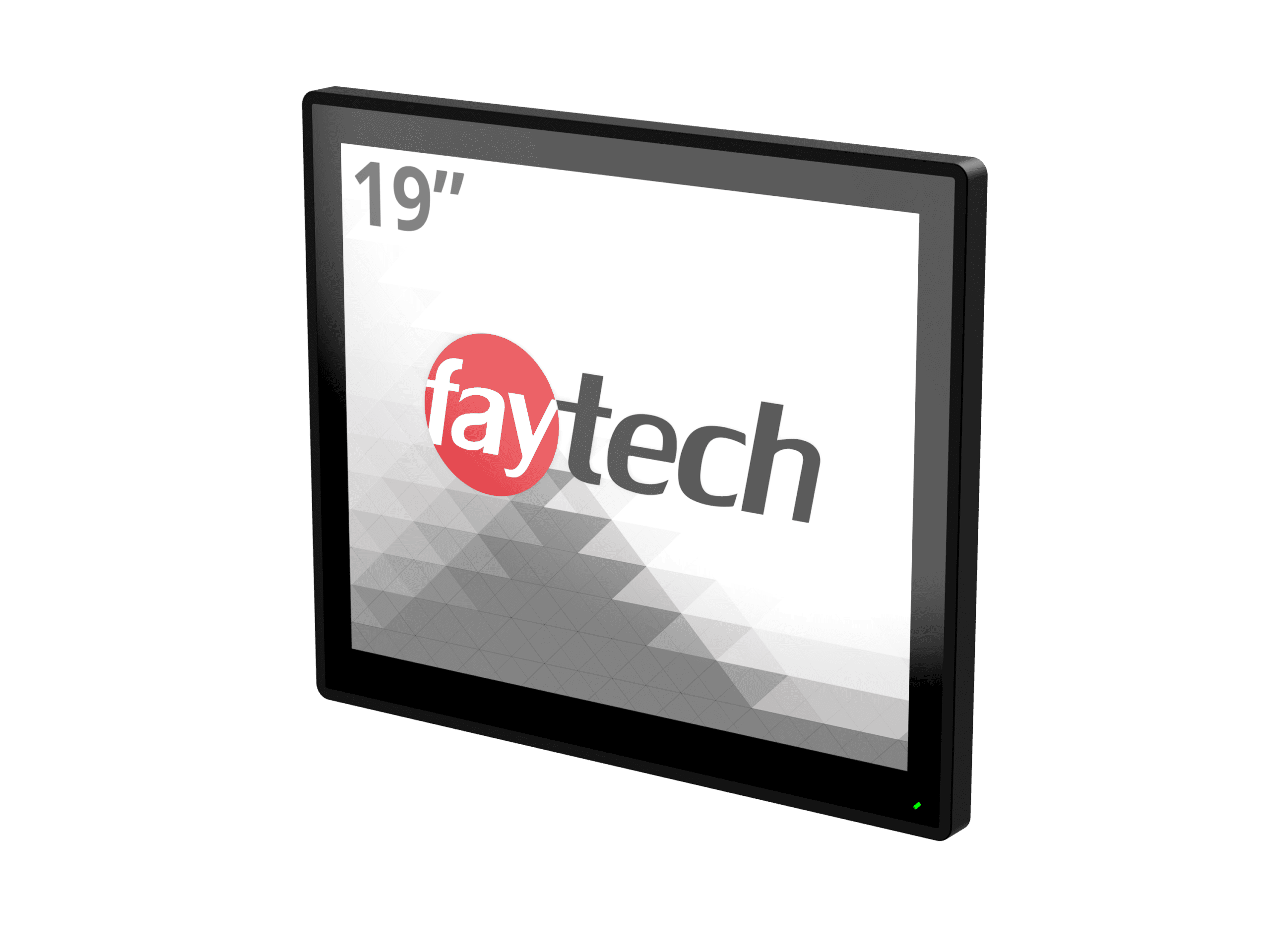

• 19″ Rubber Frame Front Kit: Contains the 19.0″ SXGA display panel with 178° IPS-class viewing angles, projected capacitive touch sensor, cover glass with Clear Bond® optical bonding, rubber frame structural assembly, and the IP65 sealing system.

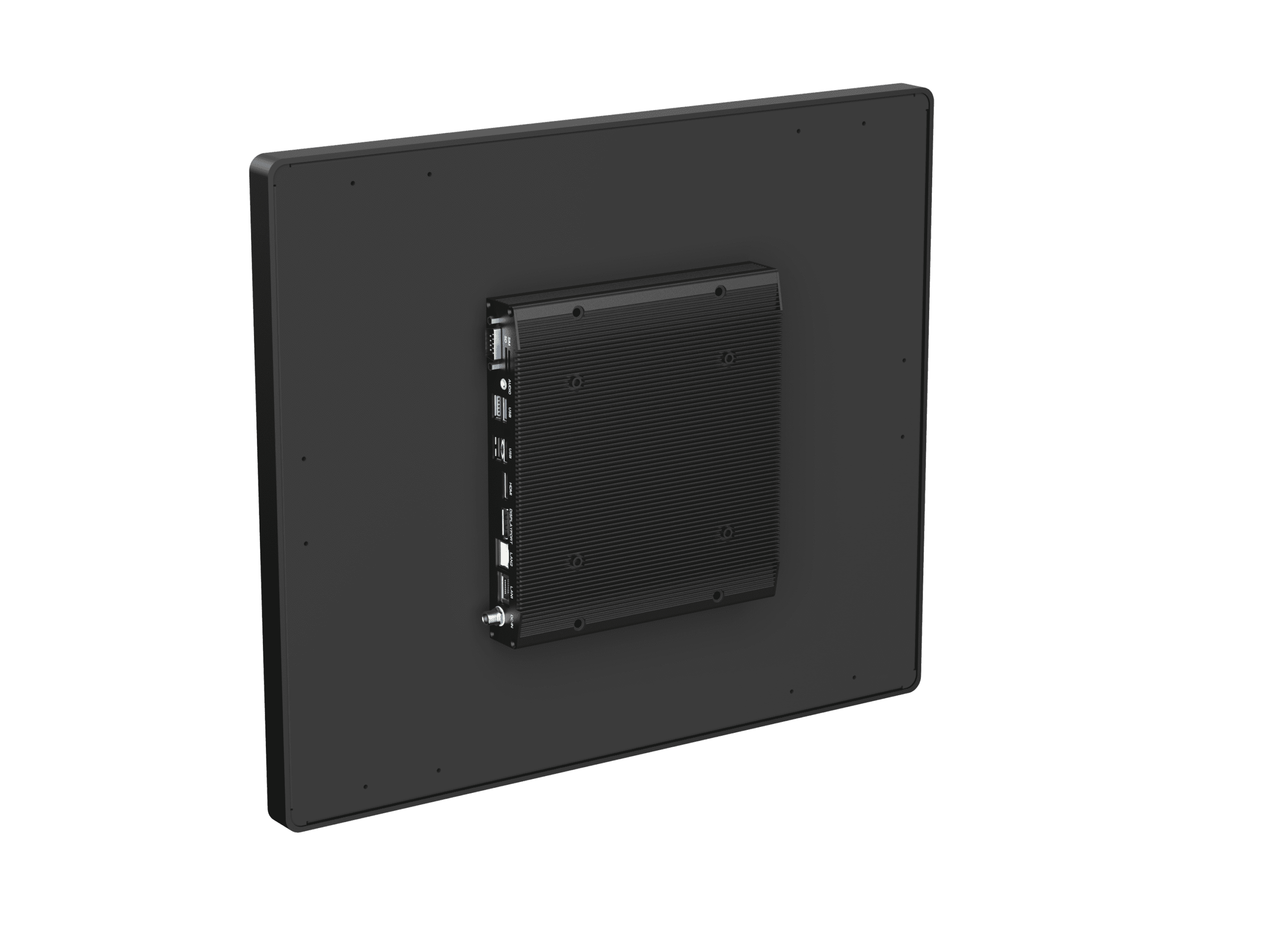

• Large IPC Back Kit (X6413E): Contains the Intel Atom x6413E compute platform, all external connectivity, network hardware, storage, and the aluminum IPC back case with passive thermal management fins. Same physical chassis as the Core i5 Large Back Kit, configured with the Atom platform.

The shared physical infrastructure between the Atom and i5 Large Case families is operationally meaningful: organizations deploying mixed Atom and i5 Touch PCs can use the same mounting hardware, the same kiosk enclosures, the same cut-out templates, and the same service inventory infrastructure. The compute platform decision is independent of the physical integration decision.

Independent kit replacement during service supports:

• Compute platform refresh as Intel processor generations advance — replace only the back kit while keeping the original front kit, display, and physical integration
• Field damage replacement of cracked cover glass without retiring the working back kit and configured OS image
• OEM integration projects where custom enclosures house the back kit separately from the front kit
• Cross-compute service flexibility — organizations can upgrade from Atom to Core i5 in the same physical infrastructure if compute requirements grow

Note: Front Kit + Back Kit assembly to be done by a professional to maintain IP65 seal integrity.

Mounting Options

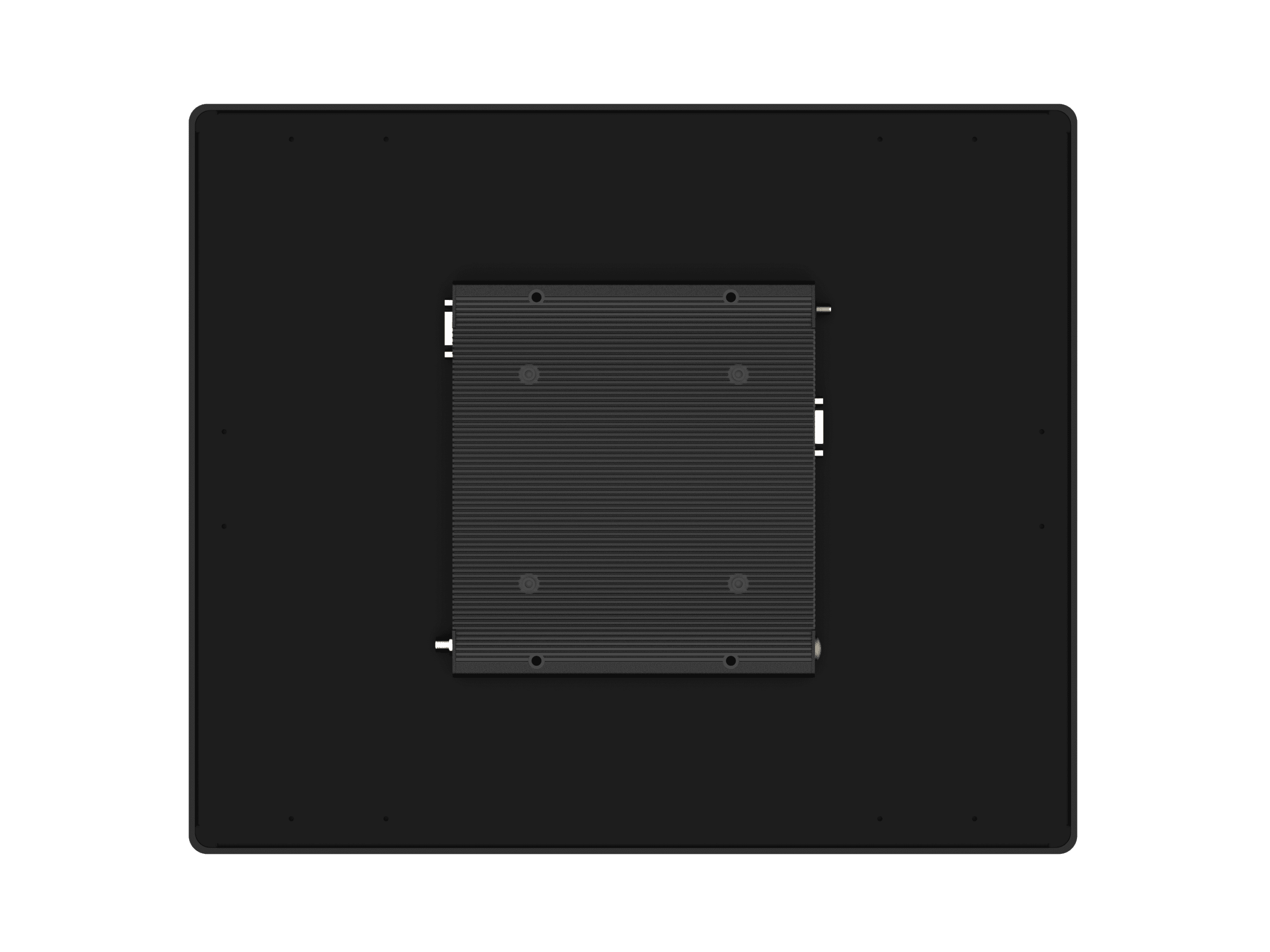

• VESA 100 × 100 mounting: Standard wall-mount arms, articulating mounts, monitor stands, and industrial pole mounts.
• 6-clamp open-frame integration: Installation into custom kiosk enclosures, retail counters, industrial control panels, financial trading desks, healthcare workstation positions, or built-in HMI positions via a 407.5 × 340.5 mm cut-out, secured by 6 clamps. Maximum clamp wall thickness is 5.0 mm. The 6-clamp configuration provides additional structural support across the larger panel area.

Wide Power Input & Environmental

The platform accepts 9-36V DC wide power input — supporting standard 12V industrial DC, vehicle 24V systems, 48V battery backup systems (regulated), and the PoE option. The included 100-240V AC active-switching adapter outputs 12V DC. Operating power consumption is 23.2W with under 1W standby — notably efficient for a 19″ industrial touch PC given the larger backlight, and substantially lower than typical Core i5 Large Case siblings.

Operating temperature range is -10°C to +60°C with 10–90% humidity tolerance. IP65 Front + IP40 Back protection. CE and FCC certified.

Intended use: Industrial-grade touchscreen touch PC for indoor use as control panel, digital signage, wayfinding, POS, and similar applications. Protect from direct sunlight. Operation outside specified temperature ranges is not covered by warranty.

Included in the Delivery

Power adapter (100-240V AC active switching, 12V DC-Out), Wi-Fi antenna (RP-SMA female), short installation manual.

Hypothetical Application Scenarios

Financial Trading Floor — Back-Office & Operations: Investment banks, hedge funds, brokerages, and proprietary trading firms deploying trading floor back-office workstations for trade reconciliation, compliance monitoring, risk management, regulatory reporting, and operations support benefit substantially from the 19″ SXGA 5:4 form factor. The 1000:1 contrast supports clearer differentiation in dense order books, position blotters, and chart overlays; the 178° wide viewing angles support collaborative review between trader + compliance officer or trader + risk manager; the 5:4 aspect ratio matches the vertical-format design of trading software ecosystems; the Atom platform handles back-office software adequately; cost positioning supports trading-floor-wide deployment.

Healthcare Clinical Workstations — Nursing Stations & Provider Workrooms: Hospitals deploying clinical workstations for medication management, EMR access (Epic, Cerner, Meditech), lab result review, patient charting, nursing station documentation, and provider workrooms benefit significantly from this product. The vertical-format 5:4 aspect ratio matches the design heritage of clinical software platforms; the 1000:1 contrast supports clearer reading of dense clinical data and lab results; the 178° viewing angles enable physician + nurse + patient collaborative chart review during clinical rounds; the IP65 front supports hospital cleaning protocols; the Atom platform handles clinical workstation software adequately; cost positioning supports nursing-station-wide deployment across hundreds of clinical endpoints.

Industrial Automation Control Room Supervisor Stations: Manufacturing supervisor stations and control room operator positions running SCADA, MES, alarm management, and trend analysis software benefit from the 19″ SXGA workstation-grade form factor. The 5:4 ratio matches mature industrial software platforms (Wonderware/AVEVA, FactoryTalk, WinCC, Ignition, Citect); the 1000:1 contrast supports clearer alarm differentiation; the 178° viewing angles support collaborative supervisor + operator + engineer review; the 30,000-hour LED lifetime supports continuous 24/7 deployment; the Atom platform handles supervisor-tier SCADA software adequately; cost positioning supports broader deployment across multiple supervisor positions.

Legacy 19″ Enterprise Hardware Refresh: Financial institutions, healthcare systems, government agencies, and large enterprises refreshing aging 19″ workstation hardware (the dominant enterprise display standard for two decades) can use this product as a drop-in compatible replacement. The 5:4 aspect ratio maintains software compatibility with applications designed for the original hardware; the Atom platform comfortably exceeds the compute capability of legacy CRT-era replacements; the 6-clamp mounting fits existing cut-out templates with minor adjustment; cost positioning is appropriate for refresh budgets that face per-station replacement multiplied across enterprise inventory; the IPS-class panel quality exceeds typical 19″ CRT replacements.

Banking Teller Workstations & Customer-Facing Service Positions: Bank branches, credit union branches, and financial service offices deploying teller workstations and customer service positions benefit from the 19″ 5:4 form factor. The 178° viewing angles enable both teller and customer to view the screen during transactions (signature verification, account display, document review); the 1000:1 contrast supports clearer document and form display; the vertical-format aspect ratio matches banking software design heritage; the Atom platform handles banking front-office software adequately; the IP65 front handles customer-facing deployment with cleaning protocols.

Public Safety Dispatch & Emergency Operations Centers: 911 dispatch centers, emergency operations centers, security operations centers, and command/control facilities deploying dispatcher workstations and incident management interfaces benefit from the 19″ 5:4 form factor. CAD (computer-aided dispatch) systems, incident management software, and mapping interfaces with vertical event lists were designed around 5:4 displays; the 30,000-hour LED supports 24/7 always-on deployment; the 178° viewing angles support collaborative incident review; the dual GbE supports CAD network plus radio interoperability network; the IP65 front supports cleaning protocols in shared-workstation environments.

Radiology, Pathology & Diagnostic Imaging Workstations: Medical imaging facilities deploying diagnostic review workstations (radiology, pathology, ophthalmology, dermatology) benefit from the 19″ SXGA 5:4 form factor and IPS-class panel. The vertical-format aspect ratio matches imaging software design; the 1000:1 contrast supports better visualization of soft tissue gradients; the 178° viewing angles support collaborative case review between radiologists, residents, and referring physicians. Note: This product is positioned for non-primary-diagnostic imaging workflow support — primary diagnostic review typically requires specialty medical imaging displays with calibration to DICOM standards.

Laboratory & Scientific Instrumentation Interfaces: Laboratory environments deploying instrument control workstations (chromatography, spectroscopy, microscopy, automated liquid handling, clinical chemistry analyzers) benefit from the 19″ 5:4 form factor. Scientific instrument software was historically designed for 5:4 displays; the 1000:1 contrast supports clearer chromatograph and spectrum review; the 178° viewing angles support collaborative analysis by lab technician + supervising scientist; the Atom platform handles instrument control software within its workload envelope; the IP65 front handles laboratory cleaning protocols.

Insurance Claims Processing & Underwriting Workstations: Insurance companies, claims processing centers, mortgage processing facilities, and underwriting departments benefit from the 19″ 5:4 form factor. Vertical-format documents (claims forms, policies, contracts) display naturally without horizontal scrolling; the 1000:1 contrast supports clearer reading of dense document text; the 178° viewing angles support collaborative review by claims examiner + supervisor or underwriter + senior underwriter; cost positioning supports administrative-staff-wide deployment.

Government Agency Workstations: Federal, state, and local government agencies deploying administrative workstations (permit processing, license issuance, benefits administration, case management, court systems, vital records, motor vehicle services) benefit from the 19″ 5:4 form factor and cost positioning. Most government enterprise software was designed for 5:4 displays; the 178° viewing angles support agent + citizen collaborative review at customer-service positions; the IP65 front supports public-facing deployment with cleaning protocols; cost positioning supports agency-wide deployment across thousands of administrative endpoints.

For OEM volume programs, modular Front Kit / Large IPC Back Kit purchasing arrangements, alternative OS pre-installation requests, PoE configuration, healthcare or financial industry compliance consultation, mixed Atom/i5 fleet planning, or pre-sales technical discussion, request a quote from the faytech North America engineering team.
