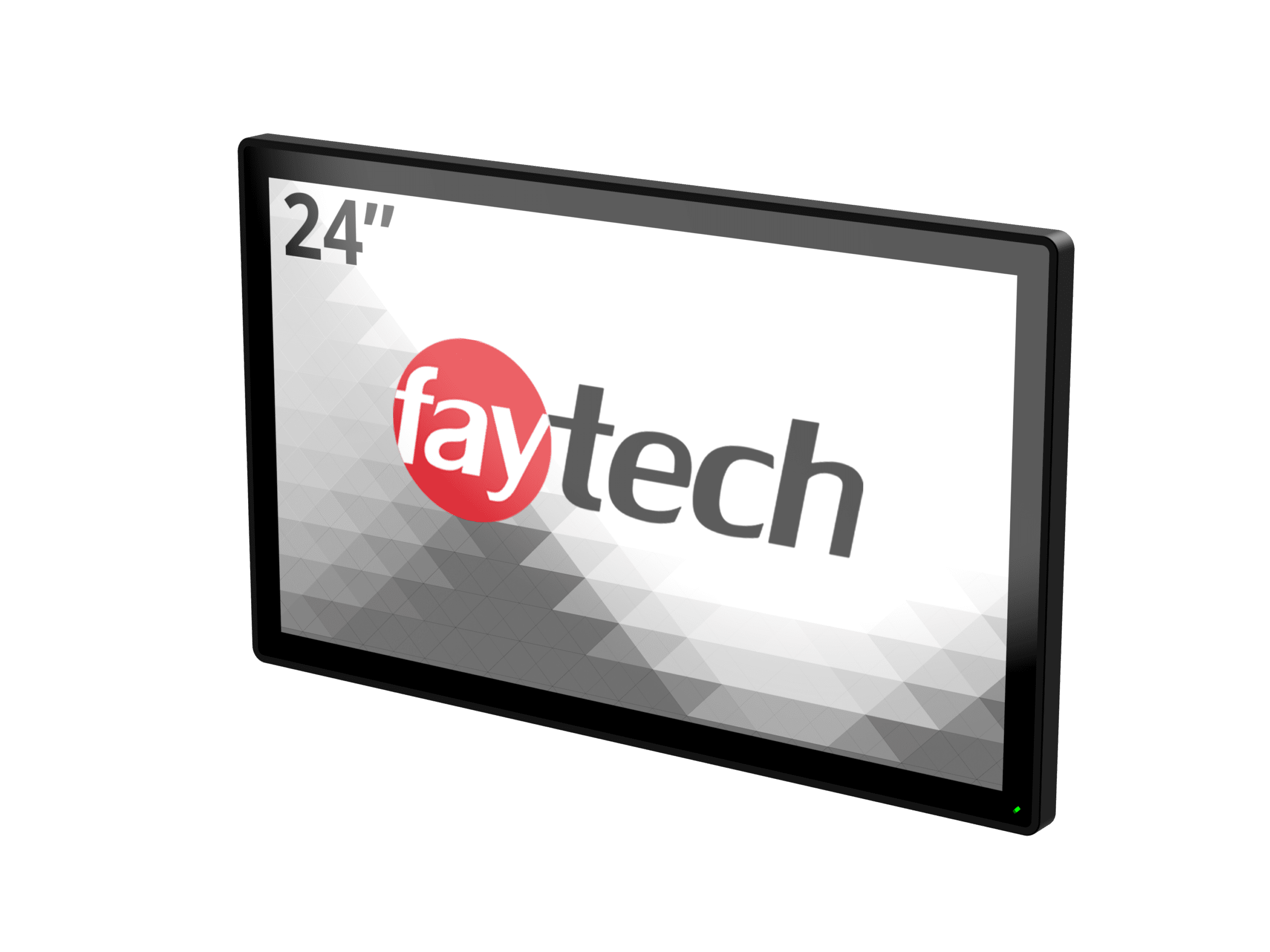

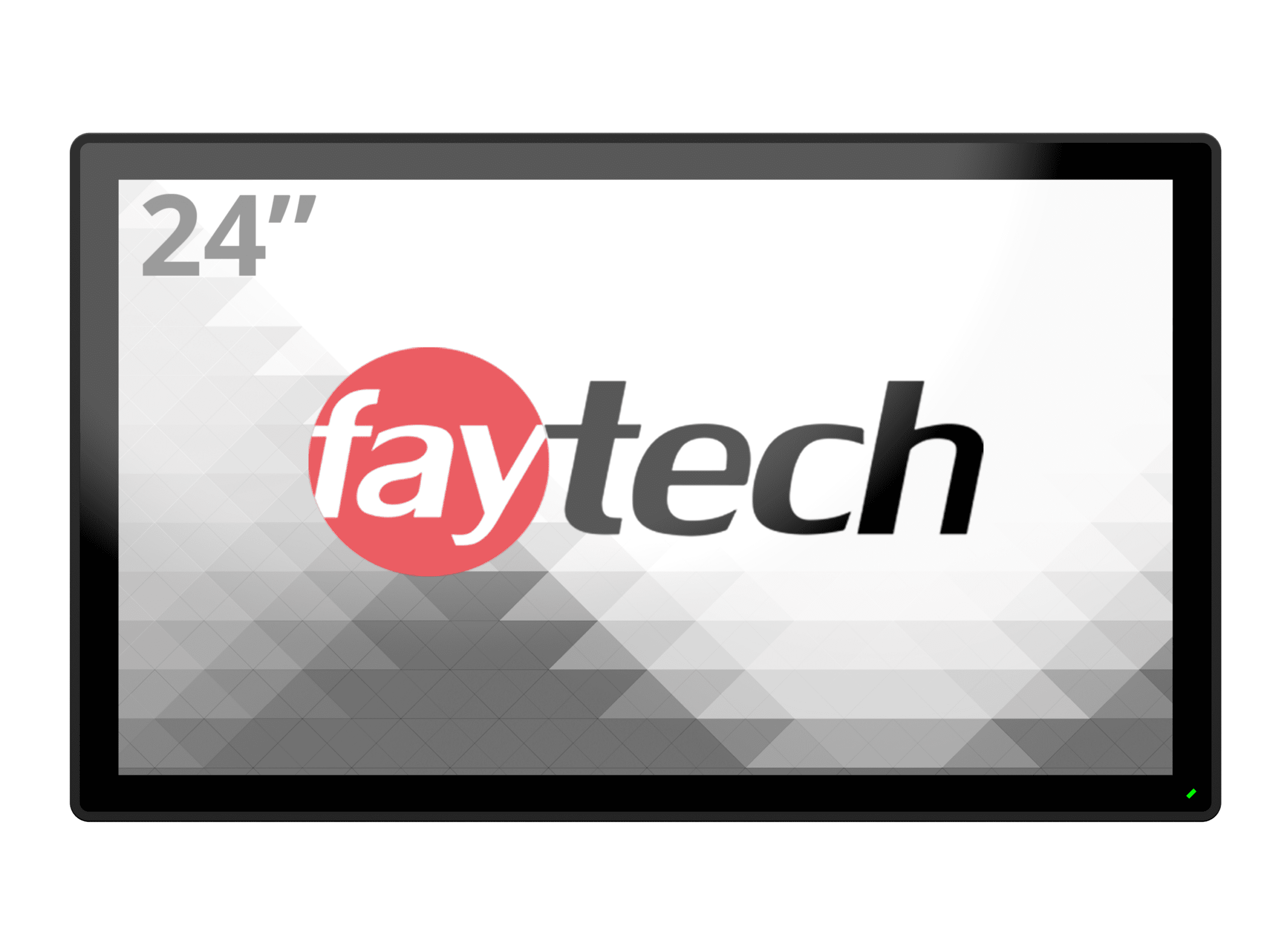

24″ Industrial Touch PC i5 (Large Case)

The 24″ Capacitive Touch PC I5-1145G7E (Large Case) is the flagship of faytech's compact Core i5 Touch PC family — the largest size in the family and the highest-specification display panel in the line. This is the right product for deployments where both compute capability and display quality matter equally: premium retail POS terminals where customer-facing brightness drives engagement, modern industrial automation operator workstations where brighter displays improve operator alertness over long shifts, healthcare clinical workstations where image clarity matters for diagnostic support, hospitality front desk and concierge workstations where the display is part of the property aesthetic, and any commercial deployment where the 24″ Full HD form factor is the operational target.

Premium Display Panel

The display specifications are notably better than any other product in the Core i5 Touch PC family:

• Brightness: 500 cd/m² — twice the brightness of the 21.5″ sibling (250 cd/m²) and meaningfully brighter than typical indoor commercial monitors. Supports placement in bright retail environments, hospitality lobbies, and well-lit operator workstations where dimmer displays would wash out.
• Contrast: 3,000:1 — three times the contrast of the 17″/19″/21.5″ siblings (1,000:1). Deeper blacks, more vivid color, better legibility for graphic content, photography in healthcare imaging, and high-resolution process diagrams.
• Viewing angles: 178°/178° — symmetrical wide viewing supporting customer-facing applications, shared operator viewing, and off-axis approach from any direction.
• LED lifetime: 30,000 hours — supports continuous 24/7 deployment for over 3.4 years of round-the-clock operation.

The display is the same premium 23.8″ panel used in the standalone 24″ Capacitive Touch Monitor RTD2556 — the difference is that this product integrates the Core i5 compute platform behind that panel for buyers who don't want a separate host PC. The Full HD 1920×1080 resolution across the 527.04 × 296.46 mm active area produces approximately 92 PPI pixel density — comfortable for adult viewing distances and well-suited to modern software interface design. The display uses LVDS interface internally.

Intel Core i5 Industrial Compute Platform

The platform is built around the Intel® Core™ i5-1145G7E (Tiger Lake U) — a genuine industrial vPro embedded processor, not a low-power Atom or Celeron SoC. The i5-1145G7E offers full Intel Core architecture with significantly more compute performance, larger cache, faster memory subsystems, and better single-thread performance than the Atom and Celeron alternatives common in this product category. Paired with 8 GB DDR4 RAM and a 240 GB SSD (proper SSD, not eMMC), the platform handles demanding industrial software with margin to spare.

This compute spec matters operationally because modern software is increasingly resource-intensive: browser-based HMI panels running multiple WebSocket connections, real-time data dashboards with high-frequency telemetry, computer-vision-augmented inspection software, AI-assisted predictive maintenance interfaces, modern POS systems with cloud integration, EHR clients with concurrent imaging viewers, and the multi-application workloads common in modern operator stations.

The 1145G7E is also a vPro processor, supporting Intel's enterprise remote management features (AMT, vPro Manageability Engine) — meaningful for IT teams managing fleets of workstations remotely across geographically distributed facilities. Power consumption is 37.3W under operating load — the highest in the compact Core i5 Touch PC family due to the 24″ panel area and 500 cd/m² brightness, but still efficient for a flagship Full HD industrial workstation-class device.

Operating System Options

Debian 12 ships pre-installed as standard (note: Pyramid Computer GmbH is not affiliated with Debian; Debian is a registered trademark owned by Software in the Public Interest, Inc.). Additional OS options available on request (with additional fee): Linux Ubuntu 22.4 LTS for the broader Ubuntu ecosystem alignment, Windows 10 for legacy Windows industrial software, and Windows 11 for current Windows commercial software. The Linux-first default reflects modern industrial deployment trends toward open-source OS platforms; Windows availability handles the substantial volume of Windows-based industrial, POS, and healthcare software in production.

Touch System

The 10-point projected capacitive multi-touch panel is built on 1.1 mm thermally strengthened cover glass with AG (chemical etching) anti-glare surface treatment, IK08 impact protection, and faytech's Clear Bond® optical bonding. The EXC81W84 touch controller communicates via USB. Touch resolution is 68 RX × 38 TX. The optical bonding eliminates the air gap between touch sensor and LCD panel, improving optical clarity at the high brightness and contrast specifications, reducing reflections in commercial lighting, and increasing mechanical durability against operator impacts.

Comprehensive Industrial Connectivity

Network: 2× 10/100/1000 Mbit Gigabit Ethernet RJ45 ports (Realtek® 8111H) supporting network segmentation common in industrial OT/IT separation. Wi-Fi via Intel® AC 3168 module with included RP-SMA female antenna. Power over Ethernet (PoE) is available upon request.

USB: 2× USB 3.0 (high-speed peripherals: external storage, barcode scanners, high-bandwidth instruments) + 2× USB 2.0 (standard industrial peripherals).

Video Output: 1× HDMI + 1× DisplayPort for external display extension — useful for dual-display workstation configurations.

Industrial Serial: 2× RS-232 COM ports (RX/TX only, DSUB9). The dual COM port specification matters for industrial integration: many deployments require simultaneous communication with multiple legacy devices (PLC + barcode scanner, scale + label printer, machine controller + data logger). The pinout follows standard RS-232 convention: Pin 2 RXD1, Pin 3 TXD1, Pin 5/10/11 GND.

Additional connectors: 1× Audio In/Out (Realtek® ALC897 Audio CODEC), 1× SD card slot for local data logging and removable storage, 1× SIM card slot for cellular connectivity in installations where Wi-Fi/Ethernet isn't appropriate.

Modular Front Kit + Back Kit Design

This product implements faytech's modular Front Kit + Back Kit architecture:

• 24″ Rubber Frame Front Kit: Contains the 23.8″ Full HD display panel (the premium 500 cd/m² / 3,000:1 contrast panel), projected capacitive touch sensor, cover glass with Clear Bond® optical bonding, rubber frame structural assembly, and the IP65 sealing system.

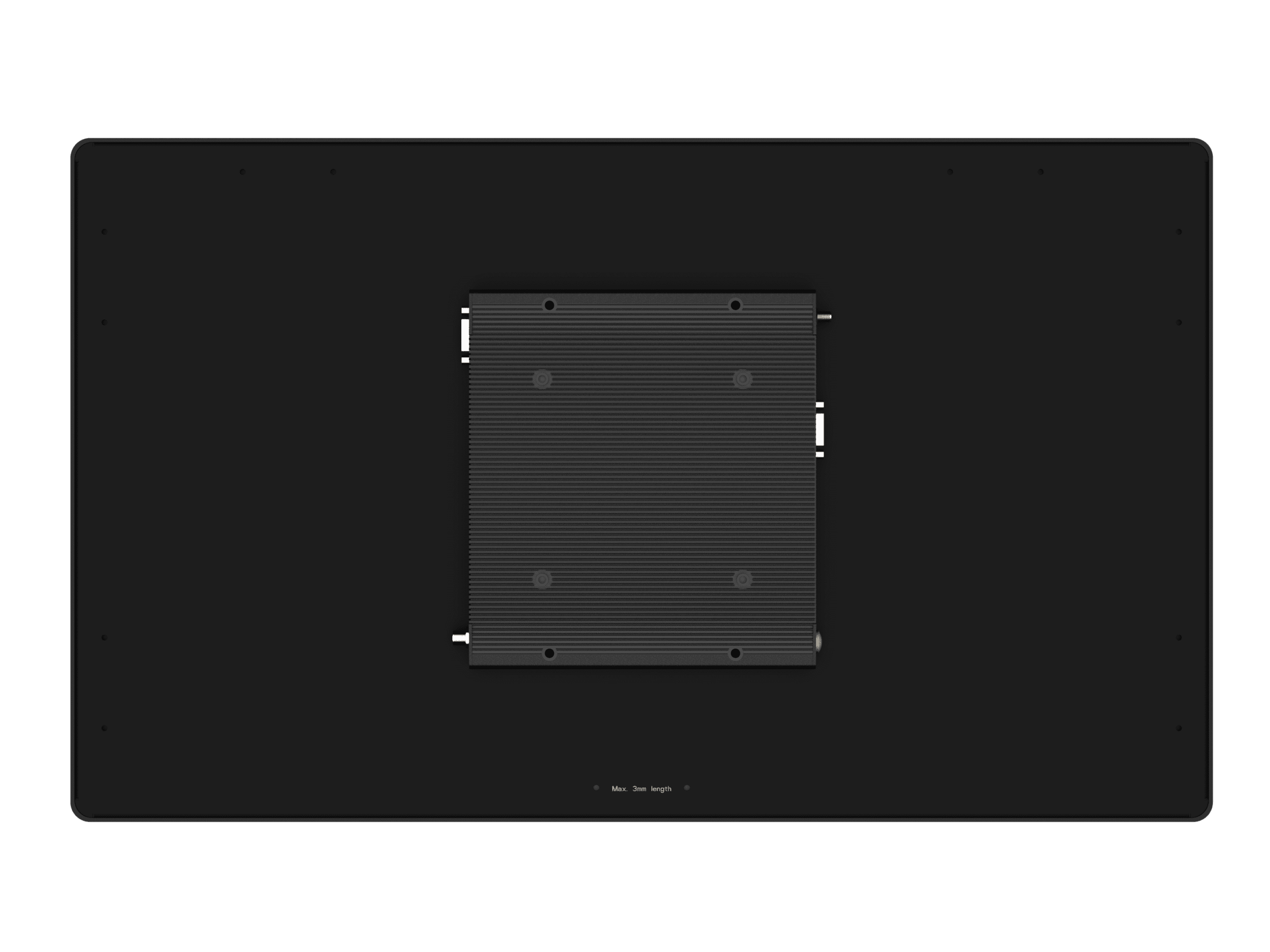

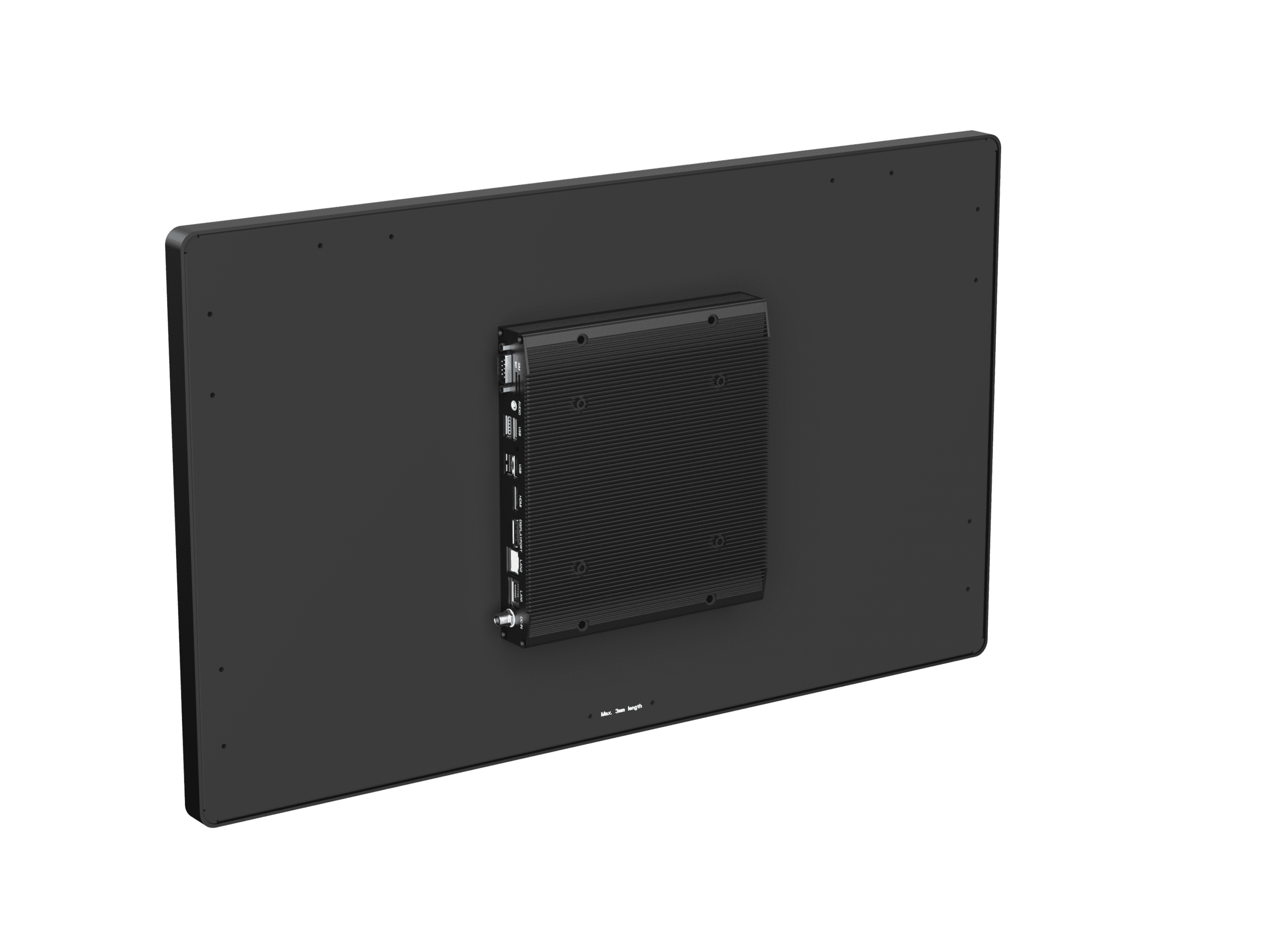

• Large IPC Back Kit (i5-1145G7E): Contains the Intel Core i5 compute platform, all external connectivity, network hardware, storage, and the aluminum IPC back case with passive thermal management fins. This is the same back kit shared across the entire compact Core i5 Touch PC family — from 10″ through 24″.

The two kits can be ordered pre-assembled (deployment-ready) or separately packaged (for OEM integration), connected through various standardized connectors. Independent replacement during service supports:

• Compute platform refresh as Intel Core processor generations advance, without replacing the more expensive premium front kit
• Field damage replacement of cracked cover glass without retiring the working back kit and configured OS image
• OEM integration projects where custom enclosures house the back kit separately from the front kit
• Service inventory optimization with separate kit stocking — the shared Large IPC Back Kit across the entire Touch PC i5 family (10″ through 24″) dramatically simplifies fleet inventory management for organizations operating mixed-size deployments

Note: Front Kit + Back Kit assembly to be done by a professional to maintain IP65 seal integrity.

Mounting Options

• VESA 100 × 100 mounting: Standard wall-mount arms, articulating mounts, monitor stands, and industrial pole mounts. The 51.5 mm chassis depth is notably slim for a 24″ industrial touch PC.
• 7-clamp open-frame integration: Installation into custom kiosk enclosures, retail counters, industrial control panels, or built-in HMI positions via a 555.4 × 323.0 mm cut-out, secured by 7 clamps. Maximum clamp wall thickness is 5.0 mm. The 7-clamp specification supports the larger and heavier display assembly compared to the 4-clamp and 6-clamp smaller siblings.

Wide Power Input & Environmental

The platform accepts 9-36V DC wide power input — supporting standard 12V industrial DC, vehicle 24V systems, 48V battery backup systems (regulated), and the PoE option (when configured). The included 100-240V AC active-switching adapter outputs 12V DC for standard mains deployment. Operating power consumption is 37.3W with under 1W standby. Operating temperature range is -10°C to +60°C with 10–90% humidity tolerance, suitable for partially-conditioned industrial environments.

IP65 Front + IP40 Back protection. CE and FCC certified.

Intended use: Industrial-grade touchscreen touch PC for indoor use as control panel, digital signage, wayfinding, POS, and similar applications. Protect from direct sunlight. Operation outside specified temperature ranges is not covered by warranty.

Included in the Delivery

Power adapter (100-240V AC active switching, 12V DC-Out), Wi-Fi antenna (RP-SMA female), short installation manual.

Hypothetical Application Scenarios

Premium Retail POS & Customer Service Counters: Picture a premium retail chain — high-end specialty stores, luxury hospitality, premium fitness — deploying customer-facing 24″ POS terminals. The 500 cd/m² brightness supports the brightly-lit retail environments these brands invest in; the 3,000:1 contrast renders product imagery and brand graphics with vivid quality; the 24″ size makes the display a visible part of the customer experience rather than a hidden operational tool. The Core i5 platform handles modern POS workloads including integrated payment, customer relationship management, inventory lookup, and loyalty integration with margin to spare.

Modern Industrial Automation – Premium Operator Workstations: Manufacturing facilities deploying contemporary HMI software at high-criticality operator stations can use the 24″ Touch PC where display quality matters as much as compute. The 500 cd/m² brightness improves operator alertness over long shifts; the 3,000:1 contrast renders process diagrams and alarm visualizations clearly; the larger 24″ size supports multi-window workflows. The dual RS-232 ports connect to existing PLC infrastructure; the modular design supports field service.

Healthcare – Clinical Workstations with Imaging Requirements: Hospitals and clinics deploying clinical workstations that include diagnostic imaging review (radiology consults, dermatology imaging, pathology review) benefit from the premium display specifications. The 500 cd/m² brightness supports clinical lighting environments; the 3,000:1 contrast renders medical imagery with appropriate clarity for clinical decision support (note: this is a clinical workstation, not a primary diagnostic display — primary diagnostic imaging displays require FDA Class II certification that this product doesn't carry); the Core i5 platform handles EHR plus imaging viewer plus communication tools simultaneously.

Hospitality – Premium Front Desk & Concierge Workstations: Luxury hotels, resorts, and premium hospitality operators can deploy the touch PC as front desk workstations where the display is part of the property aesthetic and customer experience. The 500 cd/m² brightness handles bright lobby lighting; the 24″ size supports the property management workflows and customer communication; the slim 51.5 mm depth allows clean integration into custom front desk furniture.

Banking – Premium Branch & Wealth Management Workstations: Banks, credit unions, and wealth management firms can deploy the touch PC at premium customer service positions, wealth management advisor workstations, and branch manager positions. The 500 cd/m² brightness handles brightly-lit banking branch environments; the larger 24″ size supports the multi-application workflows typical of modern banking (core banking system + CRM + document management + compliance tools); the IP65 front supports the cleaning protocols of financial branch environments.

Visitor Management & Reception – Premium Corporate Deployments: Fortune 500 corporate headquarters, government VIP entrances, and premium venue lobbies can deploy the touch PC as flagship visitor management terminals. The 24″ Full HD widescreen at 500 cd/m² provides a premium customer experience appropriate to high-end corporate environments; the Core i5 handles the photo capture, ID verification, and badge printing workflows; the modular Front Kit + Back Kit design supports easy front kit replacement.

Education – Smart Classroom Presenter & Lecture Hall Stations: Universities and corporate training facilities can deploy the touch PC as presenter workstations for smart classrooms and lecture halls. The 500 cd/m² brightness handles bright lecture hall lighting; the larger 24″ size supports the presenter's view of materials while audience-facing displays show content; the Core i5 platform handles concurrent presentation software, video conferencing, and content management.

Modern Control Rooms – Premium Operator Workstations: Process control facilities, energy operations centers, and large industrial operations transitioning from legacy 5:4 hardware to modern widescreen formats can use the 24″ Touch PC as the premium upgrade path. The Core i5 platform supports modernized DCS and SCADA software; the 7-clamp open-frame integration supports installation into refreshed console infrastructure; the 500 cd/m² brightness improves the control room visual environment.

Restaurant & Hospitality – Kitchen Display Systems & Order Management: Premium restaurants, hotel restaurants, and high-volume foodservice operations can use the touch PC as kitchen display systems, expediter stations, and order management workstations. The 500 cd/m² brightness handles bright kitchen lighting; the 3,000:1 contrast renders order tickets clearly; the IP65 front tolerates kitchen environment cleaning protocols; the Core i5 platform handles modern KDS software with margin.

Logistics & Warehouse Operations – Supervisor Stations: Warehouse operations and distribution center supervisor stations can use the touch PC where the larger format supports oversight of multiple operations simultaneously. The 24″ Full HD widescreen supports WMS dashboards with multiple data streams visible; the dual Ethernet supports WMS network plus management network; the modular design supports field service in continuous operations environments.

For OEM volume programs, modular Front Kit / Back Kit purchasing arrangements, alternative OS pre-installation requests, PoE configuration, custom industrial integration consultation, or pre-sales technical discussion, request a quote from the faytech North America engineering team.
