24″ Industrial Touch PC X6413E (Large Case)

The 24″ Capacitive Touch PC X6413E (Large Case) is faytech's Atom-based industrial touch PC at the dominant large-format Full HD monitor size — engineered as the cost-effective alternative to the Core i5 sibling for deployments where platform demands are well within Atom Quad-Core capability and buyers prioritize value alongside premium display visual quality. This product represents the visual flagship of the Atom Large Case family, combining the brightness (500 nits) typically associated with bright-environment industrial deployment with the contrast (3000:1) and viewing angles (178°) typically associated with professional-grade workstation monitors. This combination is unusual at this price tier and creates genuine deployment-value differentiation against generic large-format touch monitors. The product is positioned for premium retail customer-facing endpoints, large-format self-service kiosks (airline check-in, healthcare lobby check-in, transit hub fare collection), interactive digital signage with rich brand content, supervisor control room workstations, and equipment OEM integration.

Same Large Case Form Factor — Different Compute Tier

This product implements faytech's standard Large Case architecture — identical Large IPC Back Kit design, modular Front Kit + Back Kit construction, connectivity layout, and mounting infrastructure as the rest of the Large Case Touch PC family. The difference is the internal compute platform: this product uses the Intel Atom x6413E (Elkhart Lake) Quad-Core processor, while the Core i5 Large Case siblings use the Intel Core i5-1145G7E (Tiger Lake U) vPro processor. The Atom and i5 Large Case products install identically into the same mounting infrastructure, offer identical connectivity, and share the same modular service infrastructure. The buying decision is purely about compute tier and cost.

When to choose this Atom version:

• Premium large-format self-service kiosks — airline check-in, healthcare lobby check-in, transit fare/ticket collection, parking garage payment, premium QSR ordering, banking lobby kiosks
• Retail customer-facing endpoints at large format — virtual storefronts, premium gift registry stations, product configurators with rich imagery, in-store interactive lookbooks, electronic shelf-edge marketing
• Interactive digital signage with rich brand content — Full HD video, photographic imagery, branded animations with workstation-grade visual quality
• Healthcare workflow & patient engagement workstations at supervisor positions and family-engagement locations
• Control room supervisor workstations running modern browser-based SCADA, MES, and alarm management
• Fleet deployments at scale where per-unit cost savings multiply meaningfully across hundreds of installations
• Equipment OEM integration where unit cost drives the buy decision and visual quality matters

When the Core i5 Large Case sibling is the better choice:

• Multi-application enterprise workstations running productivity suite + browser + business apps concurrently
• Computer-vision augmented inspection software or AI-assisted decision support
• vPro remote management requirements for IT fleet management across distributed facilities
• Higher storage requirements — Core i5 Large Case siblings ship with 240 GB SSD vs 120 GB on this Atom version
• Video conferencing and rich media production at workstation positions

Visual Flagship Display Specs

This product features the strongest combination of display specifications in the entire Atom Large Case family:

• 500 cd/m² high brightness — matching the bright 12.1″ industrial sibling and substantially brighter than the 250-nit baseline of the workstation-grade 17″/19″/21.5″ siblings. This brightness level supports deployment in bright lobby environments, retail showrooms with showroom lighting, transit hubs with mixed lighting from glass facades, airport terminals, and any installation with significant ambient lighting.
• 3000:1 contrast ratio — three times the contrast of the 17″/19″/21.5″ siblings (1000:1) and substantially higher than typical large-format touch monitors. This contrast level supports clearer product photography, more impactful brand video content, better visual separation in dense data interfaces, and genuine workstation-grade visual quality.
• 178°/178° IPS-class viewing angles — delivers consistent color and brightness across nearly any viewing position. At 24″ format, this matters significantly because viewers approach large-format displays from a wider range of angles than smaller displays.
• 1920×1080 Full HD resolution on a 23.8″ active diagonal (approximately 92 PPI) — appropriate for at-arm's-length to 1-2 meter viewing distances typical of large-format kiosk and signage deployment.
• 30,000-hour LED backlight lifetime — supports continuous 12-24 hour deployment scenarios across multi-year operational lifecycles.

This combination is unusual at industrial touch PC pricing. Most large-format industrial touch screens at the 24″ size offer either bright industrial specs (500 nits, lower contrast, narrow viewing) OR workstation specs (lower brightness, higher contrast, IPS viewing) — but rarely both simultaneously. This product offers both, creating meaningful deployment-value differentiation.

Intel Atom Industrial Compute Platform

The platform is built around the Intel® Atom® x6413E processor from Intel's Elkhart Lake family — a modern Quad-Core x86 SoC designed specifically for industrial IoT, edge computing, and dedicated-function commercial deployment. The Atom x6413E offers a deliberate balance of performance and power efficiency: enough compute headroom to run modern self-service software, enterprise workstation applications, web-based HMI, digital signage with Full HD content playback, and dedicated-function POS at modest power consumption (31.3W under typical load — driven primarily by the large 500-nit backlight rather than CPU power consumption).

Paired with 8 GB DDR4 RAM and a 120 GB SSD (proper SSD, not eMMC), the platform handles modern commercial applications, self-service software, web frameworks, signage content management, and dedicated-function enterprise software within Atom-appropriate workload boundaries. For workloads beyond this envelope, the Core i5 Large Case sibling is the appropriate choice within the same physical form factor.

Operating System Options

Debian 12 ships pre-installed as standard (note: Pyramid Computer GmbH is not affiliated with Debian; Debian is a registered trademark owned by Software in the Public Interest, Inc.). Additional OS options are available on request with an additional fee: Linux Ubuntu 22.4 LTS, Windows 10, and Windows 11. For Linux-based dedicated-function deployment, the Atom platform performs well within its workload boundaries. For Windows-heavy multi-application enterprise deployments, the Core i5 Large Case version is the better choice.

Touch System

The 10-point projected capacitive multi-touch panel is built on 1.1 mm thermally strengthened cover glass with AG anti-glare surface treatment (chemical etching), IK08 impact protection, and faytech's proprietary Clear Bond® optical bonding. The EXC81W84 touch controller communicates via USB with touch resolution of 68 RX × 38 TX. Multi-touch supports modern gesture-driven interfaces including pinch-to-zoom (important for image-rich retail and product-configurator applications), two-finger scrolling, and rotation gestures. The capacitive technology supports gloved operation with most healthcare and food-service glove materials.

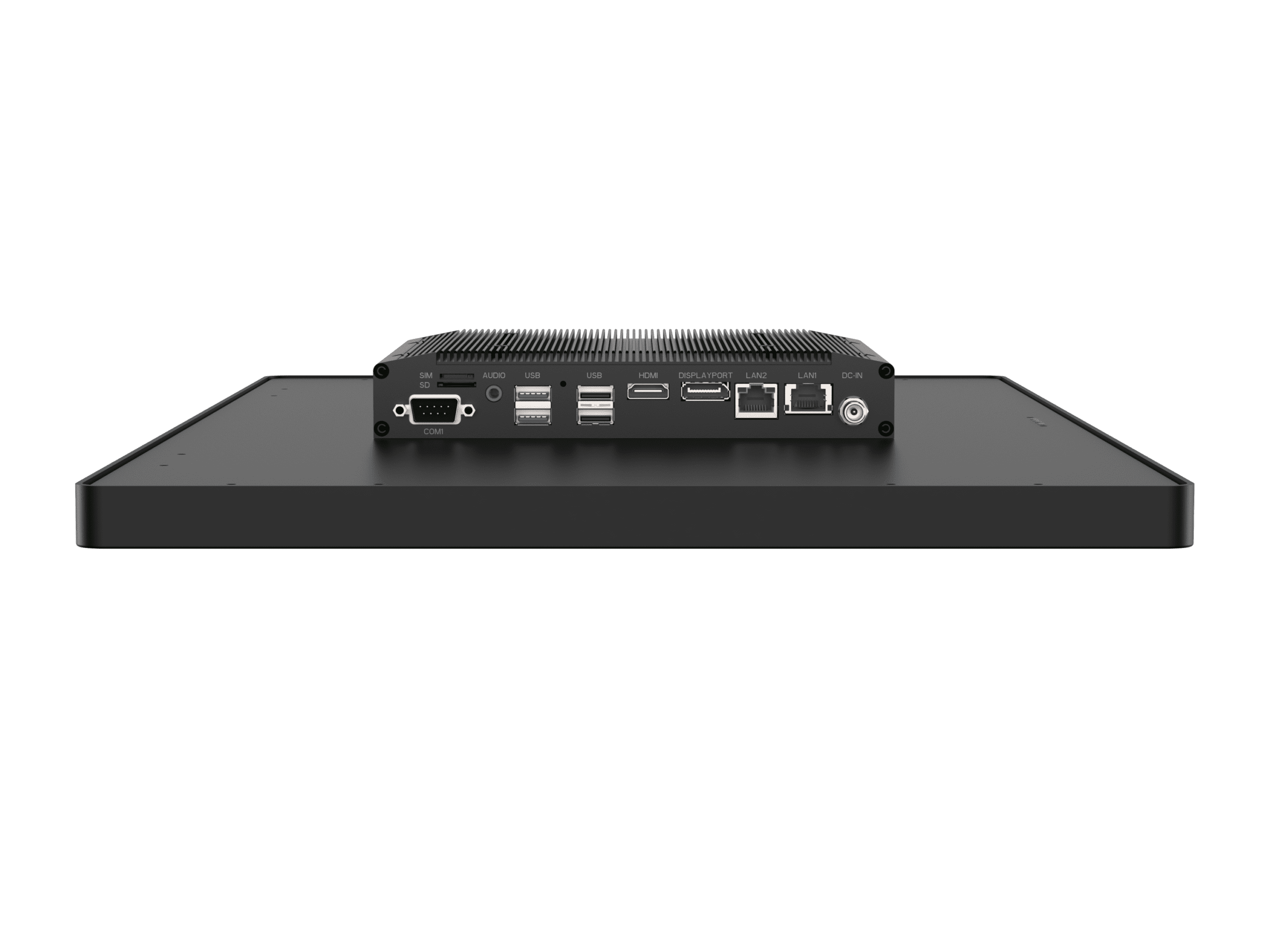

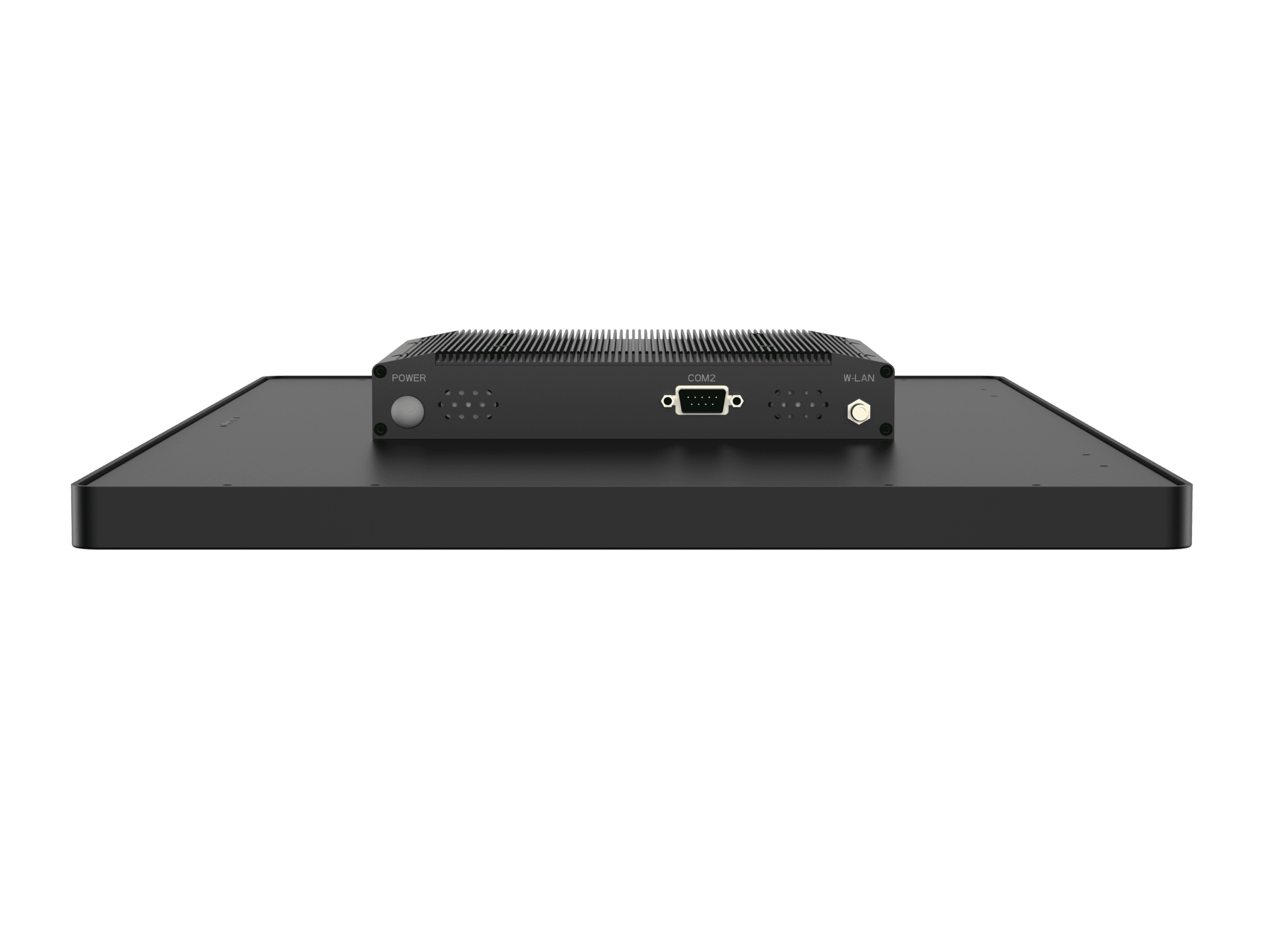

Industrial Connectivity

Network: 2× 10/100/1000 Mbit Gigabit Ethernet RJ45 ports (Realtek® 8111H) supporting network segmentation between operational technology (OT) networks and information technology (IT) networks — critical for PCI-DSS scope segmentation in retail POS deployment, HIPAA-segmented networks in healthcare, and industrial cybersecurity in HMI deployment. Wi-Fi via Intel® AC 3168 module with included RP-SMA female antenna. Power over Ethernet (PoE) is available upon request — note that at 31.3W operating power, this product requires 802.3bt PoE++ infrastructure (60W+), well above standard 802.3at PoE+ (25.5W) budget. Buyers planning PoE deployment should confirm facility PoE++ infrastructure is in place.

USB: 2× USB 3.0 + 2× USB 2.0 for peripheral integration (barcode scanners, payment terminals, RFID/smart card readers, signature pads, receipt printers, cash drawers, biometric devices, service-tool laptops).

Video Output: 1× HDMI + 1× DisplayPort for external display extension — supporting dual-display configurations (operator + customer-facing displays in retail POS, primary kiosk + secondary signage, primary workstation + reference display).

Industrial Serial: 2× RS-232 COM ports (RX/TX only, DSUB9) for legacy industrial equipment integration including PLCs, motor controllers, weigh scales, RFID readers, serial sensors, and legacy POS peripherals (cash drawers, kitchen printers, customer displays). Standard pinout: Pin 2 RXD1, Pin 3 TXD1, Pins 5/10/11 GND.

Audio: 1× Audio In/Out (3.5 mm) via Realtek® ALC897 Audio CODEC + 2× 2W integrated loudspeakers for transaction confirmations, alert tones, audio prompts, signage audio content, and accessibility audio. For large-format public-facing deployment where high-quality audio matters (lobby kiosks with branded video content), external amplified speakers via the 3.5mm output may be appropriate.

Storage Expansion: 1× SD card slot for removable storage and 1× SIM card slot for cellular connectivity options.

Modular Front Kit + Large IPC Back Kit Design

This product implements faytech's modular Front Kit + Back Kit architecture with the Large IPC Back Kit (X6413E) — the same chassis design used across the entire Large Case family, configured here with the Atom processor:

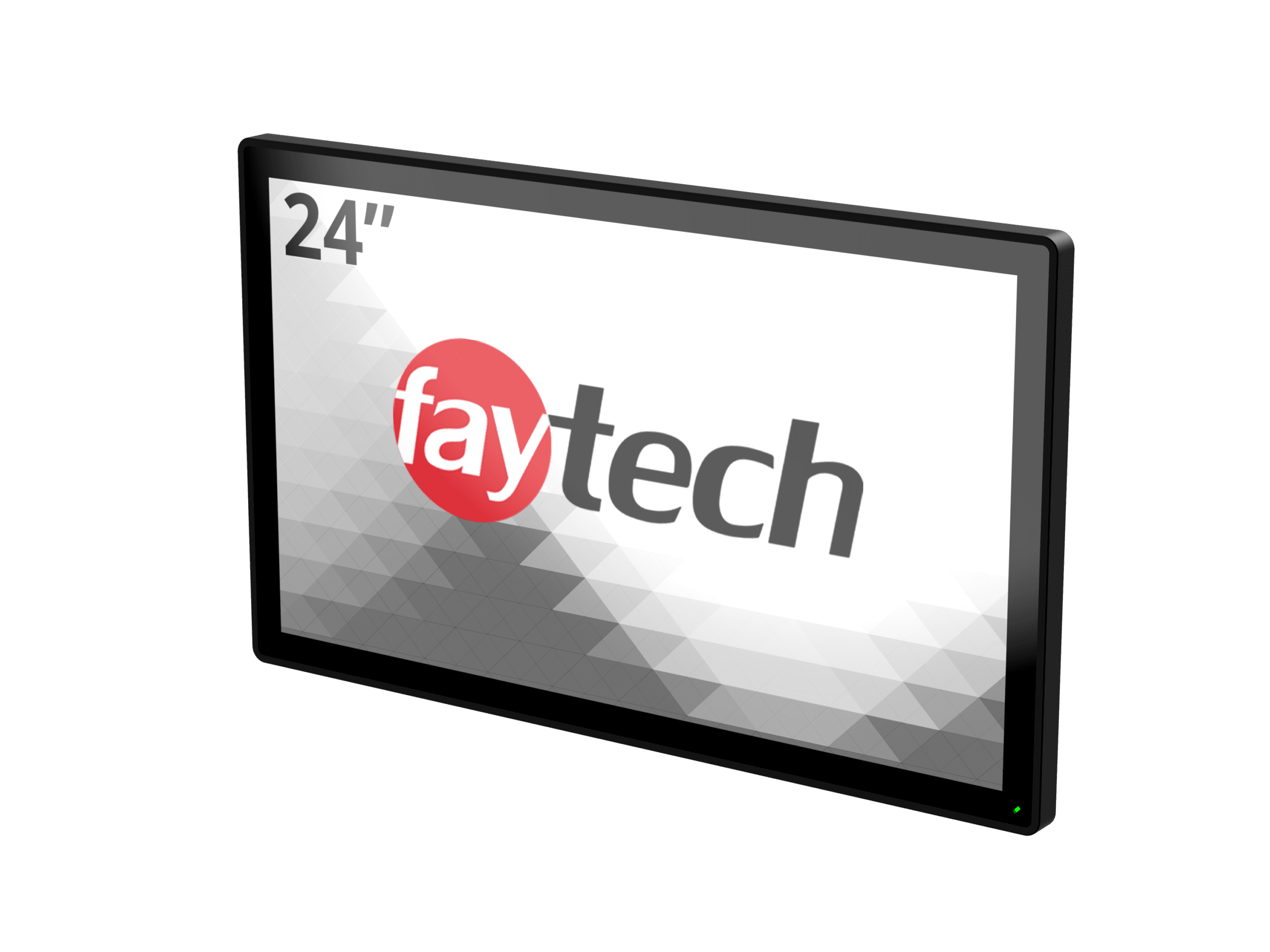

• 24″ Rubber Frame Front Kit: Contains the 23.8″ Full HD IPS-class display panel (500 nits, 3000:1 contrast), projected capacitive touch sensor, cover glass with Clear Bond® optical bonding, rubber frame structural assembly, and the IP65 sealing system.

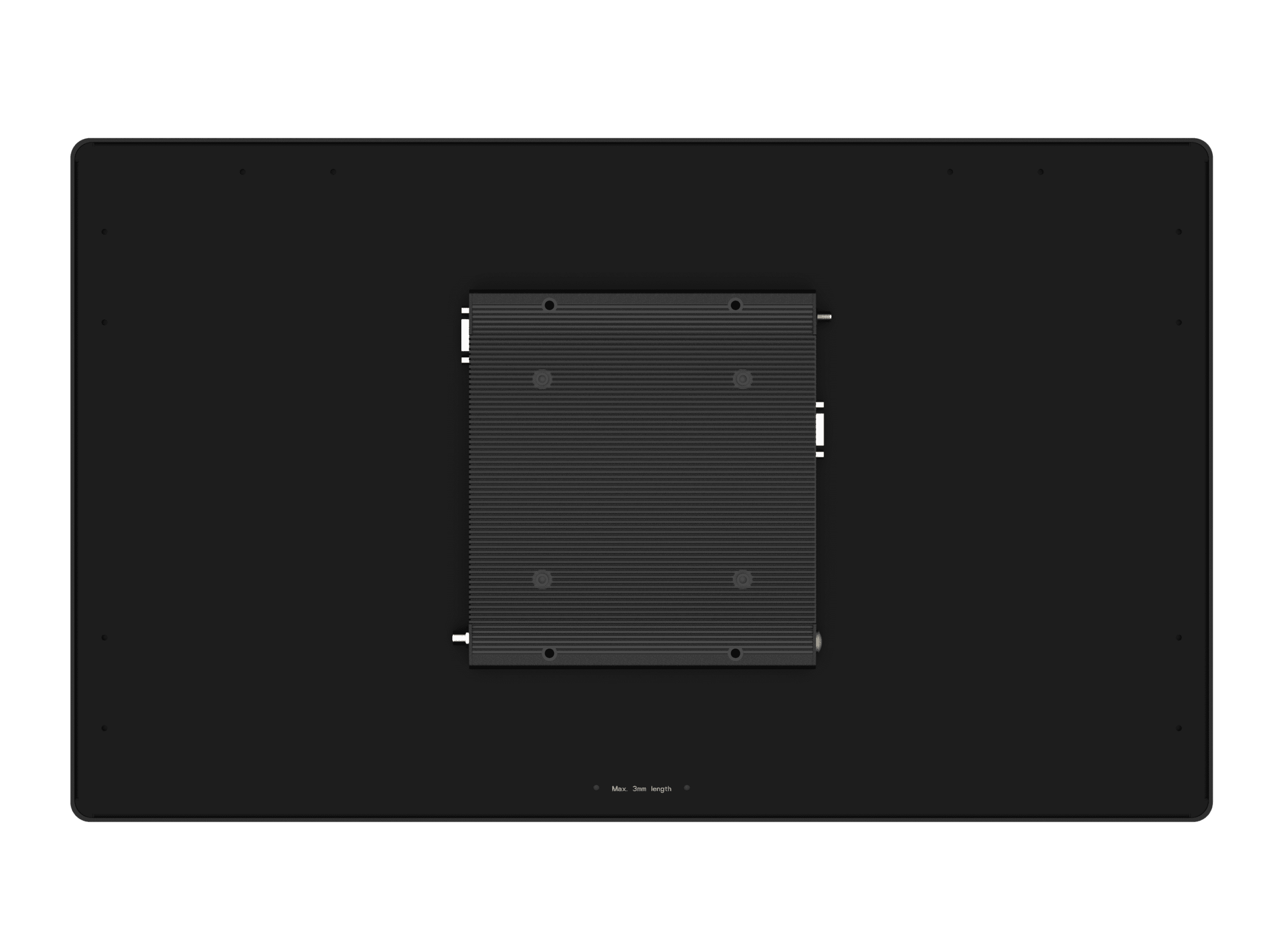

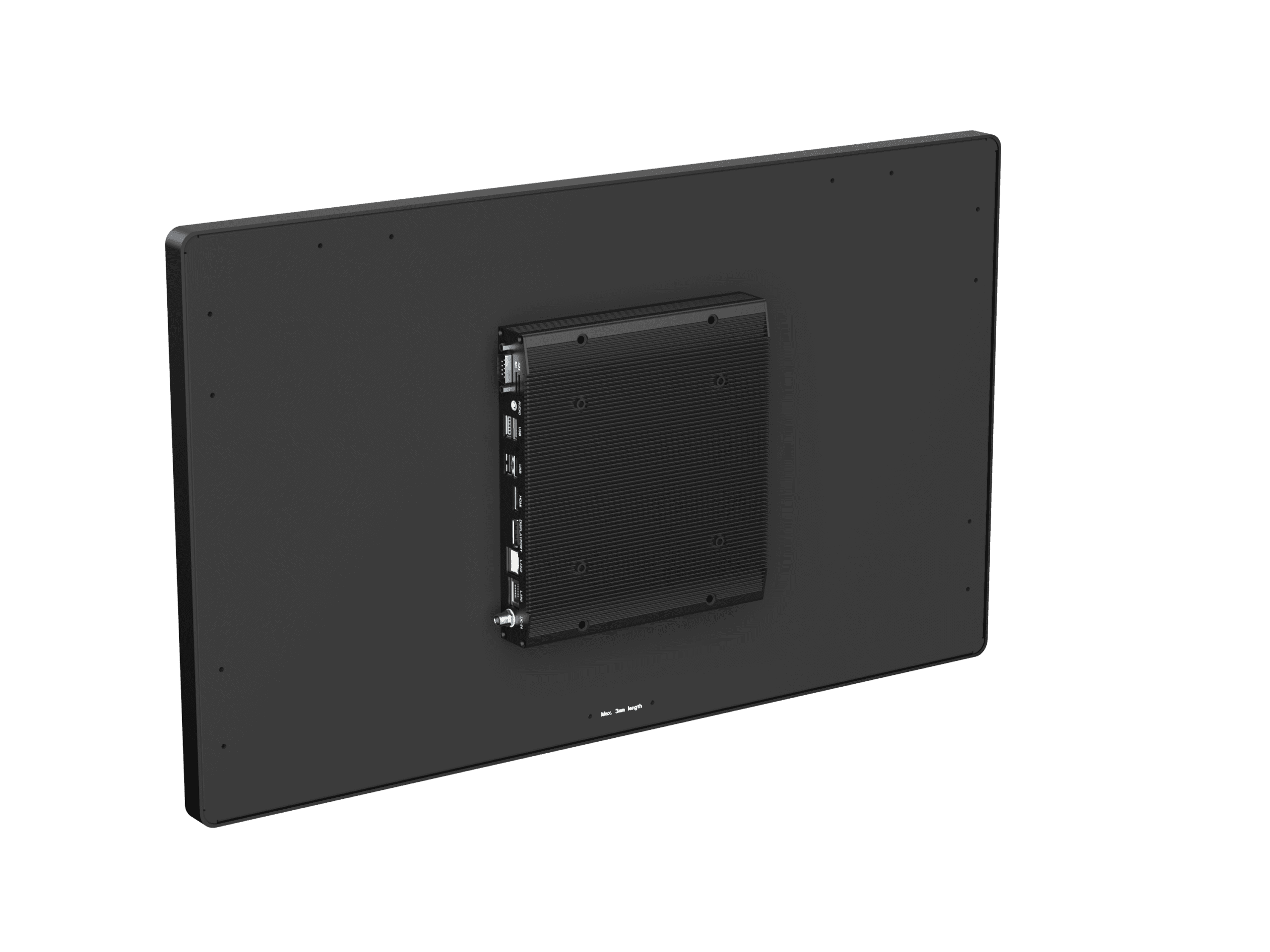

• Large IPC Back Kit (X6413E): Contains the Intel Atom x6413E compute platform, all external connectivity, network hardware, storage, and the aluminum IPC back case with passive thermal management fins. Same physical chassis as the Core i5 Large Back Kit, configured with the Atom platform.

The shared physical infrastructure between the Atom and i5 Large Case families is operationally meaningful: organizations deploying mixed Atom and i5 Touch PCs can use the same mounting hardware, the same kiosk enclosures, the same cut-out templates, and the same service inventory infrastructure. The compute platform decision is independent of the physical integration decision.

Independent kit replacement during service supports:

• Compute platform refresh as Intel processor generations advance — replace only the back kit while keeping the original front kit, display, and physical integration
• Field damage replacement of cracked cover glass without retiring the working back kit and configured OS image — critical for high-traffic public-facing kiosk deployment where 24″ glass damage is a real operational risk
• OEM integration projects where custom enclosures house the back kit separately from the front kit
• Cross-compute service flexibility — organizations can upgrade from Atom to Core i5 in the same physical infrastructure if compute requirements grow

Note: Front Kit + Back Kit assembly to be done by a professional to maintain IP65 seal integrity.

Mounting Options

• VESA 100 × 100 mounting: Standard wall-mount arms, articulating mounts, monitor stands, floor stands, and industrial pole mounts. Note: at 6.3 kg net weight, large-format VESA mounting requires appropriately-rated mount arms — verify mount weight capacity before installation.
• 7-clamp open-frame integration: Installation into custom kiosk enclosures, retail counters, healthcare workstation positions, large-format signage cabinets, transit hub kiosk cabinets, or built-in workstation positions via a 555.4 × 323.0 mm cut-out, secured by 7 clamps. Maximum clamp wall thickness is 5.0 mm. The 7-clamp configuration provides additional structural support across the large panel area.

Wide Power Input & Environmental

The platform accepts 9-36V DC wide power input — supporting standard 12V industrial DC, vehicle 24V systems, 48V battery backup systems (regulated), and 802.3bt PoE++ infrastructure. The included 100-240V AC active-switching adapter outputs 12V DC. Operating power consumption is 31.3W with under 1W standby — driven primarily by the 500-nit panel backlight; notably efficient for a large-format 500-nit Full HD industrial touch PC and substantially lower than typical Core i5 Large Case siblings at this size.

Operating temperature range is -10°C to +60°C with 10–90% humidity tolerance. IP65 Front + IP40 Back protection. CE and FCC certified.

Intended use: Industrial-grade touchscreen touch PC for indoor use as control panel, digital signage, wayfinding, POS, and similar applications. Protect from direct sunlight. Operation outside specified temperature ranges is not covered by warranty.

Included in the Delivery

Power adapter (100-240V AC active switching, 12V DC-Out), Wi-Fi antenna (RP-SMA female), short installation manual.

Hypothetical Application Scenarios

Airport & Airline Self-Service Check-In Kiosks: Airlines and airport operators deploying self-service check-in kiosks at terminals benefit substantially from the 24″ visual flagship specs. Airport terminal lighting environments combine bright ambient light from glass facades and overhead fixtures with mixed natural daylight — the 500-nit brightness handles these conditions well. The 178° viewing angles support passengers approaching from queue positions; the 3000:1 contrast supports clearer boarding pass display and route information; the IP65 front supports public-facing deployment with regular cleaning; the dual GbE supports airline network plus airport network segregation; the Atom platform handles check-in software adequately; cost positioning supports airline-wide deployment.

Healthcare Lobby Check-In & Patient Engagement: Hospitals, medical office buildings, urgent care facilities, and clinic networks deploying patient check-in kiosks and lobby engagement stations benefit from the 24″ visual flagship. Healthcare facility lobbies typically feature bright lighting standards (500-1000+ lux); the 500-nit display performs well in these conditions; the 178° viewing angles support installations where patients approach from any lobby position; the 3000:1 contrast supports clearer presentation of clinical information; the IP65 front supports rigorous hospital cleaning protocols; cost positioning supports facility-wide deployment.

Premium Retail Customer-Facing Endpoints: Premium retail chains, luxury brand boutiques, automotive showrooms, jewelry stores, and high-end specialty retailers deploying large-format customer-facing endpoints (virtual storefronts, product configurators, gift registry stations, in-store catalogs, electronic shelf marketing) benefit substantially from the visual flagship specs. The 3000:1 contrast and 500-nit brightness deliver retail-photography-quality product imagery; the 178° viewing angles support customer + staff collaborative configuration of premium purchases; the Full HD format supports rich brand video; cost positioning supports chain-wide deployment of premium customer experiences.

Interactive Digital Signage — Large Format with Brand Video: Retail chains, hospitality groups, museums, corporate campuses, transit hubs, and entertainment venues deploying large-format interactive digital signage with rich brand content benefit substantially from the 24″ visual flagship specs. The 3000:1 contrast delivers cinema-style video presentation; the 500-nit brightness handles bright public-space lighting environments; the 178° IPS viewing angles support installation in spaces where viewers approach from any angle; the touch interface supports browsable content navigation, wayfinding, and information lookup; the dual Ethernet supports content management network plus directory service; cellular SIM slot enables remote installations.

Transit Hub Fare Collection & Information Kiosks: Transit operators (rail, metro, bus, ferry) deploying fare collection kiosks, ticket dispensing stations, route information displays, and customer service positions at large transit hubs benefit from the 24″ visual flagship specs. Transit hubs feature challenging ambient lighting (combination of natural daylight through glass and overhead lighting); the 500-nit brightness handles these conditions; the size accommodates route maps, schedule grids, and accessibility-compliant large-text interfaces; the 178° viewing angles support installation in transit environments; the IP65 front handles public-facing transit environment cleaning; cost optimization supports system-wide deployment across dozens of transit hub stations.

Hospitality Lobby Self-Check-In & Concierge: Premium hotels, resorts, conference centers, and luxury hospitality properties deploying large-format self-check-in kiosks, concierge stations, in-lobby restaurant booking, and amenities information benefit from the 24″ visual flagship. The premium visual quality matches the brand standards of premium hospitality; the 178° viewing angles support guest + staff collaborative viewing at concierge desks; the 500-nit brightness handles bright hotel lobby lighting; the 3000:1 contrast supports rich brand imagery and property photography; cost optimization supports property-wide deployment.

Banking Lobby & Premium Branch Self-Service: Banks, credit unions, and wealth management offices deploying large-format lobby self-service kiosks at premium branch locations benefit from the visual flagship specs. The size accommodates document-heavy banking forms, account services interfaces, and wealth management dashboards; the 178° viewing angles support advisor + client collaborative viewing of portfolios and statements; the 3000:1 contrast supports clearer chart and document display; the IP65 front handles public-facing deployment; the dual GbE supports financial network plus customer Wi-Fi segregation (PCI compliance).

Control Room Supervisor Workstations — Modern Web-Based SCADA: Manufacturing supervisor stations, utility operations centers, and infrastructure operations facilities running modern browser-based SCADA, MES, and alarm management software benefit from the 24″ visual flagship. The widescreen format supports multi-pane modern web HMI layouts; the 3000:1 contrast supports clearer alarm differentiation in dense operator interfaces; the 178° viewing angles support supervisor + operator + engineer collaborative review; the 500-nit brightness handles bright control room ambient lighting; the 30,000-hour LED supports continuous 24/7 deployment.

Government Service Centers & DMV Kiosks: Government agencies (DMV, social services, permit offices, court services, vital records) deploying large-format citizen-facing self-service kiosks benefit from the 24″ visual flagship. The size accommodates document-heavy forms typical of government services; the 178° viewing angles support citizen + agent collaborative viewing during transactions; the 500-nit brightness handles government facility lighting; the IP65 front supports public-facing deployment; cost optimization supports agency-wide deployment across thousands of service points.

Educational & Corporate Conference Room Interactive Displays: Universities, corporate training facilities, and conference room deployments using interactive touch displays benefit from the 24″ visual flagship. The 178° viewing angles handle conference room seating arrangements where participants view from various positions; the 3000:1 contrast supports clearer presentation content; the 500-nit brightness handles conference room lighting; the touch interface supports interactive teaching and collaborative annotation; the dual Ethernet supports facility network plus AV system integration.

For OEM volume programs, modular Front Kit / Large IPC Back Kit purchasing arrangements, alternative OS pre-installation requests, 802.3bt PoE++ configuration, custom large-format kiosk integration consultation, mixed Atom/i5 fleet planning, or pre-sales technical discussion, request a quote from the faytech North America engineering team.
