27″ Industrial Touch PC i5 (Large Case)

The 27″ Capacitive Touch PC I5-1145G7E (Large Case) is the largest member of faytech's compact Core i5 Touch PC family — engineered for deployment scenarios where 27″ Full HD widescreen is the right form factor. This is meaningful product positioning: 27″ is the established size for premium desktop monitors, interactive digital signage, large operator workstations, and shared-viewing collaborative applications, and a touch-enabled industrial-grade 27″ Full HD platform with integrated compute is specifically positioned for buyers who need this exact specification.

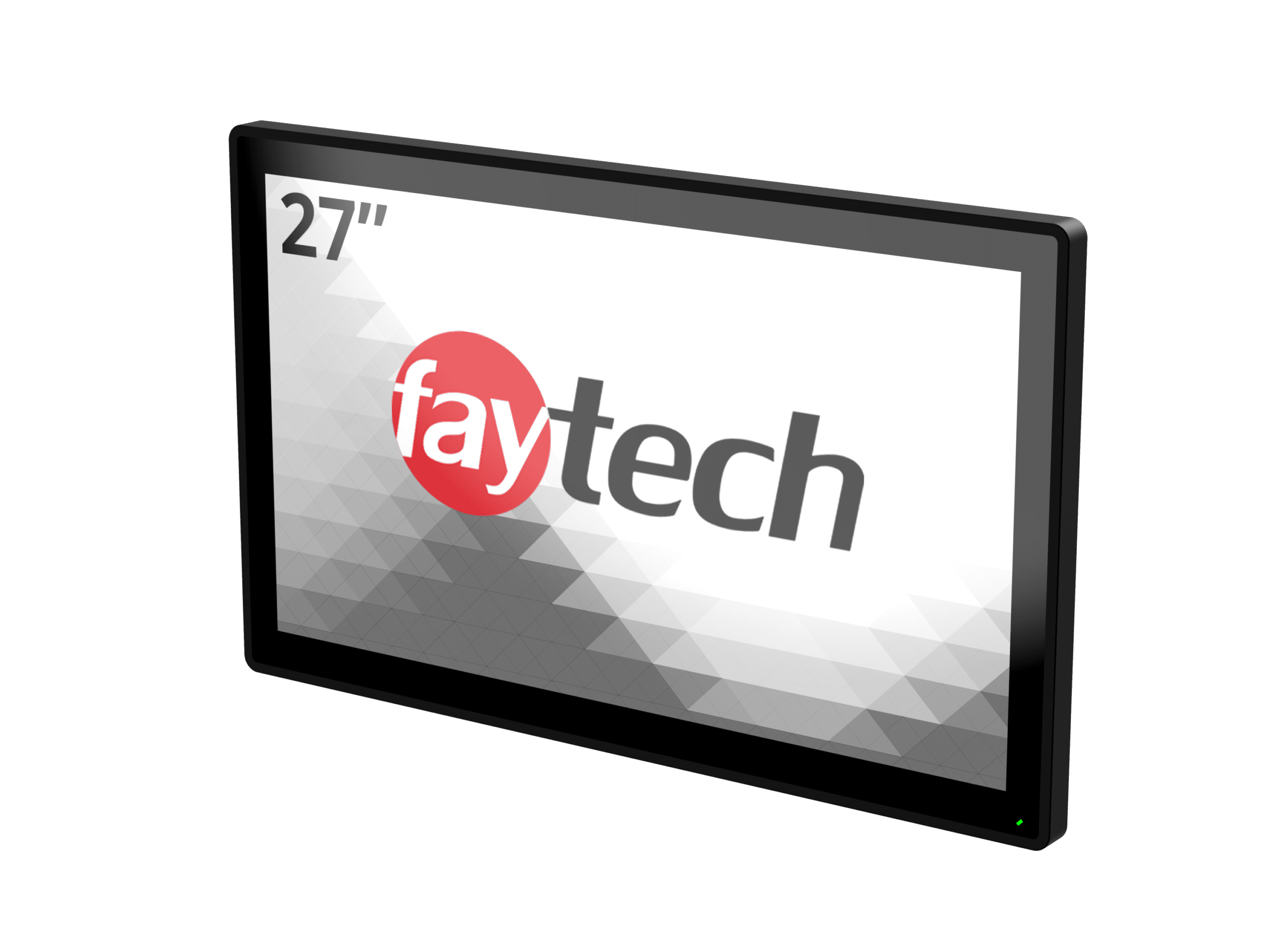

Large-Format Full HD Display

The display delivers 1920×1080 Full HD resolution across a 597.6 × 336.15 mm active area, in 16:9 widescreen aspect ratio at 27.0″ diagonal. The pixel density is approximately 82 PPI — comfortable for viewing distances typical of large operator workstations, conference room collaborative displays, and customer-facing kiosk applications where the audience is positioned 2-4 feet from the screen rather than at desktop intimacy.

Brightness is 300 cd/m² — moderate, appropriate for indoor commercial and industrial environments under typical lighting. Contrast ratio is 3,000:1 — matching the 24″ flagship and substantially higher than the 800:1 / 1,000:1 ratings on smaller siblings. The high contrast produces deeper blacks, more vivid color rendering, and better legibility for graphic content, photography, video, and high-resolution process visualizations. Viewing angles are 178°/178° — wide enough to support shared viewing, collaborative applications, and customer-facing kiosk deployment where viewing happens from arbitrary approach angles. 30,000-hour LED backlight lifetime supports continuous 24/7 commercial deployment. The display uses LVDS interface internally.

Note on brightness positioning: At 300 cd/m², the 27″ is meaningfully dimmer than the 24″ flagship sibling (500 cd/m²). For deployments where 24/7 placement under bright lighting matters, the 24″ may be the better choice despite the smaller size. The 27″ is positioned for size-dominant deployments where the larger format itself delivers the operational value, in typical indoor lighting.

Intel Core i5 Industrial Compute Platform

The platform is built around the Intel® Core™ i5-1145G7E (Tiger Lake U) — a genuine industrial vPro embedded processor, not a low-power Atom or Celeron SoC. The i5-1145G7E offers full Intel Core architecture with significantly more compute performance, larger cache, faster memory subsystems, and better single-thread performance than the Atom and Celeron alternatives common in this product category. Paired with 8 GB DDR4 RAM and a 240 GB SSD (proper SSD, not eMMC), the platform handles demanding software with margin to spare.

This compute spec matters operationally because modern software at large-format display is increasingly resource-intensive: interactive digital signage with rich media content, browser-based HMI panels with multi-WebSocket connections, modern POS systems with cloud integration, EHR clients with concurrent imaging viewers, video conferencing software, and the multi-application workloads common in modern operator stations and collaborative displays.

The 1145G7E is also a vPro processor, supporting Intel's enterprise remote management features (AMT, vPro Manageability Engine) — meaningful for IT teams managing fleets of large-format workstations remotely across geographically distributed facilities. Power consumption is 38.6W under operating load — the highest in the compact Core i5 Touch PC family due to the larger 27″ panel area, but still efficient for a flagship Full HD large-format workstation-class device.

Operating System Options

Debian 12 ships pre-installed as standard (note: Pyramid Computer GmbH is not affiliated with Debian; Debian is a registered trademark owned by Software in the Public Interest, Inc.). Additional OS options available on request (with additional fee): Linux Ubuntu 22.4 LTS for the broader Ubuntu ecosystem alignment, Windows 10 for legacy Windows industrial software, and Windows 11 for current Windows commercial software. The Linux-first default reflects modern industrial deployment trends toward open-source OS platforms; Windows availability handles the substantial volume of Windows-based industrial, POS, and healthcare software in production.

Touch System

The 10-point projected capacitive multi-touch panel is built on 1.1 mm thermally strengthened cover glass with AG (chemical etching) anti-glare surface treatment, IK08 impact protection, and faytech's Clear Bond® optical bonding. The EXC81W100 touch controller (upgraded from the EXC81W84 used in smaller siblings) communicates via USB and is engineered to handle the larger touch area at the 27″ size. Touch resolution is 96 RX × 54 TX — the highest touch resolution in the compact Core i5 Touch PC family, supporting fine touch precision across the larger panel area. The optical bonding eliminates the air gap between touch sensor and LCD panel, improving optical clarity, reducing reflections in commercial lighting, and increasing mechanical durability against operator impacts.

Comprehensive Industrial Connectivity

Network: 2× 10/100/1000 Mbit Gigabit Ethernet RJ45 ports (Realtek® 8111H) supporting network segmentation common in industrial OT/IT separation. Wi-Fi via Intel® AC 3168 module with included RP-SMA female antenna. Power over Ethernet (PoE) is available upon request.

USB: 2× USB 3.0 (high-speed peripherals: external storage, barcode scanners, high-bandwidth instruments) + 2× USB 2.0 (standard industrial peripherals).

Video Output: 1× HDMI + 1× DisplayPort for external display extension — useful for dual-display workstation configurations.

Industrial Serial: 2× RS-232 COM ports (RX/TX only, DSUB9). The dual COM port specification matters for industrial integration: many deployments require simultaneous communication with multiple legacy devices (PLC + barcode scanner, scale + label printer, machine controller + data logger). The pinout follows standard RS-232 convention: Pin 2 RXD1, Pin 3 TXD1, Pin 5/10/11 GND.

Additional connectors: 1× Audio In/Out (Realtek® ALC897 Audio CODEC), 1× SD card slot for local data logging and removable storage, 1× SIM card slot for cellular connectivity in installations where Wi-Fi/Ethernet isn't appropriate.

Modular Front Kit + Back Kit Design

This product implements faytech's modular Front Kit + Back Kit architecture:

• 27″ Rubber Frame Front Kit: Contains the 27″ Full HD display panel, projected capacitive touch sensor (with the upgraded EXC81W100 controller), cover glass with Clear Bond® optical bonding, rubber frame structural assembly, and the IP65 sealing system.

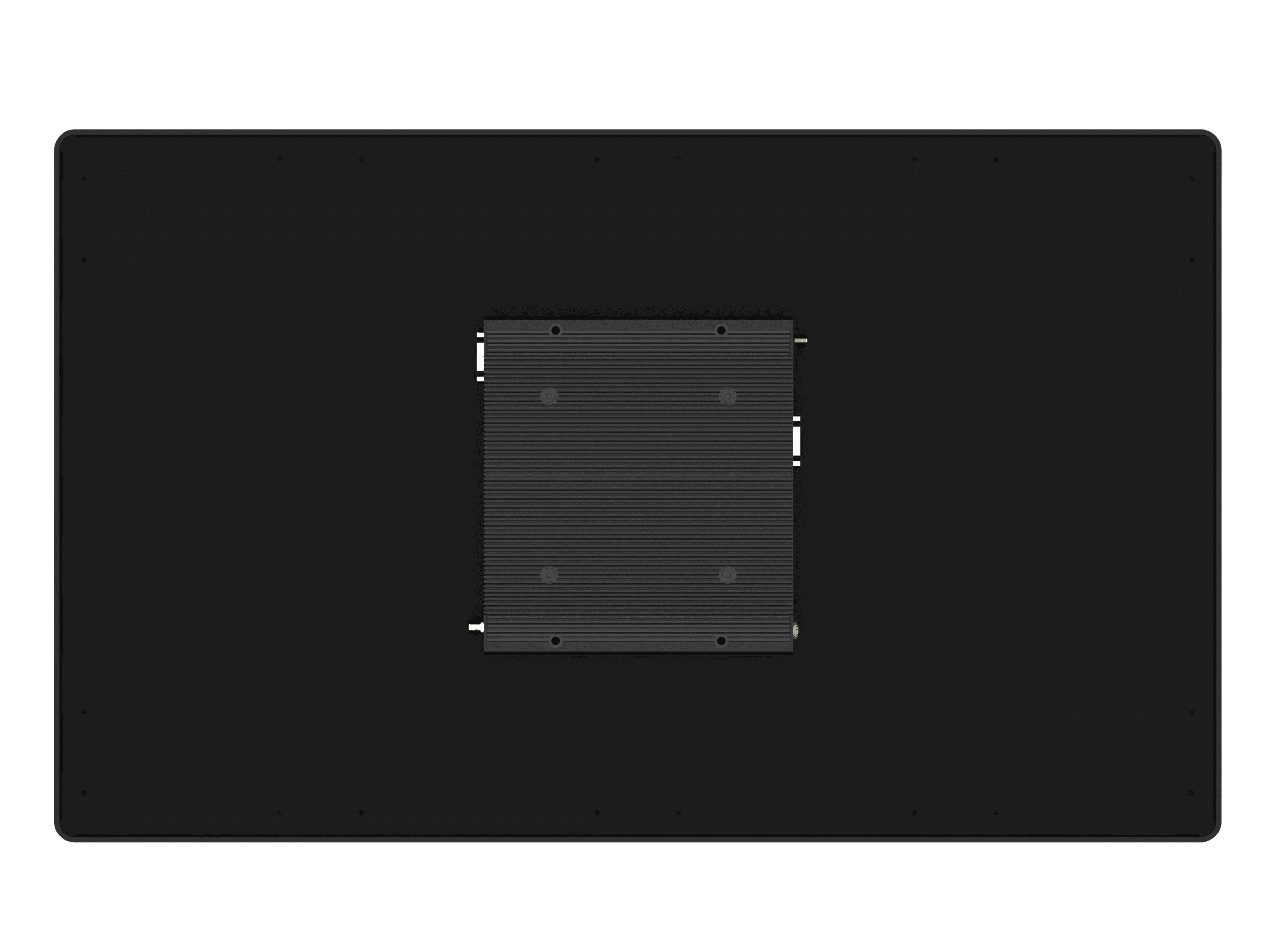

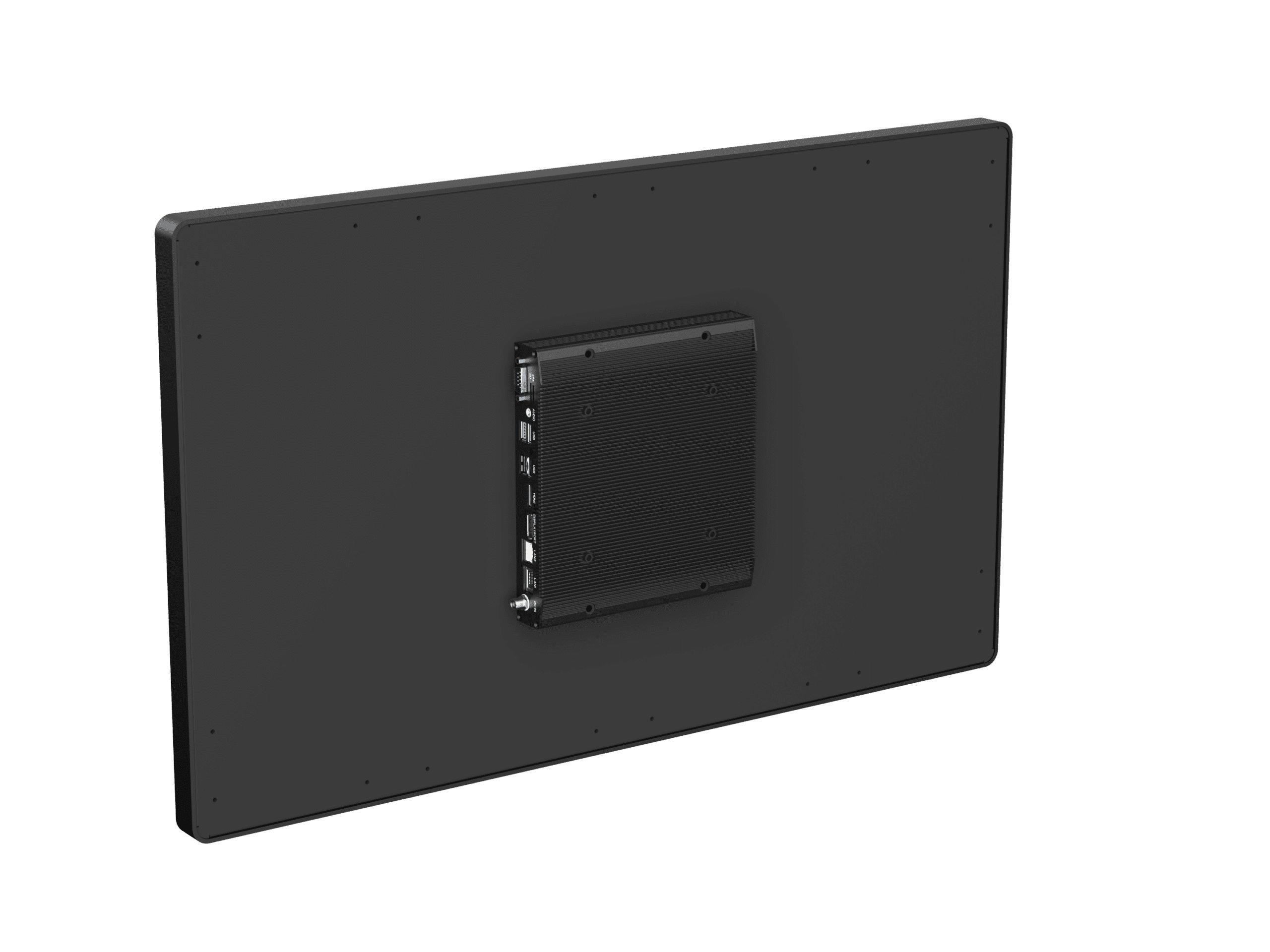

• Large IPC Back Kit (i5-1145G7E): Contains the Intel Core i5 compute platform, all external connectivity, network hardware, storage, and the aluminum IPC back case with passive thermal management fins. This is the same back kit shared across the entire compact Core i5 Touch PC family — from 10″ through 27″.

The two kits can be ordered pre-assembled (deployment-ready) or separately packaged (for OEM integration), connected through various standardized connectors. Independent replacement during service supports:

• Compute platform refresh as Intel Core processor generations advance, without replacing the more expensive large-format front kit
• Field damage replacement of cracked cover glass without retiring the working back kit and configured OS image
• OEM integration projects where custom enclosures house the back kit separately from the front kit
• Service inventory optimization with separate kit stocking — the shared Large IPC Back Kit across the entire Touch PC i5 family (10″ through 27″) dramatically simplifies fleet inventory management for organizations operating mixed-size deployments

Note: Front Kit + Back Kit assembly to be done by a professional to maintain IP65 seal integrity.

Mounting Options

• VESA 100 × 100 mounting: Standard wall-mount arms, articulating mounts, monitor stands, and industrial pole mounts. At 8.00 kg, ensure mounting hardware is rated for this weight class.
• 10-clamp open-frame integration: Installation into custom kiosk enclosures, retail counters, interactive signage installations, or built-in HMI positions via a 639.0 × 381.0 mm cut-out, secured by 10 clamps. Maximum clamp wall thickness is 5.0 mm. The 10-clamp specification supports the substantially larger and heavier display assembly compared to the 4/6/7-clamp smaller siblings.

Wide Power Input & Environmental

The platform accepts 9-36V DC wide power input — supporting standard 12V industrial DC, vehicle 24V systems, 48V battery backup systems (regulated), and the PoE option (when configured). The included 100-240V AC active-switching adapter outputs 12V DC for standard mains deployment. Operating power consumption is 38.6W with under 1W standby. Operating temperature range is -10°C to +60°C with 10–90% humidity tolerance, suitable for partially-conditioned industrial environments.

IP65 Front + IP40 Back protection. CE and FCC certified.

Intended use: Industrial-grade touchscreen touch PC for indoor use as control panel, digital signage, wayfinding, POS, and similar applications. Protect from direct sunlight. Operation outside specified temperature ranges is not covered by warranty.

Included in the Delivery

Power adapter (100-240V AC active switching, 12V DC-Out), Wi-Fi antenna (RP-SMA female), short installation manual.

Hypothetical Application Scenarios

Interactive Digital Signage – Premium Retail & Hospitality: Picture a flagship retail store, premium hotel lobby, or major venue lobby deploying the 27″ Touch PC as interactive wayfinding, product configurator, or brand experience display. The 27″ size makes the display a meaningful architectural element rather than a hidden operational tool; the 3,000:1 contrast renders brand imagery and product photography with appropriate quality; the Core i5 platform handles rich media content and modern web-based signage software; the modular design supports field service in continuous-deployment environments.

Interactive Kiosks – Wayfinding, Information, and Self-Service: Airports, transit centers, shopping malls, hospitals, government buildings, and large venues can deploy the touch PC as interactive wayfinding kiosks, information stations, and self-service terminals. The 27″ size provides comfortable interaction for standing visitors; the 10-clamp open-frame integration supports installation into custom kiosk enclosures; the Core i5 platform handles the multi-modal interaction (touch, ID scan, payment, printing) that modern self-service kiosks require.

Healthcare – Large-Format Clinical Workstations & Imaging Review: Hospitals and clinics can deploy the touch PC as clinical workstations where the larger format supports concurrent EHR + imaging review, surgical planning workstations, and multi-disciplinary team consultation stations. The 3,000:1 contrast renders medical imagery clearly (note: not a primary FDA Class II diagnostic display); the 27″ size supports the multi-application workflows of modern clinical practice; the IP65 front supports clinical cleaning protocols; the OS flexibility aligns with diverse hospital IT standards.

Conference Rooms – Collaborative Touch Displays: Corporate meeting rooms, executive briefing centers, and project war rooms can deploy the touch PC as collaborative interactive displays. The 27″ Full HD size supports document collaboration, whiteboarding software, video conferencing, and presentation interaction at typical conference room viewing distances; the touch interface supports natural collaborative annotation; the dual Ethernet supports corporate network plus AV management network.

Modern Industrial Automation – Large-Format Operator Workstations: Manufacturing facilities deploying contemporary HMI software at high-criticality operator stations can use the 27″ Touch PC where the larger format supports multi-window operator workflows: SCADA primary view + alarm management + documentation in concurrent windows. The dual RS-232 ports connect to existing PLC infrastructure; the patented IP65 silicon seal handles industrial cleaning protocols; the modular design supports field service.

Premium Retail POS – Flagship Customer Service Positions: Premium retail chains can deploy the 27″ Touch PC at flagship customer service positions, personal shopping consultation areas, and high-touch service stations. The large format supports customer-facing collaboration (browsing product imagery together, comparing options visually); the Core i5 platform handles modern POS with CRM integration; the 178°/178° viewing angles support customer-and-staff dual viewing.

Education – Smart Classroom & Auditorium Presenter Stations: Universities and corporate training facilities can deploy the touch PC as presenter workstations for smart classrooms, lecture halls, and training auditoriums. The 27″ size supports the presenter's view of materials while audience-facing displays show content; the Core i5 platform handles concurrent presentation software, video conferencing, and content management; the touch interface supports natural lecture interaction and annotation.

Modern Control Rooms – Large-Format Supervisor Stations: Process control facilities, energy operations centers, and network operations centers can deploy the 27″ Touch PC at supervisor positions where the larger format supports oversight of multiple processes simultaneously. The 3,000:1 contrast renders process diagrams and dashboards clearly; the 10-clamp open-frame integration supports installation into modernized console infrastructure; the modular design supports the long service life of control room hardware.

Logistics & Warehouse – Operations Supervisor Stations: Warehouse operations and distribution center supervisor positions can use the 27″ Touch PC where the larger format supports oversight of multiple operations simultaneously. The 27″ Full HD widescreen supports WMS dashboards with multiple data streams visible; the dual Ethernet supports WMS network plus management network; the modular design supports field service in continuous operations environments.

Hospitality – Restaurant KDS & Expediter Stations: Restaurants and large foodservice operations can use the touch PC as central kitchen display systems and expediter stations where the larger format supports oversight of multiple stations or longer order queues. The 3,000:1 contrast renders order tickets clearly; the IP65 front tolerates kitchen environment cleaning protocols; the Core i5 platform handles modern KDS software.

For OEM volume programs, modular Front Kit / Back Kit purchasing arrangements, alternative OS pre-installation requests, PoE configuration, custom industrial integration consultation, or pre-sales technical discussion, request a quote from the faytech North America engineering team.
