30″ Napster AI Kiosk (microLED)
Product Name: 30″ Napster AI Transparent Micro LED Kiosk (Mac mini M4 + Orange Pi 5 Plus)
SKU: FT30MLEDKCAPOB
AI Platform: Napster AI (with faytech 4-array beamforming AI microphone)
Compute: Dual-brain — Apple Mac mini (M4) + Orange Pi 5 Plus (Rockchip RK3588)
IP Classification: IP40 (indoor use)
Primary Display: 30.0″ Transparent Micro LED — 960 × 540, 600 cd/m², 1,000,000:1 contrast, 60% transparency, 120 Hz, 10-bit (1.07B colors), 178°/178° viewing, V-by-One interface, 30,000 h LED lifetime
Secondary Display: 2.1″ Napster View 3D Circular Display — 480 × 480 TFT LCD @ 300 cd/m², 170°/170° viewing angle
Touch Type: Projected Capacitive 10-point Multi-touch
Cover Glass: 2.0 mm thermally strengthened 4-layered safety glass, AG (chemical-etch) anti-glare, IK08 impact protection
Optical Bonding: Clear Bond®
Primary Processor: Apple M4 — 10-core CPU, 10-core GPU, 16-core Neural Engine — macOS
Memory / Storage (Mac): 16 GB unified memory / 256 GB SSD
Secondary Processor: Orange Pi 5 Plus — Rockchip RK3588 (4× Cortex-A76 + 4× Cortex-A55, Mali-G610), 16 GB / 64 GB — OrangePi OS (Android)
Camera: 48MP — 3840 × 2160 (4K) @ 30fps, 120° field of view
Microphone: faytech AI Microphone 4-array (beamforming, optimized for Napster AI)
Audio System: Bass 2× 80W RMS, Full-range 4× 40W RMS, Treble 10W RMS — 40Hz–20kHz ±3dB
Connectivity: Wi-Fi 6E (802.11ax), External LAN, External 110–230V AC
Chassis: Custom aluminum, wood & metal — RAL9004 Black & Brown wooden frame, powder coated
Dimensions (with base): 600.0 × 400.0 × 1700.0 mm (L × W × H)
Dimensions (without base): 518.0 × 230.0 × 1700.0 mm
Mounting: Free-standing on stable base
Net Weight: ~39.0 kg
Certifications: CE, FCC
Availability: Preliminary specification — subject to change
Data Sheet Download: ds_2025_FT30MLEDKCAPOB_EN.pdf
The 30″ Napster AI Transparent Micro LED Kiosk brings faytech’s next-generation self-emissive display technology to interactive AI signage. Where conventional transparent panels wash out under bright surroundings, this Micro LED display reaches 600 cd/m² with a 1,000,000:1 contrast ratio and 60% transparency — keeping on-screen content and the physical products behind the glass vivid even under strong ambient and accent lighting. A 120 Hz refresh rate, 10-bit color, and a 30,000-hour LED lifetime make it suited to always-on flagship installations where both image quality and longevity matter, while true self-emissive blacks let digital layers appear to float over real merchandise.
A dual-brain architecture pairs an Apple Mac mini (M4) — with its 16-core Neural Engine for on-device Napster AI and macOS applications — with an Orange Pi 5 Plus (Rockchip RK3588) dedicated to driving the display and peripherals under Android, giving integrators two operating systems to build on inside a single cabinet. A 48MP 4K camera with 120° field of view, a faytech 4-array beamforming AI microphone, and a multi-driver speaker system (dual 80W bass, quad 40W full-range, 10W treble) support natural voice interaction, computer vision, and immersive sound. Finished in a custom aluminum-and-wood chassis with a 2.1″ circular Napster View display, IK08-protected 4-layer safety glass, and Clear Bond® optical bonding, it is built for museums and galleries, luxury retail, music and entertainment venues, and premium brand activations that demand the brightness and durability only Micro LED delivers. CE and FCC certified.

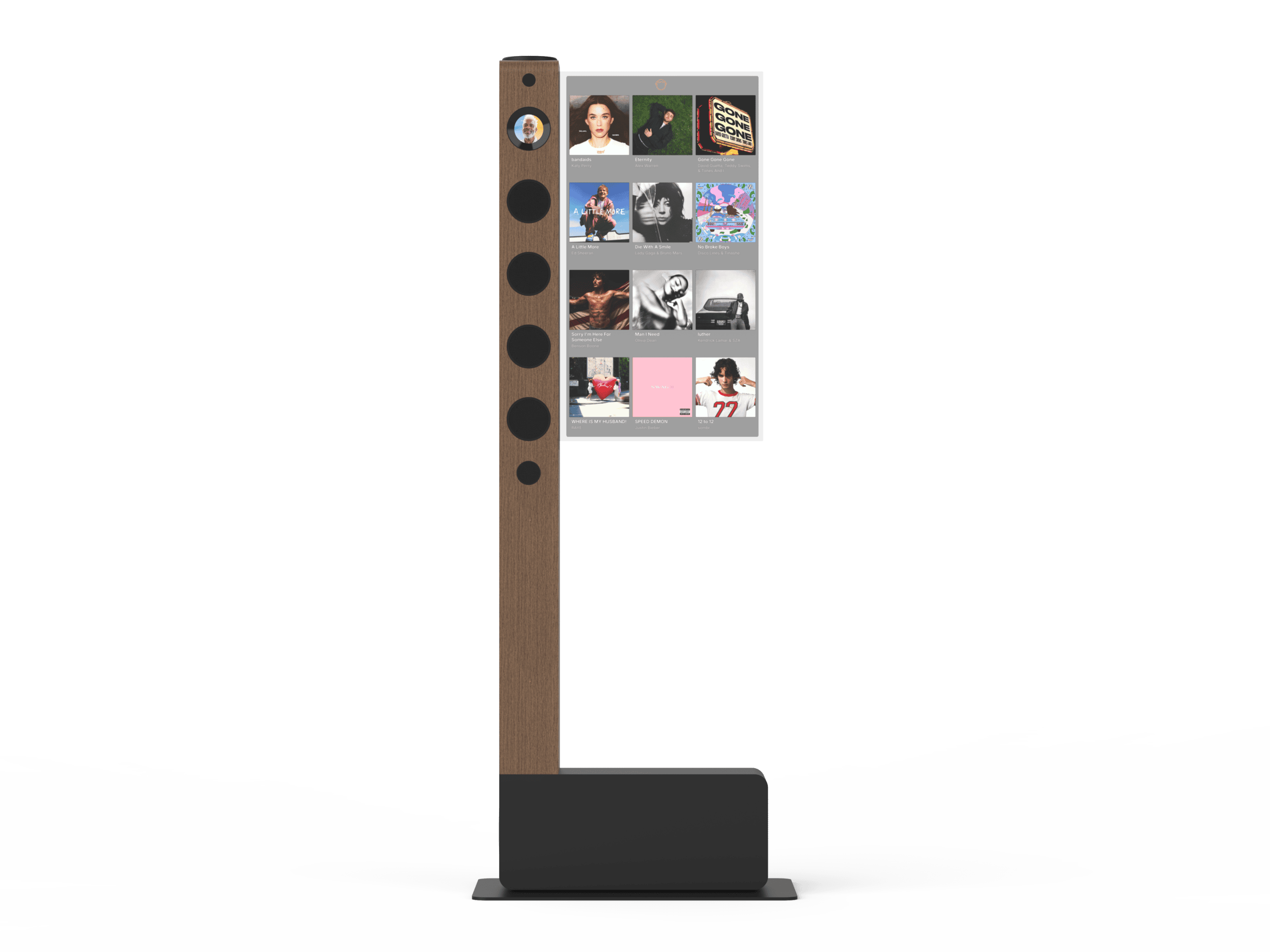

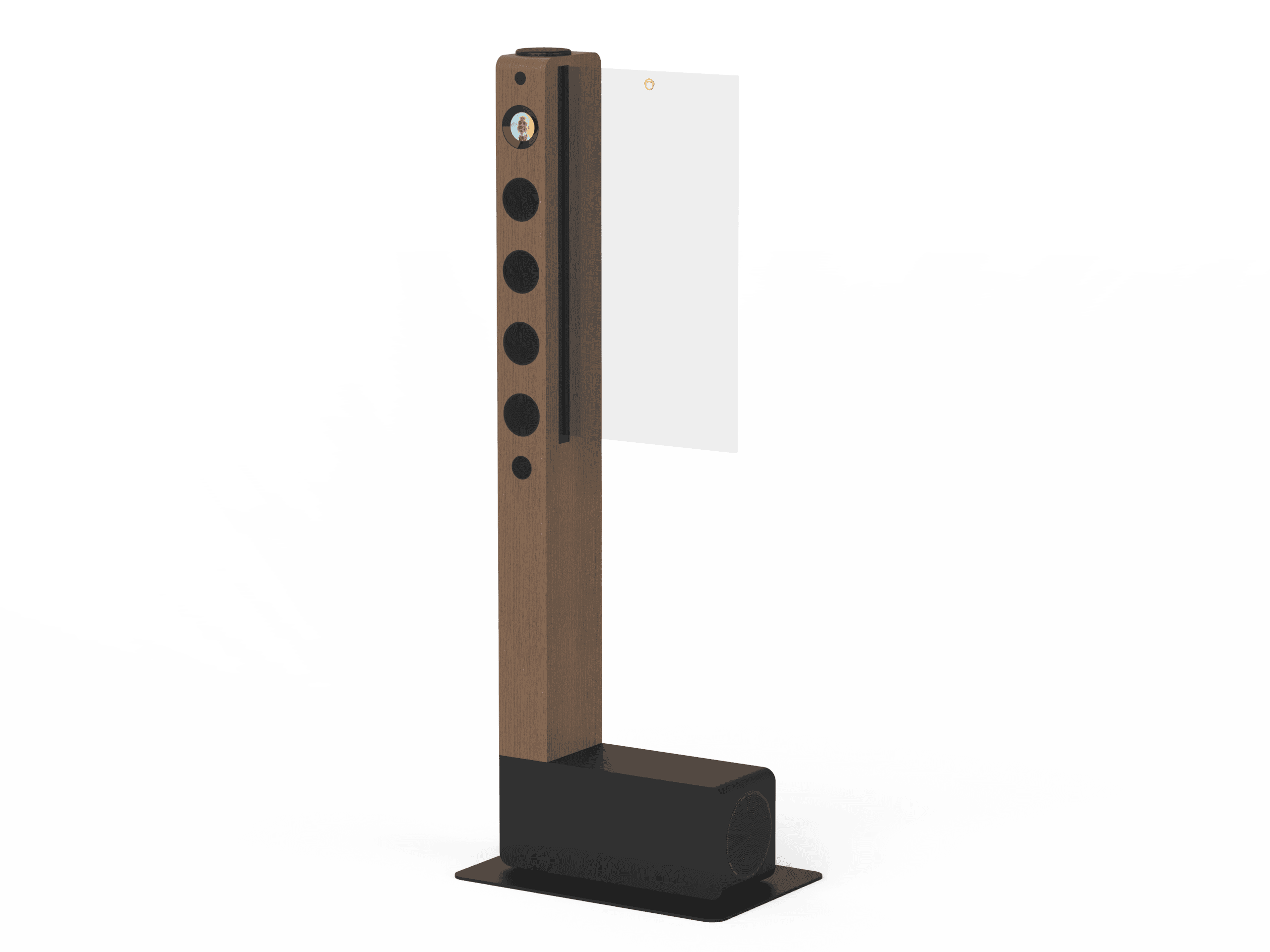

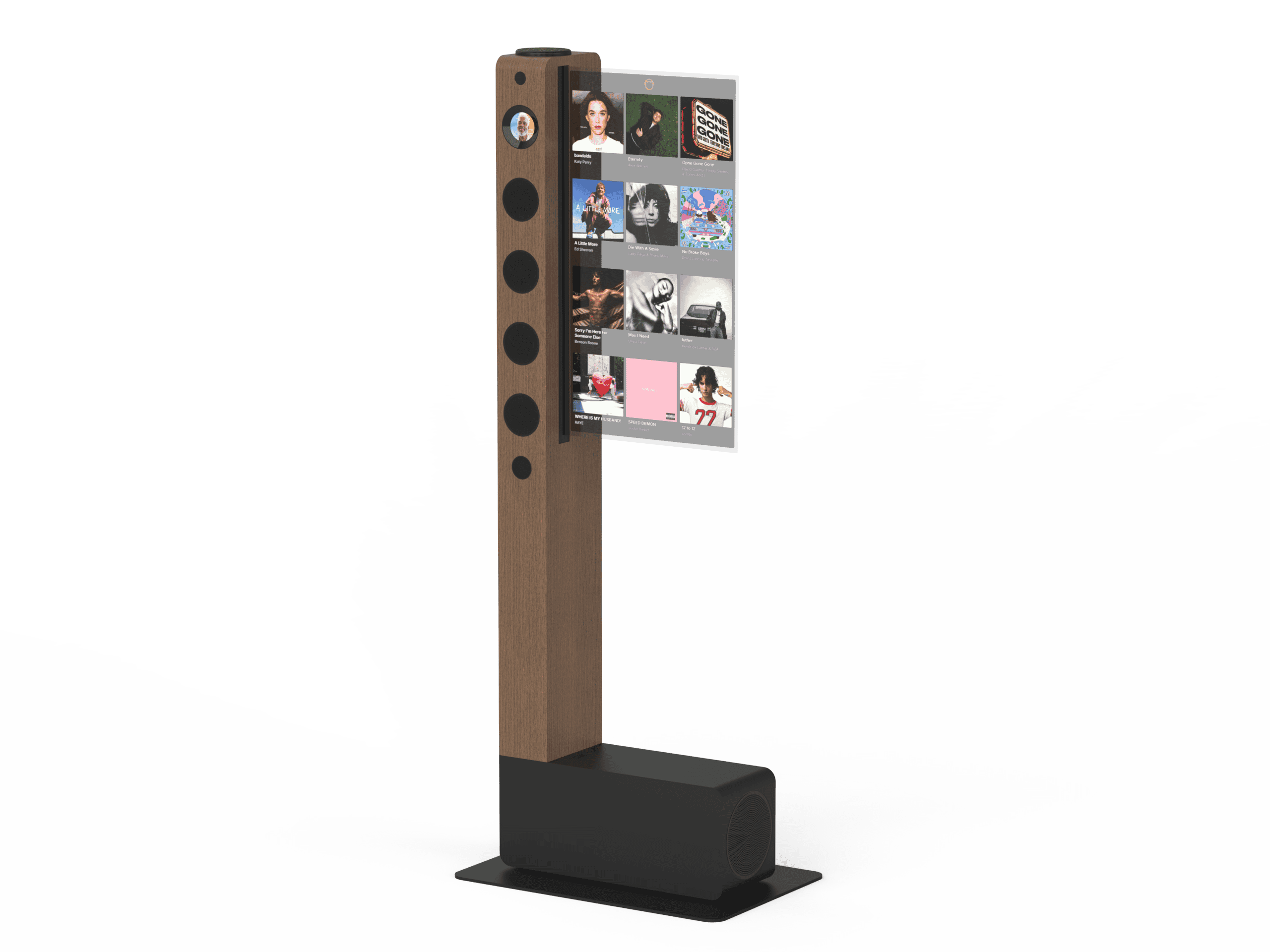

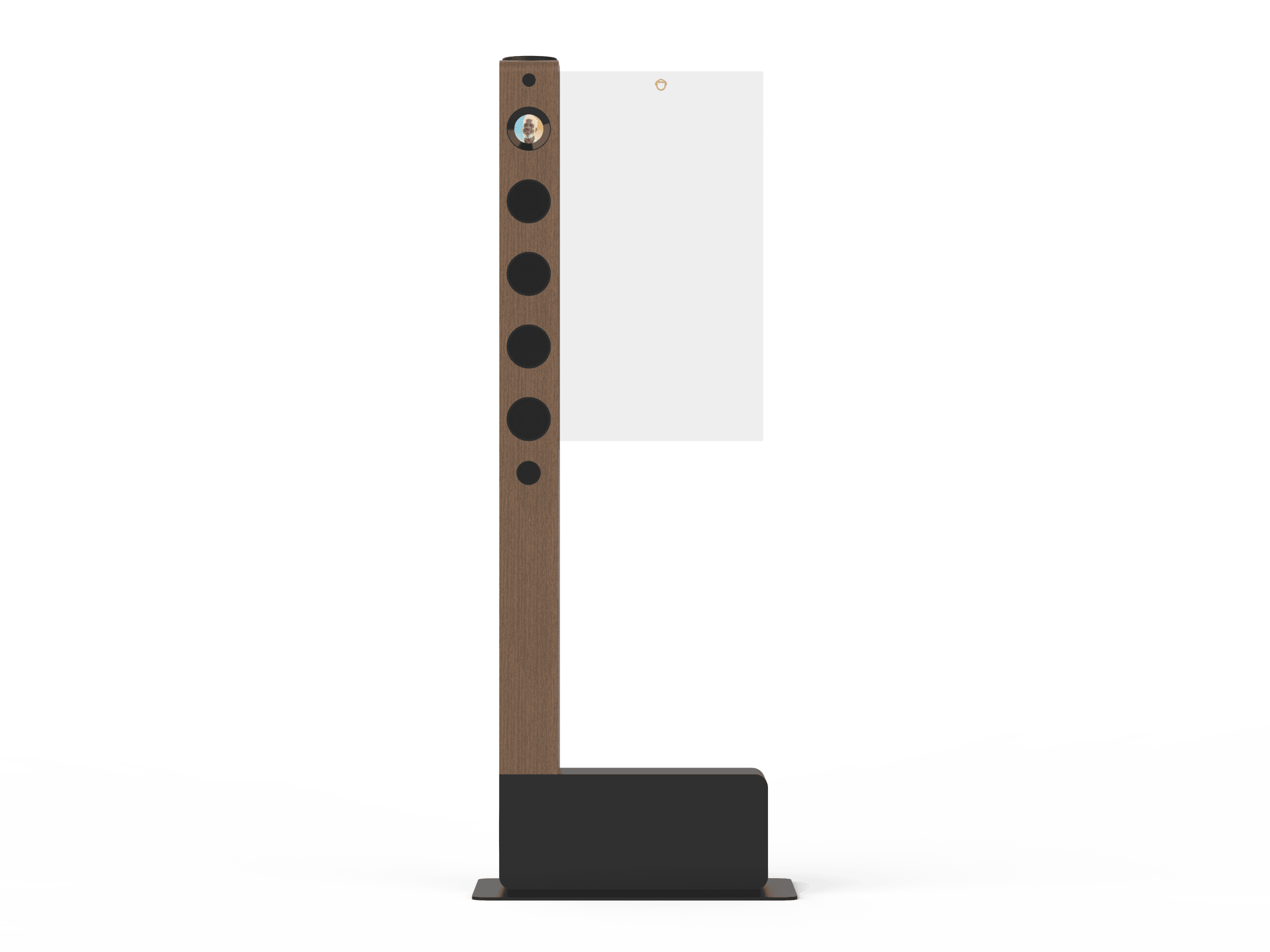

30″ Napster AI Transparent Micro LED Kiosk
A transparent canvas that stays vivid in the light
Transparent display technology has always faced one limit: brightness. Conventional transparent LCD and even OLED panels lose impact the moment ambient light rises, washing out in the very retail floors, lobbies, and exhibition halls where they are meant to draw a crowd. The 30″ Napster AI Transparent Micro LED Kiosk answers that with a self-emissive Micro LED panel that reaches 600 cd/m² while holding a 1,000,000:1 contrast ratio and 60% transparency. Each pixel is its own light source, so blacks are truly black and content appears to hover in mid-air over the physical products placed behind the glass — an effect that holds up under spotlights and bright public spaces rather than collapsing in them. A 120 Hz refresh rate and 10-bit, 1.07-billion-color depth keep motion smooth and gradients clean, while a rated 30,000-hour LED lifetime makes it dependable for always-on, unattended installations.
Two brains, two operating systems, one cabinet
Most AI kiosks force a compromise on compute. This one does not. Inside sits a dual-brain architecture: an Apple Mac mini (M4) — with a 10-core CPU, 10-core GPU, and 16-core Neural Engine — runs Napster AI and macOS-native applications with flagship on-device intelligence, while a dedicated Orange Pi 5 Plus (Rockchip RK3588) drives the display and peripherals under Android. Integrators get the strengths of both ecosystems — Apple's AI and creative-app horsepower alongside the open flexibility of Android — without bolting on an external player or a separate media PC. A secondary 2.1″ circular Napster View display adds a second screen for an animated AI persona, branding, or live status, giving the kiosk a face as well as a canvas.
Built to see, hear, and be heard
Interaction is where the platform earns its "AI & sound hub" billing. A 48MP camera with a 120° field of view captures 4K at 30 fps for computer vision, audience analytics, and AR experiences, and a faytech 4-array beamforming microphone isolates a speaker's voice from across a noisy room for natural conversation with Napster AI. Sound is a genuine feature here, not an afterthought: a multi-driver system pairs dual 80 W bass, quad 40 W full-range, and a 10 W treble driver for a 40 Hz–20 kHz response that fills a space with music, voice prompts, and immersive audio — the presence luxury and entertainment brands expect.
Designed like furniture, engineered like industrial hardware
The chassis is finished in custom aluminum, wood, and metal with a RAL9004 black-and-brown wooden frame, so the kiosk reads as a designer fixture rather than a signage box. The 10-point projected-capacitive touch surface uses 2.0 mm thermally strengthened, four-layer safety glass with AG anti-glare etching, IK08 impact protection, and faytech's Clear Bond® optical bonding for clarity and durability in high-traffic, hands-on use. Free-standing on a stable base at 600 × 400 × 1700 mm and roughly 39 kg, it is CE and FCC certified and ready to drop into museums and galleries, luxury retail, hospitality, and music and entertainment venues.
For environments where a transparent AI kiosk has to stay bright, sound brilliant, and look the part, the 30″ Napster AI Transparent Micro LED Kiosk is faytech's most advanced interactive showpiece. Contact our team for configuration options, lead times, and a tailored quote.
Additional information
| Weight | 86 lbs |
|---|---|
| Dimensions | 74 × 33 × 27 in |
