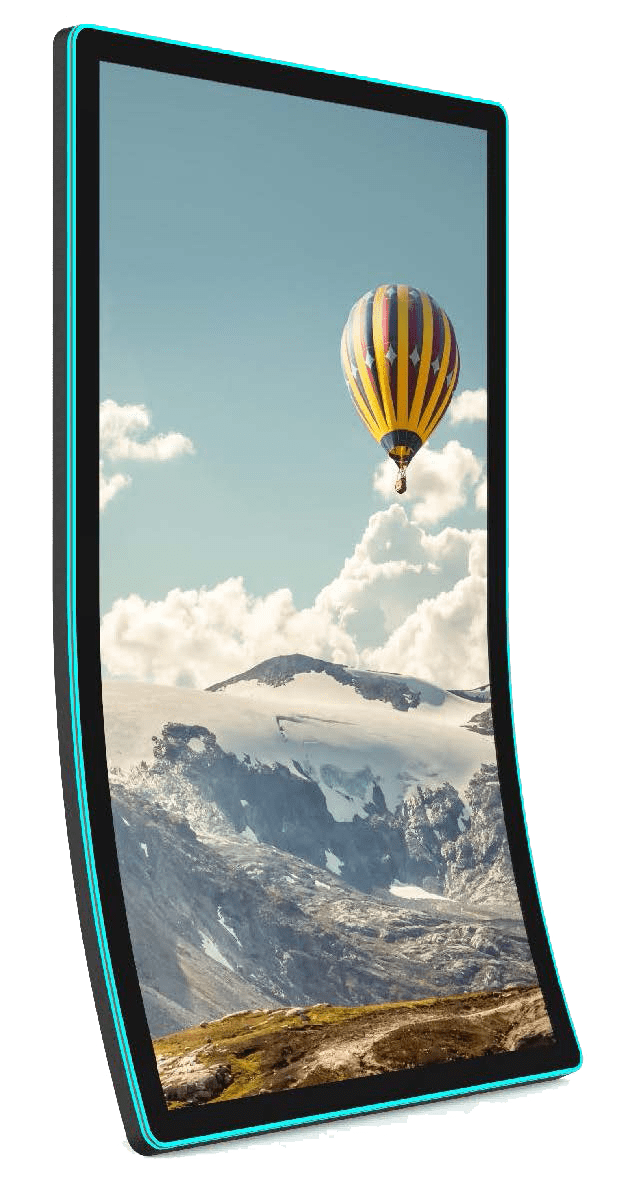

55″ Curved Capacitive Touch Monitor (J-shaped)

The 55″ Curved Capacitive Touch Monitor (J-shaped) is a statement-piece interactive display engineered for environments where ordinary flat panels go unnoticed. Where conventional digital signage and touch monitors present a rectangular wall of pixels, this unit uses an R1500 curvature radius oriented in portrait to create a J-shaped profile — the bottom of the screen curves gently toward the viewer, drawing the eye downward and inward in a way that flat displays cannot replicate. The result is a display that functions as much as an architectural feature as it does an interactive surface, well-suited to flagship retail, hospitality lobbies, premium gaming installations, museums, and high-end self-service deployments.

At the core is a 4K UHD IPS panel delivering 3840×2160 resolution across a 1209.6 × 680.4 mm display area, with 500 cd/m² brightness, a 4,000:1 contrast ratio, and 1.07 billion colors at 68% NTSC coverage. The 178°/178° viewing angle ensures the image remains color-accurate from approaching foot traffic, while the 8 ms display response time supports motion-rich content — from interactive games and product configurators to high-frame-rate video walls — without ghosting. IPS technology was selected specifically because it maintains color and contrast fidelity across the curved geometry; lesser panel types tend to wash out at the edges of a curve.

For interaction, the monitor uses a projected capacitive 10-point multi-touch panel built on 4.55 mm (±0.3) physically strengthened cover glass with chemical-etching anti-glare treatment. Touch response time is rated at 10 ms with greater than 85% light transmission, ensuring touches register precisely without the input lag that frustrates users on lower-grade public displays. faytech's Clear-Bond® optical bonding is applied between the touch sensor and the LCD panel, which delivers several measurable advantages in real deployments: reduced internal reflections under bright ambient lighting, improved contrast and color depth, increased mechanical durability and shatter resistance, better heat dissipation, and enhanced brightness clarity. For curved displays especially, optical bonding is critical — air gaps in a curved geometry can produce uneven reflections that flat-panel users never encounter.

The monitor's connectivity profile is built for flexibility across deployment scenarios: 3× HDMI inputs allow simultaneous connection of multiple content sources with on-the-fly switching, 1× DisplayPort supports high-bandwidth 4K signal from professional graphics cards, USB-A and USB-B handle touch data and peripheral connections, and audio in / earphone out routes through onboard speakers or external sound systems. Side-mounted OSD buttons (Power, Auto, Up, Down, Menu) provide direct settings access without a remote, and the OS menu supports English, Chinese, and other languages on request.

A distinctive feature that sets this monitor apart from typical commercial displays is the integrated RGB ambient lighting system on the front, side, and back of the chassis. The lighting is controllable across multiple modes — solid color, running water, breathing, gradient, and other effects — turning the display into an architectural lighting element when in attract mode or off-hours. Optional non-controllable LED configurations are available for installations that prefer a fixed lighting scheme. Combined with the borderless design concept and the curved silhouette, the monitor functions as an environmental design element, not just a screen mounted to a wall.

The chassis is finished in black as standard (white optional) with product dimensions of 1283.19 × 760.4 × 74 mm. Standard VESA mounting allows the monitor to be wall-mounted, ceiling-suspended, or installed on floor-standing kiosk hardware, while the borderless edge treatment minimizes visual interruption between adjacent units in multi-display installations. The integrated loudspeaker handles audio for tutorials, gaming, ambient soundscapes, or attract-mode media without requiring external audio equipment for basic deployments.

Power runs on AC 100–240V at 50/60Hz, consuming 163 W in operation and under 1 W in standby — manageable for 24/7 retail and signage deployments. The monitor operates between 0°C and 50°C with 20–80% humidity tolerance, suitable for climate-controlled indoor environments including retail, hospitality, corporate, and entertainment venues. The unit ships with CCC certification, with CE and FCC available as optional certifications upon request — confirm certification requirements with faytech sales before placing volume orders for regulated markets. Standard warranty is 1 year, with 2-year and 3-year extended warranty options available.

Hypothetical Application Scenarios

Premium Gaming Lounges & Arcades: Picture a high-end gaming venue where the J-shaped curve wraps the player's peripheral vision in portrait orientation — ideal for vertical-format games, retro arcade revivals, rhythm games, and gacha-style interactive experiences. The 178° viewing angles ensure spectators behind the player see the same image fidelity, and the RGB ambient lighting can be synchronized to gameplay events through addressable LED control, turning each station into a self-contained light show. The 8 ms response time and 10-point multi-touch support fast-action play.

Flagship Retail – Vertical Product Showcases: For brands selling tall, vertical products — sneakers, watches displayed in standing presentation, fashion lookbooks, fragrance towers, premium spirits — the portrait J-shape mirrors the natural vertical form of the merchandise. Picture a sneaker retailer placing the monitor next to a featured release: customers tap a colorway on screen to trigger a synchronized lighting cue on the physical product display, while the curved geometry creates a more intimate viewing experience than a flat panel would. The 4K resolution renders product macro photography in detail that justifies premium positioning.

Hospitality Lobbies & Concierge Walls: Hotels increasingly use vertical displays for wayfinding, event boards, local recommendations, and digital art. The J-shaped curve transforms an otherwise utilitarian signage panel into a sculptural element appropriate for boutique and luxury properties. With three HDMI inputs and DisplayPort, the front desk can route different content sources to the display throughout the day — event listings during business hours, ambient art video in the evening, weather and check-out reminders in the morning — all without changing hardware.

Museum & Cultural Installations: The curved portrait orientation lends itself to displaying tall artifacts (statues, scrolls, architectural elements) at scale, or to immersive timeline experiences where visitors scroll through history vertically. The 1.07 billion color depth and 178° viewing angles preserve artwork fidelity from any approach angle, and the 4.55 mm strengthened cover glass with chemical-etching anti-glare treatment tolerates high-traffic touch interaction. The RGB ambient lighting can be programmed to match exhibit themes — warm tones for classical wings, cool blues for contemporary galleries.

Self-Service Kiosks & Wayfinding Towers: System integrators can pair this monitor with their own kiosk PC or media player to build distinctive self-service stations — interactive directories in shopping centers, airport wayfinding, university campus information, hospital navigation. The standard VESA mounting and three HDMI inputs make it straightforward to integrate into existing kiosk enclosures, and the borderless design produces a clean finished look without custom bezel work. The 500 cd/m² brightness and Clear-Bond® optical bonding maintain readability in well-lit public spaces.

Trade Show & Brand Activation Centerpieces: Exhibitors competing for attention in convention halls full of identical flat panels can use the J-curve as an instant visual differentiator. The integrated RGB ambient lighting amplifies the booth's brand colors, the 4K UHD resolution displays product imagery and video at impressive scale, and the 10-point multi-touch supports group interaction at lead-capture stations. Three HDMI inputs allow rapid content swaps between presentation, demo, and capture modes throughout the show day.

Corporate Lobby & Executive Briefing Centers: Companies wanting to make a statement at the visitor entrance can install the monitor as a digital welcome panel — displaying personalized greetings for incoming meetings (via integration with the visitor management system on a connected PC), corporate brand video, and key metrics for analyst visits. The borderless, curved aesthetic communicates design investment in ways a standard flat panel does not. The RGB ambient lighting can be programmed to match corporate color guidelines.

As with all faytech touch displays, the 55″ Curved Capacitive Touch Monitor (J-shaped) supports customization options including branding, color choices, certification packages, warranty extensions, and software integration. For OEM volume programs, multi-unit installation pricing, or technical pre-sales consultation, request a quote from the faytech North America engineering team.
