65″ Interactive Fitting Mirror Monitor RTD2556 (+ MINI-ITX I5 Option)

The 65″ Interactive Fitting Mirror Monitor (RTD2556) is a category-defining smart mirror engineered specifically for fashion retail, hospitality, fitness, and beauty environments where the act of looking at one's reflection is itself the most valuable moment of the customer journey. Unlike conventional digital signage — which competes for attention against the customer's primary task — a smart mirror enhances the moment a customer is already deeply engaged in: trying on clothes, evaluating an outfit, considering a purchase. The mirror surface functions as a true mirror when the display is idle; when activated, the 4K UHD LCD beneath comes through the mirror coating to layer interactive content directly over the customer's reflection.

The 65.0″ panel delivers 3840×2160 resolution across a 597.6 × 336.15 mm active area in portrait orientation, with a notably high 1,000 cd/m² brightness rating. This high brightness is not a marketing number — it is a technical requirement of the mirror display category. Mirror coatings absorb a meaningful percentage of light transmission (this product is rated >85% transparency), so the panel underneath must be substantially brighter than standard signage displays to remain crisp and readable through the coating. The 4,000:1 contrast ratio and 178°/178° viewing angles ensure content stays color-accurate from any angle a customer would approach, and the LED backlight is rated for a minimum 30,000-hour lifetime. Display interface is LVDS driven by a Realtek® RTD2556T monitor controller with standard firmware.

The mirror cover glass is 2.0 mm thermally strengthened with mirror surface treatment, achieving over 85% transparency in its coating while presenting a genuine mirror appearance when the display is off. IK08 impact protection means the glass tolerates the inevitable bumps and brushes of fitting-room use — customers handling clothing, hangers swinging, the occasional dropped accessory. faytech's Clear Bond® optical bonding eliminates the air gap between the touch sensor and the LCD panel, which on a mirror display is particularly critical: air gaps under a mirror coating create double-reflection artifacts that destroy the magic-mirror illusion. Touch is handled by an EXC81W100 controller communicating over USB, supporting 10-point projected capacitive multi-touch for natural smartphone-like interaction.

Two integrated features set this fitting mirror apart from generic smart-mirror retrofits and they deserve attention.

Integrated 48MP Camera: Mounted within the mirror chassis, the camera enables a full suite of computer-vision-driven retail experiences: AR garment try-on (customers see alternative colorways or sizes layered onto their reflection), gesture control (browse sizes or styles with a hand wave — useful when a customer is half-dressed and doesn't want to touch the mirror surface), visual search (point the mirror at an item to find matching pieces in the catalog), 360-degree photo capture for the customer to share or compare looks, and dwell-time / engagement analytics for the brand. 48MP is significantly higher resolution than the cameras built into most smart mirrors and supports the photo-quality outputs that drive social sharing and post-purchase email marketing.

Adjustable 360-Degree LED Lighting Strip: This is the feature that turns the mirror from "screen behind glass" into a true fitting-room tool. The integrated LED strip provides 360-degree illumination around the mirror with two dimensions of customer control via dedicated buttons:

• Brightness: Adjust from soft accent lighting to full task lighting depending on what the customer is evaluating.
• Color Temperature: Switch between 3000K (warm restaurant or evening lighting), 4000K (neutral office and retail lighting), and 5000K (daylight / outdoor). This is the difference-maker for fashion retail: a customer can preview how an outfit looks in the lighting environment where they'll actually wear it, before they buy. The conversion implication is significant — customers who validate "how it looks at dinner" or "how it looks at work" in-store return fewer items.

A dedicated power button controls the LED strip independently of the display, allowing the mirror lighting to be used in pure mirror mode (display off, LED on) for traditional fitting-room use. Adjustable display features include Brightness, Contrast, Screen Setting, Color Temperature, Color Effect, Language, Reset, and Auto Adjust.

The mirror is configurable in two ways. Configuration 1 – Monitor Only: Drive the display from your own PC, media player, or retail-tech platform via 2× HDMI inputs, 1× DisplayPort, and USB-B for touch return. Audio In supports external sound sources, and an RJ45 connection accommodates an IR remote controller. RS232 serial (RX/TX) provides integration into retail control systems for centralized power and content management — important for chains deploying mirrors across many stores. Configuration 2 – Mini-ITX i5 Internal PC: Add an optional internal PC mounted inside the chassis: Intel® Core™ i5 with Intel® H610 chipset, 8 GB RAM, 120 GB SSD, Intel® AC 3168 Wi-Fi, running Windows 10 or 11. The internal PC eliminates external cabling and supports running smart-mirror application stacks locally without dependency on store-network PCs.

The chassis is constructed from aluminum with silver powder coating — an aesthetic choice that makes the unit read as a high-end designer mirror rather than a piece of industrial signage. External dimensions are 1778.0 × 1016.0 × 69.0 mm, with VESA 400 and side mounting holes supporting wall installation, fitting-room integration, or freestanding mount on custom hardware. The 69 mm depth is shallow enough to mount nearly flush against most fitting-room walls. IP65 front protection is meaningful for this product category: fitting rooms see humidity from steam, occasional water exposure during athletic-wear and swimwear try-on, and frequent cleaning with surface disinfectants. IP65 protects against dust ingress and water jets from any direction. The back of the unit is rated IP40 for indoor protection.

Audio is handled by 2× 3W loudspeakers integrated into the chassis. Power runs on 100–240V AC at 220W consumption with under 1W in standby, indicated by a green LED power light. Operating temperature is -10°C to 60°C with 10–90% humidity tolerance, and the unit ships with CE and FCC certifications. The mirror is intended for indoor use in retail, fashion, signage, and similar applications; protect from direct sunlight to remain within warranty.

Hypothetical Application Scenarios

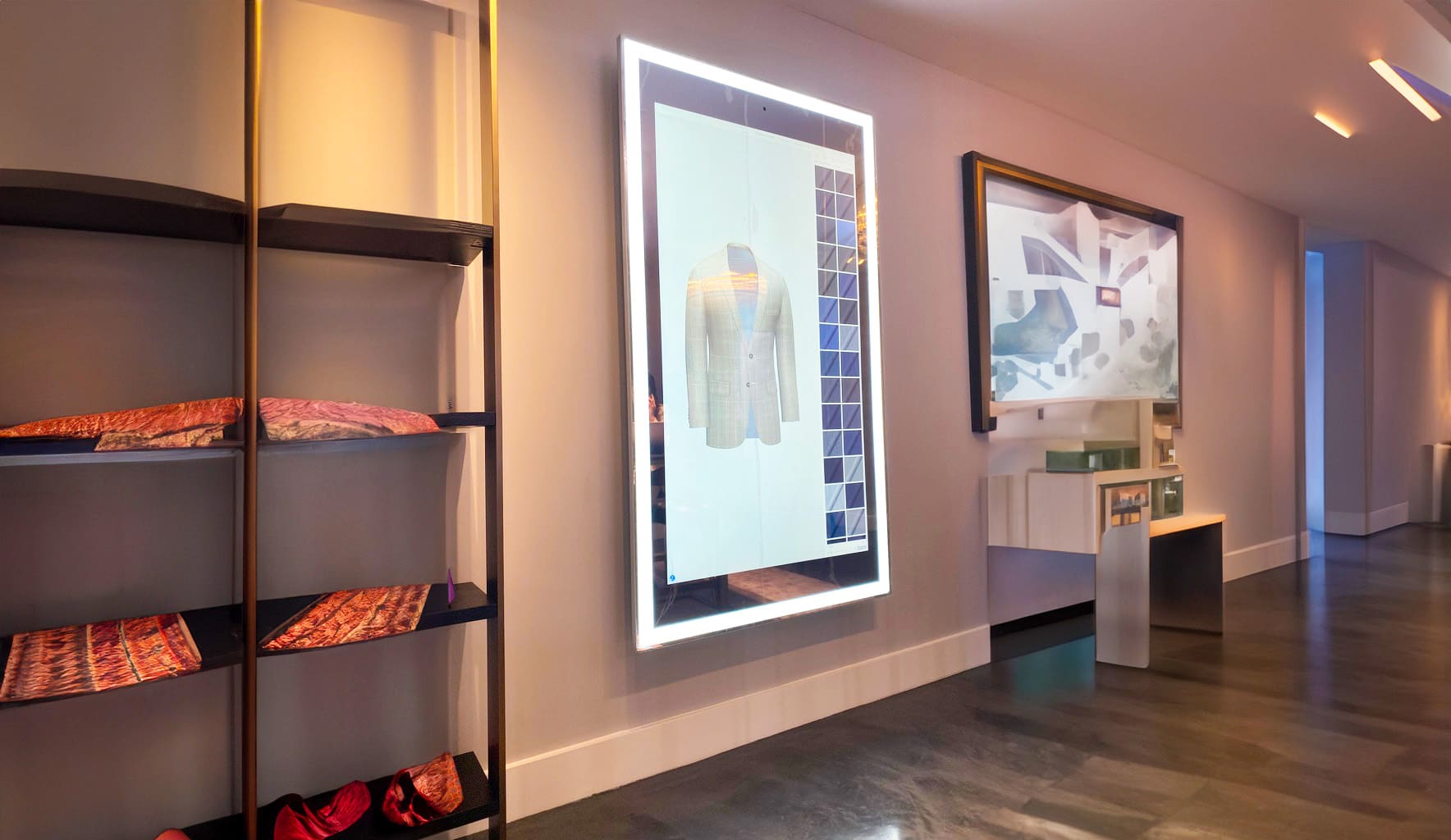

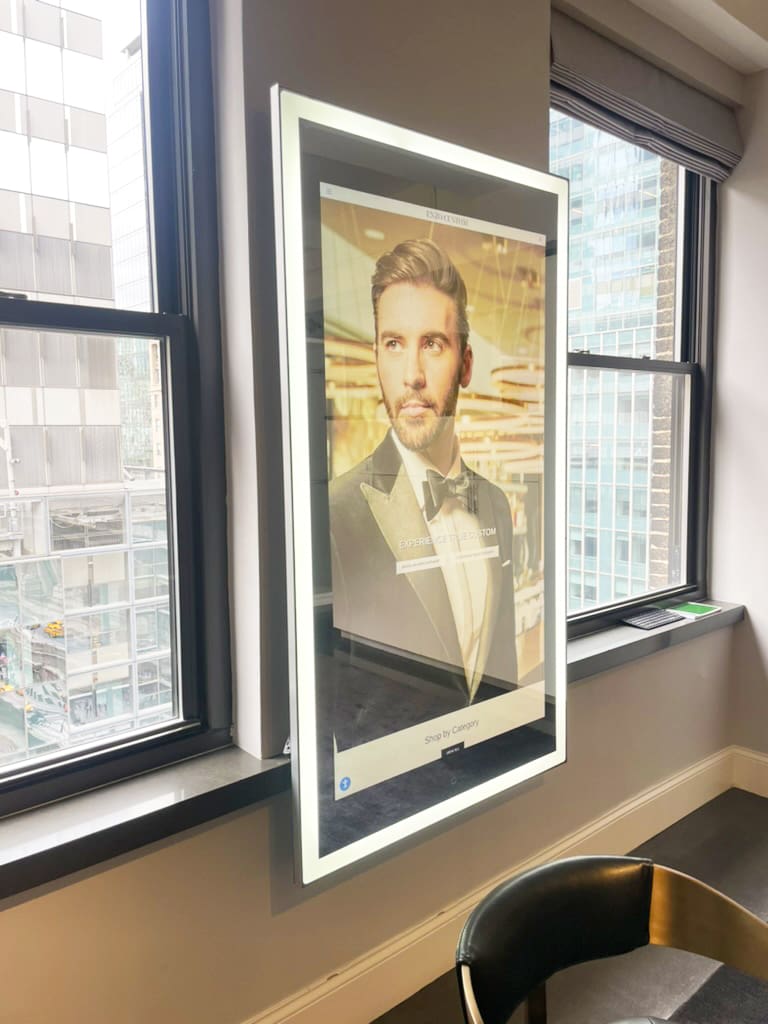

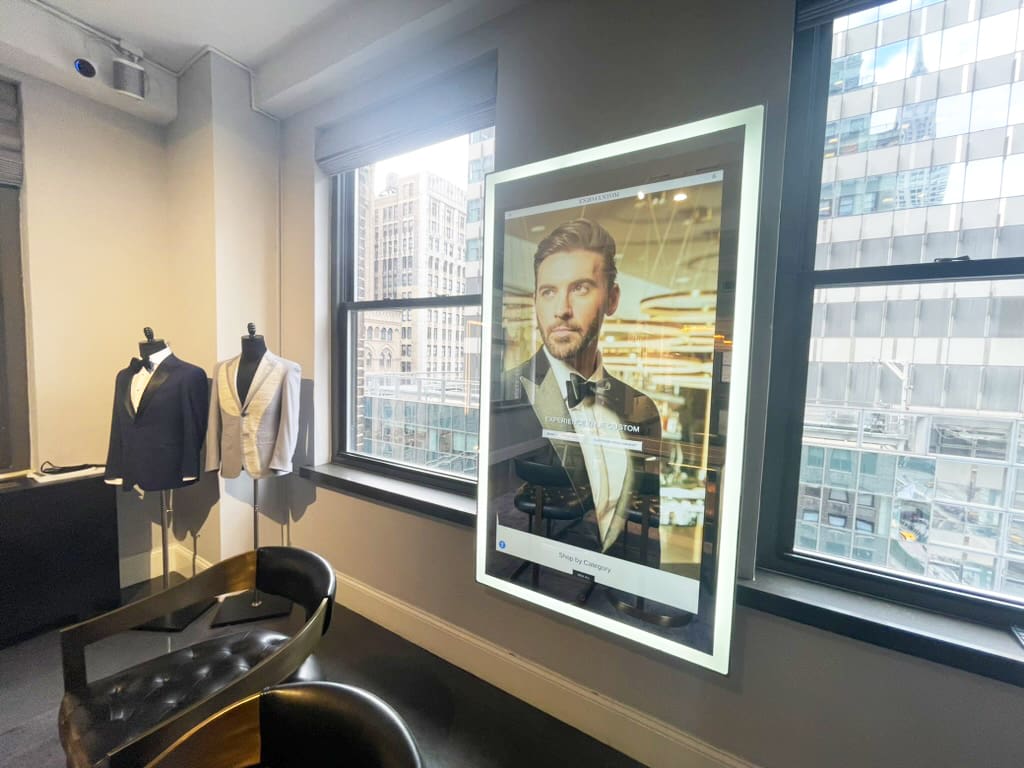

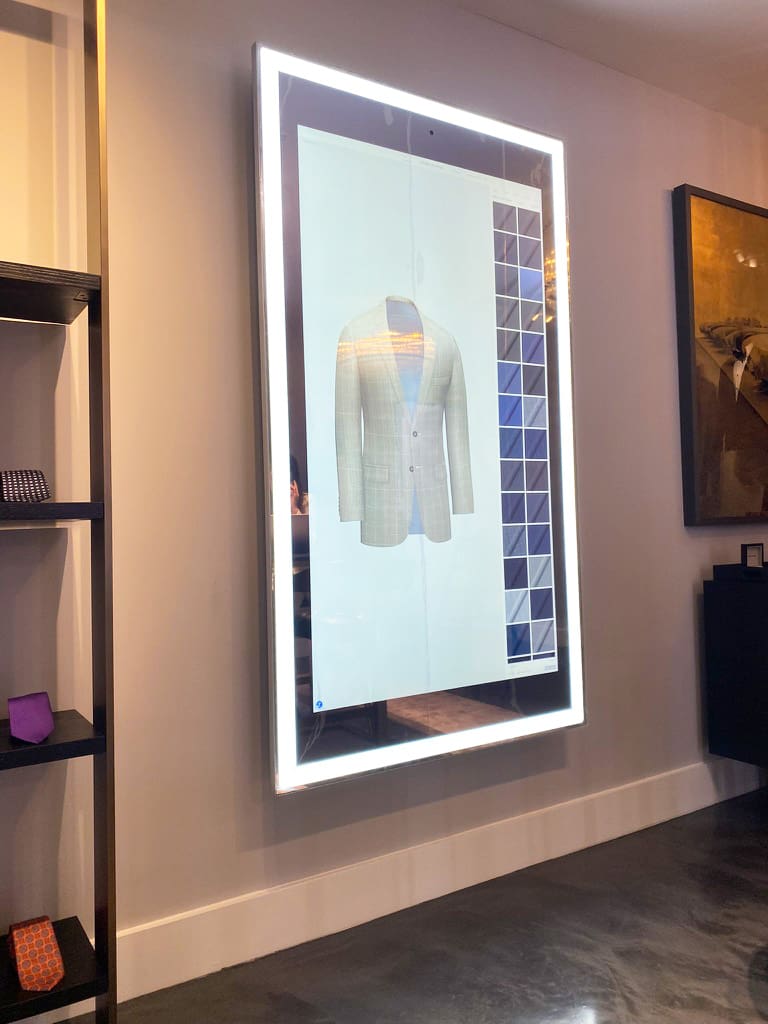

Fashion Retail – Premium Fitting Room Mirror: Picture a flagship department store fitting room where a customer is trying on an evening dress. The 48MP camera detects the dress (image recognition); the mirror displays available colorways, related accessories, and complementary footwear as touch-selectable overlays on the customer's reflection. The customer adjusts the LED strip to 3000K to preview how the dress looks under restaurant lighting before deciding. If the customer wants a different size, a tap on the mirror summons a sales associate via the store's clienteling system (running on the optional internal i5 PC). The IP65 front rating tolerates the occasional steam from busy fitting-room traffic.

Athletic & Activewear Retail: Athletic apparel customers care intensely about how garments perform under different conditions. The smart mirror could let customers preview their outfit under 5000K daylight (for outdoor running gear), 4000K neutral (for gym use), or with overlaid weather/temperature filters. The integrated camera supports motion analysis — a stretch, a squat, a running stance — letting the customer evaluate fit during the movements they'll actually perform in the gear. Hands-free gesture control becomes essential here, since the customer's hands are often occupied or sweaty.

Bridal & Formalwear: Few retail categories carry higher emotional and financial stakes than bridal. The smart mirror lets brides-to-be preview how a dress looks under the lighting of their venue (warm reception lighting at 3000K, neutral afternoon ceremony at 4000K, outdoor ceremony at 5000K). The 48MP camera captures images the customer can immediately share with family or wedding planners not present in the store. The 360-degree LED strip provides flattering, even illumination that traditional fitting-room overhead lighting cannot match.

Beauty & Cosmetics Retail: Premium beauty retailers (Sephora, Ulta, brand-owned flagships) can install the mirror as a makeup-trial station. Customers test cosmetics under different lighting conditions before purchase — particularly important for foundation matching, where 5000K daylight reveals undertones that 3000K mood lighting hides. The mirror can run AR try-on for lipstick, eyeshadow, and brow products via the integrated 48MP camera. The IP65 front rating tolerates the spray, mist, and product residue that's inevitable in cosmetics testing.

Hospitality – Hotel Suite & Spa Smart Mirror: Luxury hotels and spas can install the mirror in premium rooms or spa preparation areas. The mirror functions as a standard wall mirror by default but reveals weather forecasts, news, scheduled treatments, room service ordering, and concierge messaging on demand. The adjustable color temperature supports both daytime grooming (5000K) and pre-dinner preparation (3000K). For spas, the IP65 front rating tolerates the humidity that destroys typical electronics in those environments.

Fitness, Personal Training & Yoga Studios: Boutique fitness studios can install mirrors that overlay form-correction graphics, workout instructions, virtual trainer presence, or class scheduling on the customer's reflection during practice. Gesture-based control lets users navigate workouts without touching the surface mid-exercise. The 1,000 cd/m² brightness ensures content remains visible even in brightly-lit boutique studio environments.

Healthcare – Dermatology, Aesthetic Medicine & Physical Therapy: Specialty medical practices can use the mirror to display before/after imagery, treatment progress, range-of-motion assessments, and patient education content overlaid on the patient's own reflection. The 48MP camera supports documentation of treatment progress, and the IP65 front rating accommodates medical-grade cleaning protocols. The adjustable lighting helps clinicians evaluate skin tone, lesion appearance, or post-procedure healing under standardized lighting conditions.

Hotel Concierge & Lobby Wayfinding: Beyond fitting rooms, the mirror functions as an elegant lobby information point. When idle, it's an architectural mirror appropriate for luxury hospitality aesthetics; when activated, it offers wayfinding, event listings, transportation booking, and local recommendations. The silver aluminum frame integrates better with high-end lobby design than the black industrial bezels typical of digital signage.

As with all faytech interactive platforms, the 65″ Interactive Fitting Mirror Monitor (RTD2556) supports customization options including chassis color, branding, software integration, and bespoke peripheral configurations for OEM deployments. For multi-unit retail rollouts, integration with existing clienteling and POS systems, or pre-sales technical consultation on smart-mirror retail strategy, request a quote from the faytech North America engineering team.
