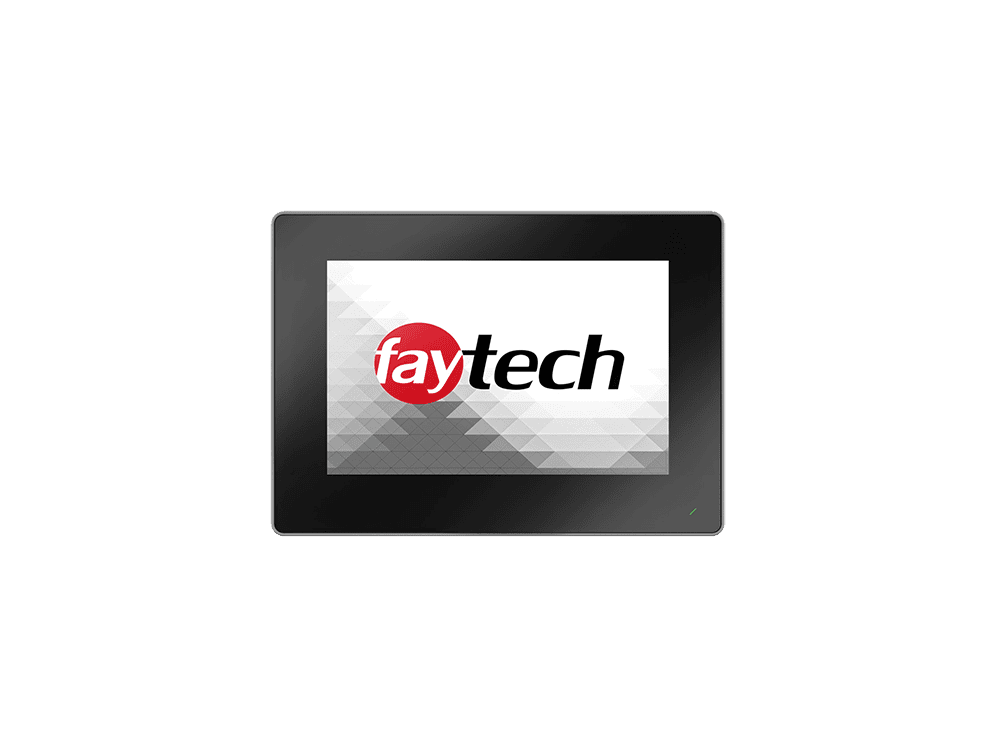

7″ Aluminum Frame Capacitive Touchscreen Monitor
Product Name: 7″ Aluminum Frame Capacitive Touchscreen Monitor
SKU: FT07TMACAPOB
IP Classification: Front IP65 / Back IP40
Display Size: 7″ / 17.8 cm
Max Resolution: 1024 × 600 pixels
Screen Brightness: 500 cd/m²
Touch Type: PCAP Multi-touch (10 point)
Warranty: 2-Year Limited Warranty
Data Sheet Download: EN_FT07TMACAPOB
Big-monitor toughness at pocket scale — the 7″ Aluminum Frame Monitor brings bright, glove-friendly touch to the tightest installations.
Get a QuoteAdditional information
| Display Size | 7″ |
|---|---|
| Resolution | 1024 × 600 |
| Brightness | 500 cd/m² |
| Touch Technology | Projected Capacitive 10-point Multi-touch |
| IP Rating | IP65 Front / IP40 Back |
| Operating Temperature | -10°C to 60°C |
| Video Inputs | 1× HDMI, 1× VGA |
| Case Size | 200 × 134.5 × 50.5 mm (7.9 × 5.3 × 2 in) |
| Net Weight | 0.7 kg (1.5 lb) |
| Mounting | VESA 100 × 100 |
| Power Consumption | 7.7 W |
| Warranty | 2 years (standard) |
The smallest monitor in the aluminum frame line, the 7″ packs 500 cd/m² of brightness and thermally strengthened 3 mm glass into a case just 200 mm wide — built for panel integration, POS peripherals, and tight machine-side mounts.
Inside the aluminum small case sits a Realtek RTD2556 controller driving a projected-capacitive panel with 10-point multi-touch over a plain USB connection — no proprietary driver to install. Video arrives by HDMI, DisplayPort, or VGA, with audio-in, USB-B, and RS232 alongside, and two 2 W speakers built in. The front carries an IP65 seal against dust and spray while the rear is rated IP40.
Key specifications
- Display size: 7″ (17.8 cm)
- Maximum resolution: 1024 × 600 pixels
- Screen brightness: 500 cd/m²
- Touch technology: Projected capacitive (PCAP)
- Touch points: 10-point multi-touch
- Touch interface: USB
- Front glass: 3.0 mm thermally strengthened glass
- Impact resistance: IK08
- Controller: Realtek RTD2556
- Video inputs: HDMI, DisplayPort, VGA
- Additional interfaces: Audio-in, USB-B, RS232
- Audio: 2 × 2 W integrated speakers
- Protection rating: IP65 front / IP40 back
- Housing: Aluminum frame, small case
- Case dimensions (L × W × H): 200.0 × 134.5 × 50.5 mm
Download the full specification sheet: EN_FT07TMACAPOB (PDF).
The 7″ Aluminum Frame Capacitive Touchscreen Monitor is available to order in project quantities. Request a quote from faytech North America.
