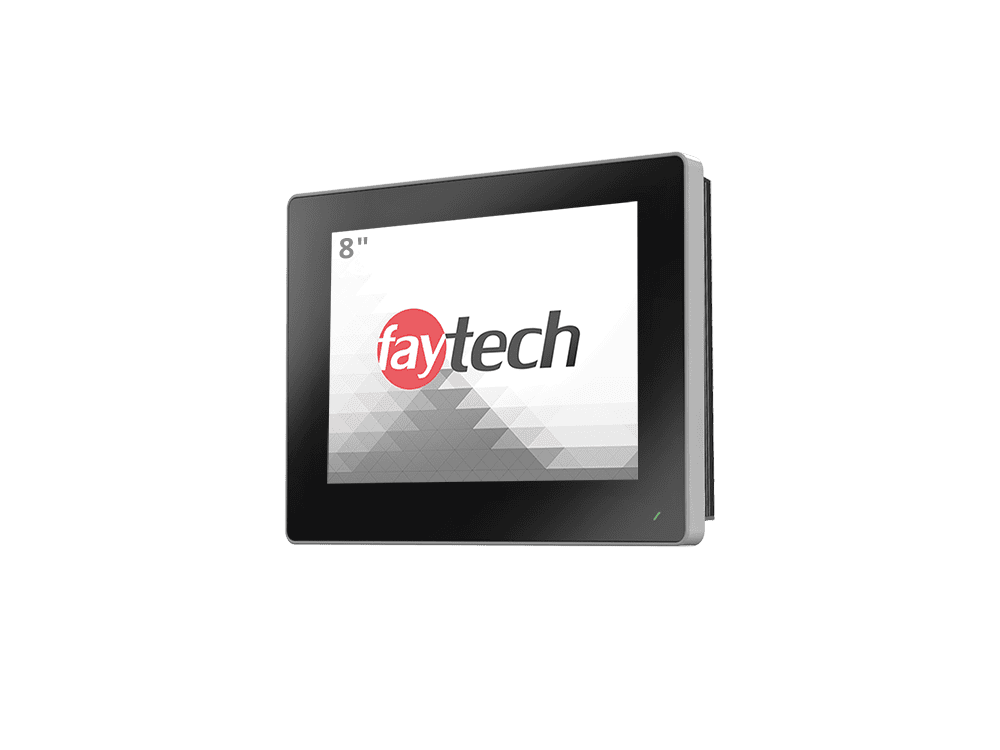

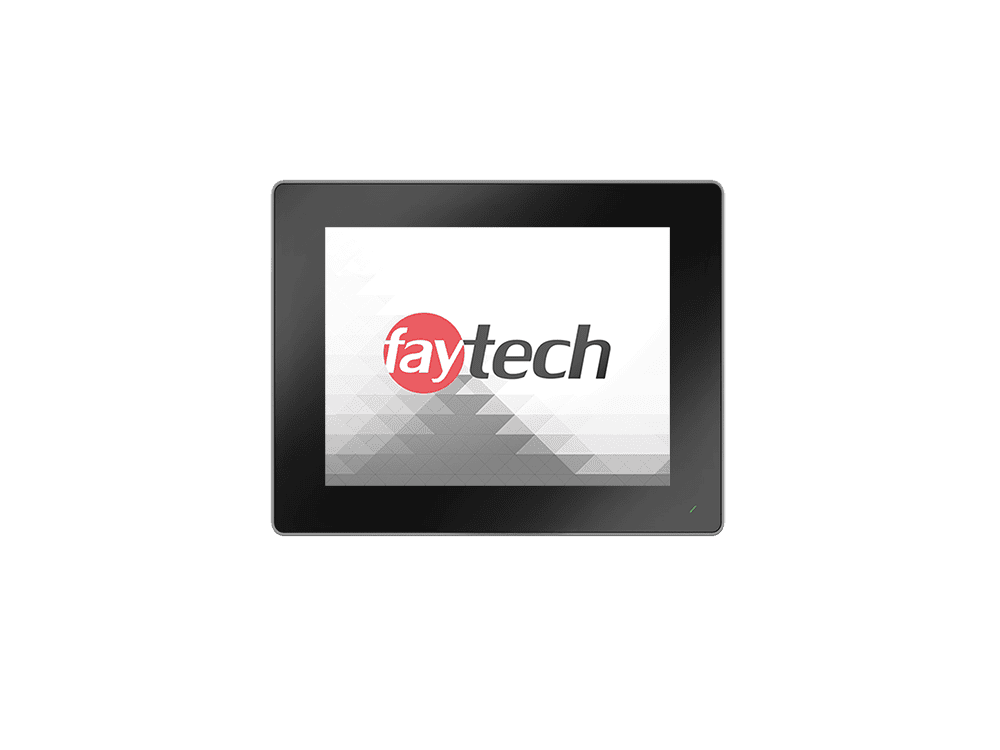

8″ Aluminum Frame Capacitive Touchscreen Monitor
Product Name: 8″ Aluminum Frame Capacitive Touchscreen Monitor
SKU: FT08TMACAPOB
IP Classification: Front IP65 / Back IP40
Display Size: 8″ / 20.3 cm
Max Resolution: 1024 × 768 pixels
Screen Brightness: 350 cd/m²
Touch Type: PCAP Multi-touch (10 point)
Warranty: 2-Year Limited Warranty
Data Sheet Download: EN_FT08TMACAPOB
A compact 4:3 workhorse — the 8″ Aluminum Frame Monitor slots into instrument panels without giving up commercial-grade touch.
Get a QuoteAdditional information
| Display Size | 8″ |
|---|---|
| Resolution | 1024 × 768 |
| Brightness | 350 cd/m² |
| Touch Technology | Projected Capacitive 10-point Multi-touch |
| IP Rating | IP65 Front / IP40 Back |
| Operating Temperature | -10°C to 60°C |
| Video Inputs | 1× HDMI, 1× VGA |
| Case Size | 205 × 160 × 50 mm (8.1 × 6.3 × 2 in) |
| Net Weight | 1.8 kg (4 lb) |
| Mounting | VESA 100 × 100 |
| Power Consumption | 6 W |
| Warranty | 2 years (standard) |
The 8″ model pairs a 4:3 XGA panel with the line's slim aluminum housing, a practical fit for instrumentation, machine interfaces, and compact self-service builds.
Video reaches the panel over HDMI, DisplayPort, or VGA, where a Realtek RTD2556 controller drives projected-capacitive glass with 10-point multi-touch across a standard USB interface that needs no proprietary driver. Audio-in, USB-B, and RS232 round out the connector set, and two 2 W speakers are integrated. The aluminum small-case housing seals the front to IP65 and the back to IP40.
Key specifications
- Display size: 8″ (20.3 cm)
- Maximum resolution: 1024 × 768 pixels
- Screen brightness: 350 cd/m²
- Touch technology: Projected capacitive (PCAP)
- Touch points: 10-point multi-touch
- Touch interface: USB
- Front glass: 3.0 mm thermally strengthened glass
- Impact resistance: IK07
- Controller: Realtek RTD2556
- Video inputs: HDMI, DisplayPort, VGA
- Additional interfaces: Audio-in, USB-B, RS232
- Audio: 2 × 2 W integrated speakers
- Protection rating: IP65 front / IP40 back
- Housing: Aluminum frame, small case
- Case dimensions (L × W × H): 205.0 × 160.0 × 50.0 mm
Download the full specification sheet: EN_FT08TMACAPOB (PDF).
The 8″ Aluminum Frame Capacitive Touchscreen Monitor is available to order in project quantities. Request a quote from faytech North America.
