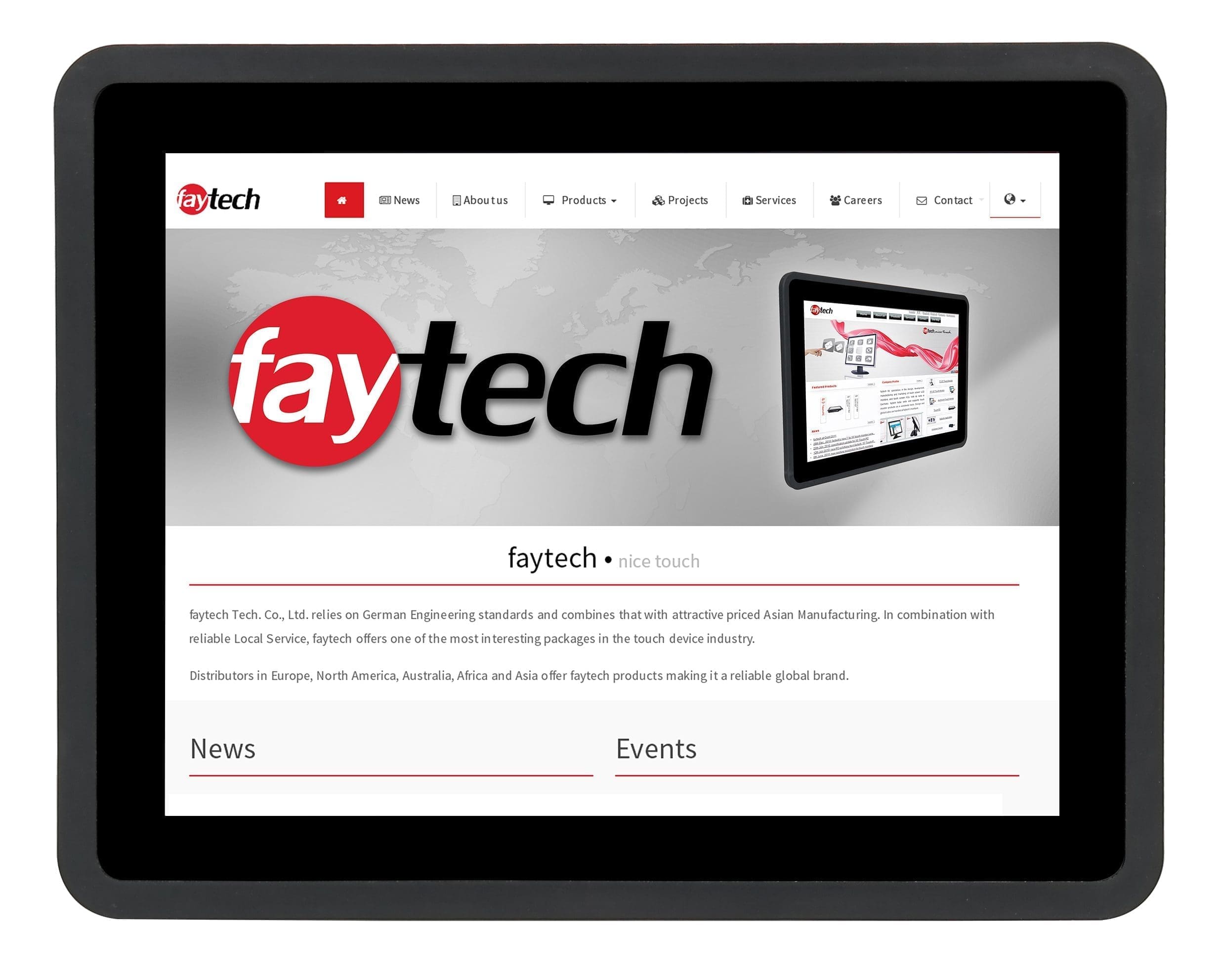

8″ Embedded Touch PC (ARM V40)
Product Name: 8″ Embedded Touch PC
Screen Diagonal: 8″ / 20.32 cm
Touch: Projected Capacitive 10-Point Multitouch
Aspect Ratio: 4:3
Brightness: 250 cd/m2
Visual Angle: 150/150 (°)
Physical Resolution: 1024 × 768 px
Light Type: LED
Weight (~): 1.40 kg (Net Weight), 2.40 kg (Gross Weight)
Mounting: VESA 75
CPU: Allwinner® V40 QuadCore, Cortex A7
Operating System: Android 6.0
RAM / Memory: 2GB DDR3
Storage: 8GB EMMC Flash
Network / Wireless: 10/100Mbit Network; W-LAN
Data Sheet Download: EN_FT08V40M400W1G8GCAP
Warranty: 2 Years
The 8″ Embedded Touch PC is designed for a multitude of applications ranging from industrial control systems to point-of-sale kiosks. It features a 10-point multitouch capability with a physical resolution of 1024 x 768 pixels. The device offers an aspect ratio of 4:3 and a contrast ratio of 700:1, ensuring crisp and vibrant display quality. With visual angles of 150/150 degrees, it provides a robust visual experience. The device is lightweight, with a net weight of 1.40 kg, and supports VESA 75 mounting. It operates on Android 6.0 and is powered by an Allwinner® V40 QuadCore CPU and Cortex A7 chipset. The product offers 2GB DDR3 RAM and 8GB EMMC Flash storage. Connectivity options include a 10/100Mbit network and W-LAN.
34 in stock
The V40 mainboard with W-LAN is faytech’s most cost-effective yet powerful Quadcore solution for Android-based platforms.

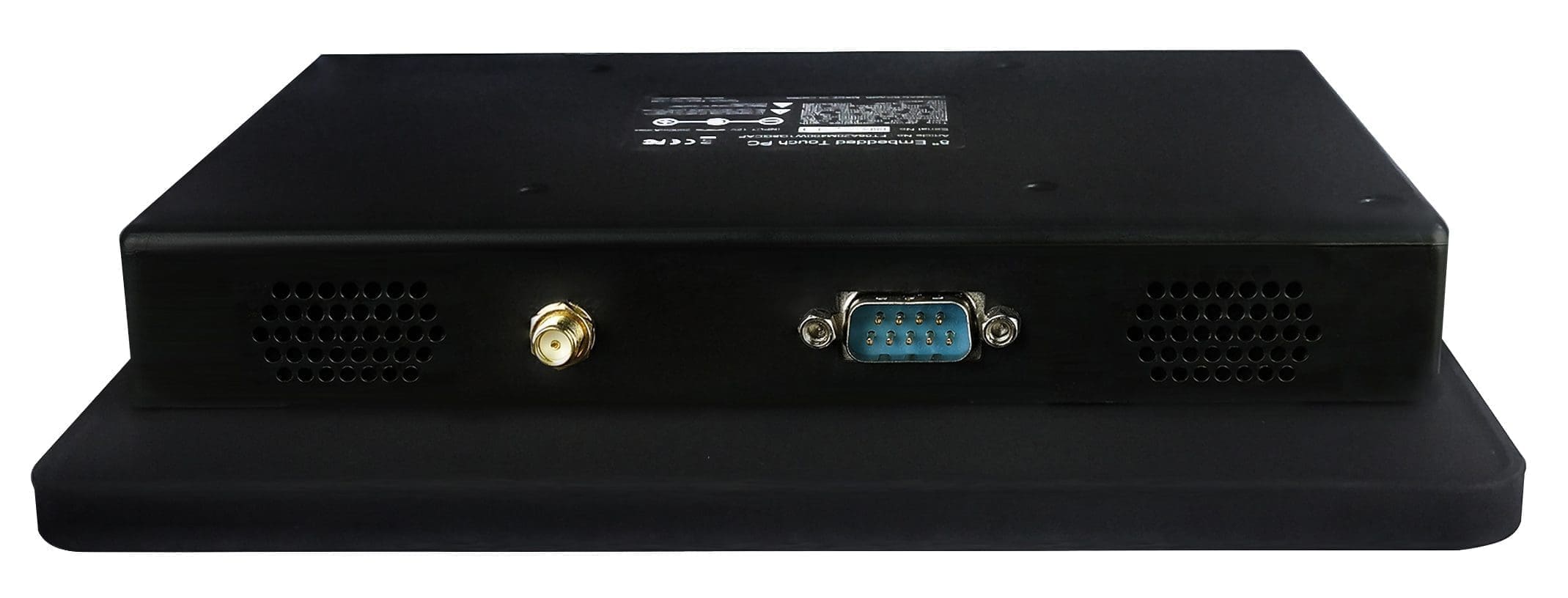

Powered by the powerful Embedded V40 Mainboard, faytech’s Embedded Touch PCs are the best solutions to industrial automation, device control and digital signage. A powerful Allwinner® V40 QuadCore CPU, Mali400MP2 graphics chipset, various connectors, e.g. USB, serial, network, TTL/UART, Mini-PCIe, HDMI, VGA, GPIO, LVDS and extended DC-In, all that makes the Embedded series perfect choice for reliable solutions.
The Embedded PCs are equipped with 2GB DDR3 RAM, 8G flash memory and includes a SATA connector as well as SD card slot for further storage expansion. As for network connection, the device is already integrated with Wifi, over Mini PCIe the device can be upgraded to 3G+GPS using the existing SIM card slot.
The touch features capacitive 10-finger multitouch panels, Anti-glare chemical etched treatment and optionally bonded to the LED backlighting panels, backed by faytech’s warranty for pixel accuracy (A + quality).

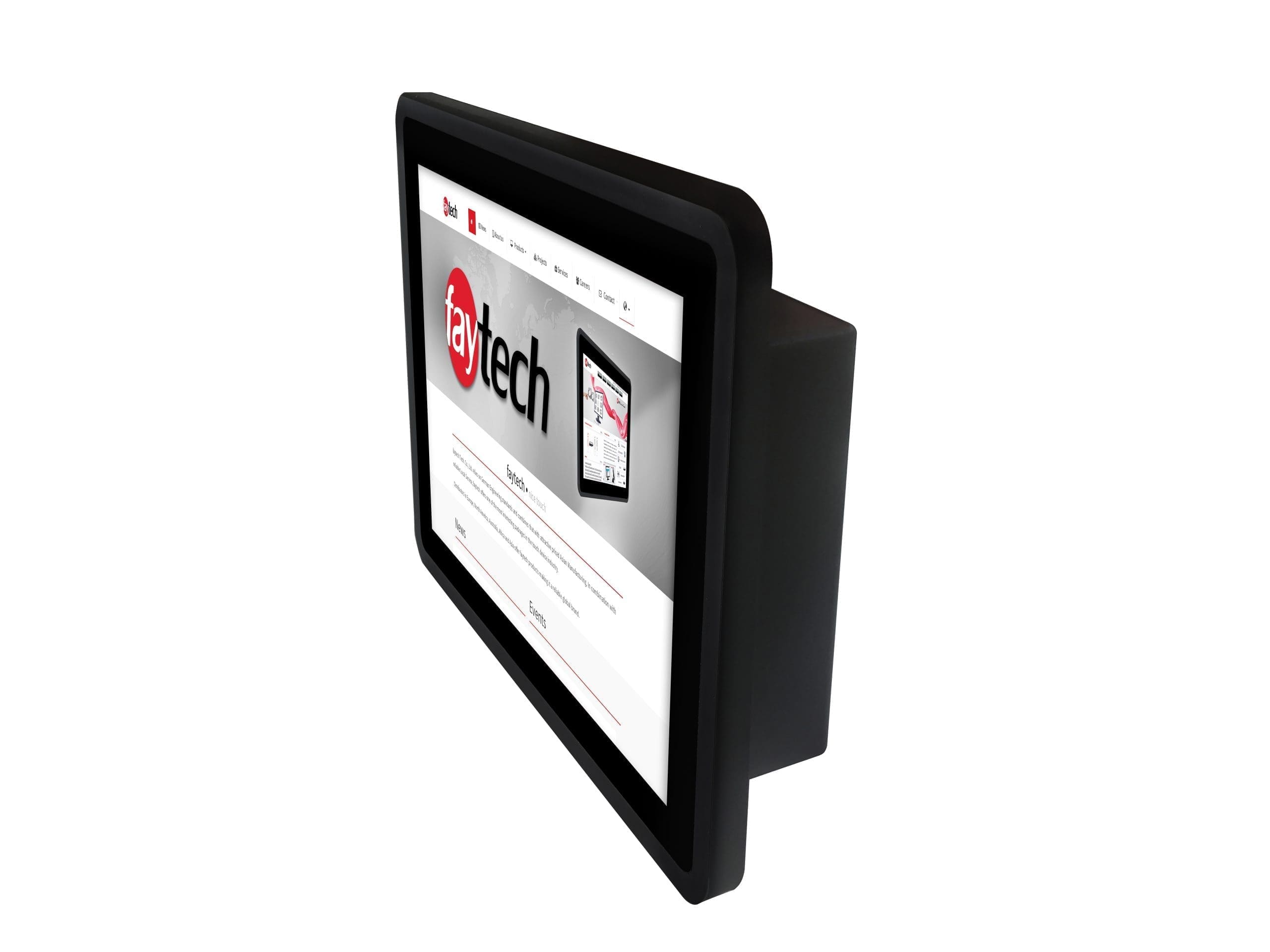

The design of the Embedded Touch PCs follows the application: flat easy to integrate IP65 front and stable rear housing with either VESA 75 or VESA 100 mounting for fixing / integration.
Potential Use Case Scenarios
faytech's A20 8 - 10.1" Capacitive Embedded Touchscreen PC systems are a great solution to environments that need a discrete, streamlined computing interface. Our capacitive touch embedded PCs have been used in custom additions to consumer/industrial and commercial vehicles, planes/jets, boats and more. These systems can also be embedded in counters, walls, tables, and practically any other location conceivable. The faytech A20 embedded touch PCs make excellent use of limited space areas while providing a discrete, yet visible computing solution. The size ranges makes the capacitive embedded touch PCs by faytech an excellent system to manage operations, processes and information in space sensitive environments. The processing power and performance of the faytech NA A20 8 - 10.1" Capacitive Embedded Touch PC makes it a solid investment that is applicable to a broad range of commercial, industrial and consumer usage situation that require computing performance in an embedding setting. It is faytech's mission to create quality capacitive embedded touch PC solutions designed with performance in mind. We provide a creative solution for embedded computing needs. If you want to add embedded touch solutions for commercial, industrial or consumer use and aren't sure what the best solution would be, then talk with us and share your ideal solution. We know we can help you find the best solution for your budget and needs.
