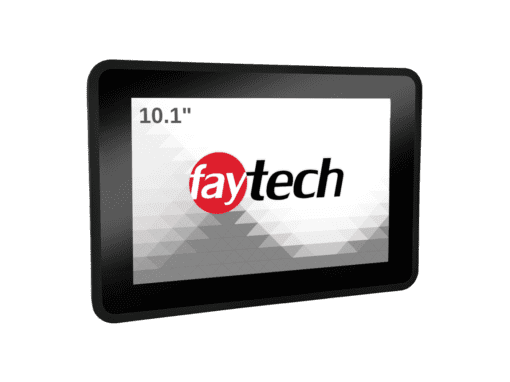

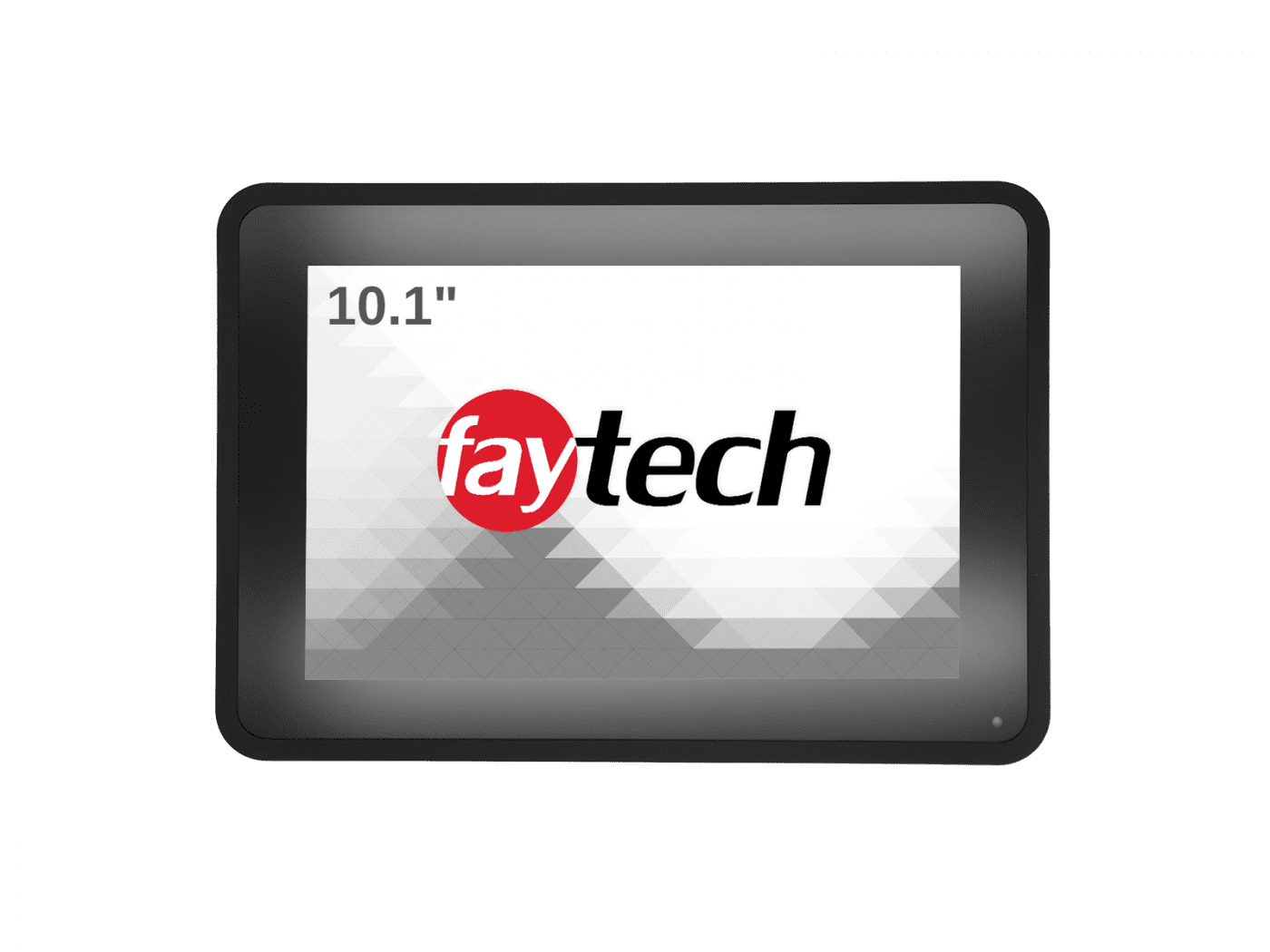

10.1″ Capacitive Touch PC (N4200)
Product Name: 10.1″ Capacitive Touch PC (N4200)
- Intel® Pentium® QuadCore N4200 CPU
- 4GB Random Access Memory, 128GB Industrial Grade SSD
- Windows 10 and Linux supported (32Bit, 64Bit)
- Anti-reflective surface coating (chemically etched)
- 10-Finger-Multi Touch Capacitive Touch Panel
- Touch Panel optically bonded to LCD Panel
- Front panel IP65 patented with silicon seal
- W-LAN integrated
- 2 year warranty (24/7 use)
4 in stock (can be backordered)
Faytech NA Capacitive Touch PC (N4200) are manufactured with fanless technology, a high standard of reliability and excellent craftsmanship. The Faytech touch screen products separate themselves from the competition in terms of quality and functionality.
Faytech NA Capacitive Touch PC series is the best choice for commercial and industrial use that requires maximizing available space. These capacitive touch PC units have stylish flat edge-to-edge glass faces. They come with IP65-rated dust and waterproof front panels to ensure that the units will continue to function in a variety of environments.
Faytech capacitive PCs can be used as point of sale interfaces, industrial controls, as kiosks, automation system controls, and even digital signage in stores, classrooms, hospitality, entertainment and dining industries.
Potential Use Case Scenarios
The particularity of Faytech Capacitive touch PCs is that the touch display and touch PC are there already integrated into a single device, making these PCs an excellent option for a wide spectrum of case scenarios: in-kiosk systems; Point of Sales (POS) systems in the retail, hospitality, entertainment, or Restauration industries; panel control in an industrial setting; digital signage in classrooms or stores; and industries such as the manufacturing and logistics ones.
Faytech NA Capacitive Touch PC (N4200) comes with a VESA 100 stand, making it possible to mount it on a wall or to embed it into another surface/machine. Such flexibility makes this device an ideal choice for use in industrial settings where the workspace must be optimized. Thanks to the touch technology used in this display, it is unnecessary to use a keyboard or a mouse, which can in turn help ensure that a workspace is not too littered. All in all, this device can help you make your workspace, whether it is a control center or a manufacturing quarter, much safer and more spacious.
Nowadays, such Capacitive touch PCs are commonly found in 3D TVs, mobile phones, consoles, cash machines, and interactive kiosks. The Capacitive touch technology which is used in such displays is much more user-friendly and interactive than the resistive one, making Faytech NA Capacitive touch PCs (N4200) an ideal option for a broad range of commercial and industrial applications.
Regarding commercial settings, Touch screen PCs are becoming more and more popular in the transportation field (airports, train stations, metro stations, bus stops), in the food and drink services industry, in ATMs, and in CBL (computer-based learning). In restaurants using a Touch PC, such as fast-food chains, customers can use the touch screen to order and pay, without having to ask a waiter for help. In CBL, the absence of a keyboard makes touch PCs more accessible to the learner. On top of that, it is easier to make sure that students are focused on the display.
Faytech NA Capacitive Touch PCs (N4200) can be found in a broad range of use cases:
In restaurants, bars, or other sale points, our Touch PCs (N4200) can be used as POS systems, making it easier for the attendant to deal with orders using touch interfaces. In the same vein, retail stores would greatly benefit from Faytech Capacitive Touch PCs, as those can educate your customers and make them scroll through your inventory more easily. A Capacitive Touch PC could for instance be used to show your customers what products are currently in stock, if there are any special offers on, and much more.
Our Capacitive Touch PCs (N4200) can be used as industrial control interfaces, to control a production line and streamline the manufacturing process.
For in kiosk-system, the main advantage of Faytech Capacitive Touch PCs (N4200) is that those devices greatly enhance interaction with customers. They can be used to educate, inform or even sell products to your clientele.
In the logistics and transportation areas, using Faytech Touch Screen PCs (N4200) can help you with tracking and after-sale services. In the transportation field, such Touch PCs can also be used to display purchase options and make it easier for passengers to buy tickets.
Faytech Capacitive Touch Screen PCs (N4200) would also be a great addition to any commercial or residential automation system, where they could be used as an interactive interface. Similarly, handling guest service requests in hostels and hotels can be greatly simplified using a Touch PC.
Potential use cases do not stop there though. It is also very common to find Capacitive Touch PCs in offices, laboratories, or as digital signage controllers. These PCs are an inexpensive and proven solution to increase your sales and cut your operating costs, whatever the industry you operate in.
One of the main advantages of Faytech Touch PCs (N4200) is their accessibility and the minimal risk for errors. Thus, these devices can easily be found in a business or office setup, given that employees need almost no training before being able to operate them. Over time, such displays will prove extremely cost-effective for your enterprise.
Our Capacitive Touch PCs are also known for their durability thanks to the high-quality material it is made with. Our Touch Screen PCs are made for 24/7 operation, have a rugged aluminum case and a 1.1mm cover glass with 7H surface hardness. These aspects make Faytech Touch PCs fitted for outdoor applications and use in tough environments such as a factory. Furthermore, Faytech Capacitive Touch PCs come with an IP65 front panel design, making them resistant to dust, rain, grease, or any other liquids and dirt. This allows one to use these PCs in restaurants, bars, hospitals, and highly frequented public spaces. Stable VESA 100 or 75 bolts are also included in the package, allowing you to mount your device securely without having to worry about it falling to the ground.
Even more than our touch monitors, Faytech touch PCs will help you save valuable space in your business. These displays are an all-in-one solution, as the touch monitor comes hand in hand with the PC. As mentioned before, a mouse or keyboard is superfluous when using a touch PC. All in all, using touch PCs instead of non-touch devices will give you more space for machinery or staff. This feature makes Faytech Capacitive Touch PCs especially suitable for use on the factory floor.
The Capacitive Touch PCs sold by Faytech NA are available in the following standard versions:
- Intel® Pentium® N4200 QuadCore processor, 2.50 GHz core speed
- Intel® Core™ i5-7300U DualCore Processor, 2.60 GHz core speed
While the i5-7300U Processor is much more powerful and would be ideal for use case scenarios where high performance is needed, the N4200 Processor can also deliver power-efficient performance and is a perfectly suited choice for somewhat simpler applications.
If you consider adding Capacitive Touch PCs to your organization, do not hesitate to contact our experts today. We are a global leader in the market of Capacitive Touch Screen devices. It would be an honor to evaluate your use case scenarios and advice you on the best touch device for your specific applications.
Faytech North America prides itself in creating small-sized high-quality, efficient capacitive touch PC solutions that enhance productivity and maximize available workspace.
If you are considering adding capacitive touch screen PC systems to a workspace but are not sure what the best investment would be for your specific needs, then contact us today.
A brief phone conversation, or a quick online chat with our touch PC experts will clarify exactly what you need and how Faytech can help.
We will find an effective solution for your requirements and your budget. Contact us with any questions.
|Dimensions||10.94 × 8.015 × 1.940 in|
|Stock Keeping Unit||FT101N4200CAPOB|
|European model code||1010502371|
|Front IP 65 / Back IP40|
|Central Processing Unit||Intel® Pentium® QuadCore N4200|
|Graphics Processing Units||High Definition Graphics Intel®|
|Audio Chip||Realtek ALC3251 Audio CODEC|
|Random Access Memory (RAM)||4GB non-parity Double Data Rate (DDR) 4 (maximum 8GB)|
|Switchable Storage||Industrial faytech SSD 128GB|
|Network Driver||x2 Realtek PCIe GB LAN 8111G (1x optional with POE); W-LAN|
|Supported Operating System||Linux Ubuntu + Windows 10|
|Preinstalled Operating System||Linux Ubuntu|
Liquid Crystal Display
|Display size||10.1″ / 25.6 cm|
|Viewable screen area||21.70 cm x 13.60 cm (8.543 in x 5.354 in)|
|Native resolution||1280×800 px|
|Maximum resolution||1920×1200 px|
|Screen Brightness||350 cd/m²|
|Average responsiveness Rise time/Fall time||10/15 ms|
|Viewing angle (horizontal to vertical)||170 | 170 °|
|Backlighting lifespan||20 000 H|
|Touch type||PCAP Multi-touch (10 point)|
|Screen hardness||Mohs 7H|
|Surface coating||Anti-reflective (industrial etching)|
|Glass reinforcement||Chemically Reinforced|
|Temperature range||14°F to 140°F (-10°C to 60°C)|
|Supported moisture||10 % ~ 90 % Relative Humidity|
|Weight (net)||2.10 kg / 4.6297 lb|
|Weight (gross, including cartonage)||3.20 kg / 7.0547 lb|
|Enclosure||Aluminum IPC rear case, rubber frame|
|Housing sizes||278.0 mm x 203.6 mm x 49.3 mm (10.94 in x 8.015 in x 1.940 in)|
|Clamps cut-out (LXH)||264.0 mm x 196.0 mm (10.39 in x 7.716 in)|
|Number of clamps necessary||4|
|Power light||Green LED|
|Source||ACDC Switching Power Adapter 100~240V; DC-Out 12 V|
|Power input||12 V|
|Energy usage||14 W|
|Idling current||1 W|
Computer Internal Connectors
|x1 DDR3L max. 8Go SODIMM, 1333/1600/1867 non-parity, Single channel RAM
x3 COM Rs-232/485 Bios
x2 Complete LCD Backlighting Interface/LCD voltage tester
x1 5V/12V USB to IDE Serial ATA power connector
x1 12V DC connector plug (2-pole)
x1 4-pin Serial ATA power cable adapter
x1 S/PDIF header pin-outs
x1 8-bit Mid-Range Digital IO
x1 Header Mic-In / Line out
x1 USB Front Panel header
x1 SATA 6gb s
x1 Mobile Industry Processor Interface (MIPI) Camera Serial Interface (CSI)
1x Box header for LVDS
2x Box header for USB 3.0

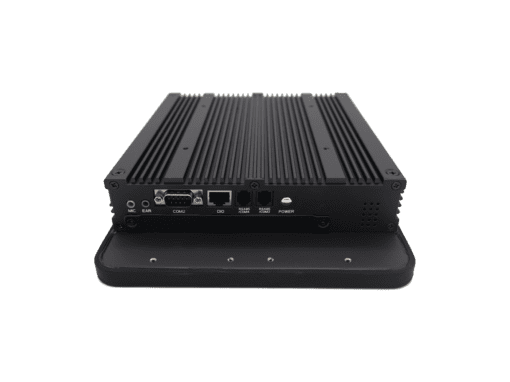

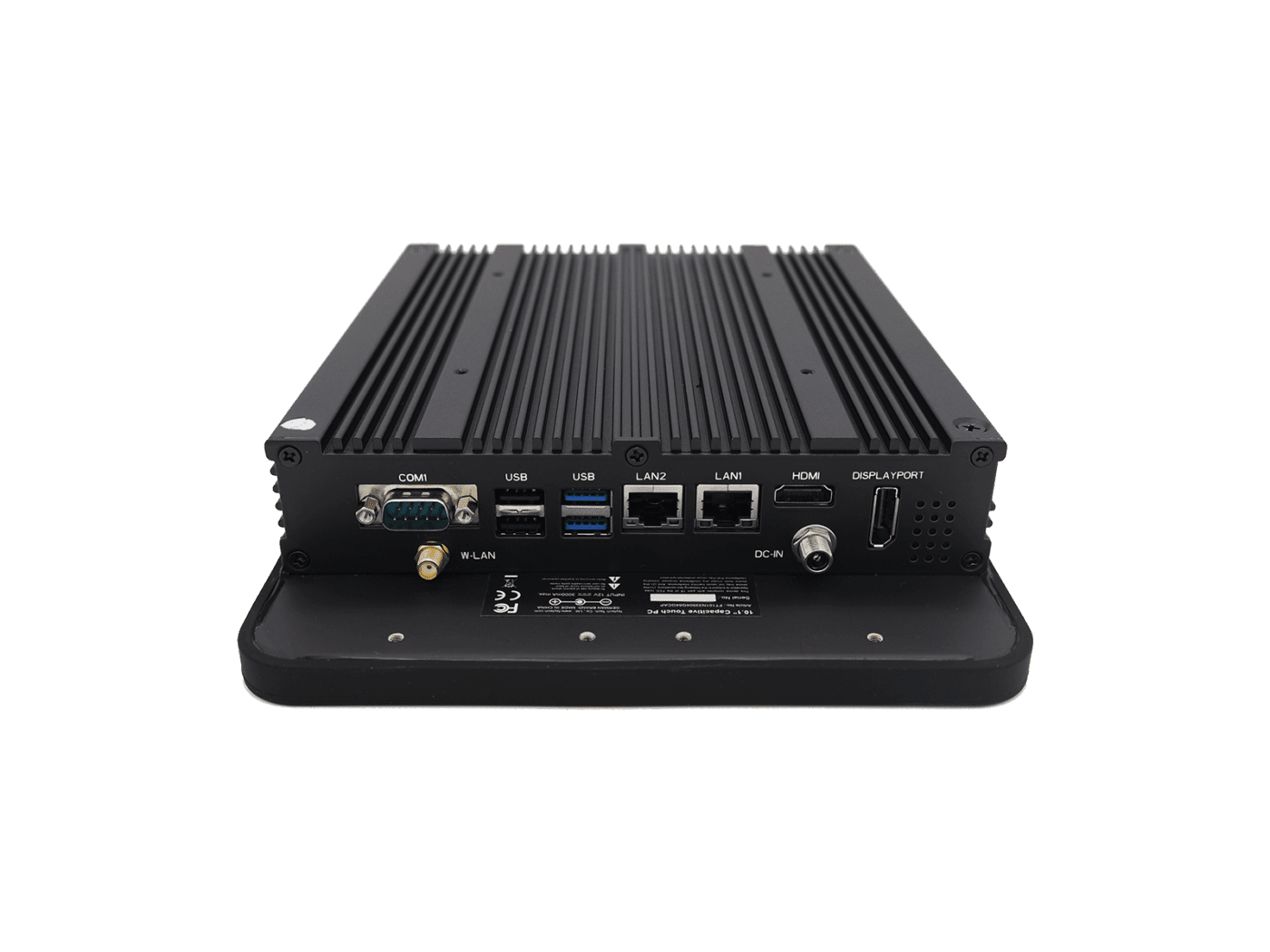

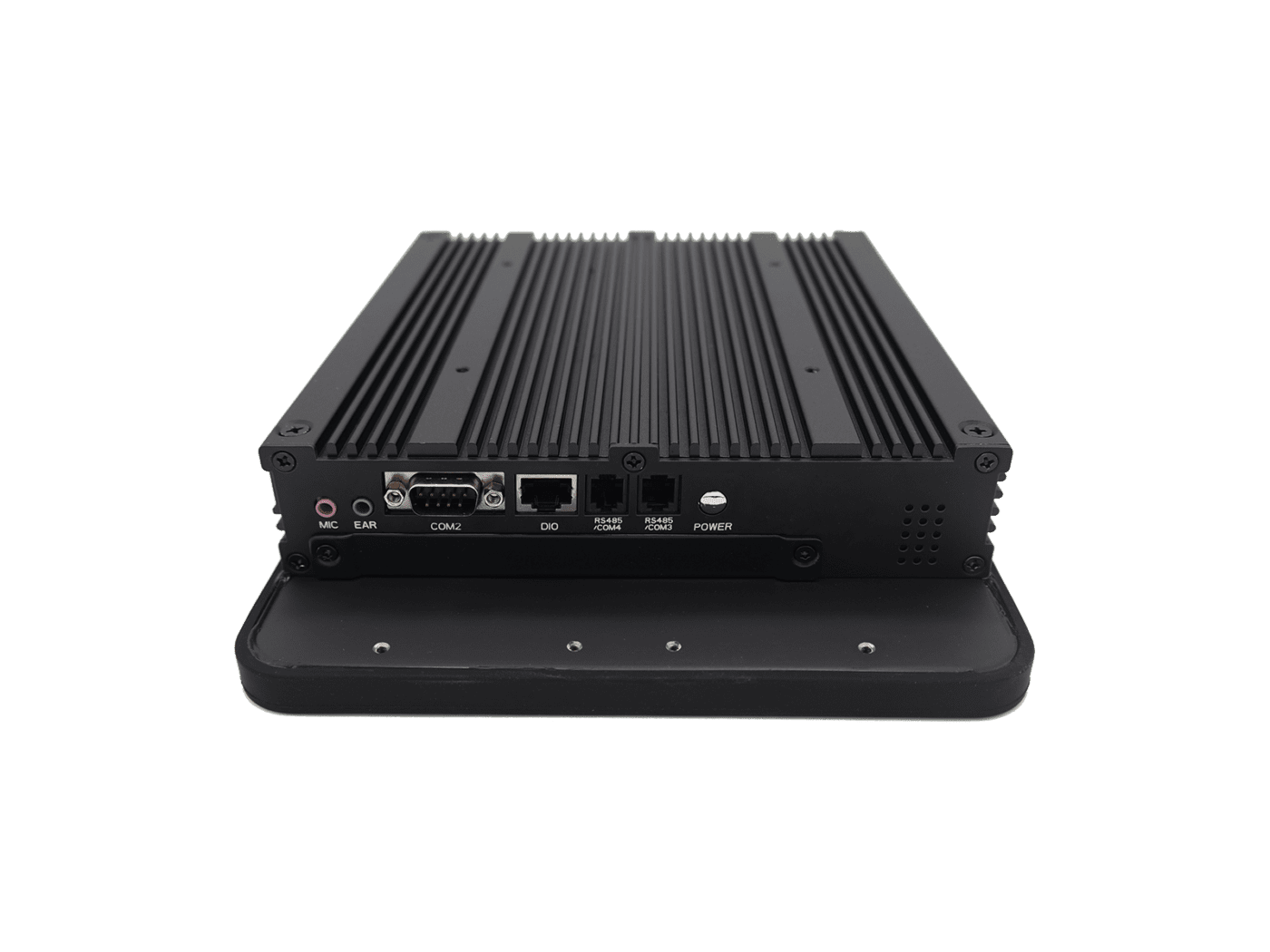

Computer External Connectors
|x1 12 Volt DC-In Power Supply (screwable)
x1 RP-SMA male WLAN antenna connector
x2 USB 2.0 port
x2 USB 3.0 port
x1 High-Definition Multimedia Interface (HDMI) port
x1 EAR-Out and MIC-In
x2 COM port 3-PIN – RX, TX, GND; RS232/485; 5V/12V
x2 COM port Full-PIN – RS232/485; 5V/12V
x2 Ethernet 10/100/1000Mbps RJ45 Ports
x1 10-PIN DIO as RJ50
x1 2.5″ module slot, changeable SSD included
|x1 full size mSerial ATA Solid-State Drive (SSD)
x1 M.2 Wifi E-Key Socket
x1 SATA-IO connector
x1 External PCIe x1 Straddle-mount connector
Included in the package
|Power Source (cf. Power Specifications section)
W-LAN antenna (RP-SMA female)
Documents & Drivers
|Acrobat Reader||External website|
|3D design||Download 3D design|
|Short User Manual||Short User Manual|
|Drivers for capacitive touch (Linux excluded)||Capacitive Touch Drivers (RAR) | Rar Conversion to ZIP online|
|Drivers Linux for capacitive touch||Capacitive Touch Drivers for Linux (deb)|
|Driver for WiFi||WiFi driver (RAR) | Rar Conversion to ZIP online|
|Apollo Lake Drivers for Windows||Apollo Lake Drivers for Windows (RAR) | Rar Conversion to ZIP online|
