10.1″ Aluminum Frame Capacitive Touchscreen Monitor

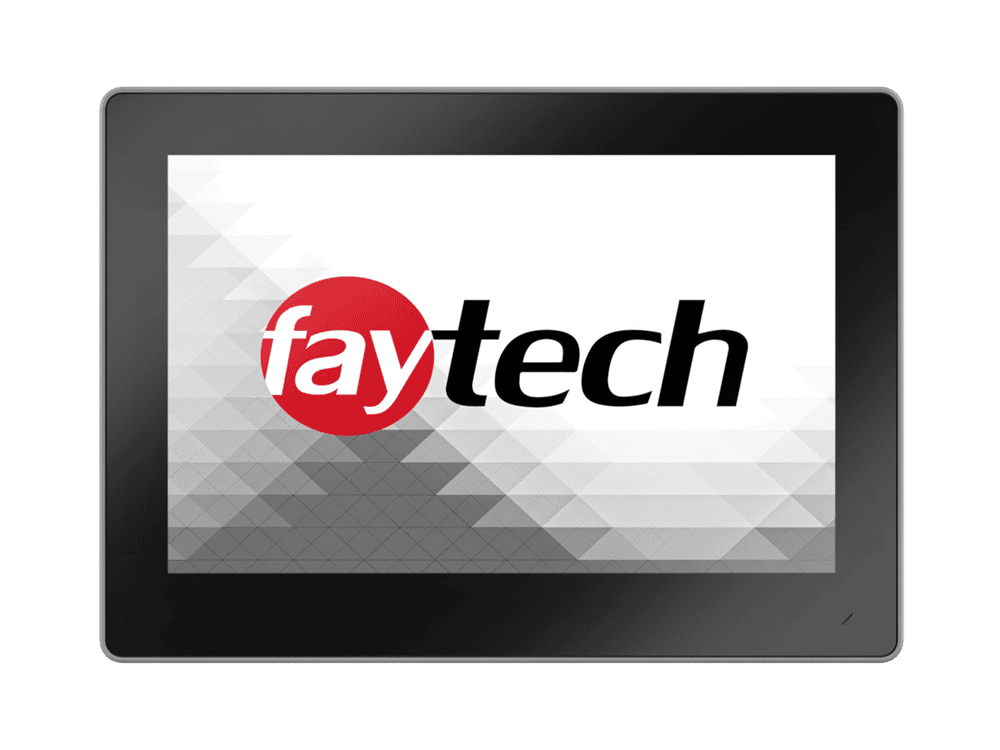

10.1 inch aluminum frame capacitive touchscreen monitor — front view

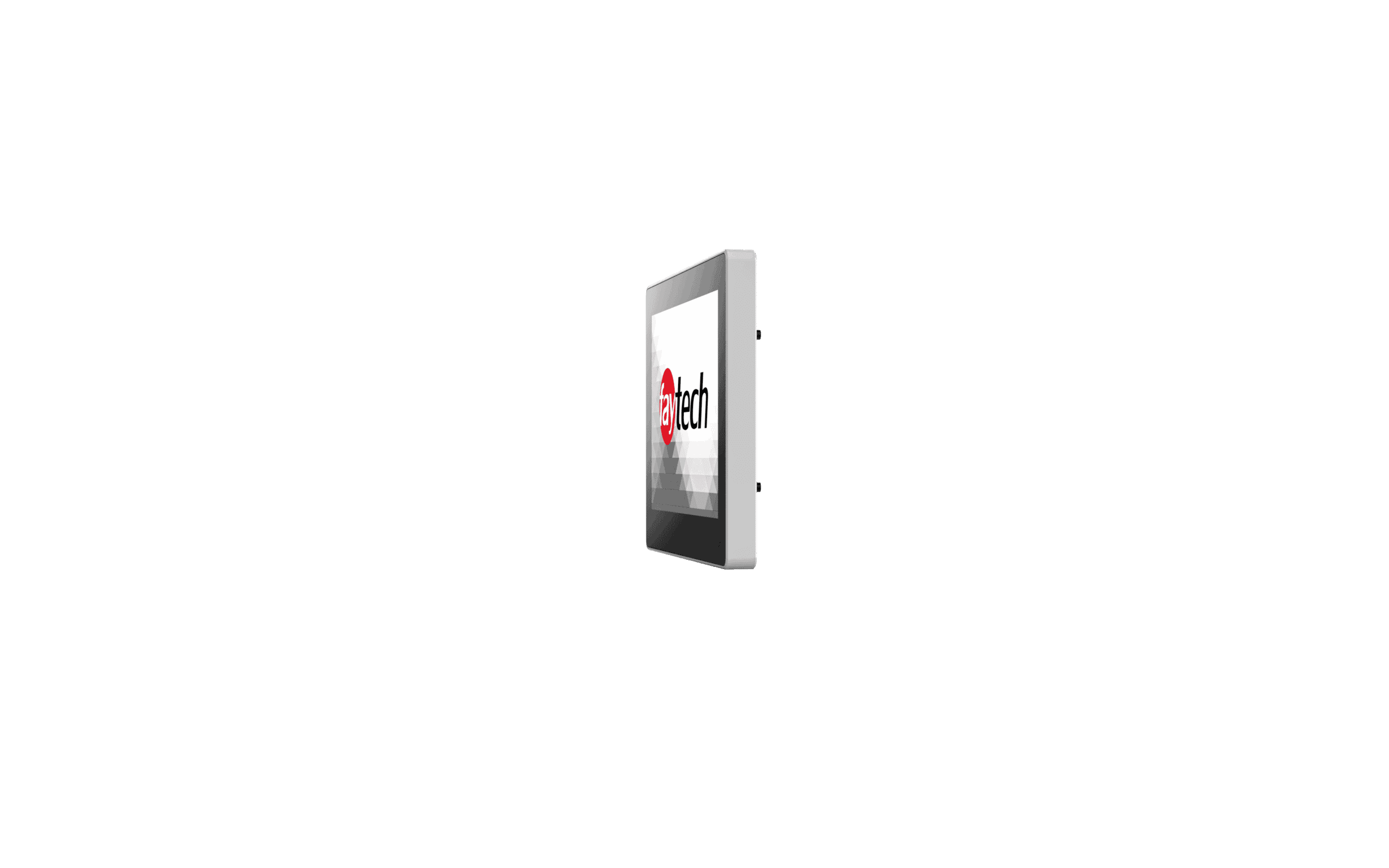

10.1 inch aluminum frame capacitive touchscreen monitor — side profile view

10.1″ Aluminum Frame Capacitive Touchscreen Monitor

Product Name: 10.1″ Aluminum Frame Capacitive Touchscreen Monitor
SKU: FT101TMACAPOB
IP Classification: Front IP65 / Back IP40
Display Size: 10.1″ / 25.7 cm
Max Resolution: 1280 × 800 pixels
Screen Brightness: 350 cd/m²
Touch Type: PCAP Multi-touch (10 point)
Warranty: 2-Year Limited Warranty
Data Sheet Download: EN_FT101TMACAPOB

Widescreen where space is tight — the 10.1″ Aluminum Frame Monitor brings WXGA clarity to counter-level installs.

Get a Quote
SKU: FT101TMACAPOB Categories: , ,

Additional information

Display Size

10.1″
Resolution

1280 × 800
Brightness

350 cd/m²
Touch Technology

Projected Capacitive 10-point Multi-touch
IP Rating

IP65 Front / IP40 Back
Operating Temperature

-10°C to 60°C
Video Inputs

1× HDMI, 1× VGA
Case Size

262.8 × 188.4 × 40.5 mm (10.3 × 7.4 × 1.6 in)
Net Weight

1.9 kg (4.2 lb)
Mounting

VESA 100 × 100
Power Consumption

8 W
Warranty

2 years (standard)

The 10.1″ steps the line into widescreen with a 1280 × 800 panel behind slim 1.1 mm glass, a natural fit for retail counters and self-service fronts.

A sealed aluminum small-case housing — IP65 at the front, IP40 behind — wraps a Realtek RTD2556 controller and a projected-capacitive panel reading 10 simultaneous touch points through a standard USB connection. HDMI, DisplayPort, and VGA handle video; audio-in, USB-B, and RS232 handle everything else. Two 2 W speakers are built in, so counter-side audio needs no extra hardware.

Key specifications

  • Display size: 10.1″ (25.7 cm)
  • Maximum resolution: 1280 × 800 pixels
  • Screen brightness: 350 cd/m²
  • Touch technology: Projected capacitive (PCAP)
  • Touch points: 10-point multi-touch
  • Touch interface: USB
  • Front glass: 1.1 mm glass
  • Impact resistance: IK7
  • Controller: Realtek RTD2556
  • Video inputs: HDMI, DisplayPort, VGA
  • Additional interfaces: Audio-in, USB-B, RS232
  • Audio: 2 × 2 W integrated speakers
  • Protection rating: IP65 front / IP40 back
  • Housing: Aluminum frame, small case
  • Case dimensions (L × W × H): 262.8 × 188.4 × 40.5 mm

Download the full specification sheet: EN_FT101TMACAPOB (PDF).

The 10.1″ Aluminum Frame Capacitive Touchscreen Monitor is available to order in project quantities. Request a quote from faytech North America.
