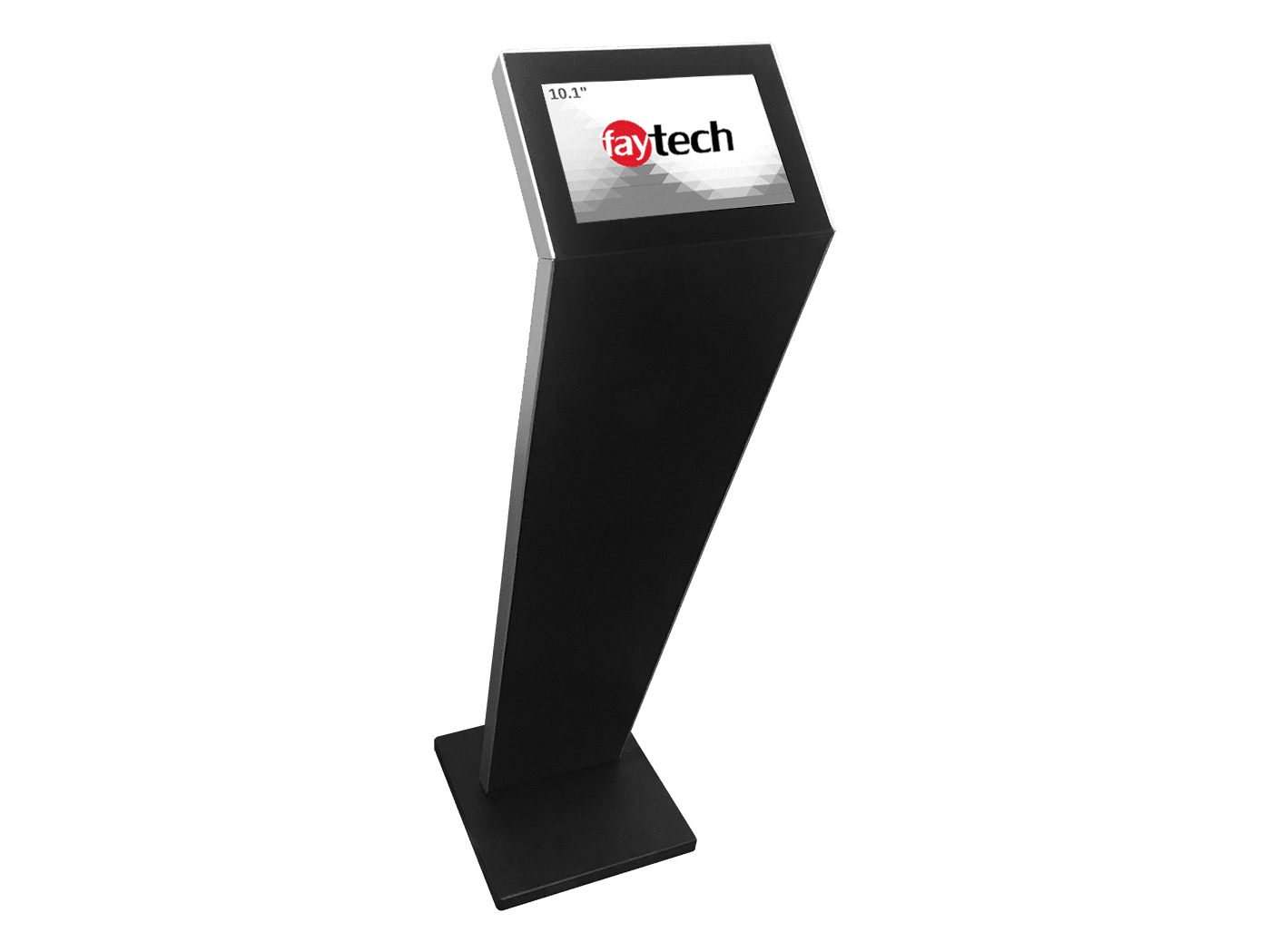

10.1″ Embedded Touch Kiosk (ARM V40)
This Embedded Kiosk is the perfect solution for any occasion in the field of Point of sales (POS), information display or digital signage. Whether you wish to place it next to the brand new car in your store as information display, next to one of your highly promoted cosmetic products or at the entrance of your company building, this is the perfect solution for anyone who requires a slim, easy-to-operate and modern looking kiosk!
Powered by the powerful Embedded V40 Mainboard with QuadCore CPU, Mali400MP2 graphics chipset and various connectors. The Kiosk is equipped with 1G DDR3 RAM, 8G flash memory and includes a SATA connector as well as SD card slot for further storage expansion. As for network connection, the device is already integrated with Wi-Fi.
The touch features capacitive 10-finger multitouch panels, Anti-glare chemical etched treatment and optionally bonded to the LED backlighting panels, backed by faytech’s warranty for pixel accuracy (A+ quality).
Customization options are always possible, this includes change of connectors, color, added peripherals or any other customization.
- Allwinner® V40 Cortex™ A7 QuadCore 1GHz Processor
- 1 GB DDR3 RAM & 8 GB EMMC FLASH
- Complete glass surface of the pedestal front
- Android 6 pre-installed
- Optically bonded Touch Panel to LCD Panel
- Straight out-of-the-box working Embedded Kiosk
- 10-Finger-Multi Touch Capacitive Touch Panel
- 2 years guarantee (24/7 usage)
| Weight | 75 lbs |
|---|
Product Details
| Model number | FT101V40KCAPOB |
| Global article code | 20205002554 |
| European article code | 1010501377 |
| EAN number | – |
IP Rating
| IP 65 front / IP40 back |
PC System
| CPU | Allwinner® V40 QuadCore |
| Chipset | Cortex A7 |
| GPU Graphics | ARM® Mali400 Mp2 Complies with OpenGL ES 2.0/1.1 |
| Memory | <1GB DDR3 |
| Storage | 8GB EMMC Flash |
| Network | 10/100Mbit Network; W-LAN |
| OS | Android 6 |
LCD Panel
| Screen diagonal | 10.1″ / 25.6 cm |
| Display active screen size | 21.70 cm x 13.60 cm (8.543 in x 5.354 in) |
| Aspect ratio | 16:10 |
| Physical resolution | 1280×800 px |
| Maximum showable resolution | 1920×1200 px |
| Brightness | 350 (cd/m²) |
| Contrast | 700:1 |
| Typical reaction time Tr/ Tf | 10/15 (ms) |
| Visual angle horizontal/vertical | 170/170 (°) |
| Backlight | LED |
| Backlight lifetime | 20,000 (hours) |
Touch Panel
| Touch technology | Projected Capacitive 10-point Multitouch |
| Available touch panel drivers | Windows Linux Mac Android |
| Touch lifetime | Unlimited |
| Surface hardness | 7H |
| Surface treatment | Anti-glare (chemical etching) |
| Glass strengthening | Chemically Strengthened |
Operation/Mechanical
| Operating temperature | -10 °C ~ +60 °C (14 °F ~ 140 °F) |
| Humidity range | 10% – 90% RH |
| Net weight | 28.50 kg / 62.831 lb |
| Gross weight (incl. cartonage) | 32.00 kg / 70.547 lb |
| Housing material | Aluminum |
| Housing sizes (with stand) | 300.0 mm x 300.0 mm x 1061.2 mm (11.81 in x 11.81 in x 41.77 in) |
Power
| Power supply | 100-240V ACDC active switching; 12V DC-Out |
| Working power | 8~18 V |
| Power consumption | 11 W |
| Standby power | 1 W |
External Connectors
| 1x 8-18V DC-In (screwable) 2x USB 2.0 1x HDMI 1x 10/100Mbit RJ45 Port 1x USB OTG 1x Audio-In 1x Audio-Out 1x Serial 1x SIM-card slot 1x SD-card slot |
Included in the delivery
|
Downloads
| Acrobat Reader for PDFs | Download from external page |
| 3D model | Download 3D model (PDF) |
| Datasheet | Download Datasheet (PDF) |
| Capacitive touch drivers (w/o Linux) | Download CTD (RAR) | Online Rar to ZIP |
| Capacitive touch drivers Linux | Download CTDL (deb) |
| WiFi driver | Download WiFi (RAR) | Online Rar to ZIP |
