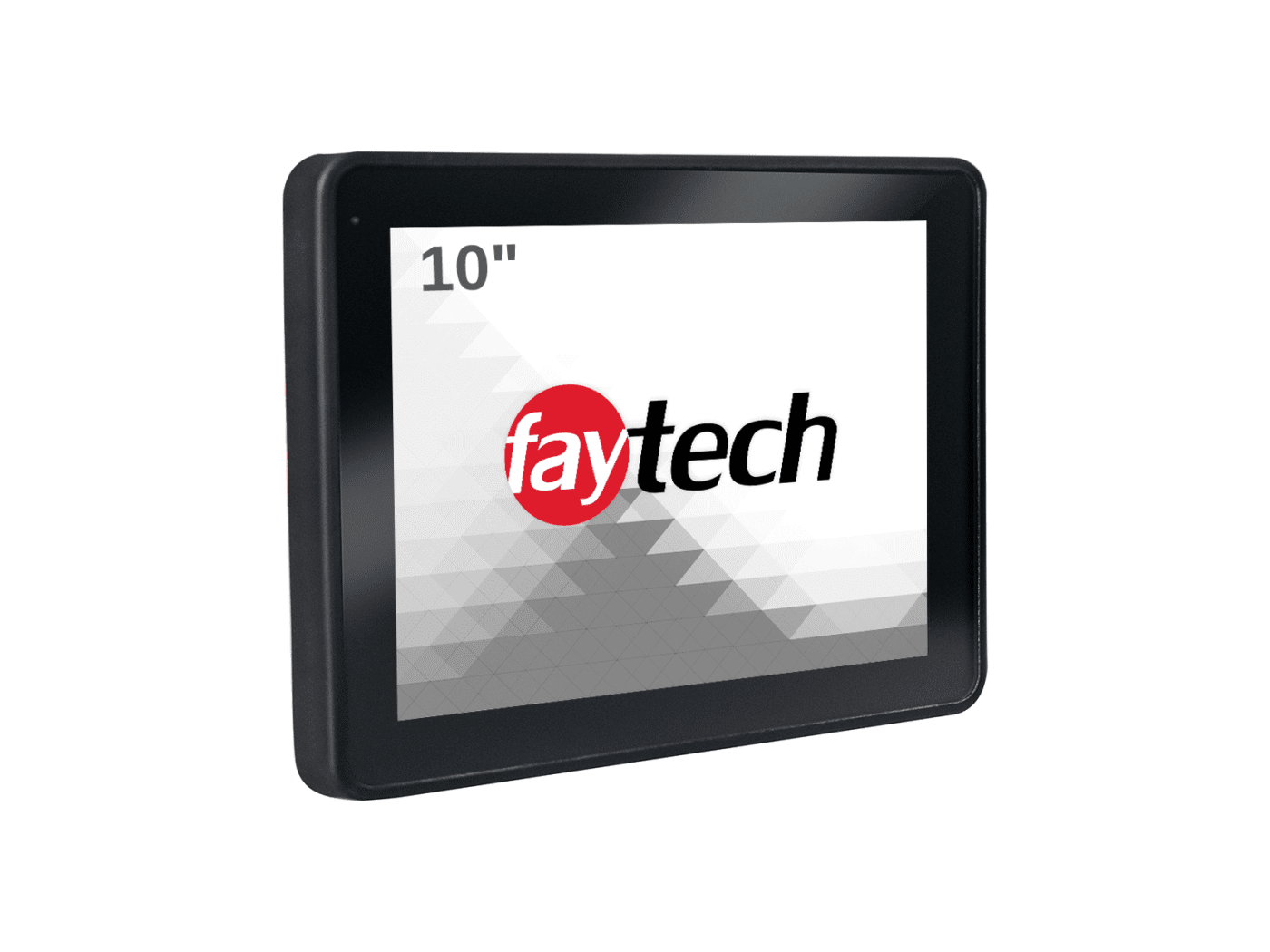

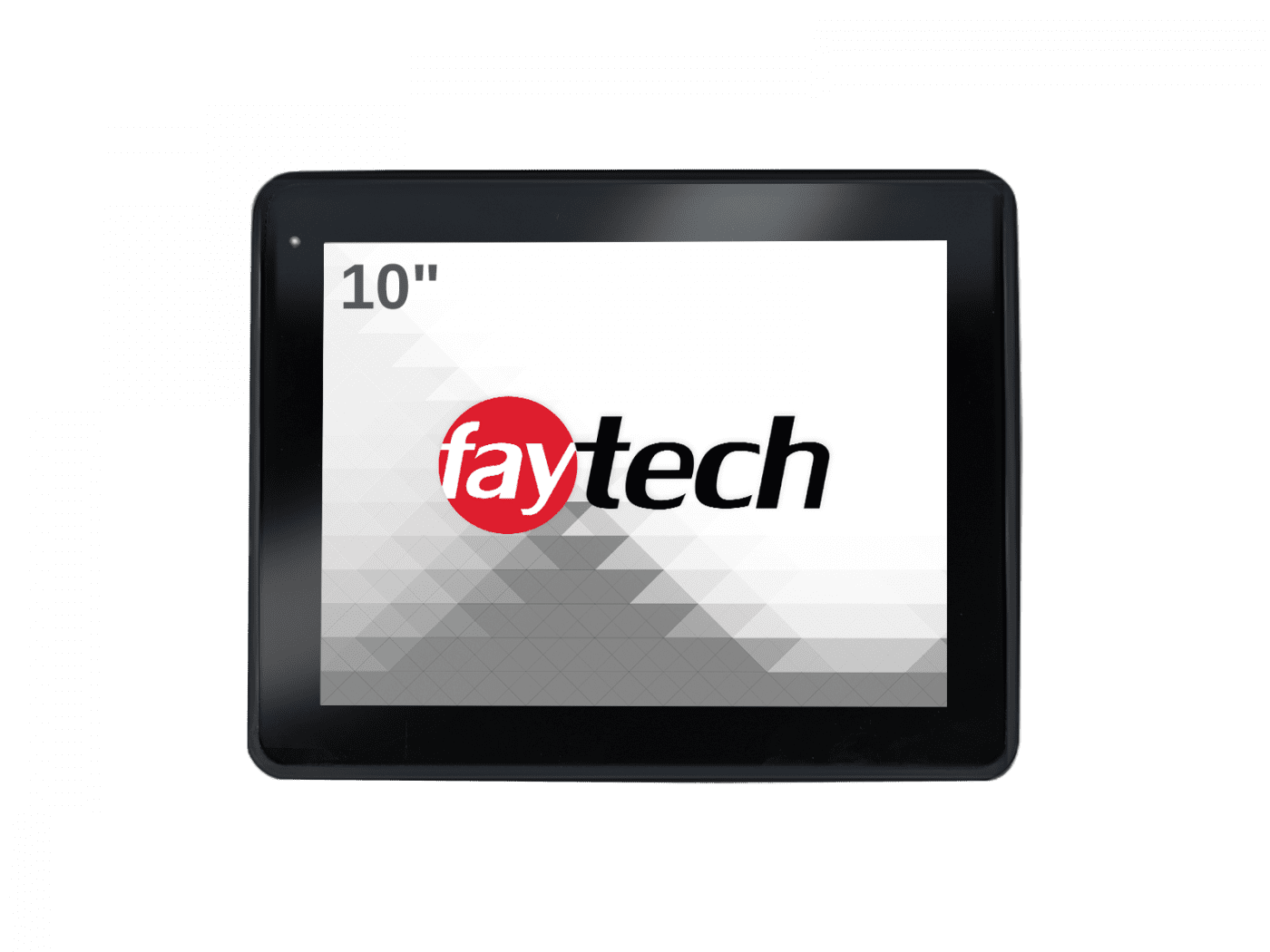

10″ Capacitive Touch PC (i5-7300U)

$1,987.47

Product Details

Product Name: 10″ Capacitive Touch PC (i5-7300U)

  • Intel® Core™ i5-7300U CPU
  • 8GB RAM memory, 128GB Industrial SSD
  • Supports Windows 10 & Linux (32Bit, 64Bit)
  • Anti-glare surface treatment (chemical etching)
  • 10-Finger-Multi Touch Capacitive Touch Panel
  • 1.1mm cover glass with 7H surface hardness
  • Optically bonded Touch Panel to LCD Panel
  • Patented IP65 front with silicon seal
  • Integrated W-LAN
  • 2 year guarantee

Optional: i3-7100U / i7-7600U Core CPU

Available on backorder

SKU: FT10I5CAPOB Categories: ,

Faytech NA 10″ Capacitive Touch PC (i5-7300U, OB) is manufactured with fanless technology, a high standard of reliability, and excellent craftsmanship. The Faytech touch screen products separate themselves from the competition in terms of quality and functionality.

Faytech NA 10″ Capacitive Touch PC series is the best choice for commercial and industrial use that requires maximizing available space. These small capacitive touch PC units have stylish flat edge-to-edge glass faces. They come with IP65-rated dust and waterproof front panels to ensure that the units will continue to function in a variety of environments.

The small 10″ faytech capacitive PCs can be used as point of sale interfaces, industrial controls, kiosks, automation system controls, and even digital signage in stores, classrooms, hospitality, entertainment, and dining industries.



Potential Use Case Scenarios



The main feature of Faytech 10" capacitive touch PCs (i5-7300U) is that the touch screen and touch PC are already integrated into a single device, making these PCs an excellent option for a wide variety of scenarios: in-kiosk systems; Point of Sale (POS) systems in retail, hospitality, entertainment or restaurant services; control panel in an industrial environment; digital signage in classrooms or shops; and industries such as manufacturing and logistics.

Faytech 10" capacitive touch PCs (i5-7300U) are equipped with VESA mounts, which allow you to mount them on a wall or embed them in another surface/machine. This flexibility makes these devices the ideal choice for use in industrial environments where the workspace needs to be optimized. Thanks to the touch technology used in these screens, there is no need to use a keyboard or mouse, which in turn can prevent a workspace from being too littered. All in all, these devices can help you make your workspace, whether it's a control center or a manufacturing district, much safer and more spacious. Today, these capacitive touch PCs are commonly found in 3D televisions, mobile phones, consoles, ATMs, and interactive kiosks. The capacitive touch technology used in these displays is much more user-friendly and interactive than the resistive one, making Faytech capacitive touch PCs an ideal option for a wide range of commercial and industrial applications.

In commercial environments, touchscreen PCs are becoming increasingly popular in transportation (airports, train stations, metro stations, bus stations), food and beverage industries, ATMs, and CBL (computer learning). In restaurants using a touch PC, such as fast food chains, customers can use the touch screen to order and pay without having to ask a waiter for help. In CBL, the absence of a keyboard makes touch PCs more accessible to the learner. Plus, it's easier to make sure students focus on the screen.

Faytech 10" capacitive touch PCs (i5-7300U) can be found in a variety of applications:

In restaurants, bars, or other points of sale, our touch PCs can be used as checkout systems and facilitate the processing of orders by staff via touch surfaces. Likewise, retail stores would greatly benefit from Faytech capacitive touch PCs as they can educate your customers and make it easier for them to scroll through your inventory. For example, a capacitive touch PC could be used to show your customers what products are currently in stock, if there are special offers, and much more.

Our 10" capacitive touch PCs (i5-7300U) can be used as industrial control interfaces to control a production line and streamline the manufacturing process. For kiosk systems, the primary benefit of Faytech's capacitive touch PCs is that these devices dramatically improve customer interaction. They can be used to educate, inform or even sell products to your customers.

In the fields of logistics and transport, the use of Faytech 10" touch screen PCs (i5-7300U) can help you with follow-up and customer service. In the transport sector, these touch PCs can also be used to display purchase options and facilitate the purchase of tickets by passengers.

Faytech 10" capacitive touchscreen PCs (i5-7300U) would also be a great addition to any commercial or home automation system where they could be used as an interactive interface. Likewise, handling guest service requests in hostels and hotels can be greatly simplified using a Touch PC.

However, the potential use cases don't stop there. It is also very common to find Capacitive Touch PCs in offices, labs, or as digital signage controllers. These PCs are a proven, low-cost solution to increase revenue and reduce operating costs, no matter what industry you work in.

One of the main advantages of Faytech 10" Touch PCs (i5-7300U) is their accessibility and the minimum risk of errors. Therefore, these devices are easy to find in a business or office setup, as employees require almost no training before they can use them. Over time, such displays will prove highly convenient for your business.



Our capacitive touch PCs are also known for their durability thanks to the high-quality material they are made of. Our touchscreen PCs are built for 24/7 use, have a sturdy aluminum housing and 1.1mm cover glass with a surface hardness of 7H. These aspects make Faytech Touch PCs suitable for outdoor applications and for use in harsh environments such as a factory. In addition, Faytech Capacitive Touch PCs have an IP65 front panel design, which makes them resistant to dust, rain, grease, or other liquids and dirt. This allows these PCs to be used in restaurants, bars, hospitals, and high-traffic public areas. The stable VESA 100 or 75 bolts are also included in the box, so you can mount your device safely without worrying about it falling to the ground.
Even more than our touch monitors, Faytech touch PCs will help you save valuable space in your company. These displays are an all-in-one solution, as the touch monitor goes hand in hand with the PC. As mentioned above, a mouse or keyboard is not needed when using a touch PC. Overall, using touch PCs instead of non-touch devices offers more space for machines or staff. This feature makes Faytech Capacitive Touch PCs particularly suitable for use in the workplace.



The Capacitive Touch PCs sold by Faytech NA are available in the following standard versions:

• Intel® Pentium® N4200 QuadCore processor, 2.50 GHz core speed

• Intel® Core ™ i5-7300U DualCore processor, 2.60 GHz core speed
While the i5-7300U processor is much more powerful and would be ideal for use cases where high performance is required, the N4200 processor can also provide energy-efficient performance and is a great solution for some simpler applications.



If you are considering introducing Capacitive Touch PCs to your firm, then contact our specialists right now. We are the global market leader in Capacitive Touch Screen devices. It would be a pleasure to assess your use case scenarios and advise you on the appropriate touch device for your particular applications.

Weight 6.4 lbs
Dimensions 9.645 × 7.708 × 2.322 in

Product Specifications

Stock Keeping Unit FT10I5CAPOB
NAV number 3030509533
European model code 1010502291
EAN number 6920734000111

IP Classification

Front IP 65 / Back IP40

Computer System

Central Processing Unit Kaby Lake U Intel® Core™ i5-7300U
Graphics Processing Units High Definition Graphics Intel®
Audio Chip Audio CODEC Realtek ALC3251
Random Access Memory (RAM) 8GB non-parity Double Data Rate (DDR) 4 (maximum 16Go)
Swappable Storage Industrial faytech SSD 128GB
Network Driver x2 Realtek PCIe GB LAN 8111G (1000Mbps); M.2 E-key Wi-Fi module
Supported Operating System Linux Ubuntu + Windows 10
Preinstalled Operating System Linux Ubuntu

Liquid Crystal Display

Display size 9.7″ / 24.6 cm
Viewable screen area 53.13 cm x 29.88 cm (20.91 in x 11.76 in)
Image Aspect-ratio 4:3
Native resolution 1024*768px
Maximum resolution 1920*1200px
Screen Brightness 350 cd/m²
Color Contrast 800:1
Average responsiveness Rise time/Fall time 10/15 ms
Viewing angle (horizontal to vertical) 170 | 170 °
Screen Backlighting LED
Backlighting lifespan 20 000 H

Touch Screen

Touch type PCAP Multi-touch (10 point)
Lifespan Unlimited
Screen hardness Mohs 7H
Surface coating Anti-reflective (industrial etching)
Glass reinforcement Chemically Reinforced

Mechanical/Operation

Temperature range 14°F to 140°F (-10°C to 60°C)
Supported moisture 10 % ~ 90 % Relative Humidity
Weight (net) 2.00 kg / 4.4092 lb
Weight (gross, including cartonage) 2.90 kg / 6.3933 lb
Enclosure Aluminium IPC rear case, rubber frame
Housing sizes 245.0mm x 195.8mm x 59.0mm (9.645in x 7.708in x 2.322in)
Clamps supported Yes
Clamps cut-out (LXH) 231.0mm x 190.0mm (9.094in x 7.480in)
Number of clamps necessary 3
Mounting VESA 100×100

Power Specifications

Power light Green LED
Source ACDC Switching Power Adapter 100~240V; DC-Out 12 V
Power input 12 V
Energy usage 28 W
Idling current 1 W

Computer Internal Connectors

1x SO-DIMM, max. 16 GB, DDR4 1866/2133 non-ECC, Single channel memory
x3 COM Rs-232/485 Bios
x2 Complete LCD Backlighting Interface/LCD voltage tester
x1 5V/12V USB to IDE Serial ATA power connector
x1 12V DC connector plug (2-pole)
x1 4-pin Serial ATA power cable adapter
x1 S/PDIF header pin-outs
x1 8-bit Mid-Range Digital IO
x1 Header Mic-In / Line out
x1 USB Front Panel header
x1 SATA 6gb s
x1 Mobile Industry Processor Interface (MIPI) Camera Serial Interface (CSI)
1x Box header for LVDS
2x Box header for USB 3.0

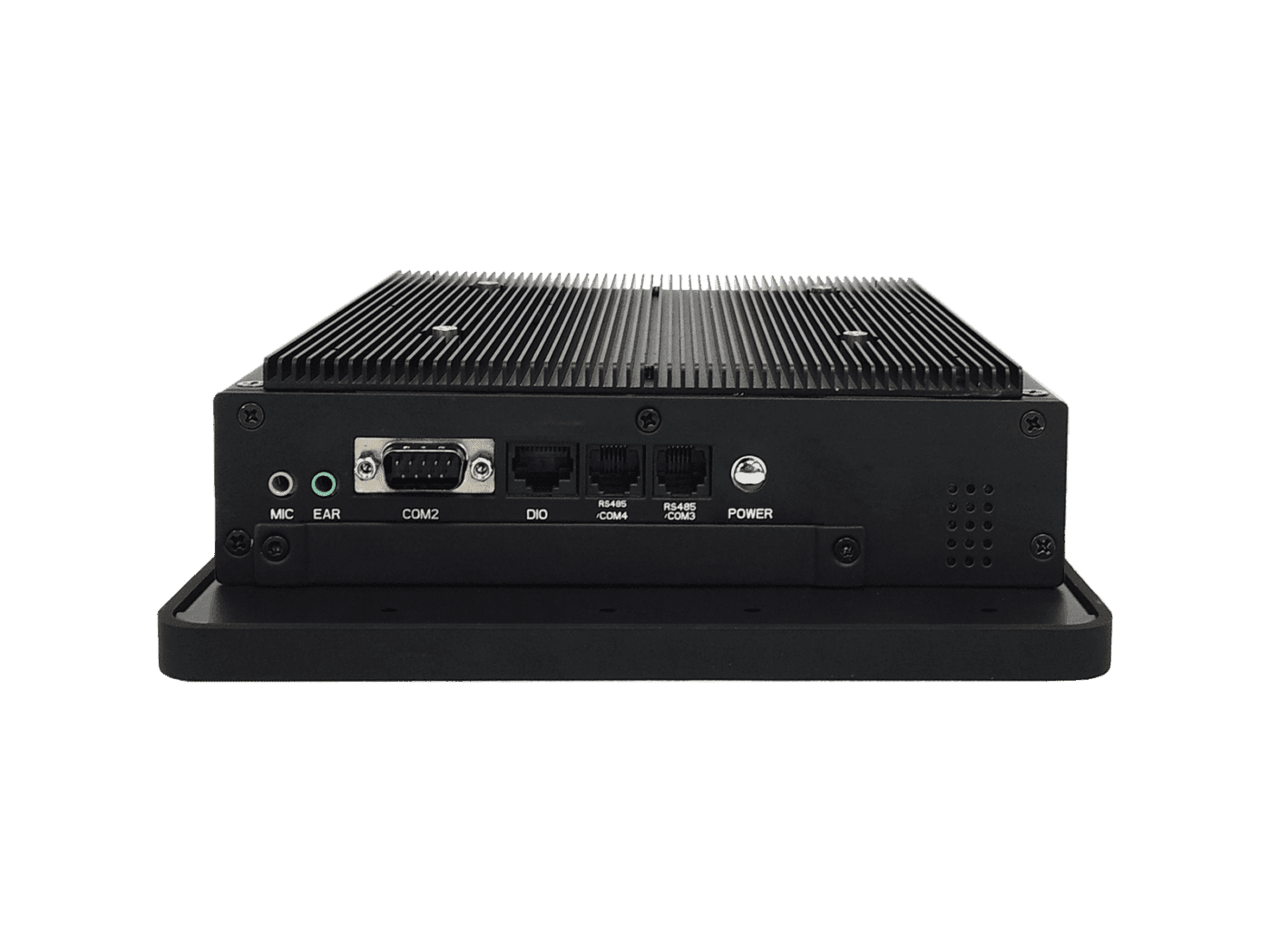

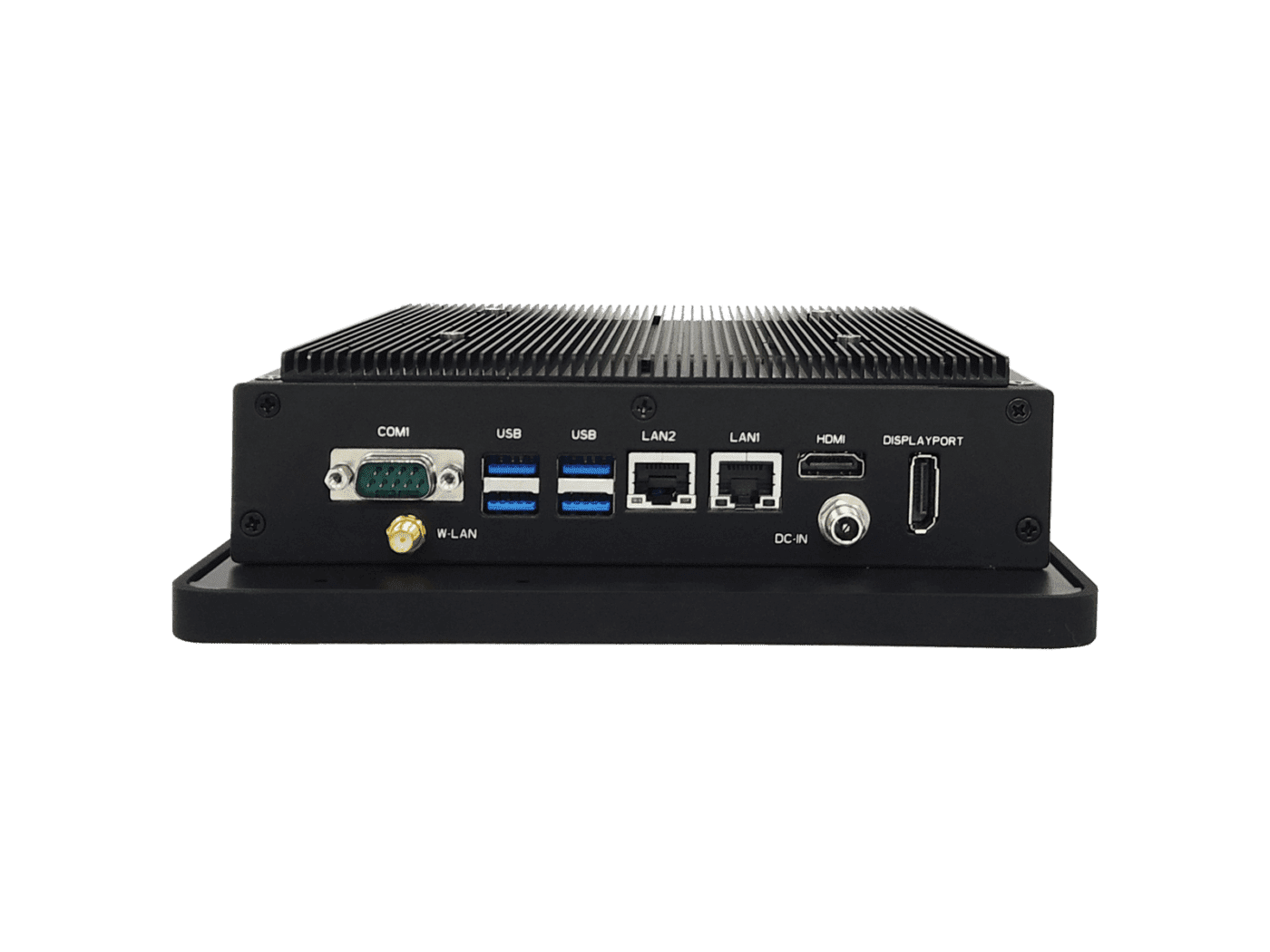

Computer External Connectors

x1 12 Volt DC-In Power Supply (screwable)
x1 RP SMA male WLAN antenna connector
x4 USB 3.0 port
x1 High-Definition Multimedia Interface (HDMI) port
x1 DisplayPort
x1 EAR-Out and MIC-In
x1 10-PIN DIO as RJ50
x1 COM – switchable RS 232/422/485; option 5V/12V/RI (DSUB9, COM1)
x1 COM – RS 232; RX/TX (DSUB9, COM2)
x2 COM – RS 232 and 485; RX/TX and A+/B- (RJ12, COM3&4)
x2 Ethernet 10/100/1000Mbps RJ45 Ports
x1 2.5″ module slot, including swappable SSD

Expansion Ports

x1 full size mSerial ATA Solid-State Drive (SSD)
x1 M.2 Wifi E-Key Socket
x1 SATA-IO connector
x1 External PCIe x1 Straddle-mount connector

Included in the package

Power Source (cf. Power Specifications section)
Installation Guide
Computer Stand
WLAN antenna (RP-SMA female)

Documents & Drivers

Acrobat Reader External website
3D design Download 3D design
Data-sheet Download Data-sheet
Short User Manual Short User Manual
Drivers for capacitive touch (Linux excluded) Capacitive Touch Drivers (RAR) | Rar conversion to ZIP online
Linux Touch Drivers Capacitive Touch Drivers for Linux (deb)
Driver for WiFi WiFi driver (RAR) | Rar conversion to ZIP online
Kaby Lake U Drivers for Windows Kaby Lake U Drivers for Windows (RAR) | Rar conversion to ZIP online
