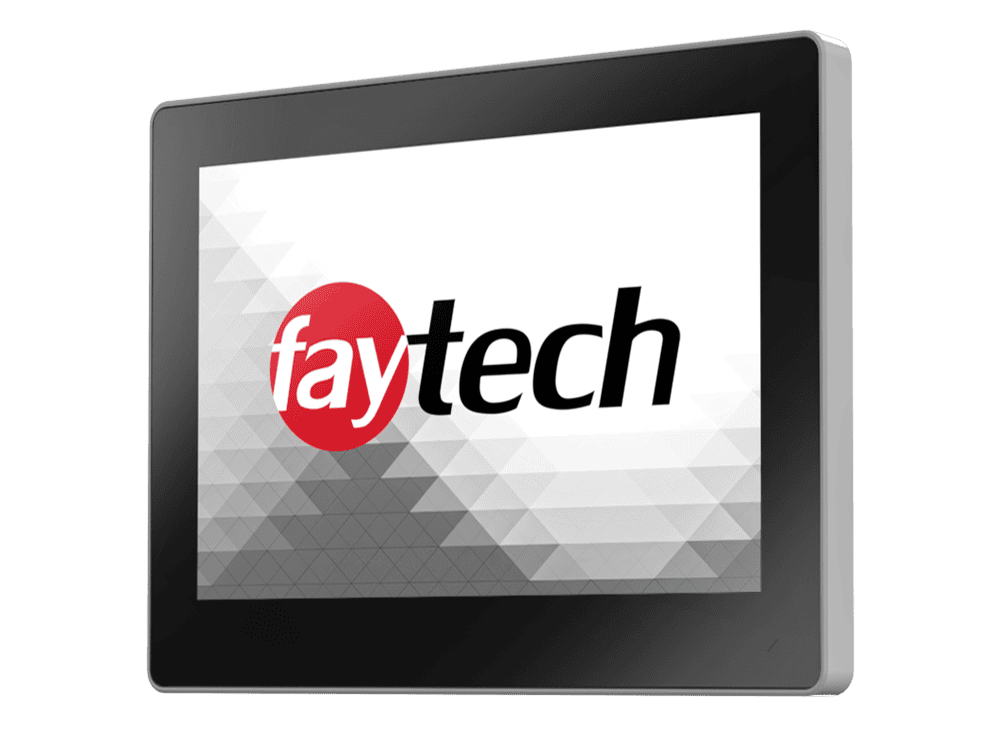

10 inch aluminum frame capacitive touchscreen monitor — front angle view

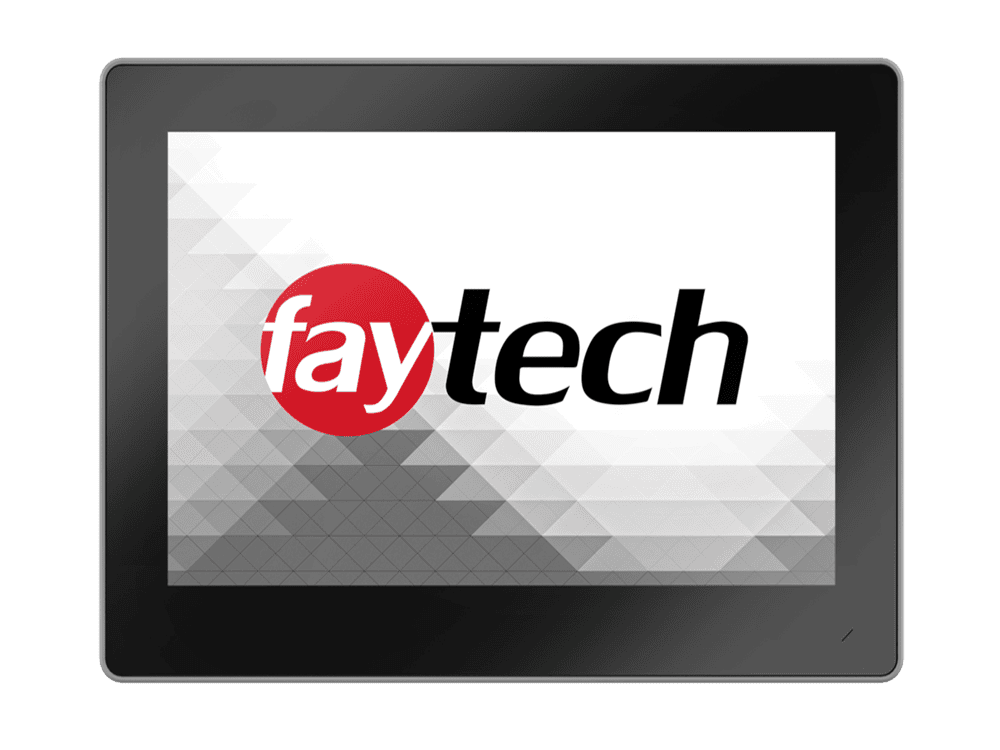

10 inch aluminum frame capacitive touchscreen monitor — front view

10″ Aluminum Frame Capacitive Touchscreen Monitor

Product Name: 10″ Aluminum Frame Capacitive Touchscreen Monitor
SKU: FT10TMACAPOB
IP Classification: Front IP65 / Back IP40
Display Size: 10″ / 25.4 cm
Max Resolution: 1024 × 768 pixels
Screen Brightness: 300 cd/m²
Touch Type: PCAP Multi-touch (10 point)
Data Sheet Download: EN_FT10TMACAPOB

The 10″ Aluminum Frame Monitor — kiosk-ready touch in a footprint that disappears into your build.

Get a Quote
SKU: FT10TMACAPOB Categories: , ,

With a 9.7″ active panel in a 10″-class housing, this model keeps the aluminum line's sealed front and 10-point touch in a footprint suited to kiosks and embedded enclosures.

Ten-point projected-capacitive touch runs over a driverless USB interface, handled by the Realtek RTD2556 controller that anchors every monitor in this line. HDMI, DisplayPort, and VGA inputs cover any source you are likely to have, joined by audio-in, USB-B, and RS232, plus two 2 W speakers. The aluminum small-case housing carries an IP65-sealed front face with IP40 protection at the rear.

Key specifications

  • Display size: 10″ class — 9.7″ active area (24.6 cm)
  • Maximum resolution: 1024 × 768 pixels
  • Screen brightness: 300 cd/m²
  • Touch technology: Projected capacitive (PCAP)
  • Touch points: 10-point multi-touch
  • Touch interface: USB
  • Front glass: 3.0 mm thermally strengthened glass
  • Impact resistance: IK07
  • Controller: Realtek RTD2556
  • Video inputs: HDMI, DisplayPort, VGA
  • Additional interfaces: Audio-in, USB-B, RS232
  • Audio: 2 × 2 W integrated speakers
  • Protection rating: IP65 front / IP40 back
  • Housing: Aluminum frame, small case

Download the full specification sheet: EN_FT10TMACAPOB (PDF).

The 10″ Aluminum Frame Capacitive Touchscreen Monitor is available to order in project quantities. Request a quote from faytech North America.
