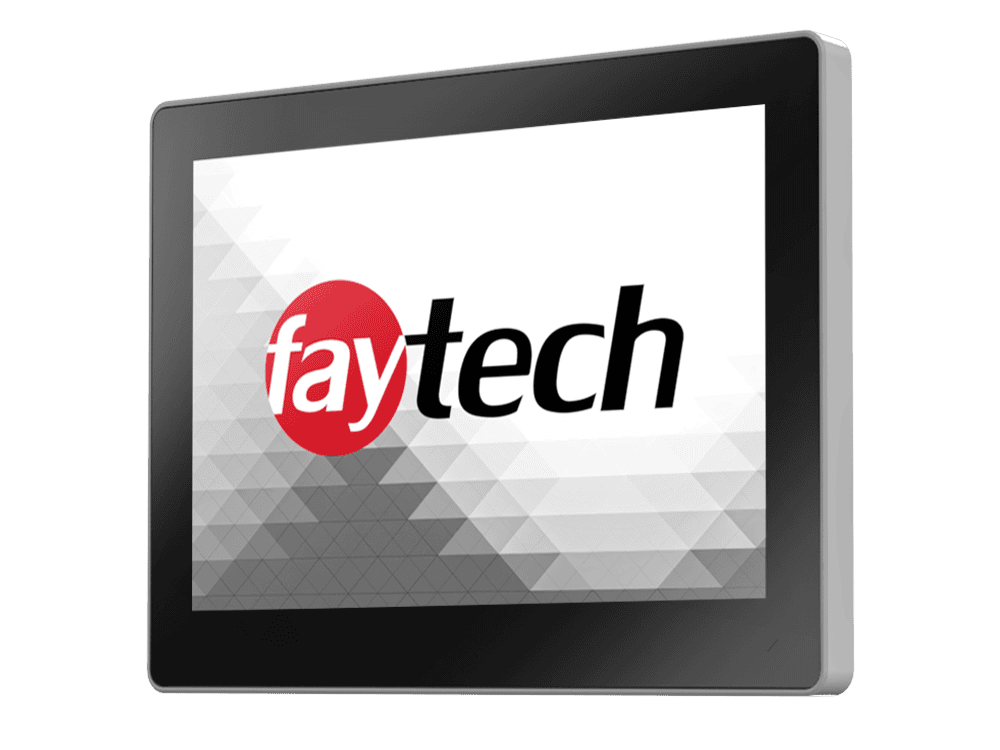

12.1 inch aluminum frame capacitive touchscreen monitor — front angle view

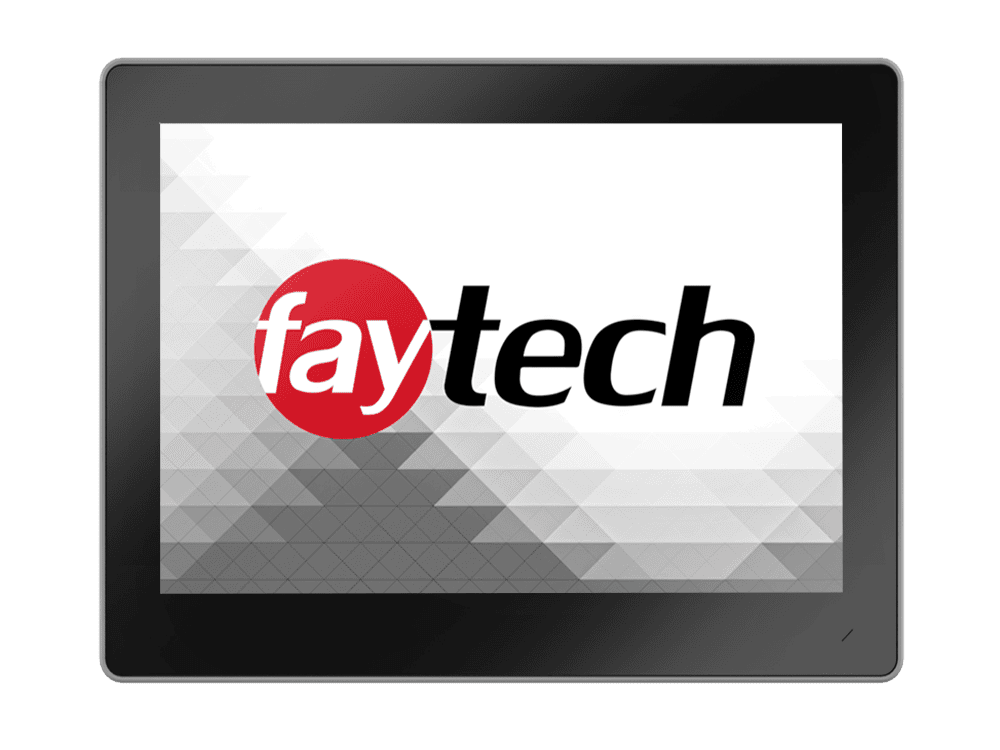

12.1 inch aluminum frame capacitive touchscreen monitor — front view

12.1″ Aluminum Frame Capacitive Touchscreen Monitor

Product Name: 12.1″ Aluminum Frame Capacitive Touchscreen Monitor
SKU: FT121TMACAPOB
IP Classification: Front IP65 / Back IP40
Display Size: 12.1″ / 30.7 cm
Max Resolution: 1024 × 768 pixels
Screen Brightness: 500 cd/m²
Touch Type: PCAP Multi-touch (10 point)
Data Sheet Download: EN_FT121TMACAPOB

Bright enough for the factory floor — the 12.1″ Aluminum Frame Monitor keeps controls readable where lesser panels wash out.

Get a Quote
SKU: FT121TMACAPOB Categories: , ,

At 500 cd/m² the 12.1″ is one of the brightest panels in the line, a 4:3 display sized for control cabinets and industrial workstations that face harsh lighting.

Two 2 W speakers, an IP65-sealed front face, and an IP40-rated back are standard across the aluminum small-case line, as is the Realtek RTD2556 controller. It drives projected-capacitive glass with 10-point multi-touch over a driverless USB interface. Video comes in through HDMI, DisplayPort, or VGA, and audio-in, USB-B, and RS232 give integrators the serial and service connections a cabinet build usually needs.

Key specifications

  • Display size: 12.1″ (30.7 cm)
  • Maximum resolution: 1024 × 768 pixels
  • Screen brightness: 500 cd/m²
  • Touch technology: Projected capacitive (PCAP)
  • Touch points: 10-point multi-touch
  • Touch interface: USB
  • Front glass: 3.0 mm thermally strengthened glass
  • Impact resistance: IK07
  • Controller: Realtek RTD2556
  • Video inputs: HDMI, DisplayPort, VGA
  • Additional interfaces: Audio-in, USB-B, RS232
  • Audio: 2 × 2 W integrated speakers
  • Protection rating: IP65 front / IP40 back
  • Housing: Aluminum frame, small case

Download the full specification sheet: EN_FT121TMACAPOB (PDF).

The 12.1″ Aluminum Frame Capacitive Touchscreen Monitor is available to order in project quantities. Request a quote from faytech North America.
