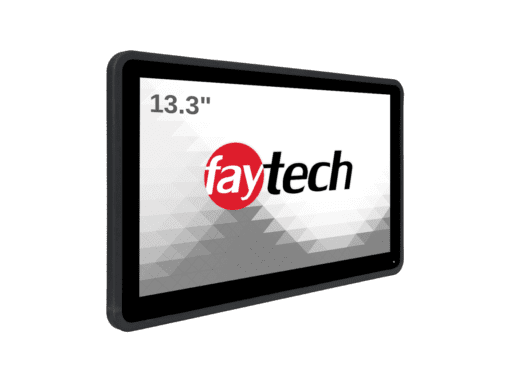

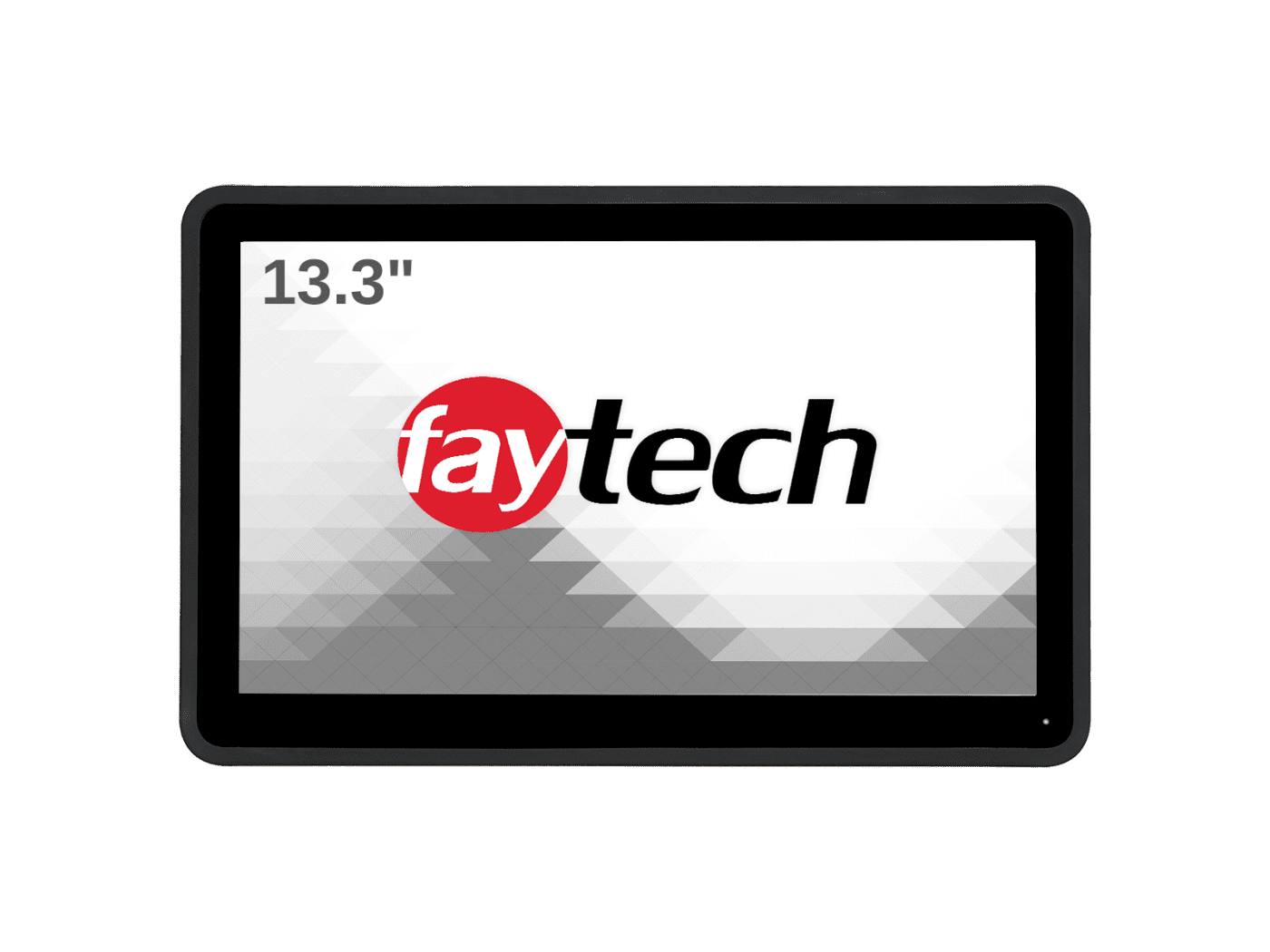

13.3″ Capacitive Touch PC (i5-7300U)
$2,118.23
Product Details
Product Name: 13.3″ Capacitive Touch PC (i5-7300U)
- Intel® Core™ i5-7300U CPU
- 8GB RAM memory, 128GB Industrial SSD
- Supports Windows 10 & Linux (32Bit, 64Bit)
- Anti-glare surface treatment (chemical etching)
- 10-Finger-Multi Touch Capacitive Touch Panel
- 1.1mm cover glass with 7H surface hardness
- Optically bonded Touch Panel to LCD Panel
- Patented IP65 front with silicon seal
- Integrated W-LAN
- 2 year guarantee
Optional: i3-7100U / i7-7600U Core CPU
Available on backorder
Faytech NA 13.3″ Capacitive Touch PC (i5-7300U, OB) are manufactured with fanless technology, a high standard of reliability and excellent craftsmanship. The Faytech touch screen products separate themselves from the competition in terms of quality and functionality.
Faytech NA 13.3″ Capacitive Touch PC series is the best choice for commercial and industrial use that requires maximizing available space. These small capacitive touch PC units have stylish flat edge-to-edge glass faces. They come with IP65-rated dust and waterproof front panels to ensure that the units will continue to function in a variety of environments.
The small 13.3″ Faytech capacitive PCs can be used as point of sale interfaces, industrial controls, as kiosks, automation system controls, and even digital signage in stores, classrooms, hospitality, entertainment and dining industries.
Potential Use Case Scenarios
The particularity of Faytech's 13.3" capacitive touch PCs (i5-7300U) is that the touch screen and the touch PC are already integrated in one device, which makes these PCs an excellent choice for a variety of application scenarios: kiosk systems; point of sale (POS) systems in the retail, hospitality, entertainment or restaurant industry; control panel in an industrial setting; digital signage in classrooms or stores; and industries such as manufacturing and logistics.
Faytech Capacitive Touch PCs come with VESA mounts so they can be wall mounted or embedded into another surface/machine. This flexibility makes these devices the ideal choice for use in industrial environments where the workplace needs to be optimized. Thanks to the touch technology used in these screens, there is no need to use a keyboard or mouse, which in turn can help keep the workspace uncluttered. Overall, these devices can help you make your workspace, whether it's a control center or a production area, much safer and more spacious.
Today, these capacitive touch PCs are commonly found in 3D TVs, mobile phones, game consoles, ATMs, and interactive kiosks. The capacitive touch technology used in such displays is much more user-friendly and interactive than resistive, making Faytech's capacitive touch PCs an ideal choice for a variety of commercial and industrial applications.
In terms of business environments, touchscreen PCs are becoming increasingly popular in transportation (airports, train stations, subway stations, bus stations), food and beverage industries, ATMs and CBL (computer-based learning). In restaurants using a touch PC, such as fast food chains, customers can use the touch screen to order and pay without having to ask a waiter for help. In CBL, the absence of a keyboard makes touch PCs more accessible to the learner. In addition, it makes it easier for students to focus on the screen.
Faytech Capacitive Touch PCs can be found in a variety of use cases:
In restaurants, bars or other outlets, our touch PCs can be used as POS systems, making it easy for the waiter to process orders using the touch screen. Likewise, retail stores would benefit greatly from Faytech's capacitive touch PCs as they can inform their customers and make it easier for them to navigate through their inventory. For example, you can use a capacitive touch PC to show your customers which products are currently in stock, whether there are special offers and much more.
Our capacitive touch PCs can be used as industrial control interfaces to control a production line and streamline the manufacturing process.
For in-kiosk system, the main advantage of Faytech's capacitive touch PCs is that these devices greatly improve interaction with the customers. They can be used to educate, inform, or even sell products to your customers.
Faytech Touch Screen PCs can help you with tracking and after-sales services in the logistics and transportation industries. In the transportation industry, such Touch PCs may be utilized to show purchasing alternatives and make it easier for travelers to buy tickets.
Faytech Capacitive Touch Screen PCs would also be an excellent complement to any business or domestic automation system, where they may be utilized as an interactive interface. Similarly, employing a Touch PC to manage guest service requests in hostels and hotels may substantially simplify the process.
However, potential use cases do not end there. Capacitive Touch PCs are also often found in businesses, labs, and as digital signage controllers. Whatever business you work in, these PCs are a low-cost, tried-and-true option for increasing sales and lowering operational costs.
One of the primary benefits of Faytech Touch PCs is their ease of use and low mistake rate. As a result, these devices are often encountered in a corporate or office setting, as personnel require very little training to operate them. Such displays will be incredibly cost-effective for your company over time.
Our Capacitive Touch PCs are also noted for their longevity due to the high-quality materials used in their construction. Our Touch Screen PCs include a sturdy aluminum frame and a 1.1mm cover glass with a surface hardness of 7H. These features make Faytech Touch PCs suitable for usage in harsh locations such as a factory. Furthermore, Faytech Capacitive Touch PCs have an IP65 front panel design that protects them from dust, rain, oil, and other liquids and filth. This enables the usage of these PCs in restaurants, bars, hospitals, and other heavily trafficked public places. Stable VESA 100 or 75 bolts are also included in the kit, allowing you to firmly place your device without fear of it falling to the ground.
Faytech touch PCs will help you save crucial space in your business even more than our touch displays. Because the touch monitor works in tandem with the PC, these displays offer an all-in-one solution. As previously stated, a mouse or keyboard is unnecessary while using a touch PC. Overall, employing touch PCs instead of non-touch devices frees up more room for machines or personnel. Because of this characteristic, Faytech Capacitive Touch PCs are ideal for usage on the production floor.
Faytech NA sells Capacitive Touch PCs in the following typical configurations:
- Intel® Pentium® N4200 QuadCore processor, 2.50 GHz core speed
- Intel® Core™ i5-7300U DualCore Processor, 2.60 GHz core speed
While the i5-7300U Processor is significantly more powerful and would be appropriate for use case situations requiring high performance, the N4200 Processor may also give power-efficient performance and is an excellent alternative for slightly simpler workloads.
If you are considering introducing Capacitive Touch PCs to your firm, then contact our specialists right now. We are the global market leader in Capacitive Touch Screen devices. It would be a pleasure to assess your use case scenarios and advise you on the appropriate touch device for your particular applications.
Weight | 13.13 lbs |
---|---|
Dimensions | 13.31 × 8.688 × 2.295 in |
Product Specifications
Stock Keeping Unit | FT133I5CAPOB |
NAV number | 3030509424 |
European model code | 1010502343 |
EAN number | 6920734001330 |
IP Classification
Front IP 65 / Back IP40 |
Computer System
Central Processing Unit | Kaby Lake U Intel® Core™ i5-7300U |
Graphics Processing Units | High Definition Graphics Intel® |
Audio Chip | Audio CODEC Realtek ALC3251 |
Random Access Memory (RAM) | 8GB non-parity Double Data Rate (DDR) 4 (maximum 16Go) |
Swappable Storage | Industrial Faytech SSD 128GB |
Network Driver | M.2 E-key Wi-Fi card; x2 Realtek PCIe GBE LAN 8111G Network Driver 1000Mbps |
Supported Operating System | Linux Ubuntu + Windows 10 |
Preinstalled Operating System | Linux Ubuntu |
Liquid Crystal Display
Display size | 13.3″ / 33.7 cm |
Viewable screen area | 29.37 cm x 16.52 cm (11.56 in x 6.503 in) |
Image Aspect-ratio | 16:9 |
Native resolution | 1920*1080 pixels |
Maximum modes | 1920*1200 pixels |
Screen Brightness | 350 cd/m² |
Color Contrast | 700:1 |
Average responsiveness Rise time/Fall time | 14/11 ms |
Viewing angle (horizontal to vertical) | 178 | 178 ° |
Screen Backlighting | LED |
Backlighting lifespan | 15 000 H |
Touch Screen
Touch type | PCAP Multi-touch (10 point) |
Lifespan | Unlimited |
Screen hardness | Mohs 7H |
Surface coating | Anti-reflective (industrial etching) |
Glass reinforcement | Chemically Reinforced |
Mechanical/Operation
Temperature range | 14°F to 140°F (-10°C to 60°C) |
Supported moisture | 10 % ~ 90 % Relative Humidity |
Weight (net) | 3.60 kg / 7.9366 lb |
Weight (gross, including cartonage) | 5.50 kg / 12.125 lb |
Enclosure | Aluminium IPC rear case, rubber frame |
Housing sizes | 338.2mm x 220.7mm x 58.3mm (13.31in x 8.688in x 2.295in) |
Clamps supported | Yes |
Clamps cut-out (LXH) | 322.0mm x 196.0mm (12.67in x 7.716in) |
Number of clamps necessary | 4 |
Mounts | VESA 100×100 |
Power Specifications
Power light | Green LED |
Source | ACDC Switching Power Adapter 100~240V; DC-Out 12 V |
Power input | 12 V |
Energy usage | 34 W |
Idling current | 1 W |
Internal Computer Connectors
1x SODIMM, maximum 16 Go, DDR4 1866/2133 non-parity, Single channel RAM x3 COM Rs-232/485 Bios x2 Complete LCD Backlighting Interface/LCD voltage tester x1 5V/12V USB to IDE Serial ATA power connector x1 12V DC connector plug (2-pole) x1 4-pin Serial ATA power cable adapter x1 S/PDIF header pin-outs x1 8-bit Mid-Range Digital IO x1 Header Mic-In / Line out x1 USB Front Panel header x1 SATA 6gb s x1 Mobile Industry Processor Interface (MIPI) Camera Serial Interface (CSI) 1x Box header for LVDS 2x Box header for USB 3.0 |
External Computer Connectors

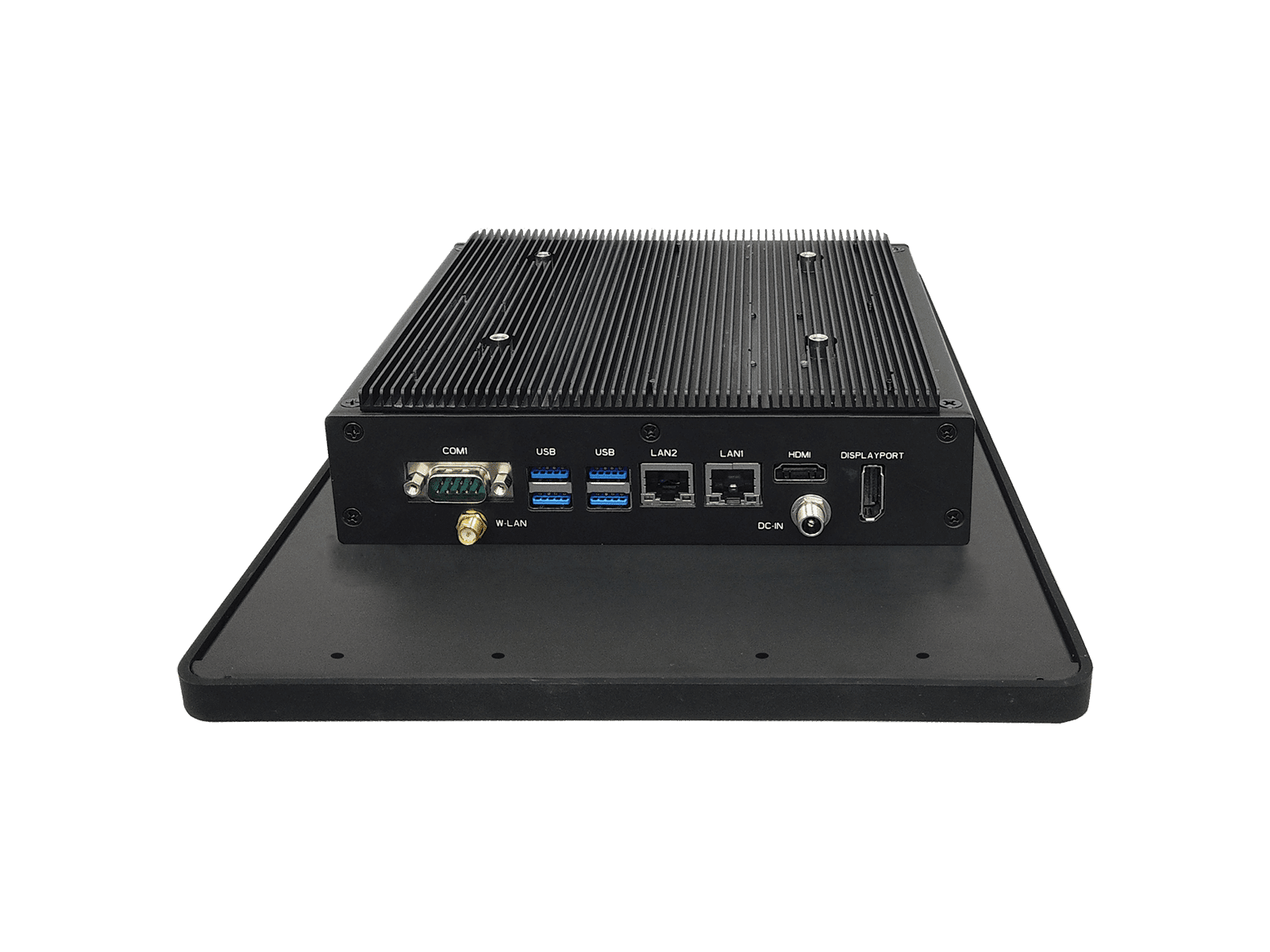

x1 12 Volt DC-In Power Supply (screwable) x1 RP SMA male WLAN antenna connector x4 USB 3.0 port x1 High-Definition Multimedia Interface (HDMI) port x1 DisplayPort x1 EAR-Out and MIC-In x1 10-PIN DIO as RJ50 x1 COM – switchable RS 232/422/485; option 5V/12V/RI (DSUB9, COM1) x1 COM – RS 232; RX/TX (DSUB9, COM2) x2 COM – RS 232 and 485; RX/TX and A+/B- (RJ12, COM3&4) x2 Ethernet 10/100/1000Mbps RJ45 Ports x1 2.5″ module slot, including swappable SSD |
Expansion Ports
x1 full size mSerial ATA Solid-State Drive (SSD) x1 M.2 Wifi E-Key Socket x1 SATA-IO connector x1 External PCIe x1 Straddle-mount connector |
Included in the package
Power Source (cf. Power Specifications section) Installation Guide Computer Stand Antenna WLAN RP-SMA female |
Documents & Drivers
Acrobat Reader | External website |
3D design | Download 3D design |
Data-sheet | Download Data-sheet |
Short User Manual | Short User Manual |
Drivers for capacitive touch (Linux excluded) | Capacitive Touch Drivers (RAR) | Rar conversion to ZIP online |
Linux Touch Drivers | Capacitive Touch Drivers for Linux (deb) |
Driver for WiFi | WiFi driver (RAR) | Rar conversion to ZIP online |
Kaby Lake U Drivers for Windows | Kaby Lake U Drivers for Windows (RAR) | Rar conversion to ZIP online |
