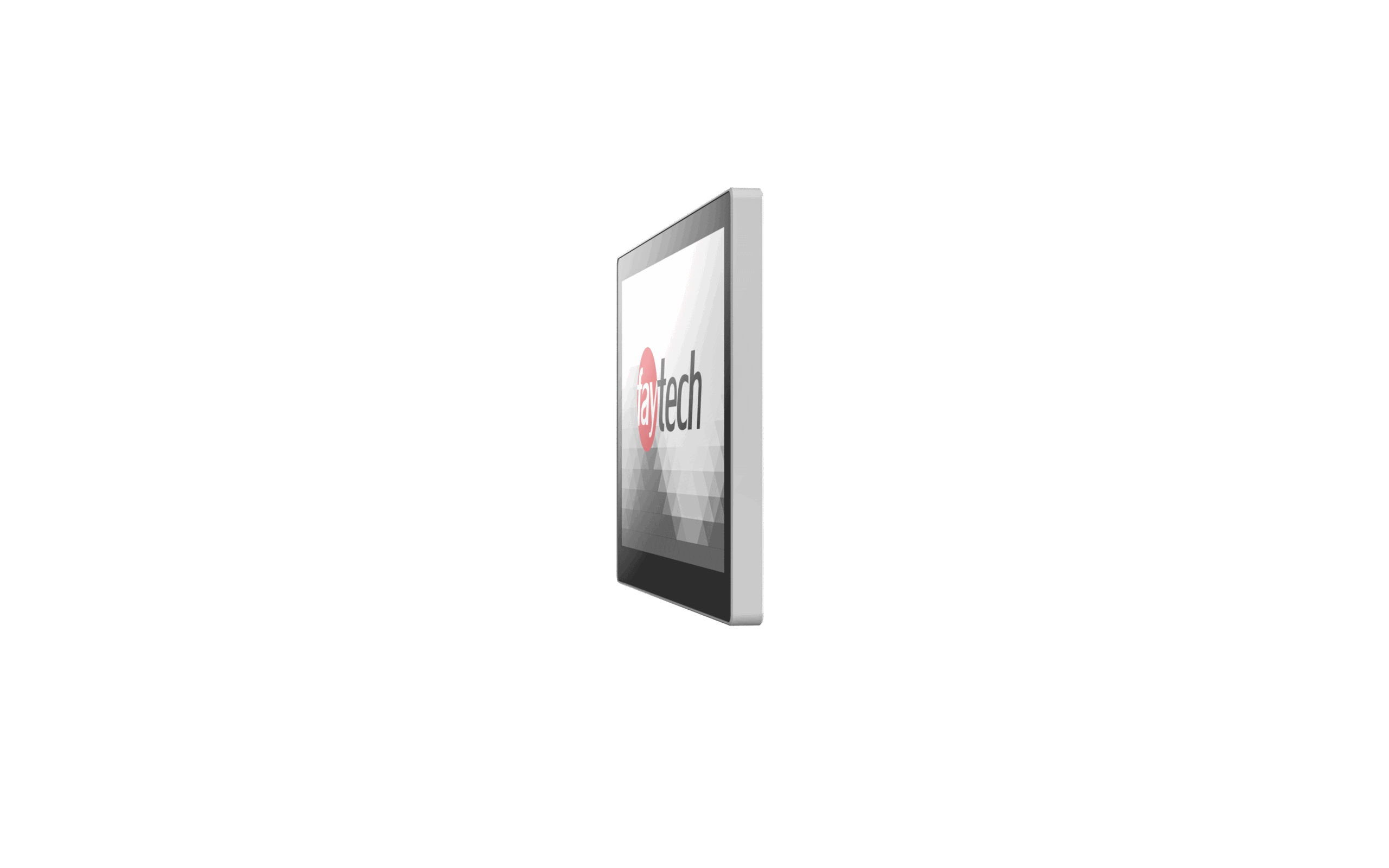

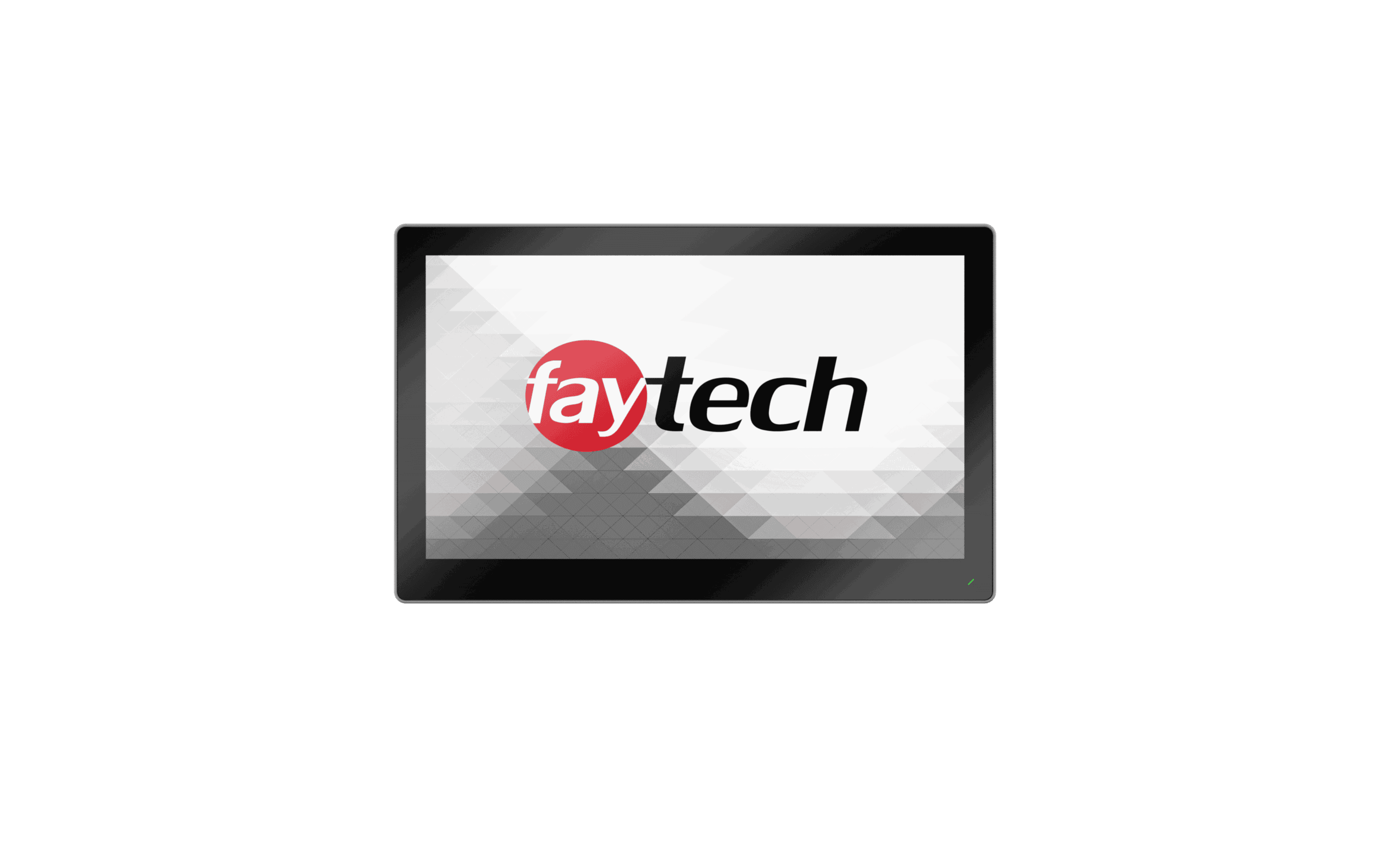

15.6″ Aluminum Frame Capacitive Touchscreen Monitor
Product Name: 15.6″ Aluminum Frame Capacitive Touchscreen Monitor
SKU: FT156TMACAPOB
IP Classification: Front IP65 / Back IP40
Display Size: 15.6″ / 39.6 cm
Max Resolution: 1920 × 1080 pixels
Screen Brightness: 220 cd/m²
Touch Type: PCAP Multi-touch (10 point)
Warranty: 2-Year Limited Warranty
Data Sheet Download: EN_FT156TMACAPOB
Full HD in the slimmest profile of the line — the 15.6″ Aluminum Frame Monitor is built for modern point-of-sale.
Get a QuoteAdditional information
| Display Size | 15.6″ |
|---|---|
| Resolution | 1920 × 1080 |
| Brightness | 220 cd/m² |
| Touch Technology | Projected Capacitive 10-point Multi-touch |
| IP Rating | IP65 Front / IP40 Back |
| Operating Temperature | -10°C to 60°C |
| Video Inputs | 1× HDMI, 1× VGA |
| Case Size | 386.3 × 243.8 × 40.5 mm (15.2 × 9.6 × 1.6 in) |
| Net Weight | 3.5 kg (7.7 lb) |
| Mounting | VESA 100 × 100 |
| Power Consumption | 9 W |
| Warranty | 2 years (standard) |
The 15.6″ brings Full HD to the line in a slim 40.5 mm-deep housing, suited to POS, interactive displays, and space-conscious counter builds.
HDMI, DisplayPort, and VGA inputs feed a Realtek RTD2556 controller, which reads 10 simultaneous touch points from the projected-capacitive layer and reports them over a driverless USB connection. Audio-in, USB-B, and RS232 complete the connector set, and two 2 W speakers are built into the chassis. The aluminum small-case housing protects the front to IP65 and the rear to IP40.
Key specifications
- Display size: 15.6″ (39.6 cm)
- Maximum resolution: 1920 × 1080 pixels
- Screen brightness: 220 cd/m²
- Touch technology: Projected capacitive (PCAP)
- Touch points: 10-point multi-touch
- Touch interface: USB
- Front glass: 1.1 mm glass
- Impact resistance: IK7
- Controller: Realtek RTD2556
- Video inputs: HDMI, DisplayPort, VGA
- Additional interfaces: Audio-in, USB-B, RS232
- Audio: 2 × 2 W integrated speakers
- Protection rating: IP65 front / IP40 back
- Housing: Aluminum frame, small case
- Case dimensions (L × W × H): 386.3 × 243.8 × 40.5 mm
Download the full specification sheet: EN_FT156TMACAPOB (PDF).
The 15.6″ Aluminum Frame Capacitive Touchscreen Monitor is available to order in project quantities. Request a quote from faytech North America.
