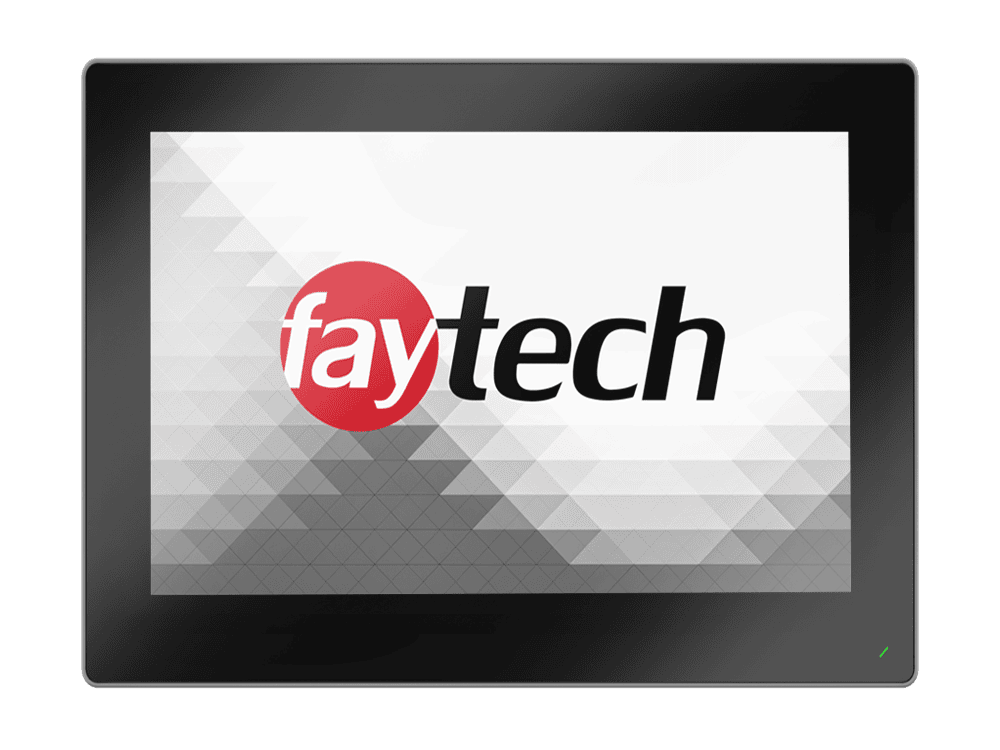

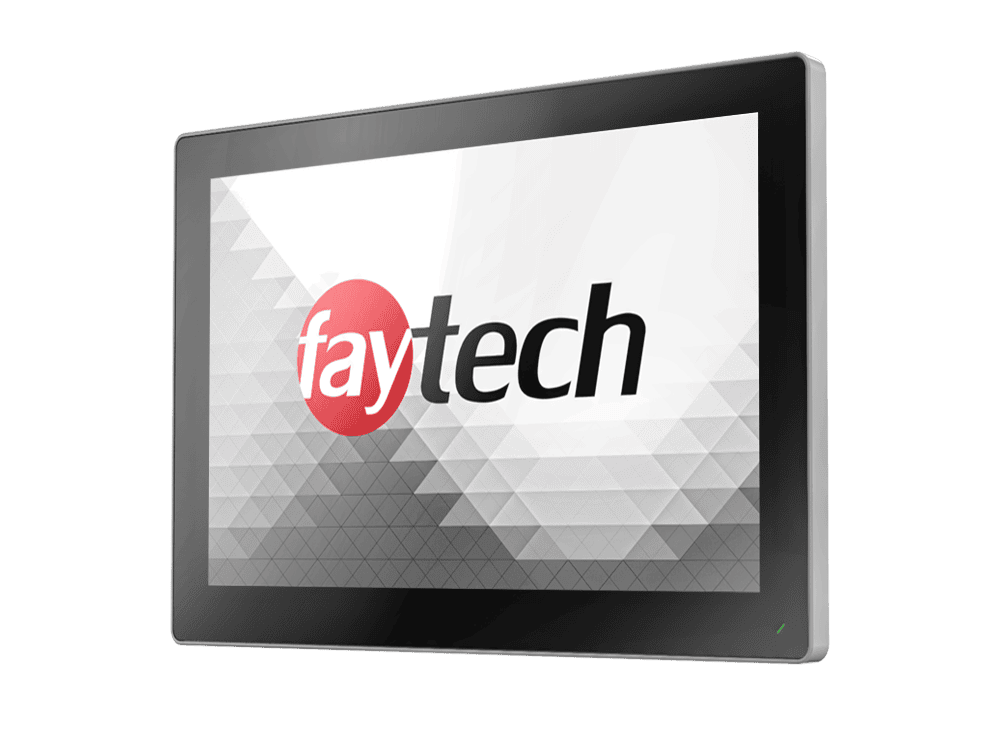

15″ Aluminum Frame Capacitive Touchscreen Monitor
Product Name: 15″ Aluminum Frame Capacitive Touchscreen Monitor
SKU: FT15TMACAPOB
IP Classification: Front IP65 / Back IP40
Display Size: 15″ / 38.1 cm
Max Resolution: 1024 × 768 pixels
Screen Brightness: 420 cd/m²
Touch Type: PCAP Multi-touch (10 point)
Data Sheet Download: EN_FT15TMACAPOB
The industrial standard, modernized — the 15″ Aluminum Frame Monitor pairs the classic format with contemporary PCAP touch.
Get a QuoteThe 15″ carries the classic industrial 4:3 format with 420 cd/m² of brightness and 3 mm strengthened glass — the traditional workstation size, rebuilt in the aluminum small case.
The Realtek RTD2556 controller behind this panel handles projected-capacitive input at 10 simultaneous touch points, delivered over a plain USB interface that any modern operating system recognizes without a driver. HDMI, DisplayPort, and VGA accept video; audio-in, USB-B, and RS232 sit alongside them, and two 2 W speakers are integrated. The aluminum small case is sealed to IP65 in front and IP40 at the rear.
Key specifications
- Display size: 15″ (38.1 cm)
- Maximum resolution: 1024 × 768 pixels
- Screen brightness: 420 cd/m²
- Touch technology: Projected capacitive (PCAP)
- Touch points: 10-point multi-touch
- Touch interface: USB
- Front glass: 3.0 mm thermally strengthened glass
- Impact resistance: IK07
- Controller: Realtek RTD2556
- Video inputs: HDMI, DisplayPort, VGA
- Additional interfaces: Audio-in, USB-B, RS232
- Audio: 2 × 2 W integrated speakers
- Protection rating: IP65 front / IP40 back
- Housing: Aluminum frame, small case
- Case dimensions (L × W × H): 350.0 × 273.6 × 55.0 mm
Download the full specification sheet: EN_FT15TMACAPOB (PDF).
The 15″ Aluminum Frame Capacitive Touchscreen Monitor is available to order in project quantities. Request a quote from faytech North America.
