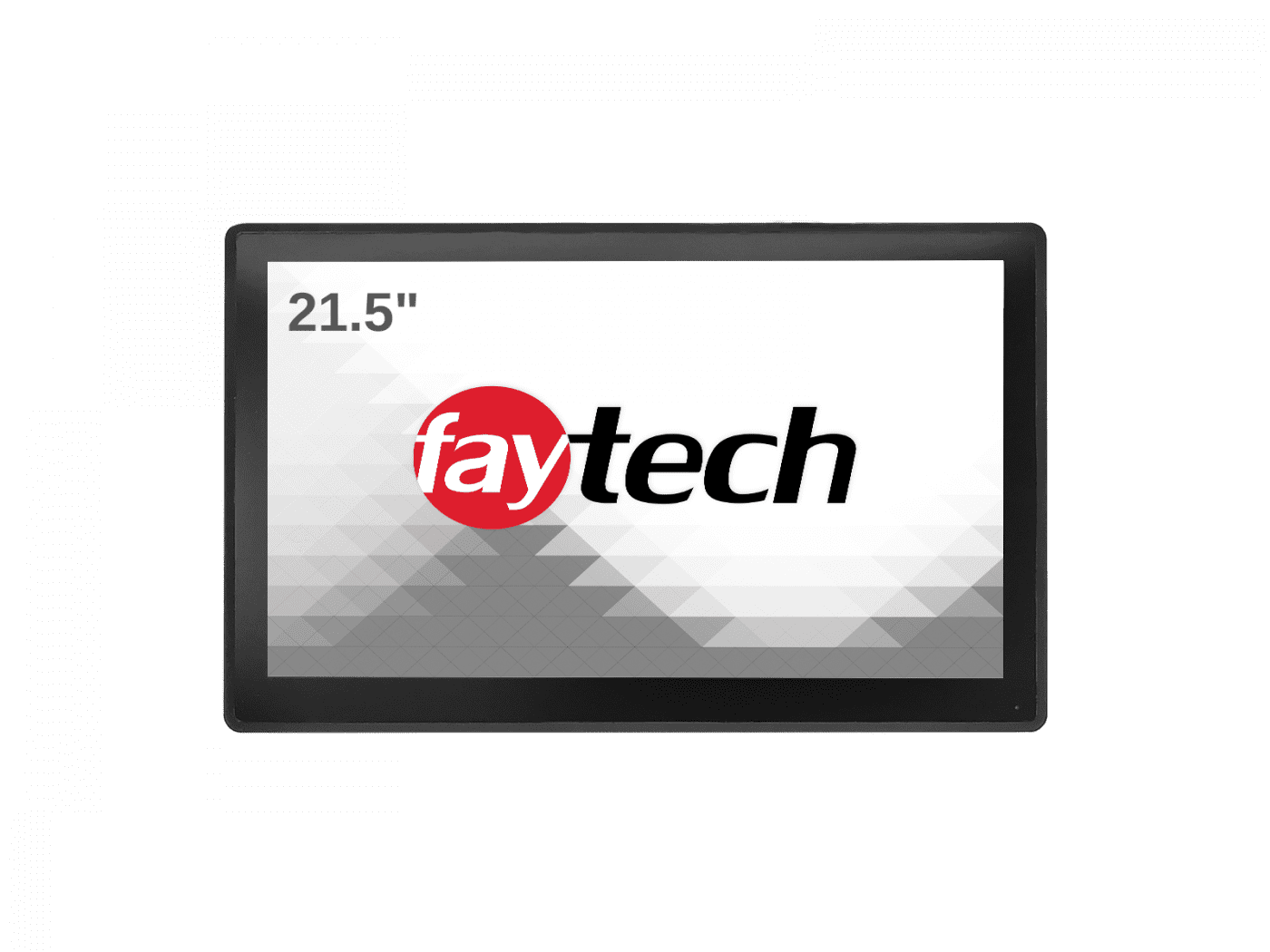

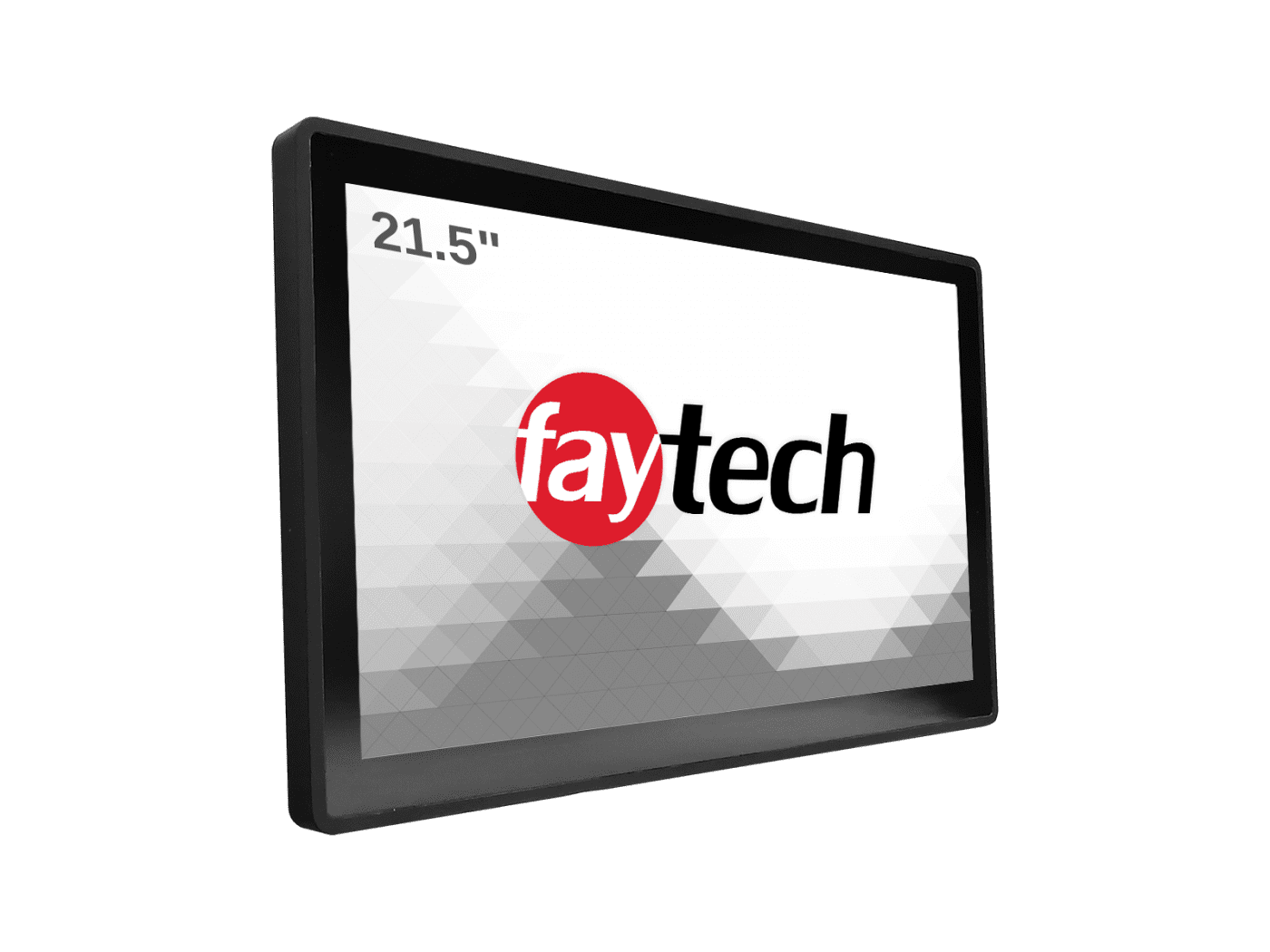

21.5″ Capacitive Touch PC (i5-7300U)
Product Name: 21.5″ Capacitive Touch PC (i5-7300U, OB)
- Intel® Core™ i5-7300U CPU
- 8GB RAM memory, 128GB Industrial SSD
- Supports Windows 10 & Linux (32Bit, 64Bit)
- Anti-glare surface treatment (chemical etching)
- 10-Finger-Multi Touch Capacitive Touch Panel
- 1.1mm cover glass with 7H surface hardness
- Optically bonded Touch Panel to LCD Panel
- Patented IP65 front with silicon seal
- Integrated W-LAN
- 2 year guarantee
Optional: i3-7100U / i7-7600U Core CPU
Available on backorder
Faytech NA 21.5″ Capacitive Touch PC (i5-7300U, OB) are manufactured with fanless technology, a high standard of reliability and excellent craftsmanship. Faytech touch screen products separate themselves from the competition in terms of quality and functionality.
Faytech NA 21.5″ Capacitive Touch PC series is the best choice for commercial and industrial use that requires maximizing available space. These small capacitive touch PC units have stylish flat edge-to-edge glass faces. They come with IP65-rated dust and waterproof front panels to ensure that the units will continue to function in a variety of environments.
The 21.5″ Faytech capacitive PCs can be used as point of sale interfaces, industrial controls, as kiosks, automation system controls, and even digital signage in stores, classrooms, hospitality, entertainment and dining industries.
Potential Use Case Scenarios
The particularity of Faytech Capacitive touch PCs is that the touch display and touch PC are there already integrated into a single device, making these PCs an excellent option for a wide spectrum of case scenarios: in-kiosk systems; Point of Sales (POS) systems in the retail, hospitality, entertainment, or Restauration industries; panel control in an industrial setting; digital signage in classrooms or stores; and industries such as the manufacturing and logistics ones.
Faytech Capacitive Touch PCs come with VESA stands, making it possible to mount them on a wall or to embed them into another surface/machine. Such flexibility makes these devices an ideal choice for use in industrial settings where the workspace must be optimized. Thanks to the touch technology used in these displays, it is unnecessary to use a keyboard or a mouse, which can in turn help ensure that a workspace is not too littered. All in all, these devices can help you make your workspace, whether it is a control center or a manufacturing quarter, much safer and more spacious.
Nowadays, such Capacitive touch PCs are commonly found in 3D TVs, mobile phones, consoles, cash machines, and interactive kiosks. The Capacitive touch technology which is used in such displays is much more user-friendly and interactive than the resistive one, making Faytech Capacitive touch PCs an ideal option for a broad range of commercial and industrial applications.
Regarding commercial settings, Touch screen PCs are becoming more and more popular in the transportation field (airports, train stations, metro stations, bus stops), in the food and drink services industry, in ATMs, and in CBL (computer-based learning). In restaurants using a Touch PC, such as fast-food chains, customers can use the touch screen to order and pay, without having to ask a waiter for help. In CBL, the absence of a keyboard makes touch PCs more accessible to the learner. Plus, it's easier to make sure students are focused on the screen.
faytech capacitive touch screen computers have a wide range of applications:
In restaurants, bars or other retail stores, touch screen computers can be used as POS systems for the waiter to handle orders through a touch screen. Similarly, retail stores will greatly benefit from capacitive touch computers as they educate your customers and make it easier to navigate your inventory. For example, a capacitive touchscreen can be used to show your customers what products are currently available, if there are any special offers, and more.
Capacitive touch computers can be used as industrial control interfaces, managing production lines and simplifying manufacturing processes.
For kiosk systems, the biggest advantage of faytech capacitive touch computers is that these devices greatly enhance customer interaction. They can be used to educate, inform and even sell to your customer base.
In the field of logistics and transportation, faytech touch screen computers can help you with tracking and after-sales services. In the transportation industry, touch screen computers can also be used to display ticketing options, making it easier for passengers to purchase tickets.
The faytech 21.5" capacitive touch screen computers (i5-7300U) would be a great addition to any commercial or home automation system as they can be used as an interactive interface. Similarly, handling customer service requests in hotels and hotels can be greatly simplified by using a touch screen computer.
However, the potential use cases don't end there. It is also common to find computers with capacitive touch screens in offices, laboratories or digital signage consoles. Regardless of your industry, these computers are an affordable and proven solution to increase your sales and reduce operating costs.
One of the main advantages of the Faytech 21.5" Touch PC (i5-7300U) is its ease of use and minimal risk of error. As such, these devices are easy to find in a company or office, where employees need almost no training to use them. Over time, this display will be very profitable for your business.
Our capacitive touch computers are also known for their durability thanks to their high-quality materials. Built for 24/7 operation, the touchscreen PC features a rugged aluminum chassis and 1.1mm protective glass with a 7H surface hardness. These aspects make Faytech 21.5" touch screen computers (i5-7300U) suitable for harsh environments such as outdoor and factory applications. In addition, Faytech 21.5" capacitive touch screen computers (i5-7300U) have an IP65 front panel, which makes them resistant to dust, rain, grease or any other liquid and dirt. This allows these computers to be used in restaurants, bars, hospitals and crowded public places. Heavy-duty VESA 100 or 75 screws are also included in the package, so you can securely mount your device without worrying about it falling to the ground.
Even more than our touch monitors, Faytech 21.5" touch PCs (i5-7300U) will help you save valuable space in your business. These monitors are an all-in-one solution because the touch screen works together with the computer. As mentioned above, no mouse or keyboard is required to use a touch screen computer. In general, using a touch computer instead of a non-touch computer will give you more room for machines or people. This feature makes Faytech's capacitive touch screen computers ideal for factory use.
The PCs with capacitive touch screen sold by faytech NA are available in the following standard versions:
- Intel® Pentium® N4200 QuadCore processor, core speed 2.50 GHz core speed
- Intel® Core™ i5-7300U DualCore processor, 2.60 GHz core speed
The i5-7300U processor is more powerful and ideal for use cases that require high performance. The N4200 processor also offers energy-efficient performance, making it the perfect choice for simpler applications.
If you are considering adding a capacitive touchscreen to your organization, contact our experts today. We are the world leader in the capacitive touch screen market. It is our great honor to evaluate your use case and advise you on the best touchscreen devices for your specific applications.
|Dimensions||20.94 × 13.03 × 2.834 in|
|Stock Keeping Unit||FT215I5CAPOB|
|European model code||1010502295|
|Front IP 65 / Back IP40|
|Central Processing Unit||Kaby Lake U Intel® Core™ i5-7300U|
|Graphics Processing Units||High Definition Graphics Intel®|
|Audio Chip||Audio CODEC Realtek ALC3251|
|Random Access Memory (RAM)||8GB non-parity Double Data Rate (DDR) 4 (maximum 16Go)|
|Swappable Storage||Industrial Faytech SSD 128GB|
|Network Driver||M.2 E-key Wi-Fi card; x2 Realtek PCIe GBE LAN 8111G Network Driver 1000Mbps|
|Supported Operating System||Linux Ubuntu + Windows 10|
|Preinstalled Operating System||Linux Ubuntu|
Liquid Crystal Display
|Display size||21.5″ / 54.6 cm|
|Viewable screen area||47.70 cm x 26.80 cm (18.77 in x 10.55 in)|
|Native resolution||1920*1080 pixels|
|Maximum modes||1920*1200 pixels|
|Screen Brightness||250 cd/m²|
|Average responsiveness Rise time/Fall time||1.5/3.5 ms|
|Viewing angle (horizontal to vertical)||170 | 160 °|
|Backlighting lifespan||40 000 H|
|Touch type||PCAP Multi-touch (10 point)|
|Screen hardness||Mohs 7H|
|Surface coating||Anti-reflective (industrial etching)|
|Glass reinforcement||Chemically Reinforced|
|Temperature range||14°F to 140°F (-10°C to 60°C)|
|Supported moisture||10 % ~ 90 % Relative Humidity|
|Weight (net)||5.20 kg / 11.464 lb|
|Weight (gross, including cartonage)||7.80 kg / 17.196 lb|
|Enclosure||Aluminium IPC rear case, rubber frame|
|Housing sizes||532.0mm x 331.0mm x 72.0mm (20.94in x 13.03in x 2.834in)|
|Clamps cut-out (LXH)||508.0 mm x 307.0 mm (20.00 in x 12.08 in)|
|Number of clamps necessary||6|
|Power light||Green LED|
|Source||ACDC Switching Power Adapter 100~240V; DC-Out 12 V|
|Power input||12 V|
|Energy usage||42 W|
|Idling current||1 W|
Internal Computer Connectors
|1x SODIMM, maximum 16 Go, DDR4 1866/2133 non-parity, Single channel RAM
x3 COM Rs-232/485 Bios
x2 Complete LCD Backlighting Interface/LCD voltage tester
x1 5V/12V USB to IDE Serial ATA power connector
x1 12V DC connector plug (2-pole)
x1 4-pin Serial ATA power cable adapter
x1 S/PDIF header pin-outs
x1 8-bit Mid-Range Digital IO
x1 Header Mic-In / Line out
x1 USB Front Panel header
x1 SATA 6gb s
x1 Mobile Industry Processor Interface (MIPI) Camera Serial Interface (CSI)
1x Box header for LVDS
2x Box header for USB 3.0
External Computer Connectors
|x1 12 Volt DC-In Power Supply (screwable)
x1 RP SMA male WLAN antenna connector
x4 USB 3.0 port
x1 High-Definition Multimedia Interface (HDMI) port
x1 EAR-Out and MIC-In
x1 10-PIN DIO as RJ50
x1 COM – switchable RS 232/422/485; option 5V/12V/RI (DSUB9, COM1)
x1 COM – RS 232; RX/TX (DSUB9, COM2)
x2 COM – RS 232 and 485; RX/TX and A+/B- (RJ12, COM3&4)
x2 Ethernet 10/100/1000Mbps RJ45 Ports
x1 2.5″ module slot, including swappable SSD
|x1 full size mSerial ATA Solid-State Drive (SSD)
x1 M.2 Wifi E-Key Socket
x1 SATA-IO connector
x1 External PCIe x1 Straddle-mount connector
Included in the package
|Power Source (cf. Power Specifications section)
Antenna WLAN RP-SMA female
Documents & Drivers
|Acrobat Reader||External website|
|3D design||Download 3D design|
|Short User Manual||Short User Manual|
|Drivers for capacitive touch (Linux excluded)||Capacitive Touch Drivers (RAR) | Rar conversion to ZIP online|
|Linux Touch Drivers||Capacitive Touch Drivers for Linux (deb)|
|Driver for WiFi||WiFi driver (RAR) | Rar conversion to ZIP online|
|Kaby Lake U Drivers for Windows||Download KLMD-WIN (RAR) | Online Rar to ZIP|
