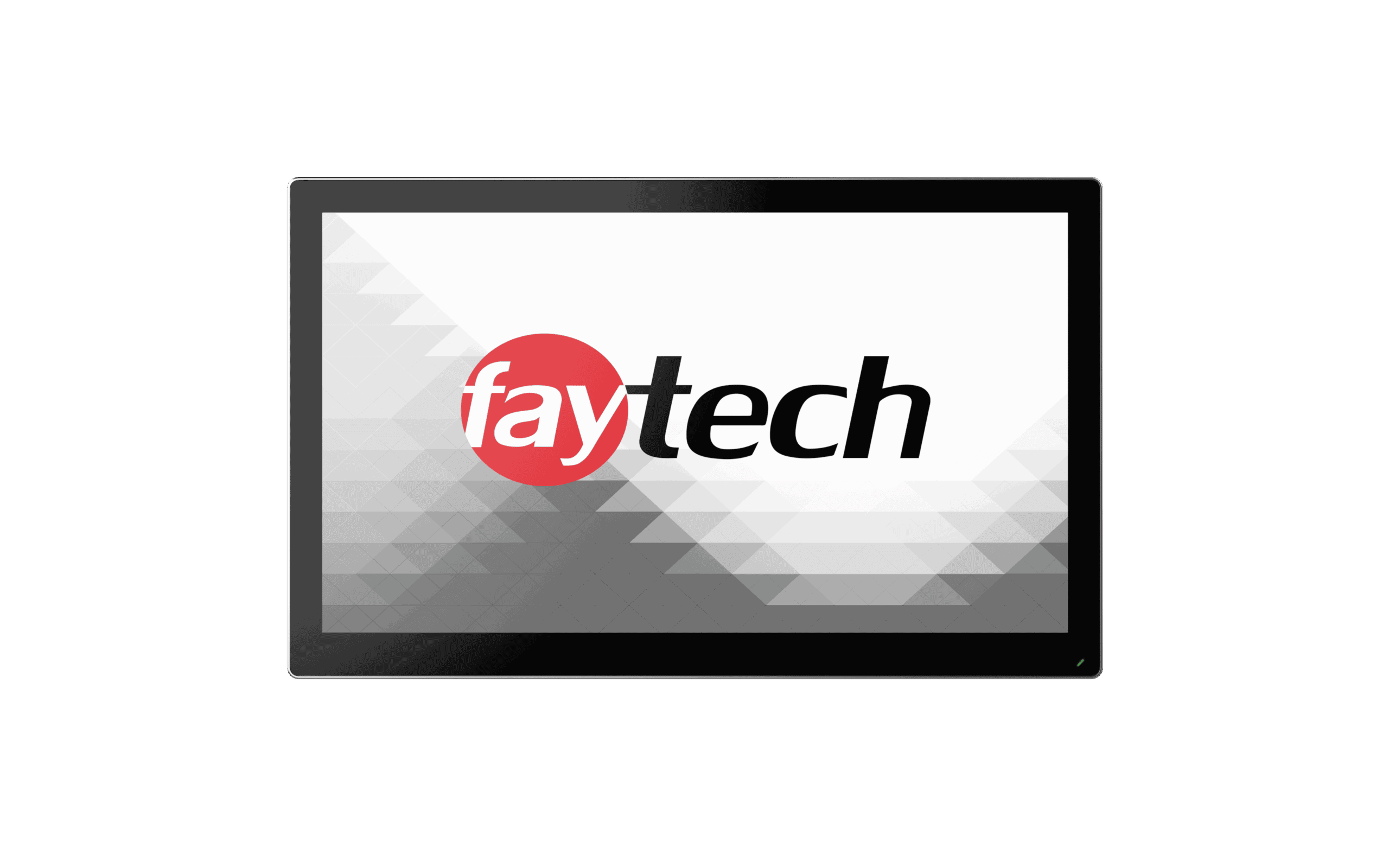

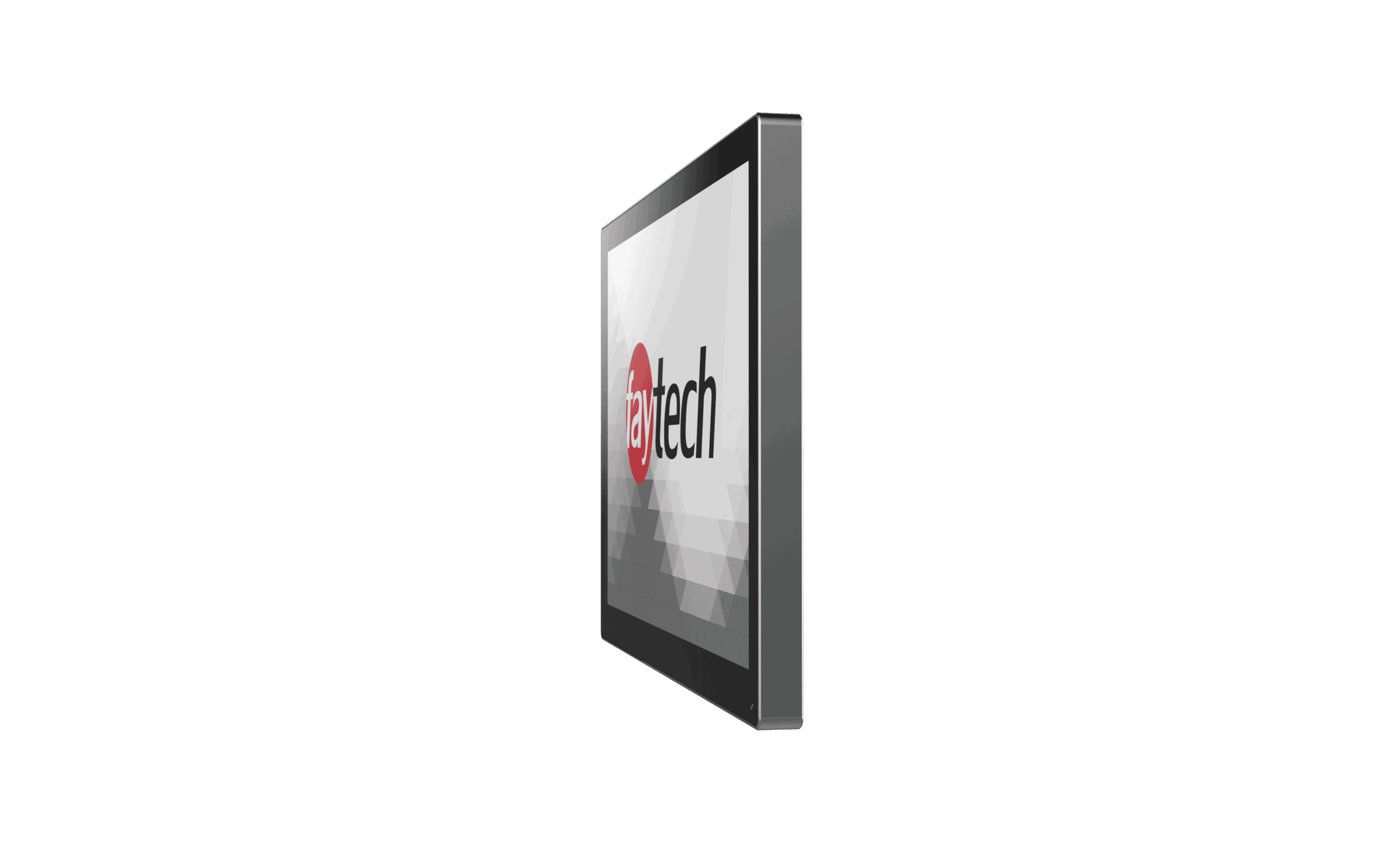

21.5″ Aluminum Frame Capacitive Touchscreen Monitor
Product Name: 21.5″ Aluminum Frame Capacitive Touchscreen Monitor
SKU: FT215TMACAPOB
IP Classification: Front IP65 / Back IP40
Display Size: 21.5″ / 54.6 cm
Max Resolution: 1920 × 1080 pixels
Screen Brightness: 250 cd/m²
Touch Type: PCAP Multi-touch (10 point)
Warranty: 2-Year Limited Warranty
Data Sheet Download: EN_FT215TMACAPOB
The mid-size sweet spot — the 21.5″ Aluminum Frame Monitor brings Full HD touch to counters and control rooms.
Get a QuoteAdditional information
| Display Size | 21.5″ |
|---|---|
| Resolution | 1920 × 1080 |
| Brightness | 250 cd/m² |
| Touch Technology | Projected Capacitive 10-point Multi-touch |
| IP Rating | IP65 Front / IP40 Back |
| Operating Temperature | -10°C to 60°C |
| Video Inputs | 1× HDMI, 1× VGA |
| Case Size | 523 × 322 × 56 mm (20.6 × 12.7 × 2.2 in) |
| Net Weight | 5.7 kg (12.6 lb) |
| Mounting | VESA 100 × 100 |
| Power Consumption | 24 W |
| Warranty | 2 years (standard) |
The 21.5″ pairs a Full HD panel with slim 1.1 mm glass at the line's most popular mid-size — a natural fit for POS counters, self-service stations, and meeting-room controls.
Ten simultaneous touch points travel over a standard USB interface from a projected-capacitive layer driven by the Realtek RTD2556 controller. Sources connect through HDMI, DisplayPort, or VGA, while audio-in, USB-B, and RS232 cover audio, service, and serial control; two 2 W speakers are integrated. The aluminum small-case housing seals the front face to IP65 and the rear to IP40.
Key specifications
- Display size: 21.5″ (54.6 cm)
- Maximum resolution: 1920 × 1080 pixels
- Screen brightness: 250 cd/m²
- Touch technology: Projected capacitive (PCAP)
- Touch points: 10-point multi-touch
- Touch interface: USB
- Front glass: 1.1 mm glass
- Impact resistance: IK7
- Controller: Realtek RTD2556
- Video inputs: HDMI, DisplayPort, VGA
- Additional interfaces: Audio-in, USB-B, RS232
- Audio: 2 × 2 W integrated speakers
- Protection rating: IP65 front / IP40 back
- Housing: Aluminum frame, small case
- Case dimensions (L × W × H): 523.0 × 322.0 × 56.0 mm
Download the full specification sheet: EN_FT215TMACAPOB (PDF).
The 21.5″ Aluminum Frame Capacitive Touchscreen Monitor is available to order in project quantities. Request a quote from faytech North America.
