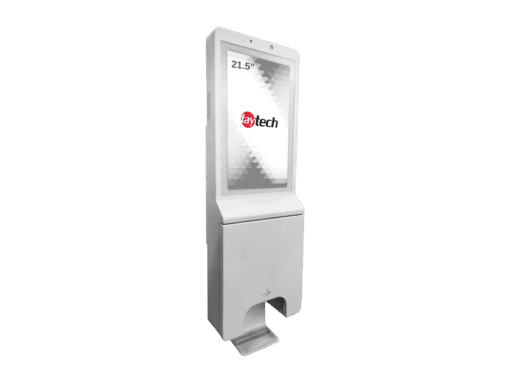

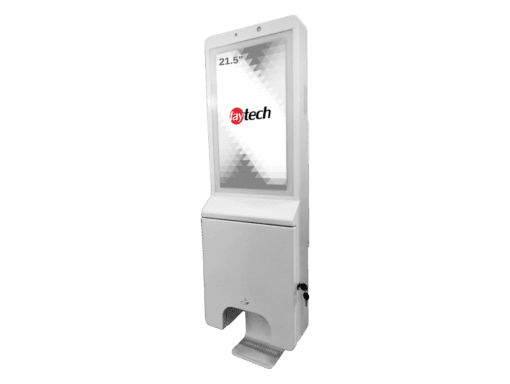

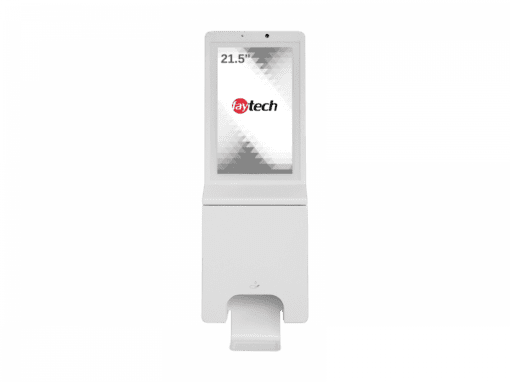

21.5″ Digital Signage Sanitization Station (basis)

faytech’s Sanitization Station is the perfect solution for the retail, restaurant, hospitality and other service industries, as well as government agencies and institutions. It is developed to promote digital signage and messaging with an optional built-in sanitizing solution.

This Kiosk supports that your organization, customers and guests remain safe and healthy while still allowing for your business to serve its critical functions. In such an uncertain time, keeping your guests informed, engaged and sanitized has never been more important!

  • Perfect solution for digital signage with built-in sanitizing solution
  • 10-Finger-Multi Touch Capacitive Touch Panel
  • 1.1mm cover glass with 7H surface hardness
  • Optically bonded Touch Panel to LCD Panel
  • Wallmount included
  • 2 year guarantee (24/7 usage)


  • Thermal sensor
  • Full HD camera
  • Hand sanitizer (1 liter)
  • Stable stand
  • Antibacterial & Antiviral coating
  • faytech IPC inside
SKU: FT215TMKHS Category:
Weight 100 lbs

Product Details

Model number FT215TMKHS
Global article code 3030505405
European article code 1010501961
EAN number

IP Rating

IP 65 front / IP40 back

LCD Panel

Screen diagonal 21.5″ / 54.6 cm
Display active screen size 47.70 cm x 26.80 cm (18.77 in x 10.55 in)
Aspect ratio 16:9
Physical resolution 1920×1080 px
Maximum showable resolution 1920×1200 px
Brightness 250 (cd/m²)
Contrast 1000:1,
Typical reaction time Tr/ Tf 7/7 (ms)
Visual angle horizontal/vertical 178/178 (°)
Backlight LED
Backlight lifetime 30,000 (hours)

Touch Panel

Touch technology Projected Capacitive 10-Point Multitouch
Available touch panel drivers Windows
Touch lifetime unlimited
Surface hardness 7H
Surface treatment Anti-glare (chemical etching), Antimicrobial (optional)
Glass strengthening Chemically Strengthened

Thermal Temperature Testing PC Peripherals

Thermal Sensor Details

Sensor type Thermopile far-infrared sensor
Brand Heimann
Model no. HTPA32x32
Working distance Up to 1 Meter
Available spectrum 8~14 μm
Resolution 32 × 32 px
Pixel size 1920 px × 1080 px, 1280 px × 720 px, 640 px × 480 px, 320 px × 240 px
Maximum framerate 7-9 Hz
Typical target temperature -10~150 °C
Target temperature max. range -20~500 °C
Object temperature range 40~1000 °C
Accuracy ±0.5 °C
Output RGB / Temperature Array
FOV (field of view) 30°

Dual lens camera details

Sensor AR0230 (Wide Dynamic Color)
Lens size 1/2.7 inch
Most effective pixels 1928 × 1088 px
Data format MJPG/YUY2
Pixel size 1920 px × 1080 px
1280 px × 720 px
640 px × 480 px
320 px × 240 px
Dynamic range Up to 105dB
Focus Fixed focus
Frame rate 30 FPS
FOV (field of view) 65 °


Operating temperature -10 °C ~ +60 °C (14 °F ~ 140 °F)
Humidity range 10% – 90% RH
Net weight 5.00 kg / 11.023 lb
Gross weight (incl. cartonage) 7.30 kg / 16.093 lb
Housing material Aluminum IPC case
Housing sizes (without stand) 189.8 mm x 295.3 mm x 40.3 mm (7.472 in x 11.62 in x 1.586 in)
Housing sizes (with stand) 500.0 mm x 299.51 mm x 1865.0 mm (19.68 in x 11.79 in x 73.42 in)


Power supply 100-240V ACDC active switching; 12V DC-Out
Working power 12 V
Power consumption 28 W
Standby power 1 W

External Connectors

Video 1x HDMI 1.3 (incl. HDCP)
1x DVI-D
1x VGA
Audio 1x PC-Audio
Touch Connectors 1x USB
Other Connectors 1x 12V DC-In (screwable)

Included in the delivery

  1. Power Supply (see Power section)
  2. Short Installation Manual
