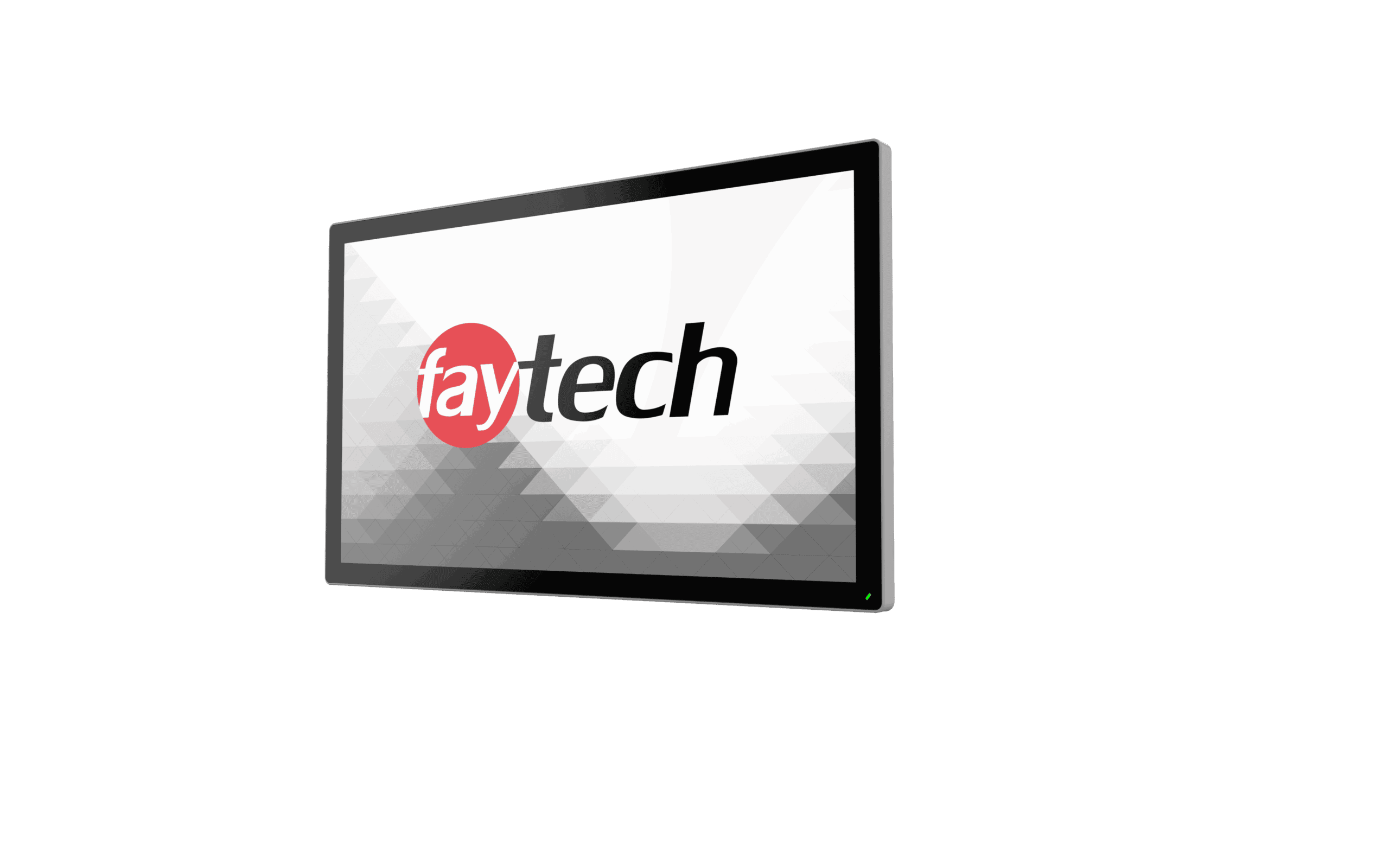

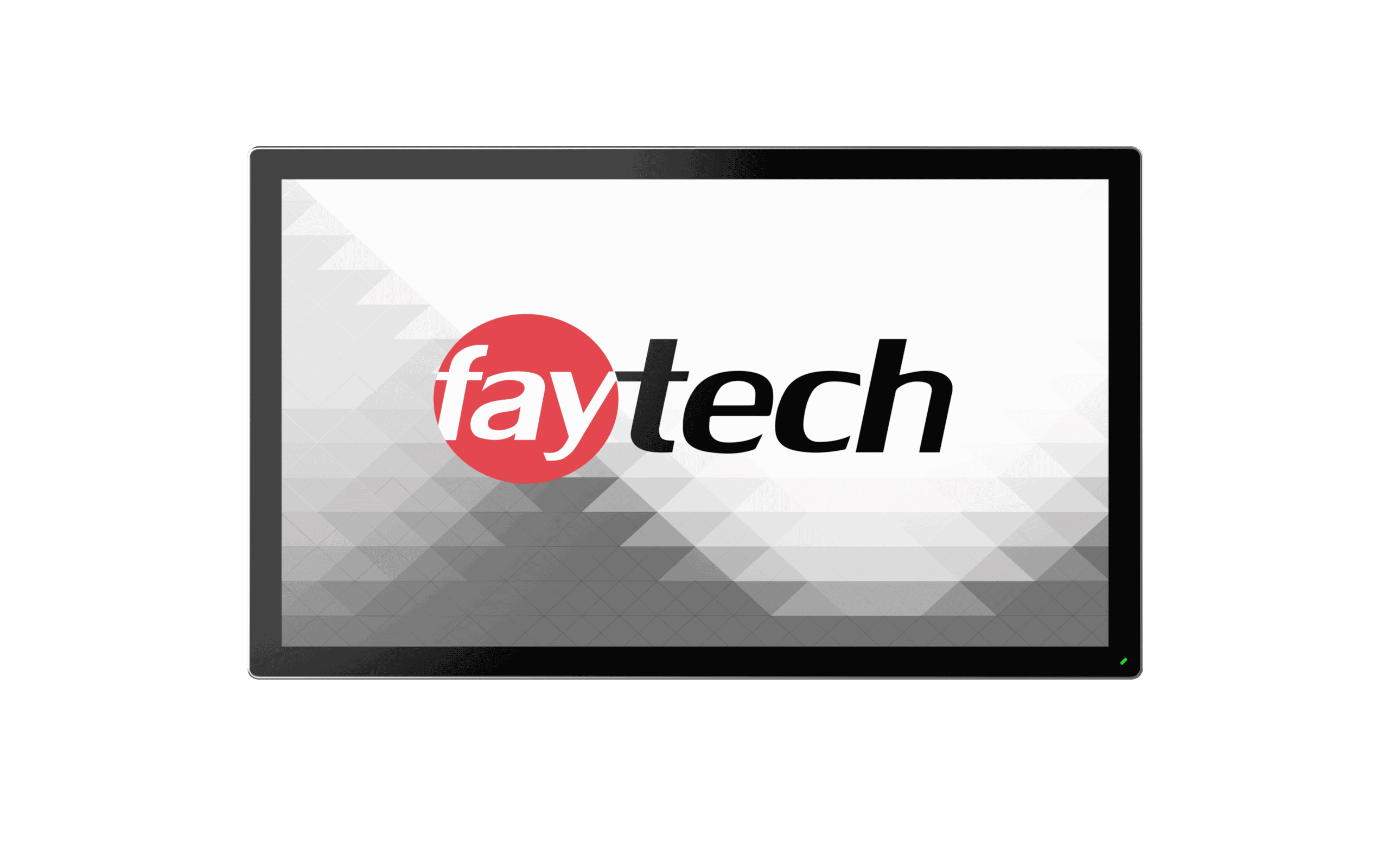

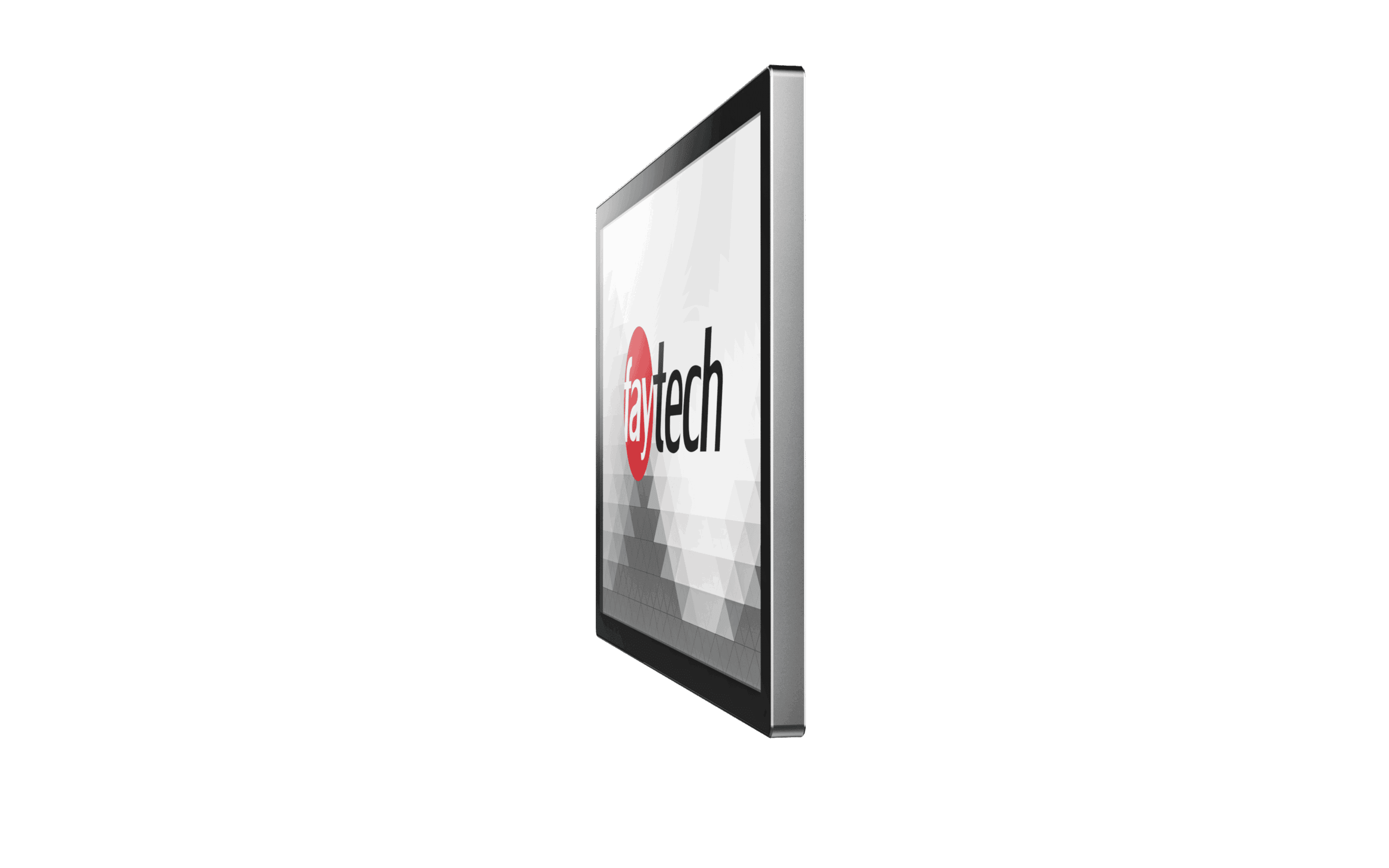

24″ Aluminum Frame Capacitive Touchscreen Monitor
Product Name: 24″ Aluminum Frame Capacitive Touchscreen Monitor
SKU: FT24TMACAPOB
IP Classification: Front IP65 / Back IP40
Display Size: 24″ / 61.0 cm
Max Resolution: 1920 × 1080 pixels
Screen Brightness: 250 cd/m²
Touch Type: PCAP Multi-touch (10 point)
Data Sheet Download: EN_FT24TMACAPOB
Counter-scale touch — the 24″ Aluminum Frame Monitor brings the line’s sealed build to full-size interactive displays.
Get a QuoteWith a 23.8″ Full HD panel, the 24″ is the line's large-format desk and counter model — the same sealed aluminum construction at presentation scale.
An aluminum small-case housing rated IP65 at the front and IP40 at the back encloses the Realtek RTD2556 controller common to this line. It reads 10-point projected-capacitive touch and reports it over a driverless USB interface. HDMI, DisplayPort, and VGA accept video, audio-in, USB-B, and RS232 handle sound, service, and serial control, and two 2 W speakers are built in.
Key specifications
- Display size: 24″ class — 23.8″ active area (60.5 cm)
- Maximum resolution: 1920 × 1080 pixels
- Screen brightness: 250 cd/m²
- Touch technology: Projected capacitive (PCAP)
- Touch points: 10-point multi-touch
- Touch interface: USB
- Front glass: 1.1 mm glass
- Impact resistance: IK7
- Controller: Realtek RTD2556
- Video inputs: HDMI, DisplayPort, VGA
- Additional interfaces: Audio-in, USB-B, RS232
- Audio: 2 × 2 W integrated speakers
- Protection rating: IP65 front / IP40 back
- Housing: Aluminum frame, small case
- Case dimensions (L × W × H): 576.5 × 353.0 × 56.0 mm
Download the full specification sheet: EN_FT24TMACAPOB (PDF).
The 24″ Aluminum Frame Capacitive Touchscreen Monitor is available to order in project quantities. Request a quote from faytech North America.
