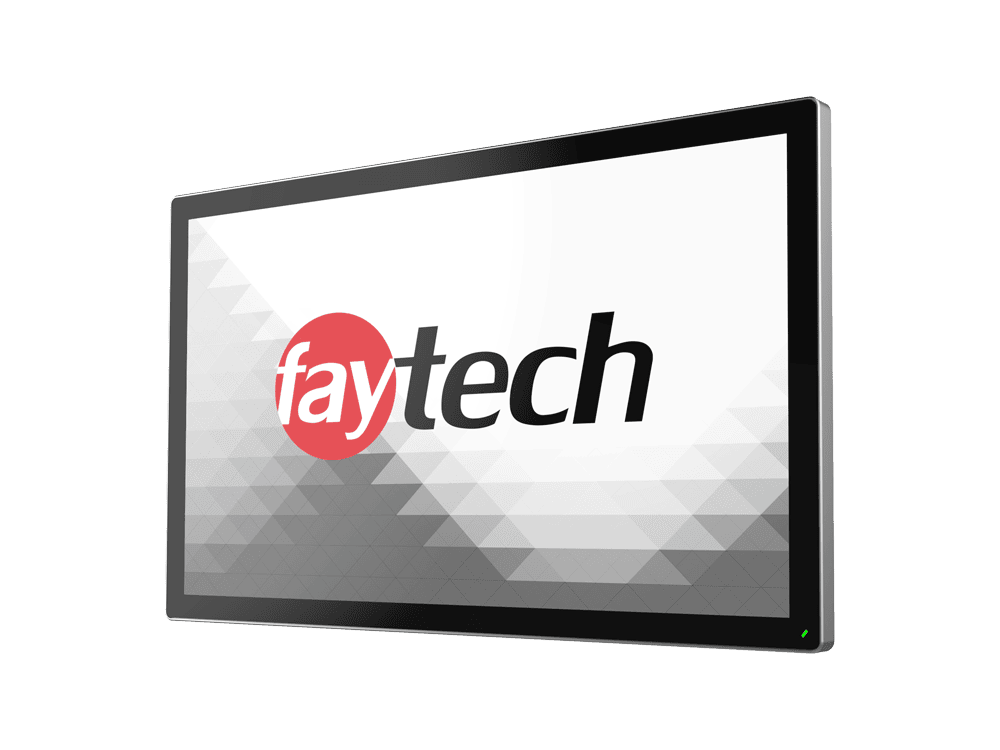

27 inch aluminum frame capacitive touchscreen monitor — front angle view

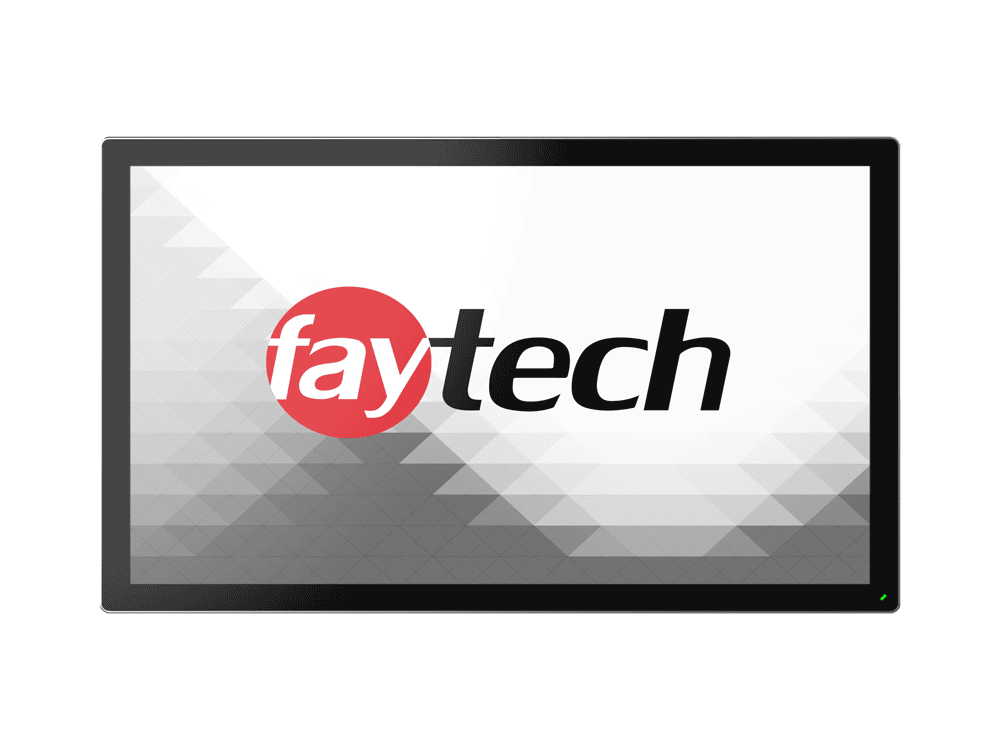

27 inch aluminum frame capacitive touchscreen monitor — front view

27″ Aluminum Frame Capacitive Touchscreen Monitor

Product Name: 27″ Aluminum Frame Capacitive Touchscreen Monitor
SKU: FT27TMACAPOB
IP Classification: Front IP65 / Back IP40
Display Size: 27″ / 68.6 cm
Max Resolution: 1920 × 1080 pixels
Screen Brightness: 300 cd/m²
Touch Type: PCAP Multi-touch (10 point)
Data Sheet Download: EN_FT27TMACAPOB

The line’s flagship size — the 27″ Aluminum Frame Monitor carries sealed, glove-tunable touch to full display scale.

Get a Quote
SKU: FT27TMACAPOB Categories: , ,

The largest of the aluminum small-case line, the 27″ pairs Full HD with 3 mm strengthened IK08 glass for interactive displays, wayfinding, and collaborative screens.

Projected-capacitive glass tracks 10 fingers at once and reports them across a plain USB interface, driven by the same Realtek RTD2556 controller used throughout the aluminum small-case line. HDMI, DisplayPort, and VGA cover video input; audio-in, USB-B, and RS232 cover the rest, and two 2 W speakers are integrated. The front is sealed to IP65, the back rated IP40.

Key specifications

  • Display size: 27″ (68.6 cm)
  • Maximum resolution: 1920 × 1080 pixels
  • Screen brightness: 300 cd/m²
  • Touch technology: Projected capacitive (PCAP)
  • Touch points: 10-point multi-touch
  • Touch interface: USB
  • Front glass: 3.0 mm thermally strengthened glass
  • Impact resistance: IK08
  • Controller: Realtek RTD2556
  • Video inputs: HDMI, DisplayPort, VGA
  • Additional interfaces: Audio-in, USB-B, RS232
  • Audio: 2 × 2 W integrated speakers
  • Protection rating: IP65 front / IP40 back
  • Housing: Aluminum frame, small case
  • Case dimensions (L × W × H): 649.3 × 387.7 × 56.0 mm

Download the full specification sheet: EN_FT27TMACAPOB (PDF).

The 27″ Aluminum Frame Capacitive Touchscreen Monitor is available to order in project quantities. Request a quote from faytech North America.
