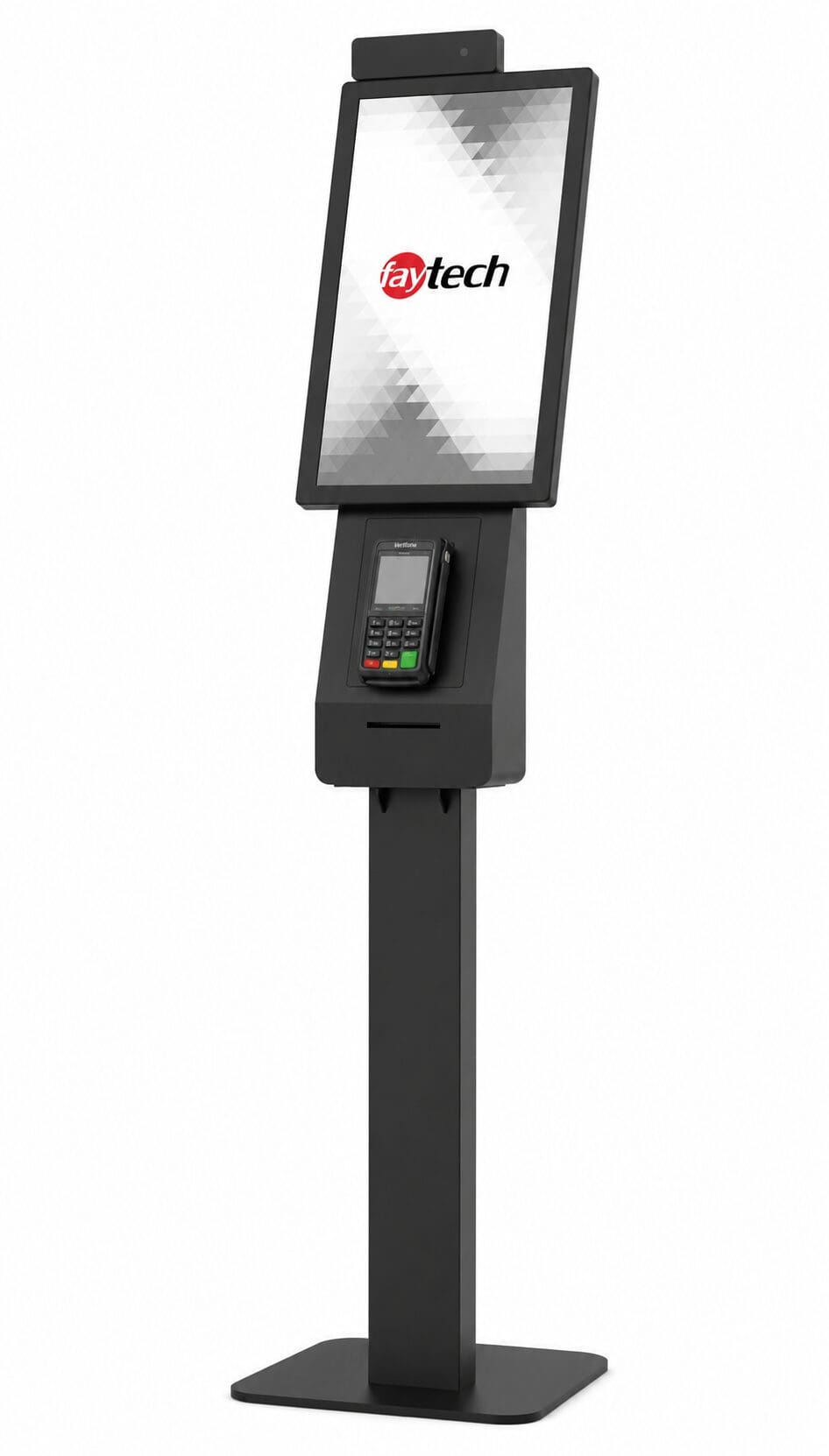

21.5″ ARM Touch Kiosk (RK3576)

The 21.5″ ARM Touch Kiosk RK3576 is a versatile, deployment-ready self-service kiosk engineered for the broad set of retail, hospitality, transit, healthcare, and corporate applications that need a reliable interactive display without the cost or complexity of an AI-first platform. For information display, digital signage, wayfinding, POS integration, and standard touch-driven self-service, this kiosk delivers high-brightness 21.5″ Full HD output, durable semi-outdoor environmental tolerance, and a flexible peripheral ecosystem — at a price point and configuration appropriate to high-volume rollouts.

The compute platform is built around the Rockchip RK3576 — a modern ARM SoC pairing a quad-core Cortex-A72 cluster with a quad-core Cortex-A53 cluster, supported by a Mali G52 MC3 GPU and a 6.0 TOPS NPU. While the NPU is not used as aggressively in this configuration as in the Napster AI variant, it provides headroom for future AI integration: organizations can deploy now for traditional touch-driven workflows and add voice interaction, computer vision, or recommendation engines later through optional custom AI peripheral builds. With 4 GB DDR RAM and 32 GB eMMC storage running Android 14, the platform supports standard kiosk software, content management systems, POS integrations, and the third-party Android applications that retail and hospitality operations standardize on.

The 21.5″ display delivers 1920×1080 Full HD resolution across a 476.1 × 267.8 mm active area, with 500 cd/m² brightness — substantially brighter than typical 250–300 nit consumer displays. This brightness rating is what enables semi-outdoor and bright-indoor placement: covered drive-through lanes, train station platforms, partially-shaded outdoor retail, hotel forecourts, and indoor environments with significant ambient light from glass facades. The 178°/178° viewing angles ensure the display remains legible from approaching foot or vehicle traffic, and the LED backlight is rated for 30,000-hour lifetime appropriate to continuous commercial operation.

Touch interaction uses a 10-point projected capacitive multi-touch panel on 2.0 mm thermally strengthened cover glass with AG (anti-glare) surface treatment and IK08 impact protection. faytech's Clear Bond® optical bonding eliminates the air gap between touch sensor and LCD panel, reducing internal reflections (critical at 500 nits where reflections become more visible), improving contrast under bright conditions, and increasing mechanical durability against the inevitable bumps of public placement. The Ilitek 2510P touch controller communicates over USB for broad OS compatibility.

The kiosk's chassis is engineered for environmental tolerance: a zinc-plated sheet frame with aluminum display housing, finished in RAL9004 black powder coating. The rubber-frame sealed display achieves IP65 front protection, meaningful for any deployment where the kiosk encounters dust, water spray from cleaning protocols, occasional rain (under cover), or condensation — all common in QSR drive-throughs, transit platforms, garden centers, and outdoor retail. The back of the unit is rated IP40 for indoor-equivalent protection where the electronics-access side is housed against a wall or back-of-house area. Operating temperature is 0°C to 50°C with 10–90% humidity tolerance.

The optional peripheral ecosystem is what makes this kiosk particularly versatile for retail and POS deployments. Available peripherals include:

• POS P300 module (custom upon request): Integrated payment processing for retail point-of-sale, ordering, and self-checkout deployments. Custom configuration available to match the buyer's payment provider and certification requirements.
• KP-80A receipt printer: Reliable thermal receipt printing for transaction confirmation, order tickets, queue tickets, and proof-of-purchase. The 80mm-format printer is industry-standard and supports standard receipt paper rolls.
• 4G router: Cellular connectivity independent of facility Wi-Fi or wired Ethernet. Particularly valuable for kiosk deployments where IT integration is slow, store networks are unreliable, or installations are in semi-outdoor and remote locations. SIM and cellular data plan are the buyer's responsibility.
• AI microphone & loudspeaker (custom build): Optional voice interaction peripherals for organizations that want to add AI-driven voice ordering or conversational interfaces to a traditional touch kiosk deployment. Custom build allows the audio system to be tuned to specific acoustic environments and integrated with the buyer's chosen voice AI platform.

This peripheral flexibility is what differentiates the standard kiosk from the Napster AI variant: rather than bundling a specific AI platform, the standard kiosk lets buyers configure the exact peripheral mix their deployment needs — POS-only for retail checkout, printer-only for ticket dispensing, 4G-only for connectivity, all four for full-featured self-service, or none for pure signage and wayfinding.

Connectivity is comprehensive and designed for real-world commercial deployment. Wired and wireless options include: dual-band 2.4 GHz / 5.0 GHz Wi-Fi with Bluetooth 4.2; Gigabit Ethernet via RJ45; 3× USB 2.0 ports (for connecting external peripherals like scanners, NFC readers, or cameras); 1× USB 3.0/OTG; HDMI 2.0 output (for slaving a secondary display); TF card slot; and Line-Out audio. Standard loudspeakers (2× 4Ω 2W) handle audio prompts, confirmation tones, and basic media playback for signage applications.

The kiosk is free-standing on a stable base, with overall dimensions of 360 × 360 × 1625.8 mm and a net weight of 25.0 kg. Internal cooling is handled by 2× 24V fans for thermal management. Power runs on 100–240V AC mains with ~60W operating consumption and under 1W in standby. The kiosk is CE and FCC compliant and ships with an AC cable and short instruction manual.

Intended use: Touchscreen kiosk for semi-outdoor and indoor use as information display, digital signage, wayfinding, POS, and similar applications. Protect from direct sunlight, which can push the device beyond specified storage and operating temperatures. Operation outside specified temperature ranges is not covered by warranty.

Hypothetical Application Scenarios

Retail Point-of-Sale & Self-Checkout: Mid-size retail chains can deploy the 21.5″ kiosk as self-checkout terminals or queue-busting POS stations during peak hours. The optional POS P300 module integrates payment processing, the KP-80A printer handles receipts, and the IP65 front rating accommodates the spills, cleaning, and high-touch frequency of busy retail environments. The 500 cd/m² brightness ensures readability under bright store lighting and near sun-facing glass storefronts.

Quick-Service Restaurant – Order Pickup & Loyalty Stations: QSR chains can deploy the kiosk for order pickup confirmation, loyalty program enrollment, and customer survey collection at locations where full AI ordering isn't yet deployed. The receipt printer dispenses order numbers and confirmation slips; the POS integration handles loyalty point redemption. The semi-outdoor capability suits drive-through pickup windows and patio entrances.

Transit Wayfinding & Information Display: Train stations, airports, and bus terminals can deploy the kiosk as standalone information and wayfinding stations. The 500 cd/m² brightness handles transit-hub lighting (glass atria, fluorescent banks), the IP65 front rating tolerates the cleaning protocols of high-traffic public spaces, and the optional 4G router ensures operation independent of facility Wi-Fi. Useful for journey planning, schedule updates, and connection information.

Hotel Lobby & Wayfinding: Hotels can deploy the kiosk as lobby wayfinding, event-board, and concierge augmentation terminals. The compact 21.5″ size fits standard hospitality counter and wall placement without dominating the lobby design. The optional 4G router maintains operation during property network maintenance. The standard speakers handle audio for ambient music or video signage without requiring external sound systems.

Healthcare Patient Check-In: Hospitals and outpatient clinics can deploy the kiosk for patient check-in, appointment confirmation, and form completion. The 21.5″ size accommodates standing and seated wheelchair users with appropriate touch-height range. The IP65 front rating supports hospital cleaning protocols including alcohol-based disinfectants and bleach-wipe protocols. The KP-80A printer can issue check-in receipts and waiting-area tickets.

Corporate Lobby & Visitor Management: Office buildings, corporate campuses, and government facilities can deploy the kiosk for visitor registration, badge printing, and meeting check-in. The KP-80A printer issues visitor badges; the touch interface integrates with existing visitor management software platforms. The professional aesthetic of the black powder-coated chassis suits corporate lobby environments.

Education & Campus Information: Universities, colleges, and large schools can deploy the kiosk for campus wayfinding, course information, event boards, and student services lookups. Voice interaction can be added later through the optional custom AI microphone build if institutional needs evolve. The IP65 front rating accommodates high-traffic student common areas.

Banking Branch Self-Service: Bank branches and credit unions can deploy the kiosk for appointment check-in, product information browsing, and standard customer service handoffs. The optional POS P300 module enables transactional applications subject to certification, the KP-80A printer issues queue tickets and transaction receipts, and the IP65 front rating supports the cleaning protocols of financial branch environments.

The 21.5″ ARM Touch Kiosk RK3576 (Standard) is also available in 27″ form factor (24″ coming soon). For AI-first deployments with bundled voice ordering and conversational interaction, see the corresponding 21.5″ Napster AI Touch Kiosk RK3576. For OEM volume programs, custom peripheral configurations, or pre-sales technical consultation, request a quote from the faytech North America engineering team.
