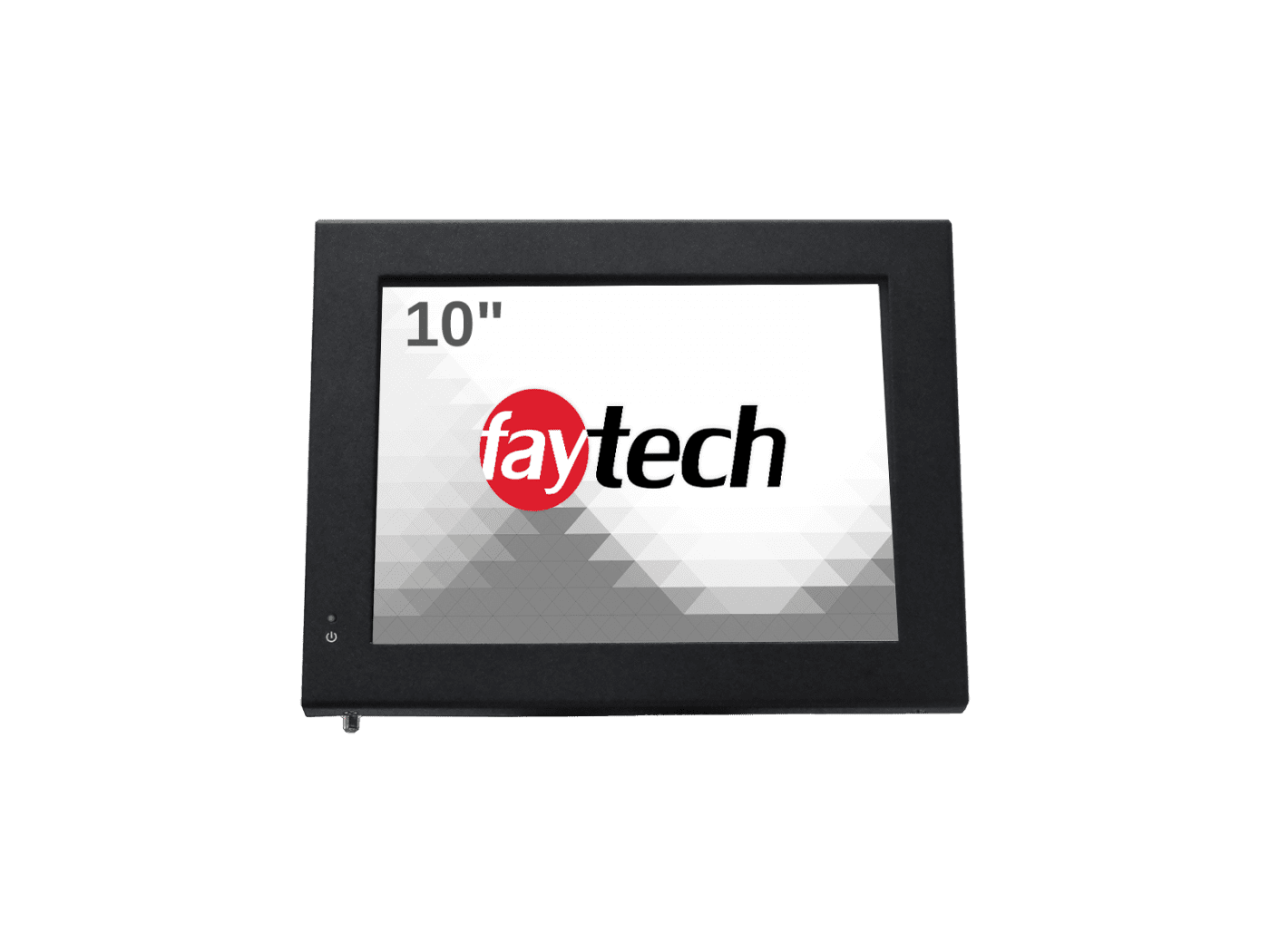

10″ Resistive Touch PC (N3350)
$866.32
Product Details
Product Name: 10″ Resistive Touch PC (N3350)
- Intel® Celeron® N3350 DualCore CPU
- 4GB RAM memory, 128GB Industrial SSD
- Supports Windows 10 & Linux (32Bit, 64Bit)
- Anti-glare front with 3H surface hardness
- 5-Wire Resistive touch technology
- High-quality black aluminum housing
- Standard power connector (screwable)
- Integrated W-LAN
- 2 year guarantee (24/7 usage)
Out of stock
The Resistive Touch PC line from Faytech distinguishes out from the competition thanks to its fanless operation, sturdy aluminum casing, and reliable VESA 100 fixation bolts.
The touch PC is powered by the Apollo Lake mainboard from Faytech.
The Intel® Celeron® N3350 DualCore CPU, clocked at up to 2.40 GHz, powers it. This version has a 4GB RAM, 128GB SSD, and an HD Graphics chipset from Intel that supports Full HD, DirectX 11.1 and OpenGL 4.0.
These Faytech PCs are ideal for a range of uses, including POS systems, industrial control panels, kiosk systems, office/residence automation, digital signs, and places like shopping centers, schools, hotels, and many more.
Potential Use Case Scenarios
Faytech Resistive Touch PCs are an ideal solution for tough work environments and complex scenarios, such as in Point of Sales (POS), operations rooms, industrialization, manufacturing facilities, digital signage displays, and much more.
As for Resistive Touch Monitors, the Faytech Resistive Touch PC series is a great solution to optimize workspaces in industrial setups such as factories and manufacturing centers. Our Resistive Touch PCs stand out among the competition with their sturdy aluminum housing and anti-glare front panel with 3H hardness. Thanks to these features, our Resistive Touch PCs can endure tough environments for a prolonged time. The Resistive PCs manufactured by Faytech come in six different sizes (8”, 10”, 12.1”, 15”, 17” and 19”), all of them quite small, which allows these devices to fit into tiny areas in a smooth way.
A potential use scenario could be for manufacturing centers using automatization systems and software. In such a configuration, multiple Resistive Touch PCs could be chained together to control a production line and provide monitoring options for the machinery and process involved. Such an application is very common in production plants that have automated their operations. Again, the small size of our Resistive Touch PCs, along with the fact that they are manufactured using aluminum housings with no moving parts, makes them even better for use in such industrial settings, where security is critical.
Faytech Industrial Resistive Touch PCs are designed for a wide variety of use case scenarios.
In the military space, the main advantage of those devices is that they can be used in a broad range of temperatures, from -10°C to +60°C. Military organizations will also greatly benefit from the fanless silent operation of these PCs.
In avionics, such Touch PCs are appreciated thanks to the Resistive technology used, which allows for precise interactions with the PC system and the touchscreen. Indeed, Resistive Touch Screen responds to pressure applied on the screen, while Capacitive Touch Monitors react to the capacitance of the human body. Resistive touch displays are made of a minimum of two flexible layers (usually made with polycarbonate) laid on top of a glass underlayer. A resistive substance covers these top sheets and they are then separated by mini dots between the sheets. When a resistive touch display is pressed, these layers are pushed towards each other and produce resistance on both a vertical and a horizontal axis. The resistance change induced is registered by the resistive sensors located at every corner of the touch screen as a touch signal. While it is true that Capacitive Touch Monitors have come a long way in preventing accidental taps, Resistive Touch Monitors remain more secure in that regard, in that they are less likely to trigger an accidental input on the screen.
In the mining industry, Resistive Touch PCs are commonly found thanks to their resilient and durable processing. All our Resistive touch PC are powered by the Apollo Lake mainboard from Faytech.
The Intel® Celeron® N3350 DualCore CPU, clocked at up to 2.40 GHz, powers them. This version has a 4GB RAM, 128GB SSD, and an HD Graphics chipset from Intel that supports Full HD, DirectX 11.1 and OpenGL 4.0. All in all, these characteristics make for extremely sturdy and long-lasting devices.
The same goes for engineering applications, in which it is essential to possess an industrial-grade device that can withstand extreme environmental conditions during its whole lifetime.
Our Resistive Touch PCs can also be used in some nautical applications, as water-resistant customizations are available. In these use case scenarios, the advantage of a Resistive Touch PC is that it relies on Resistive Touch technology, where the touch inputs come from pressure on the front panel. It would be difficult to use a Capacitive Touch PC in such applications, given that water could hinder the screen’s ability to register touches.
Faytech Resistive Touch PCs are used in the medical field too, where it is common to use a stylus or gloved hands to interact with the touch screen. On a Capacitive Touch PC, it would be harder to use the screen with a pen or gloves, given that these screens mainly react to capacitance from the human body.
Food processing enterprises would greatly benefit from the liquid-resistant feature of our Resistive Touch PCs. Indeed, thanks to the Resistive technology used on these PCs, a drop of water, liquid, or grease will not trigger an accidental input.
Faytech Resistive Touch Screen PCs can also be used in the scientific, manufacturing, and logistics industries among others, where the precision allowed by the touch screen technology will prove very helpful.
It is also extremely frequent to find such Resistive Touch PCs on ATMs given that these devices are easy to integrate into other systems. More noticeable even is the introduction of Resistive Touch PCs into check-in kiosks in airports, allowing passengers to check-in by themselves, saving a considerable amount of time for themselves and the working staff. Not only these Resistive Touch PCs can be used in airports, but it is also possible to install them in other transport areas, such as train or subway stations, or even bus stops.
As said earlier, Resistive Touch PCs can be used with pens or gloves, or nearly any object. This is necessary for certain industries where it could be dangerous to operate a device without wearing gloves, or also in sealed settings. This makes Resistive Touch PCs most advantageous in automatization and industrial settings, which would benefit the most from the Resistive technology features.
Worth noting, capacitive touch screens usually suffer more from interaction with surface contaminants, cleaning chemicals, and extreme heat, while Resistive Touch PCs can withstand such outputs more easily. This also explains why it is frequent to use Resistive devices on the industrial floor.
If you consider adding all-in-one Resistive Touch PC solutions to your organization, contact us today. Our experts will be glad to help you select the best Resistive Touch PCs based on your specific requirements and intended use case scenarios.
Weight | 6.6138 lbs |
---|---|
Dimensions | 10.19 × 8.110 × 2.106 in |
Product Specifications
Stock Keeping Unit | FT10N3350 |
NAV number | 3030509537 |
European model number | 1010502296 |
European Article Numbering | 6920734009718 |
Ingress Protection Classification
IP40 |
Computer System
Central Processing Unit | Intel® Pentium® QuadCore N3350 |
Graphics Processing Units | High Definition Graphics Intel® |
Audio Chip | Realtek ALC3251 Audio CODEC |
Random Access Memory (RAM) | 4GB non-parity Double Data Rate (DDR) 4 (maximum 8Gigabit) |
Solid-State Drive | Industrial faytech SSD 128GB |
Network Driver | x2 Realtek Peripheral Component Interconnect Express Gigabit Local Area Network 8111G (x1 optional with Power over Ethernet); Wireless-LAN |
Supported Operating System | Linux Ubuntu + Windows 10 |
Preinstalled Operating System | Linux Ubuntu |
Liquid Crystal Display
Display size | 9.7″ / 24.6cm |
Viewable screen area | 7.755in * 5.787in (19.70cm * 14.70cm) |
Image Aspect-ratio | 4:3 |
Native resolution | 1024 * 768 pixels |
Maximum resolution | 1920 * 1200 pixels |
Screen Luminance | 350 candela/m² |
Color Contrast | 800:1 |
Average responsiveness Rise time/Fall time | 10 | 15 milliseconds |
Viewing angle (horizontal to vertical) | 170 | 170 ° |
Screen Backlighting | LED |
Backlighting lifespan | 20 000 H |
Touch Screen
Touch type | Analog Five Wire Resistive |
Lifespan | Ten million in one location |
Screen hardness | Mohs 3H |
Surface coating | Anti-reflective |
Mechanical/Operation
Temperature range | 14°F to 140°F (-10°C to 60°C) |
Supported moisture | 10 % ~ 90 % Relative Humidity |
Weight (net) | 5.0706lb | 2.30kg |
Weight (gross, including packaging) | 6.6138lb | 3.00kg |
Enclosure | Aluminum |
Housing sizes | 10.19in * 8.110in * 2.106in (259.0mm * 206.0mm * 53.5mm) |
Power Specifications
Power light | Green LED |
Source | ACDC Switching Power Adapter 100~240V; DC-Out 12 V |
Power input | 12 V |
Energy usage | 14 W |
Idling current | 1 W |
Computer Internal Connectors
x1 DDR3L max. 8Go SODIMM, 1333/1600/1867 non-parity, Single channel RAM x3 COM Rs-232/485 Bios x2 Complete LCD Backlighting Interface/LCD voltage tester x1 5V/12V USB to IDE Serial ATA power connector x1 12V DC connector plug (2-pole) x1 4-pin Serial ATA power cable adapter x1 S/PDIF header pin-outs x1 8-bit Mid-Range Digital IO x1 Header Mic-In / Line out x1 USB Front Panel header x1 SATA 6gb s x1 Mobile Industry Processor Interface (MIPI) Camera Serial Interface (CSI) 1x Box header for LVDS 2x Box header for Universal Serial Bus 3.0 |
Computer External Connectors

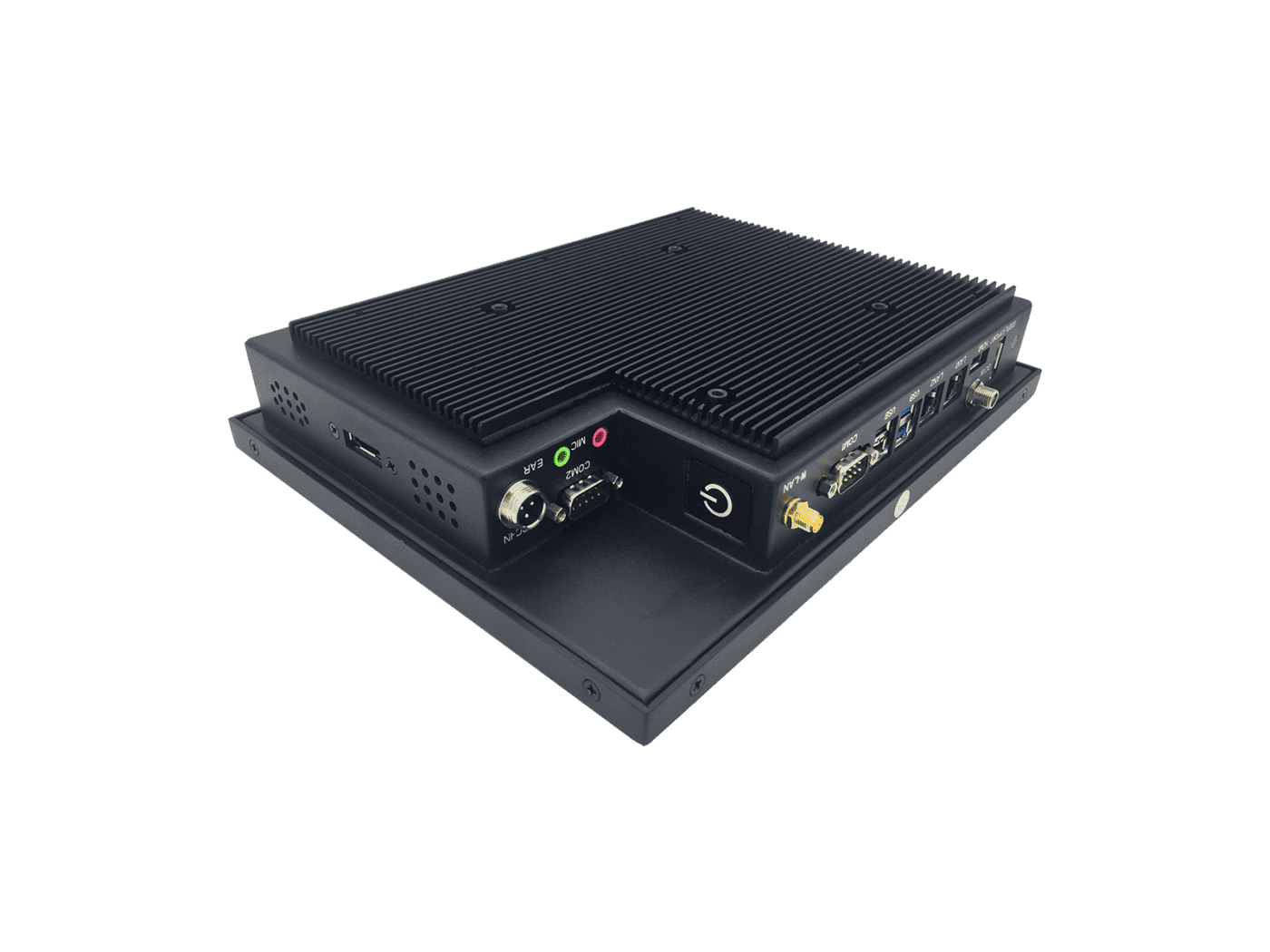

x1 12 Volt DC-In Power Supply (screwable) x1 Reverse Polarity-SubMiniature version A male WLAN antenna connector x2 Universal Serial Bus 2.0 port x2 Universal Serial Bus 3.0 port x1 High-Definition Multimedia Interface (HDMI) port x1 DisplayPort x1 EAR-Out and MIC-In x2 Communication port Full-PIN – Recommended Standard 232/485; 5Volts / 12Volts x2 Ethernet 10/100/1000Mbps RJ45 Ports x1 2.5″ module slot, replaceable Solid-State Drive included |
Expansion Ports
x1 full size mSerial ATA Solid-State Drive (SSD) x1 M.2 Wifi E-Key Socket x1 SATA-IO connector x1 External Peripheral Component Interconnect Express x1 Straddle-mount connector |
In the package
Power Source (cf. Power Specifications section) Installation Guide Wireless-LAN antenna (Reverse Polarity-SubMiniature version A female) |
Documents & Drivers
Acrobat Reader | External website |
3D design | Download 3D design |
Data-sheet | Download Data-sheet |
Short User Manual | Short User Manual |
Drivers for resistive touch | Resistive Touch Drivers (RAR) | Rar conversion to ZIP online |
Driver for WiFi | WiFi driver (RAR) | Rar Conversion to ZIP online |
Apollo Lake Drivers for Windows | Apollo Lake Drivers for Windows (RAR) | Rar Conversion to ZIP online |
