15.6″ Capacitive Touch PC (i5-7300U)

$2,219.33

Product Details

Product Name: 15.6″ Capacitive Touch PC (i5-7300U, OB)

  • Intel® Core™ i5-7300U CPU
  • 8GB RAM memory, 128GB Industrial SSD
  • Supports Windows 10 & Linux (32Bit, 64Bit)
  • Anti-glare surface treatment (chemical etching)
  • 10-Finger-Multi Touch Capacitive Touch Panel
  • 1.1mm cover glass with 7H surface hardness
  • Optically bonded Touch Panel to LCD Panel
  • Patented IP65 front with silicon seal
  • Integrated W-LAN
  • 2 year guarantee

Optional: i3-7100U / i7-7600U Core CPU

Available on backorder

Faytech NA 15.6″ Capacitive Touch PC (i5-7300U) are manufactured with fanless technology, a high standard of reliability and excellent craftsmanship. The Faytech touch screen products separate themselves from the competition in terms of quality and functionality.

Faytech NA 15.6″ Capacitive Touch PC series is the best choice for commercial and industrial use that requires maximizing available space. These small capacitive touch PC units have stylish flat edge-to-edge glass faces. They come with IP65-rated dust and waterproof front panels to ensure that the units will continue to function in a variety of environments.

The 15.6″ Faytech capacitive PCs can be used as point of sale interfaces, industrial controls, as kiosks, automation system controls, and even digital signage in stores, classrooms, hospitality, entertainment and dining industries.



Potential Use Case Scenarios



What's special about Faytech 15.6" capacitive touch PCs (i5-7300U) is that the touch screen and touch PC have been integrated into a single device, which makes these PCs a great choice for many occasions: kiosk systems; Point of Sale (POS) systems in the retail, hospitality, entertainment or restaurants industries; control panels in industrial environments; digital signage in classrooms or stores; and industries such as manufacturing and logistics.

Faytech capacitive touch computers come with VESA mounts, allowing them to be wall-mounted or integrated into other surfaces/machines. Such versatility makes these devices ideal for use in industrial environments where workspaces need to be optimized. Thanks to the touch technology used in these monitors, there is no need to use a keyboard or mouse, which can help ensure that the workspace is not too cluttered. All in all, these devices can help you make your workspace, whether it's a control center or a production site, much safer and more spacious.



Today, these capacitive touch PCs are commonly found in 3D TVs, mobile phones, consoles, ATMs, and interactive kiosks. The capacitive touch technology used in these displays is much more user-friendly and interactive than resistive technology, making Faytech capacitive touch PCs the ideal choice for many commercial and industrial applications.

When it comes to commercial environments, touch screen PCs are increasingly popular in transportation (airports, train stations, metro stations, bus stations), in the food service industry, in vending machines and in CBL (computer learning). In restaurants that use touch PCs, such as fast food chains, customers can use touch screens to order and pay without having to ask the waiter for help. In CBL, the absence of a keyboard makes it easier for learners to use touch PCs. On top of that, it's easier to make sure students focus on the screen.



Faytech capacitive touch computers can be found in many use cases:
In restaurants, bars, or other retail stores, our touch PCs can be used as point-of-sale systems, making it easy for employees to process orders using a touch-based interface. Likewise, retail stores will greatly benefit from Faytech Capacitive Touch PCs, as they can more easily guide your customers and help them scroll through your inventory. For example, a capacitive touch PC can be used to show your customers what products are currently in stock, if there are any special offers and more.

Our capacitive touch computers can be used as industrial control interfaces, to control production lines and streamline production processes.

As for in-kiosk system, the main advantage of Faytech capacitive touch computers is that these devices greatly improve the interaction with customers. They can be used to educate, inform or even sell products to your customer base.

In the logistics and transportation fields, the use of Faytech touch screen PCs can help you perform tracking and after-sales services. In the transportation sector, these touch PCs can also be used to display purchase options and facilitate the purchase of tickets by passengers.

Faytech capacitive touch screen computers would also be a great addition to any commercial or residential automation system where they can be used as an interactive interface. Likewise, handling customer service requests in hostels and hotels can be greatly simplified by using a touchscreen PC.

The potential use cases don't stop there. It is also very common to find capacitive touch computers in offices, laboratories or as digital signage controllers. These PCs are an inexpensive and proven solution to increase your sales and reduce your operating costs, whatever your industry.



One of the main advantages of Faytech 15.6" Touch PC (i5-7300U) is its accessibility and minimal risk of errors. These devices can easily be found in a corporate or office setting, as employees require almost no training before they can use them. Over time, these displays will be extremely profitable for your business.

Our capacitive touch computers are also known for their durability thanks to their high-quality material. Our 15.6" touchscreen PC (i5-7300U) is designed for 24/7 operation, features a rugged aluminum case and 1.1mm protective glass with a surface hardness of 7H. These aspects make Faytech touch PCs suitable for outdoor applications and for use in harsh environments such as factories. Furthermore, Faytech capacitive touch computers have an IP65 front panel design which makes them resistant to dust, rain, grease, or any other liquid and dirt. This allows these PCs to be used in restaurants, bars, hospitals, and crowded public spaces. VESA 100 or 75 stabilizing bolts are also included in the package, allowing you to securely mount your device without worrying about it falling to the floor.

Even more than our touch monitors, Faytech touch computers will help you save valuable space in your business. These devices are an all-in-one solution, as touchscreens go hand in hand with PCs. As mentioned earlier, a mouse or keyboard is not required when using a touch PC. In general, using touch computers instead of non-touch devices will give you more space for machines or employees. This feature makes the Faytech 15.6" capacitive touch computer (i5-7300U) particularly suitable for use in a factory.



Capacitive touch computers sold by Faytech NA are available in the following standard versions:

  • Intel® Pentium® N4200 QuadCore processor, base speed 2.50 GHz
  • Intel® Core™ i5-7300U dual-core processor, base speed 2.60 GHz

While the i5-7300U CPU is much more powerful and would be ideal for performance-demanding usage scenarios, the N4200 CPU can also deliver power-efficient performance and is perfect for simpler applications.



If you're considering adding a capacitive touch PC to your organization, don't hesitate to contact our experts today. We are the global market leader in capacitive touch screen devices. It would be a pleasure to assess your use cases and advise you on the best touchscreen device for your specific applications.

Weight 13.89 lbs
Dimensions 15.32 × 9.716 × 2.334 in

Product Specifications

Stock Keeping Unit FT156I5CAPOB
NAV number 3030509532
European model code 1010502294
EAN number 6920734011568

IP Classification

Front IP 65 / Back IP40

Computer System

Central Processing Unit Kaby Lake U Intel® Core™ i5-7300U
Graphics Processing Units High Definition Graphics Intel®
Audio Chip Audio CODEC Realtek ALC3251
Random Access Memory (RAM) 8GB non-parity Double Data Rate (DDR) 4 (maximum 16Go)
Swappable Storage Industrial Faytech SSD 128GB
Network Driver M.2 E-key Wi-Fi card; x2 Realtek PCIe GBE LAN 8111G Network Driver 1000Mbps
Supported Operating System Linux Ubuntu + Windows 10
Preinstalled Operating System Linux Ubuntu

Liquid Crystal Display

Display size 15.6″ / 39.6 cm
Viewable screen area 34.42 cm x 19.36 cm (13.55 in x 7.622 in)
Image Aspect-ratio 16:9
Native resolution 1920*1080 pixels
Maximum modes 1920*1200 pixels
Screen Brightness 250 cd/m²
Color Contrast 800:1
Average responsiveness Rise time/Fall time 15/15 ms
Viewing angle (horizontal to vertical) 170 | 170 °
Screen Backlighting LED
Backlighting lifespan 15 000 H

Touch Screen

Touch type PCAP Multi-touch (10 point)
Lifespan Unlimited
Screen hardness Mohs 7H
Surface coating Anti-reflective (industrial etching)
Glass reinforcement Chemically Reinforced

Mechanical/Operation

Temperature range 14°F to 140°F (-10°C to 60°C)
Supported moisture 10 % ~ 90 % Relative Humidity
Weight (net) 4.40 kg / 9.7003 lb
Weight (gross, including cartonage) 6.30 kg / 13.889 lb
Enclosure Aluminium IPC rear case, rubber frame
Housing sizes 389.3mm x 246.8mm x 59.3mm (15.32in x 9.716in x 2.334in)
Clamps supported Yes
Clamps cut-out (LXH) 371.0mm x 218.0mm (14.60in x 8.582in)
Number of clamps necessary 4
Mounts VESA 100×100

Power Specifications

Power light Green LED
Source ACDC Switching Power Adapter 100~240V; DC-Out 12 V
Power input 12 V
Energy usage 34 W
Idling current 1 W

Internal Computer Connectors

1x SODIMM, maximum 16 Go, DDR4 1866/2133 non-parity, Single channel RAM
x3 COM Rs-232/485 Bios
x2 Complete LCD Backlighting Interface/LCD voltage tester
x1 5V/12V USB to IDE Serial ATA power connector
x1 12V DC connector plug (2-pole)
x1 4-pin Serial ATA power cable adapter
x1 S/PDIF header pin-outs
x1 8-bit Mid-Range Digital IO
x1 Header Mic-In / Line out
x1 USB Front Panel header
x1 SATA 6gb s
x1 Mobile Industry Processor Interface (MIPI) Camera Serial Interface (CSI)
1x Box header for LVDS
2x Box header for USB 3.0

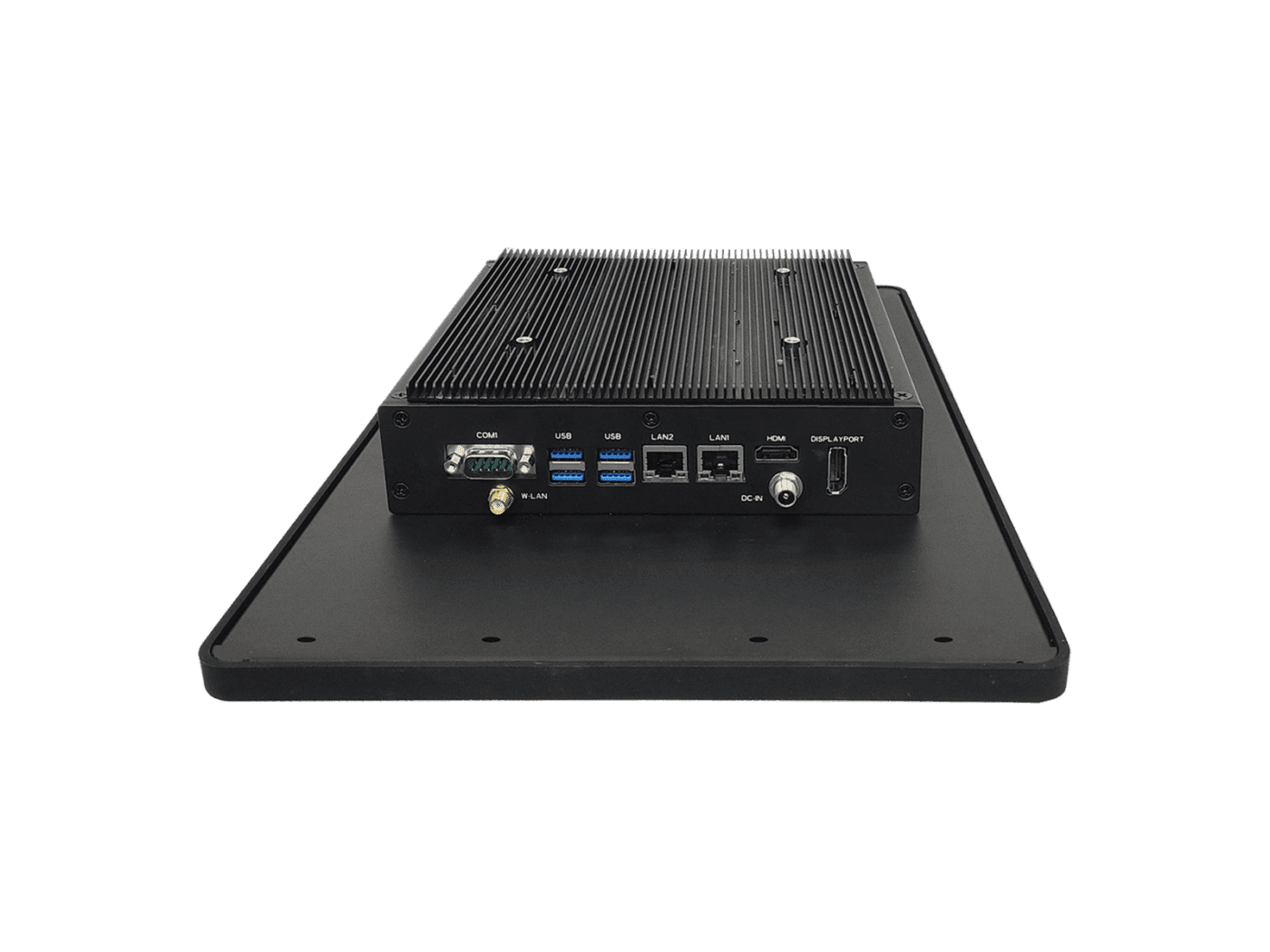

External Computer Connectors

x1 12 Volt DC-In Power Supply (screwable)
x1 RP SMA male WLAN antenna connector
x4 USB 3.0 port
x1 High-Definition Multimedia Interface (HDMI) port
x1 DisplayPort
x1 EAR-Out and MIC-In
x1 10-PIN DIO as RJ50
x1 COM – switchable RS 232/422/485; option 5V/12V/RI (DSUB9, COM1)
x1 COM – RS 232; RX/TX (DSUB9, COM2)
x2 COM – RS 232 and 485; RX/TX and A+/B- (RJ12, COM3&4)
x2 Ethernet 10/100/1000Mbps RJ45 Ports
x1 2.5″ module slot, including swappable SSD

Expansion Ports

x1 full size mSerial ATA Solid-State Drive (SSD)
x1 M.2 Wifi E-Key Socket
x1 SATA-IO connector
x1 External PCIe x1 Straddle-mount connector

Included in the package

Power Source (cf. Power Specifications section)
Installation Guide
Computer Stand
Antenna WLAN RP-SMA female

Documents & Drivers

Acrobat Reader External website
3D design Download 3D design
Data-sheet Download Data-sheet
Short User Manual Short User Manual
Drivers for capacitive touch (Linux excluded) Capacitive Touch Drivers (RAR) | Rar conversion to ZIP online
Linux Touch Drivers Capacitive Touch Drivers for Linux (deb)
Driver for WiFi WiFi driver (RAR) | Rar conversion to ZIP online
Kaby Lake U Drivers for Windows Kaby Lake U Drivers for Windows (RAR) | Rar conversion to ZIP online
