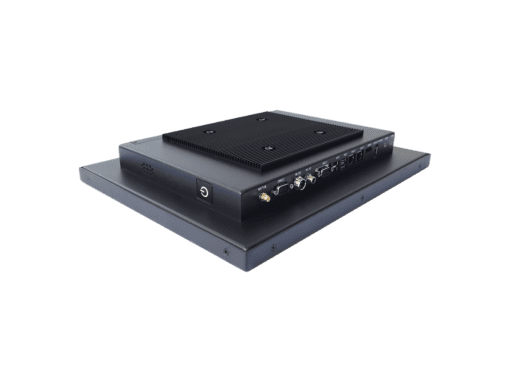

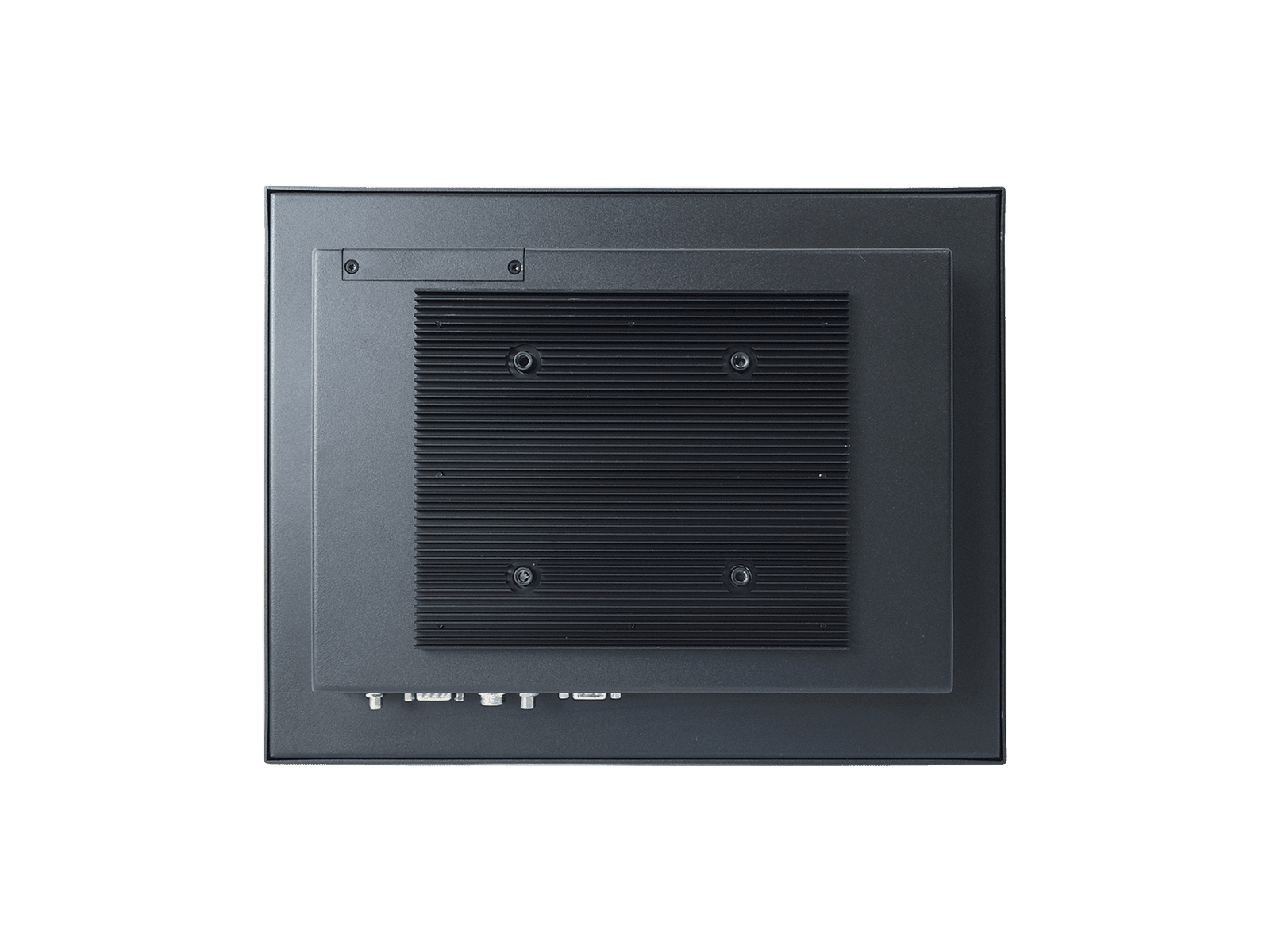

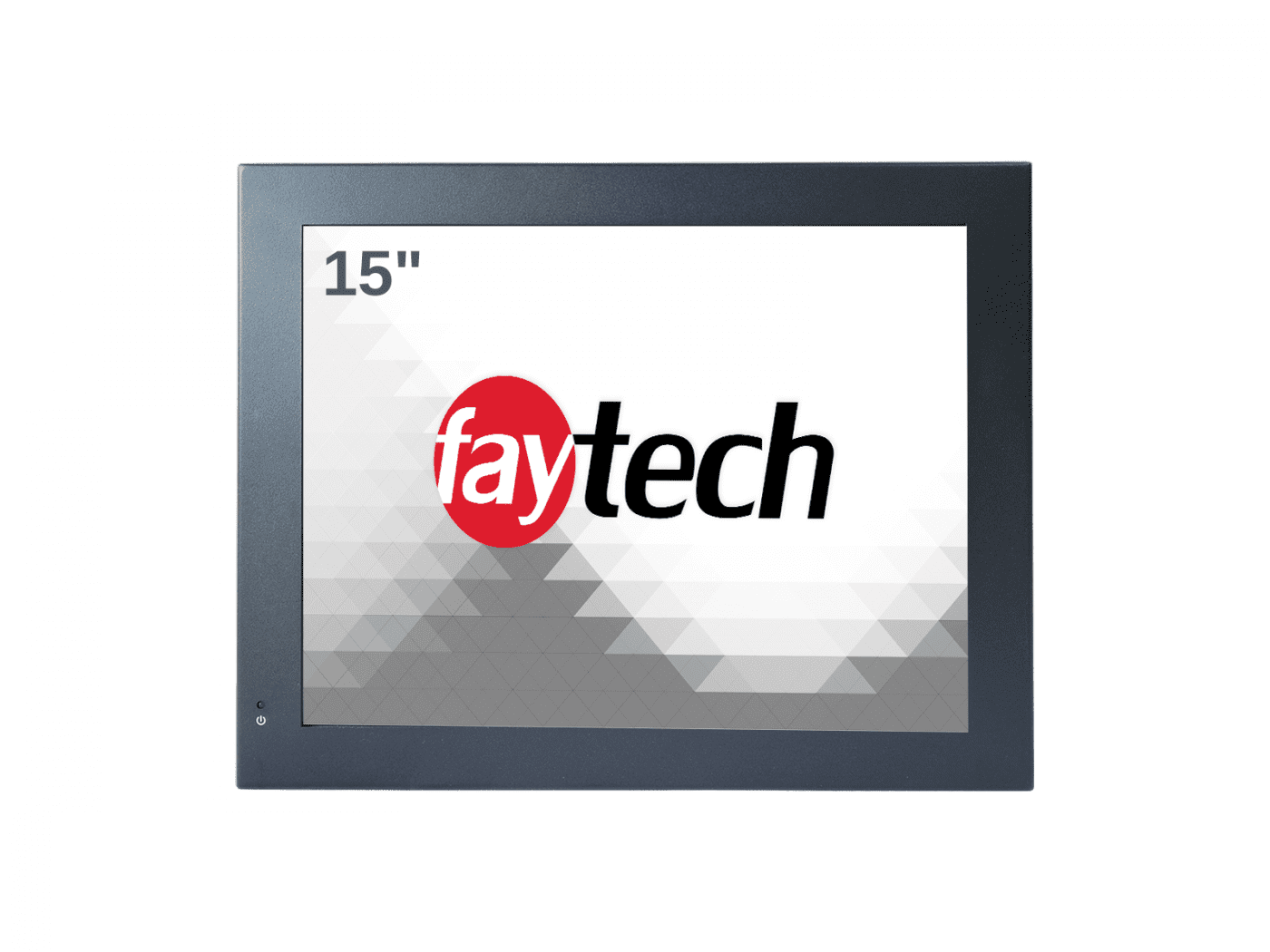

15″ Resistive Touch PC (N3350)

$1,101.08

Out of stock

SKU: FT15N3350RES Categories: ,
Weight 11.684 lbs
Dimensions 14.48 × 11.33 × 2.299 in

Product Specifications

Stock Keeping Unit FT15N3350
NAV number 3030509538
European model number 1010502297
European Article Numbering 6920734001507

Ingress Protection Classification

IP40

Computer System

Central Processing Unit Intel® Pentium® QuadCore N3350
Graphics Processing Units High Definition Graphics Intel®
Audio Chip Realtek ALC3251 Audio CODEC
Random Access Memory (RAM) 4GB non-parity Double Data Rate (DDR) 4 (maximum 8Gigabit)
Solid-State Drive Industrial faytech SSD 128GB
Network Driver x2 Realtek Peripheral Component Interconnect Express Gigabit Local Area Network 8111G (x1 optional with Power over Ethernet); Wireless-LAN
Supported Operating System Linux Ubuntu + Windows 10
Preinstalled Operating System Linux Ubuntu

Liquid Crystal Display

Display size 15″ / 38.1 cm
Viewable screen area 11.96in * 8.976in (30.40cm * 22.80cm)
Image Aspect-ratio 4:3
Native resolution 1024 * 768 pixels
Maximum resolution 1920 * 1200 pixels
Screen Luminance 300 candela/m²
Color Contrast 700:1
Average responsiveness Rise time/Fall time 8 | 12 milliseconds
Viewing angle (horizontal to vertical) 160 | 160 °
Screen Backlighting LED
Backlighting lifespan 30 000 H

Touch Screen

Touch type Analog Five Wire Resistive
Lifespan Ten million in one location
Screen hardness Mohs 3H
Surface coating Anti-reflective

Mechanical/Operation

Temperature range 14°F to 140°F (-10°C to 60°C)
Supported moisture 10 % ~ 90 % Relative Humidity
Weight (net) 7.4957lb | 3.40kg
Weight (gross, including packaging) 11.684lb | 5.30kg
Enclosure Aluminum
Housing sizes 14.48in * 11.33in * 2.299in (368.0mm * 288.0mm * 58.4mm)

Power Specifications

Power light Green LED
Source ACDC Switching Power Adapter 100~240V; DC-Out 12 V
Power input 12 V
Energy usage 17 W
Idling current 1 W

Computer Internal Connectors

x1 DDR3L max. 8Go SODIMM,  1333/1600/1867 non-parity, Single channel RAM
x3 COM Rs-232/485 Bios
x2 Complete LCD Backlighting Interface/LCD voltage tester
x1 5V/12V USB to IDE Serial ATA power connector
x1 12V DC connector plug (2-pole)
x1 4-pin Serial ATA power cable adapter
x1 S/PDIF header pin-outs
x1 8-bit Mid-Range Digital IO
x1 Header Mic-In / Line out
x1 USB Front Panel header
x1 SATA 6gb s
x1 Mobile Industry Processor Interface (MIPI) Camera Serial Interface (CSI)
1x Box header for LVDS
2x Box header for Universal Serial Bus 3.0

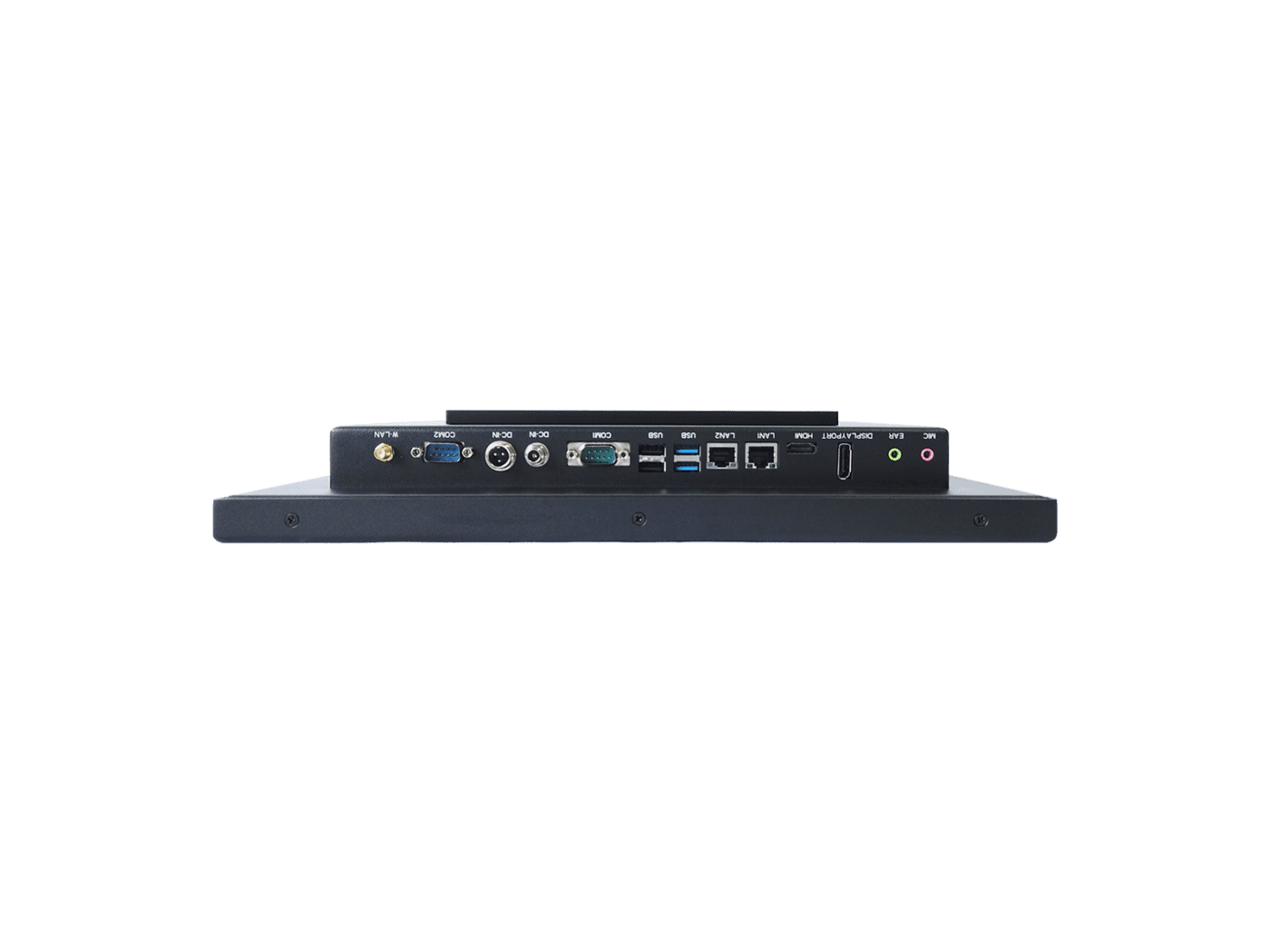

Computer External Connectors

1x 12V DC-In (screwable)
1x 12V 3-Pin DC-In (screwable)
x1 Reverse Polarity-SubMiniature version A male WLAN antenna connector
x2 Universal Serial Bus 2.0 port
x2 Universal Serial Bus 3.0 port
x1 High-Definition Multimedia Interface (HDMI) port
x1 DisplayPort
x1 EAR-Out and MIC-In
x2 Communication port Full-PIN – Recommended Standard 232/485; 5Volts / 12Volts
x2 Ethernet 10/100/1000Mbps RJ45 Ports
x1 2.5″ module slot, replaceable Solid-State Drive included

Expansion Ports

x1 full size mSerial ATA Solid-State Drive (SSD)
x1 M.2 Wifi E-Key Socket
x1 SATA-IO connector
x1 External Peripheral Component Interconnect Express x1 Straddle-mount connector

In the package

Power Source (cf. Power Specifications section)
Installation Guide
Wireless-LAN antenna (Reverse Polarity-SubMiniature version A female)



Documents & Drivers

Acrobat Reader External website
3D design Download 3D design
Data-sheet Download Data-sheet
Short User Manual Short User Manual
Drivers for resistive touch Resistive Touch Drivers (RAR) | Rar conversion to ZIP online
Driver for WiFi WiFi driver (RAR) | Rar Conversion to ZIP online
Apollo Lake Drivers for Windows Apollo Lake Drivers for Windows (RAR) | Rar Conversion to ZIP online
