15″ High Brightness Capacitive IP65 HDMI Touch Screen Monitor

$801.77

Product Details

Product Name: 15″ High Brightness IP65 HDMI Touch Screen Monitor



  • Comprehensive IP65 protection for applications under harsh circumstances, including water- and dustproof
  • 1000+ cd/m² brightness for increased visibility even at extremely bright environmental conditions
  • Extended voltage input 8~36V
  • All-in-One cable (2m length, attached to monitor)
  • 10-Finger-Multi Touch Capacitive Touch Panel
  • VESA 100 mounting
  • 2 years guarantee (24/7 usage)

38 in stock (can be backordered)

Faytech's IP65 High Brightness series, which is based on its Touchscreen Monitor technology platform, has features that makes it ideal for demanding industrial and outdoor applications.

The IP65 High Brightness Touchscreen Monitor series from Faytech has increased brightness (all displays have at least 1,000 nits brightness), complete dust and water protection according to IP65 protection rating, and a sturdy, sealed aluminum casing. Faytech offers an All-In-One Cable Solution for connection that includes an 8-36V DC-IN connection, an HDMI or VGA visual connection, and a USB for touch.

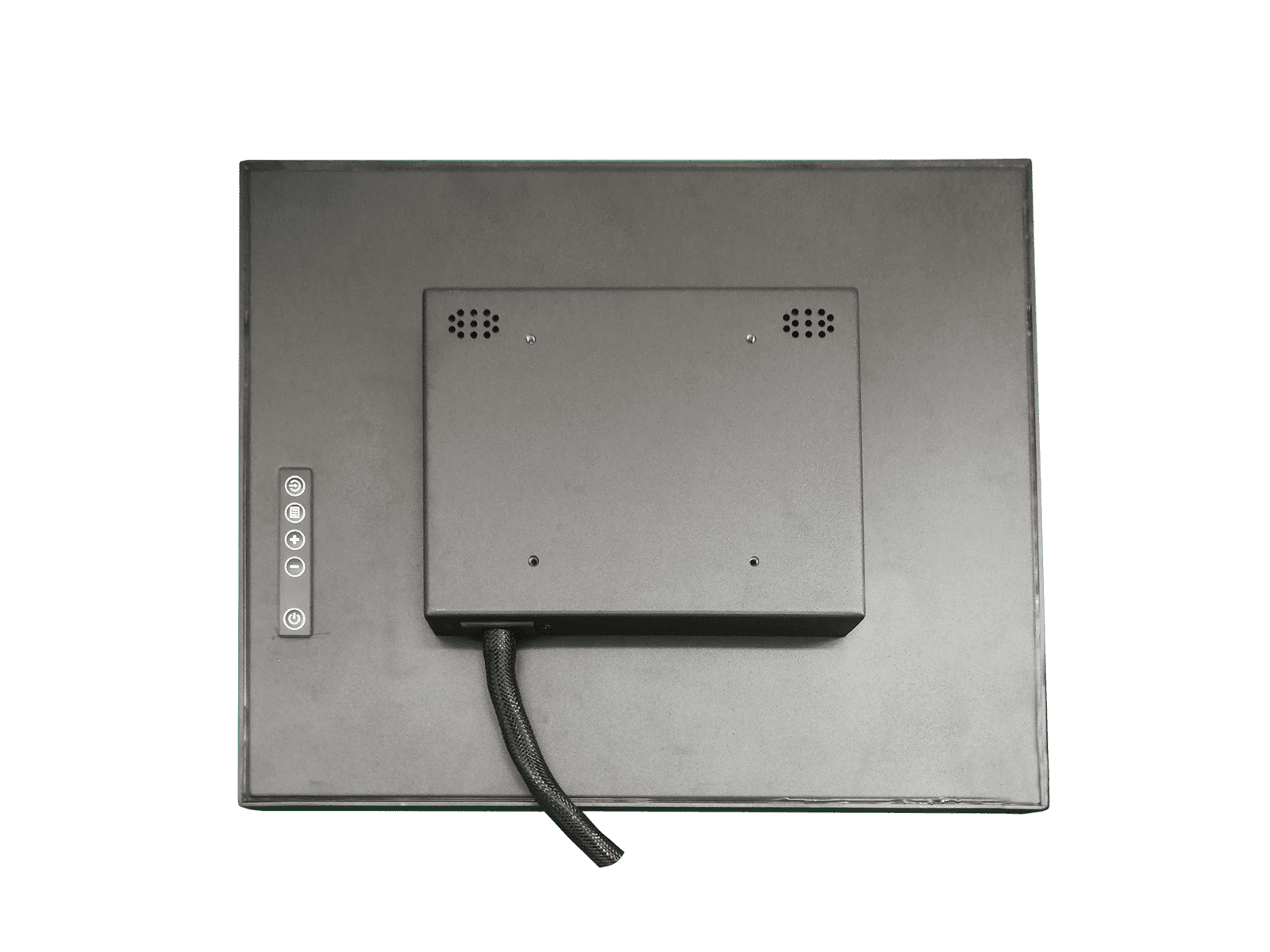

There are two buttons on the front that may be used to adjust brightness (5 brightness levels available). For mounting the displays where they are needed, the Faytech series for the toughest weather conditions contains VESA-100 fixation holes on the rear.

The following individualizations are further available for projects:

  • Any All-In-One Cable can be specified, including VGA, HDMI, Video, DVI, S-Video, Audio, Power Supply, Voltage Range, USB, and Serial Port Touch.
  • Color, logos, housing, and fixation points specifiable.
  • On the rear of the housing are choices for rail and/or VESA-75/VESA-100.



Potential Use Case Scenarios



The high brightness of our IP65 Industrial Touch Monitor, with a minimum of 1000 cd/ m² rate, is ideal for applications in extremely bright environmental conditions. Besides, these devices benefit from comprehensive IP65 dust and water-proof protection for applications under harsh circumstances, used for instance as outdoor displays.



Thanks to their strong LED backlight, Faytech IP65 High Brightness touch monitors can be visible in any environment. Based on this feature, our High Brightness Touch devices can be used in:

  • Realtor’s windows
  • Food industry – bars and restaurants for virtual menus, promotion, and amusement.
  • Display windows for advertisement, information, and POS
  • Transportation – airports, train stations, and bus stops as waiting area displays or way finders.
  • Outdoor events, outdoor sports fields, expo centers.



Faytech IP65 High Brightness Monitors are especially useful in commercial spheres, as they make it easier to show advertisements, info, or any other relevant content to customers. In business spaces, small sizes (from 8inch to 10inch) are particularly appreciated as they allow for greater mobility, notably in terms of mounting with their VESA stands.



What makes Faytech IP65 High Brightness Touch Monitors appreciated in a wide variety of industries is the possibility to see the screen clearly under sunlight. Nowadays, most tablets, game consoles, and mobile phones all use High Brightness technology to counter the impediments linked to outdoor use. It is also necessary for these High Brightness Touch displays to have longer life cycles than basic consumer devices, which increase their popularity even more across all industries.



In terms of use case scenarios, Faytech IP65 High Brightness Touch Monitors are a great fit for business in the tech industry, in part thanks to their Full HD Screen on top of the High Brightness technology used. Even though it is true that LCD High Brightness displays are mainly used in the tech industries, such devices can also be found in other organizations and public institutions. Thanks to their low prices, Faytech High Brightness Touch Monitors are a great option for companies producing mobile phones or other electronic products. In the marketing space, such devices are often placed in outdoor locations to serve as billboards.



High brightness touch monitors are especially useful for surveillance companies, in which screen quality and clarity are essential, as the work is here based essentially on visual perception. Worth noting, the IP65 High Brightness Touch Monitors manufactured by Faytech are immune to the influence of any type of external light, including ambient lights that could make the screen appear dimmer. Besides, thanks to intensive work on color rendering, we can guarantee the color temperature of our IP65 High Brightness Touch devices to be perfectly calibrated, avoiding washed-out colors and lower viewing angles on the screen. As surveillance screens are intended to be used in any kind of area and environment, even the harshest ones, it is essential to have displays that can sustain a wide temperature range. This is the case with Faytech IP65 Industrial Touch Screens, which are suitable for use from -25 °C to +75 °C (-13 °F ~ 167 °F) compared to an operating range of between 0 °C to 32 °C for typical Touch screens. Our IP65 High Brightness displays are equipped with an internal heating and cooling system that keep the system under check at all times. Without such protection, some parts of the screen could show permanent black spots after prolonged exposure to high temperatures. A sort of haze could also form on the screen, causing images to appear unclear and highly hindering the tasks to be performed with a surveillance screen. At Faytech, our IP65 High Brightness Touch Monitors are all equipped with optical bonding, removing the air gap between the display layers, and subsequently limiting heat build-up that eventually provokes condensation.



Another example of a use case can be given with train stations and more generally any application in the transport area. IP65 High Brightness Touch Monitors are a perfect solution to enhance customer engagement and interaction in such busy transit hubs as train stations. Such a Touch display can be used to inform about train departure and arrival times, boarding dates, and other information such as advertisements. These devices must be rugged as they are to be used in a high-usage environment. Besides, these Touch Monitors must also possess wide viewing angles to enhance accessibility and to make the device viewable at the same time by many different persons. In this context, horizontal and vertical angles of 180° would be ideal, as it allows the user to read the display from any conceivable angle when in front of it. A wide temperature range is needed too, especially if they are intended to be placed in a semi-outdoor or outdoor location. But most importantly, these touch screens have to be easy to read under any circumstances, hence the need for a High Brightness touch display.

When standard Touch Monitors tend to have brightness rates ranging from 250 cd/m2 to 500 cd/, Faytech IP65 High Brightness Touch Monitors have a brightness rate going as high as 1000 cd/m2, producing up to three times more light than our other Touch Monitors. Being areas easily affected by high ambient lights and direct sunlight, train platforms would greatly benefit from such a device. Having a high brightness touch device on a train platform can help solve many side problems, such as congestion as it will draw people away from the pedestrian way.

Another feature that makes such devices ideal for train stations is the comprehensive IP65 protection which makes them resistant to water, sand, liquids, detritus, and frost build-up. This feature is one of the main reasons explaining the attractiveness of Faytech High Brightness Touch Monitors in a wide array of highly demanding industries.

Worth saying, Faytech IP65 High Brightness Touch devices are also vandal-proof to withstand daily abuse, which is particularly important in public places.



Faytech IP65 High Brightness Touch Monitors will help you boost your revenues whatever the industry you operate in. Do not hesitate to reach out to us today and we will help you choose the best High Brightness Touch display based on your needs and intended use scenarios.

Weight 15 lbs
Dimensions 15.33 × 12.33 × 1.889 in

Product Specifications

Stock Keeping Unit FT15TMIP65CAPHBOB
NAV number 20205005939
European model code 1010501158
EAN number 6920734015023

IP Classification

IP65

Liquid Crystal Display

Display size 15″ / 38.1 cm
Viewable screen area 30.40 cm x 22.80 cm (11.96 in x 8.976 in)
Image Aspect-ratio 4:3
Native resolution 1024*768 pixels
Maximum modes 1920*1080 pixels
Screen Brightness 1000 cd/m²
Color Contrast 700:1
Average responsiveness Rise time/Fall time 8/12 ms
Viewing angle (horizontal to vertical) 160 | 160 °
Screen Backlighting LED
Backlighting lifespan 30 000 H

Touch Screen

Touch type PCAP Multi-touch (10 point)
Available operating systems Mac
Android
Linux
Windows
Lifespan Unlimited
Screen hardness Mohs 7H
Surface coating Anti-reflective (industrial etching)
Glass reinforcement Chemically Reinforced

Mechanical/Operation

Temperature range -4°F to 167°F (-20°C to 75°C)
Supported moisture 10 % ~ 90 % Relative Humidity
Weight (net) 3.00 kg / 6.6138 lb
Weight (gross, including cartonage) 4.50 kg / 9.9207 lb
Enclosure Aluminum
Housing sizes 389.4 mm x 313.4 mm x 48.0 mm (15.33 in x 12.33 in x 1.889 in)

Power Specifications

Power light Green LED
Source ACDC Switching Power Adapter 100~240V; DC-Out 12 V
Power input 8-36 V
Energy usage 28 W
Idling current 1 W

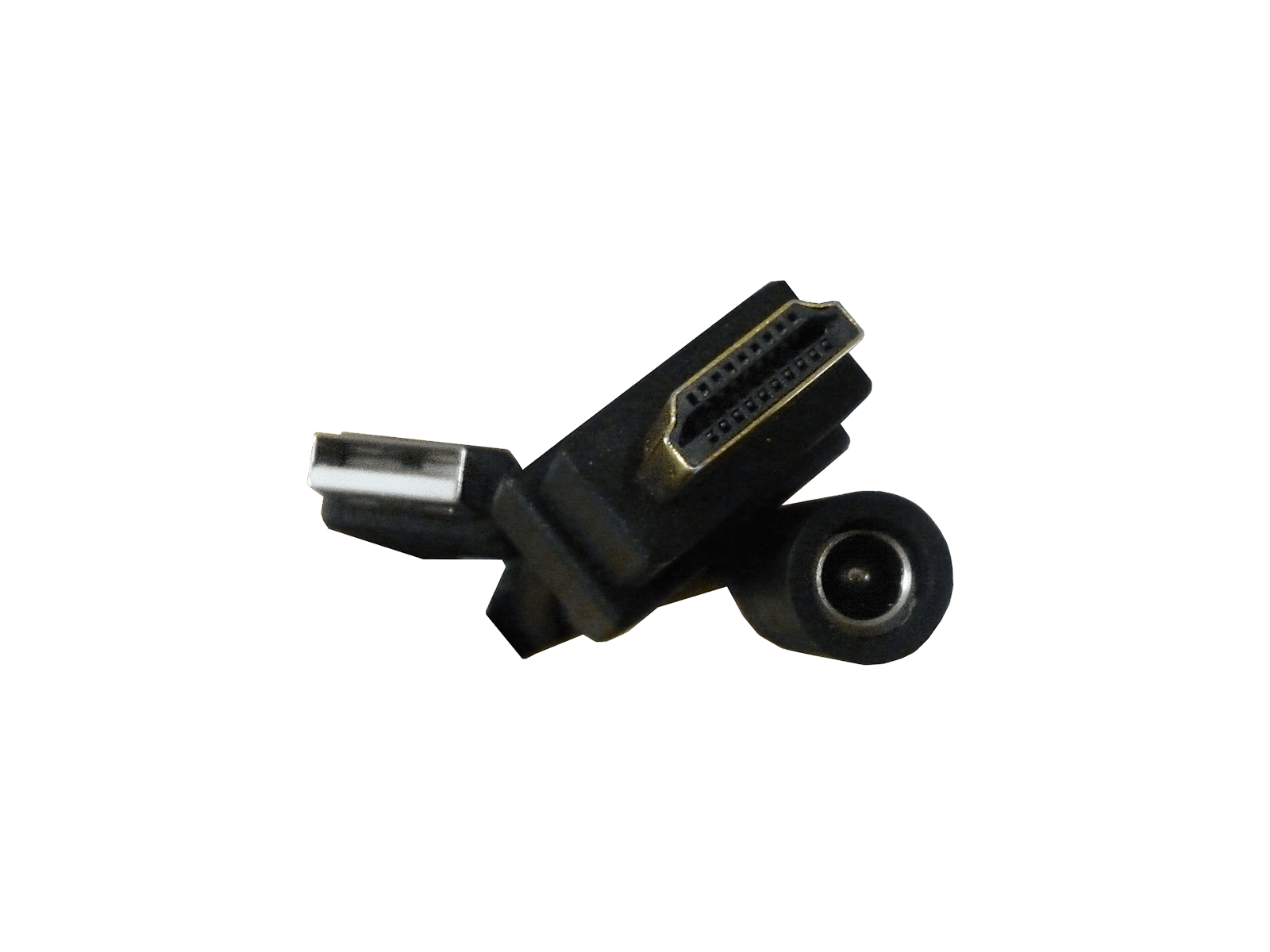

External Connectors

AIO Cable 1x HDMI
1x USB-Touch
1x 8-36V DC-In

Included in the package

Power Source (cf. Power Specifications section)
Installation Guide
AIO cable – 2m length, attached to monitor (length customizable upon request)
