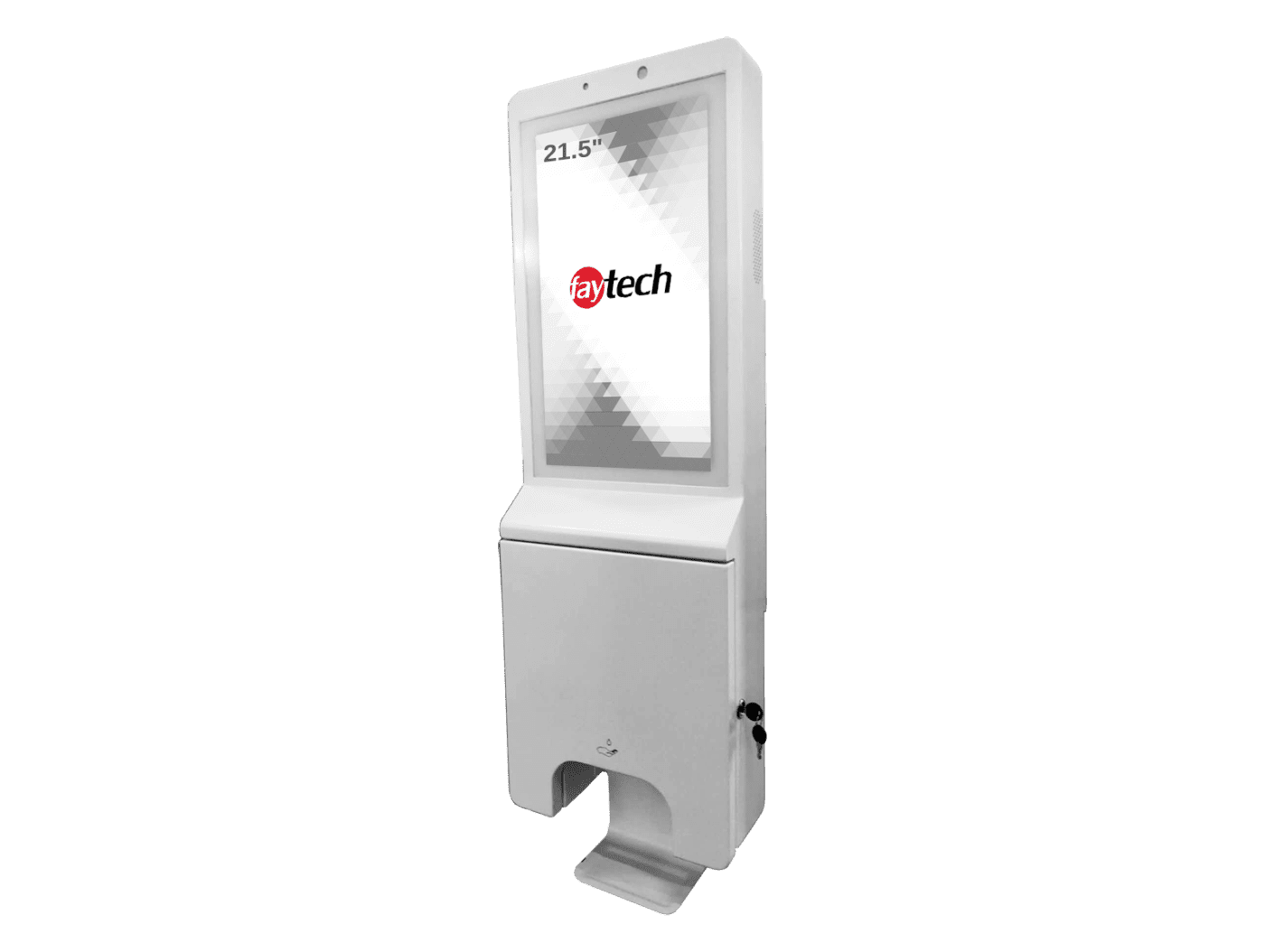

21.5″ Digital Signage Sanitization Station (N4200)

faytech’s Hand Sanitization Station is the perfect solution for the retail, restaurant, hospitality and other service industries, as well as government agencies and institutions. It is developed to promote digital signage and messaging with an optional built-in sanitizing solution. This Kiosk supports that your organization, customers and guests remain safe and healthy while still allowing for your business to serve its critical functions. In such an uncertain time, keeping your guests informed, engaged and sanitized has never been more important!

Complete version – 21.5″ Touch Monitor with case – Sanitizer (1 liter) – N4200 PC inside – Thermopile array sensor – Full HD Camera – Wallmount

  • Perfect solution for digital signage with built-in sanitizing solution
  • Intel® Pentium® N4200 QuadCore Processor with 4GB Ram and 128GB SSD
  • 10-Finger-Multi Touch Capacitive Touch Panel
  • 1.1mm cover glass with 7H surface hardness
  • Optically bonded Touch Panel to LCD Panel
  • Wallmount included
  • Thermal Sensor included
  • Full-HD Camera included
  • Hand Sanitizer dispenser (1 liter) included
  • 2 year guarantee

Optional:

  • Stable stand
  • Antibacterial & Antiviral coating
SKU: FT215KN4200HS Category:
Weight 100 lbs

Product Details

Model number FT215KN4200HS
Global article code 3030505504
European article code 1010501987
EAN number 6920734000357

IP Rating

IP 65 front / IP40 back

PC System

CPU Intel® Pentium® QuadCore N4200
GPU Graphics Intel® HD Graphics
Audio 1x PC-Audio
Memory <4GB DDR4 non-ECC (max. 8GB)
Switchable Storage faytech Industrial 128GB SSD
Network 2x Realtek PCIe GB LAN 8111G (1x optional with POE); W-LAN
Driver Support Windows 10 + Linux Ubuntu
Preinstalled OS Android 7.1.2

LCD Panel

Screen diagonal 21.5″ / 54.6 cm
Display active screen size 47.70 cm x 26.80 cm (18.77 in x 10.55 in)
Aspect ratio 16:9
Physical resolution 1920×1080 px
Maximum showable resolution 1920×1200 px
Brightness 250 (cd/m²)
Contrast 1000:1
Typical reaction time Tr/ Tf 7/7 (ms)
Visual angle horizontal/vertical 178/178 (°)
Backlight LED
Backlight lifetime 30,000 (hours)

Touch Panel

Touch technology Projected Capacitive 10-Point Multitouch
Available touch panel drivers Windows
Linux
Mac
Android
Touch lifetime unlimited
Surface hardness 7H
Surface treatment Anti-glare (chemical etching), Antimicrobial (optional)
Glass strengthening Chemically Strengthened

Thermal Temperature Testing PC Peripherals

Thermal Sensor Details

Sensor type Thermopile far-infrared sensor
Brand Heimann
Model no. HTPA32x32
Working distance Up to 1 Meter
Available spectrum 8~14 μm
Resolution 32 × 32 px
Pixel size 1920 px × 1080 px, 1280 px × 720 px, 640 px × 480 px, 320 px × 240 px
Maximum framerate 7-9 Hz
Typical target temperature -10~150 °C
Target temperature max. range -20~500 °C
Object temperature range 40~1000 °C
Accuracy ±0.5 °C
Output RGB / Temperature Array
FOV (field of view) 30°

Dual lens camera details

Sensor AR0230 (Wide Dynamic Color)
Lens size 1/2.7 inch
Most effective pixels 1928 × 1088 px
Data format MJPG/YUY2
Pixel size 1920 px × 1080 px
1280 px × 720 px
640 px × 480 px
320 px × 240 px
Dynamic range Up to 105dB
Focus Fixed focus
Frame rate 30 FPS
FOV (field of view) 65 °

Operation/Mechanical

Operating temperature -10 °C ~ +60 °C (14 °F ~ 140 °F)
Humidity range 10% – 90% RH
Net weight 5 kg / 11.023 lb
Gross weight (incl. cartonage) 7.3 kg / 16.093 lb
Housing material Aluminum IPC case
Housing sizes (without stand) 370.0 mm x 129.00 mm x 1080.0 mm (14.56 in x 5.078 in x 42.51 in)
Housing sizes (with stand) 500.0 mm x 299.51 mm x 1865.0 mm (19.68 in x 11.79 in x 73.42 in)

Power

Power supply 100-240V ACDC active switching; 12V DC-Out
Working power 12 V
Power consumption 28 W
Standby power 1 W

External Connectors

1x 12V DC-In (screwable)
2x USB 3.0
1x HDMI
1x Audio-Out

Included in the delivery

  1. Power Supply (see Power section)
  2. Short Installation Manual

Downloads

Acrobat Reader for PDFs Download from external page
3D model Download 3D model (PDF)
Datasheet Download Datasheet (PDF)
Capacitive touch drivers (w/o Linux) Download CTD (RAR) | Online Rar to ZIP
Capacitive touch drivers Linux Download CTDL (deb)
WiFi driver Download WiFi (RAR) | Online Rar to ZIP
Apollo Lake Mainboard Drivers (Windows) Download ALMD-WIN (RAR) | Online Rar to ZIP
