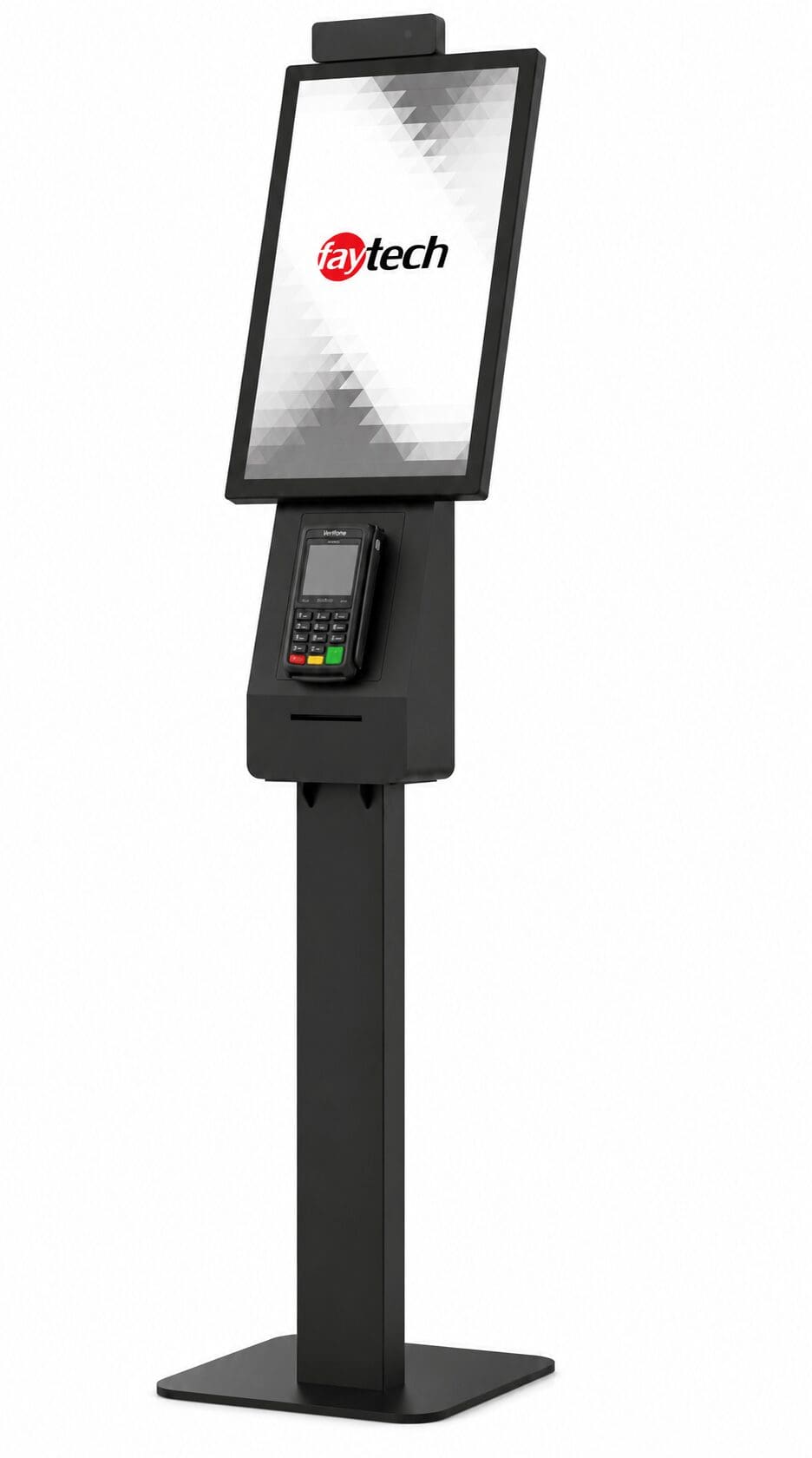

27″ ARM Touch Kiosk (RK3576)

The 27″ ARM Touch Kiosk RK3576 is the flagship standard kiosk in faytech's RK3576 line — engineered for premium installations where visual scale, brightness, and peripheral flexibility all matter, without the cost or complexity of an AI-first platform. At 27 inches and 1747.4 mm overall height, the kiosk is sized for adult standing interaction at comfortable viewing and touch angles, with the visual presence needed to attract attention in environments where smaller kiosks blend into background signage. For QSR chains piloting flagship self-service experiences, transit agencies upgrading high-volume terminals, retail chains deploying premium customer-service stations, healthcare networks installing accessible patient check-in, and corporate visitor management at major facilities — the 27″ size is the right specification.

The compute platform is the Rockchip RK3576 with a 6.0 TOPS NPU — providing the same hardware foundation as the rest of the family, ensuring that standard kiosk software, content management systems, POS integrations, and third-party Android applications run smoothly. While the NPU is not used as aggressively in this configuration as in the Napster AI variant, it provides headroom for future AI integration: organizations can deploy now for traditional touch-driven workflows and add voice interaction or computer vision later through optional custom AI peripheral builds. 4 GB DDR RAM, 32 GB eMMC storage, and Android 14 round out the platform.

The 27.0″ display delivers 1920×1080 Full HD resolution across a 597.6 × 336.2 mm active area — the largest viewing area in the RK3576 kiosk family. The 500 cd/m² brightness is engineered for semi-outdoor and bright indoor placement: covered drive-throughs, transit hub atria, retail entrances with glass facades, hotel forecourts, and indoor environments with significant ambient light. The 3,000:1 contrast ratio is meaningful at this size: large displays exaggerate the visual difference between mid-range and high-contrast panels, and the higher contrast renders deep blacks, vivid color, and high-quality video content with the fidelity that customer experience at this scale demands. 178°/178° viewing angles and a 30,000-hour LED lifetime support continuous commercial operation.

Touch interaction uses a 10-point projected capacitive multi-touch panel on 2.0 mm thermally strengthened cover glass with AG anti-glare surface treatment and IK08 impact protection. The Ilitek 2510P touch controller communicates over USB. faytech's Clear Bond® optical bonding eliminates the air gap between touch sensor and LCD panel — particularly important at this size and brightness, where reflection and contrast issues become more visible than on smaller displays.

The chassis follows the same environmental engineering as the rest of the RK3576 kiosk family: zinc-plated sheet frame with aluminum display housing, finished in RAL9004 black powder coating, with a rubber-frame sealed display achieving IP65 front protection. The case footprint is 400 × 400 mm — slightly larger than the 21.5″ to provide structural stability for the taller, heavier 27″ configuration. Net weight is 32.0 kg, free-standing on a stable base. Operating temperature is 0°C to 50°C with 10–90% humidity tolerance. Power consumption is approximately 80W operating with under 1W standby, on 100–240V AC mains.

The optional peripheral ecosystem makes this kiosk particularly versatile for premium retail, hospitality, and corporate deployments. Available peripherals include:

• POS P300 module (custom upon request): Integrated payment processing for retail point-of-sale, ordering, and self-checkout deployments. Custom configuration available to match the buyer's payment provider and certification requirements.
• KP-80A receipt printer: Reliable thermal receipt printing for transaction confirmation, order tickets, queue tickets, visitor badges, and proof-of-purchase. The 80mm-format printer is industry-standard and supports standard receipt paper rolls.
• 4G router: Cellular connectivity independent of facility Wi-Fi or wired Ethernet. Particularly valuable for kiosk deployments where IT integration is slow, store networks are unreliable, or installations are in semi-outdoor and remote locations. SIM and cellular data plan are the buyer's responsibility.
• AI microphone & loudspeaker (custom build): Optional voice interaction peripherals for organizations that want to add AI-driven voice ordering or conversational interfaces to a traditional touch kiosk deployment. Custom build allows the audio system to be tuned to specific acoustic environments.

This peripheral flexibility is what differentiates the standard kiosk from the Napster AI variant: rather than bundling a specific AI platform, the standard kiosk lets buyers configure the exact peripheral mix their deployment needs — POS-only for retail checkout, printer-only for ticket dispensing, 4G-only for connectivity, all four for full-featured self-service, or none for pure signage and wayfinding.

Connectivity is comprehensive: dual-band 2.4 GHz / 5.0 GHz Wi-Fi with Bluetooth 4.2, Gigabit Ethernet via RJ45, 3× USB 2.0, USB 3.0/OTG, HDMI 2.0 output, TF card slot, and Line-Out audio. Standard loudspeakers (2× 4Ω 2W) handle audio for prompts, confirmation tones, and basic media playback for signage applications. Internal cooling is handled by 2× 24V fans for thermal management of the SoC and the higher continuous power draw of the larger display.

CE and FCC compliant. Includes AC cable and short instruction manual.

Intended use: Touchscreen kiosk for semi-outdoor and indoor use as information display, digital signage, wayfinding, POS, and similar applications. Protect from direct sunlight, which can push the device beyond specified storage and operating temperatures. Operation outside specified temperature ranges is not covered by warranty.

Hypothetical Application Scenarios

Flagship Retail – Premium Self-Checkout & Customer Service: Premium retail chains and department stores can deploy 27″ kiosks as flagship self-checkout terminals and customer service stations. The 3,000:1 contrast and 27″ scale render product imagery and brand video at premium-retail fidelity. The optional POS P300 module integrates payment processing with the buyer's preferred provider, and the KP-80A printer handles receipts. The visual scale communicates investment and innovation appropriate to flagship environments.

Flagship QSR – Premium Order Pickup & Drive-Through: QSR chains can deploy 27″ kiosks at flagship drive-through pickup lanes and large indoor order-and-collect zones. The 500 cd/m² brightness and 3,000:1 contrast handle direct outdoor light under typical drive-through canopies, the IP65 front rating tolerates rain, snow, and pressure-washing. The KP-80A printer dispenses order tickets and loyalty receipts.

Transit – High-Volume Stations: Major train stations, airports, and major bus terminals can deploy 27″ kiosks as primary wayfinding, ticketing, and information stations. The size is large enough to display detailed station maps, multilingual destination boards, and full-text journey planning interfaces. The IP65 front rating tolerates the cleaning protocols of high-traffic public infrastructure. The optional 4G router ensures operation independent of facility Wi-Fi.

Healthcare – Major Hospital Patient Check-In: Large hospital systems can deploy 27″ check-in kiosks in main lobbies and outpatient surgery centers. The 27″ size accommodates seated wheelchair users with appropriate touch-height range, displays large-text accessibility modes for visually impaired patients. The KP-80A printer issues check-in receipts and queue tickets. The IP65 front rating supports hospital cleaning protocols including alcohol-based disinfectants and bleach-wipe protocols.

Premium Hospitality – Luxury Hotel Concierge: Premium hotels can deploy 27″ kiosks in lobbies as primary concierge stations — local information, restaurant recommendations, transportation booking, multilingual support, and integration with property management systems. The 27″ size communicates the property's commitment to guest experience. The KP-80A printer dispenses maps, recommendations, and local guides.

Corporate Major Facility Visitor Management: Major corporate campuses, government facilities, and large office buildings can deploy 27″ kiosks for visitor registration, meeting check-in, and campus wayfinding at primary lobbies. The KP-80A printer issues visitor badges and meeting directions; the 27″ size is appropriate to the lobby scale of major facilities.

Education – University Flagship Information Hubs: Universities can install 27″ kiosks at major building entrances, student centers, and library lobbies for wayfinding, course information, event lookup, and student services. The 27″ scale is appropriate for the open architecture of typical university common areas. Voice interaction can be added later through optional custom AI peripherals.

Banking – Branch Flagship Self-Service: Major bank branches and credit union flagships can deploy 27″ kiosks for appointment check-in, product information, and customer service handoffs. The optional POS P300 module enables transactional applications subject to certification, the KP-80A printer issues queue tickets and transaction receipts. The IP65 front rating supports the cleaning protocols common in financial branch environments.

The 27″ ARM Touch Kiosk RK3576 (Standard) is also available in 21.5″ form factor (24″ coming soon). For AI-first deployments with bundled voice ordering and conversational interaction, see the corresponding 27″ Napster AI Touch Kiosk RK3576. For OEM volume programs, custom peripheral configurations, multi-unit retail rollouts, or pre-sales technical consultation, request a quote from the faytech North America engineering team.
