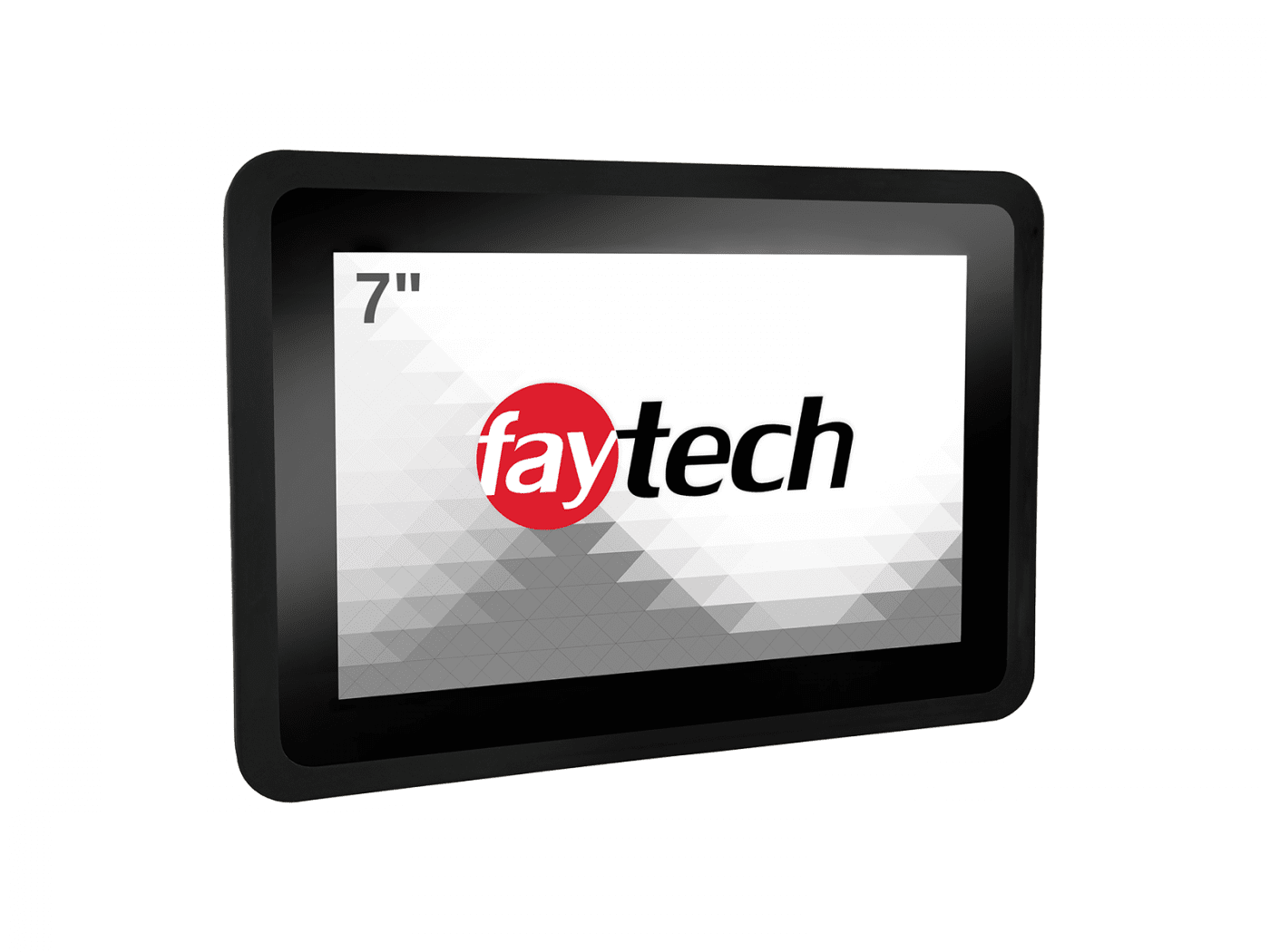

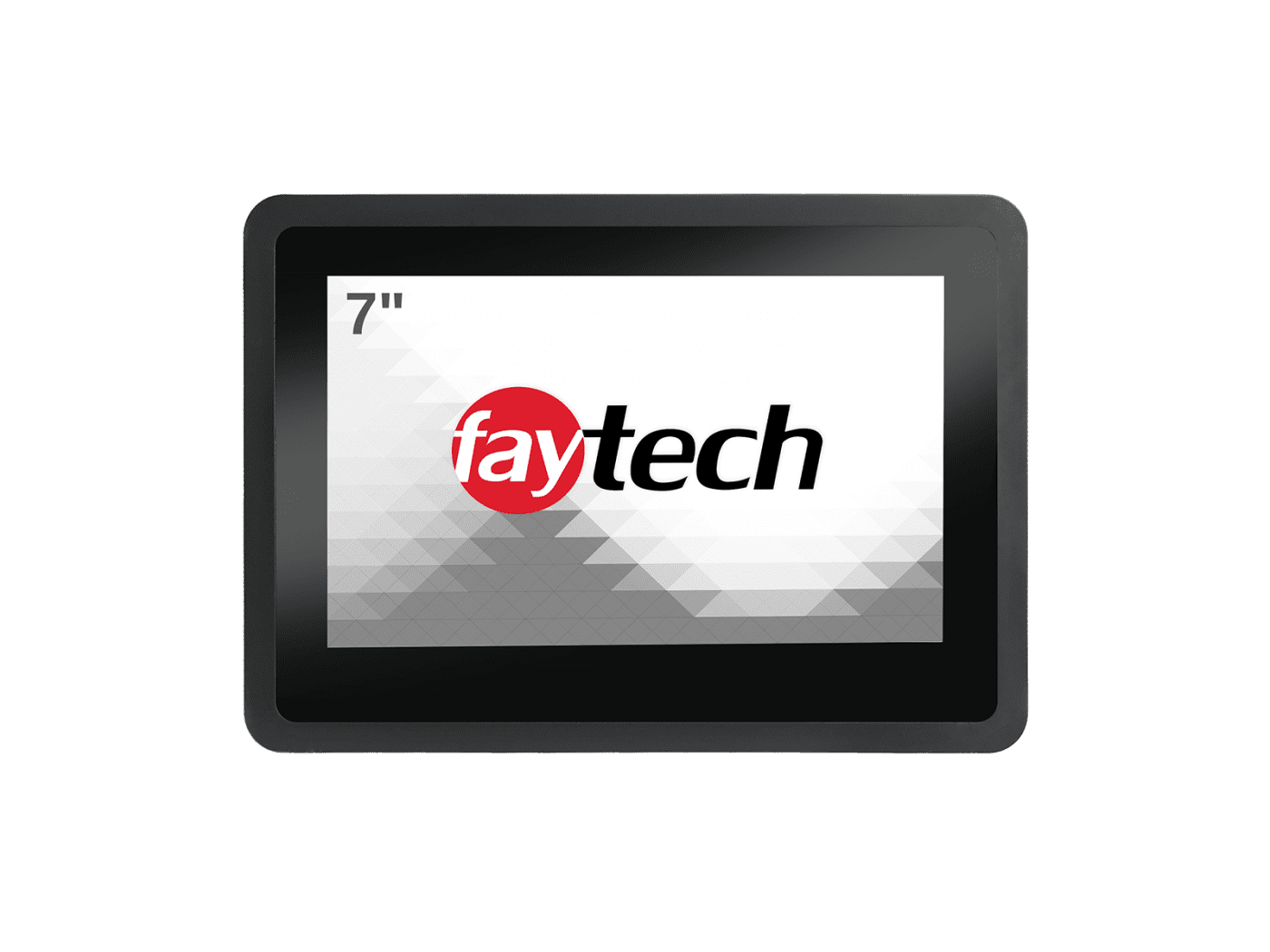

7″ Embedded Touch PC (ARM V40)
$387.27
Available on backorder
SKU: FT07V40CAPOB
Categories: Embedded Touchscreen PCs, Touchscreen PCs
Weight | 4.1887 lbs |
---|---|
Dimensions | 7.700 × 5.417 × 1.511 in |
Product Specifications
Stock Keeping Unit | FT07V40CAPOB |
NAV number | 3030506250 |
European model code | 1010502100 |
EAN number | 6920734007905 |
IP Classification
Front IP 65 / Back IP40 |
Computer System
Central Processing Unit | Quad Core Allwinner® V40 |
Motherboard Chipset | ARM Cortex-A7 |
Graphics Processing Units | ARM® Mali-400 Mp2, Complies with Open Graphics Library for Embedded System 2.0/1.1 |
Audio Chip | Embedded High-Fidelity 100 decibel Audio Codec Dual analog microphone, 2×6 Watts amplifier |
Random Access Memory (RAM) | 2GB Double Data Rate (DDR) 3 |
Flash Memory | 8GigaBit Embedded Multi-Media Card Flash |
Network Driver | 10 | 100Mega bit Network; Wireless LAN |
Supported Operating System | Android 6 / 10 |
Preinstalled Operating System | Android 6.0 (Android 10 only for projects) |
Liquid Crystal Display
Display size | 7″ / 17.7 cm |
Viewable screen area | 15.42 cm x 8.59 cm (6.070 in x 3.381 in) |
Image Aspect-ratio | 16:9 |
Native resolution | 1024*600px |
Maximum resolution | 1920*1200px |
Screen Luminance | 500 candela/m² |
Color Contrast | 700:1 |
Average responsiveness Rise time/Fall time | 10/15 ms |
Viewing angle (horizontal to vertical) | 150 | 145 ° |
Screen Backlighting | LED |
Backlighting lifespan | 20 000 H |
Touch Screen
Touch type | PCAP Multi-touch (10 point) |
Lifespan | Unlimited |
Screen hardness | Mohs 7H |
Surface coating | Anti-reflective (industrial etching) |
Glass reinforcement | Chemically Reinforced |
Mechanical/Operation
Temperature range | 14°F to 140°F (-10°C to 60°C) |
Supported moisture | 10 % ~ 90 % Relative Humidity |
Weight (net) | 1.00 kg / 2.2046 lb |
Weight (gross, including cartonage) | 1.90 kg / 4.1887 lb |
Enclosure | Plastic rear case, rubber frame |
Housing sizes | 195.6 mm * 137.6 mm * 38.4 mm (7.700 in * 5.417 in * 1.511 in) |
Power Specifications
Power light | Green LED |
Source | ACDC Switching Power Adapter 100~240V; DC-Out 12 V |
Power input | 8-18 V |
Energy usage | 8 W |
Idling current | 1 W |
Computer Internal Connectors
x1 Secure Digital-card x1 Subscriber Identity Module-card x2 Serial x4 TTL Universal Asynchronous Receiver Transmitter x2 Universal Serial Bus 2.0 18/24Bit Low-Voltage Differential Signaling x6 General Purpose Input/Output x1 Serial ATA-Port x1 Line-In x1 Line-Out x1 Real Time Clock x1 Controller Area Network Bus x1 Amplifier for 2×6 Watts speaker |
Computer External Connectors
x1 8~18V DC-In (screwable) x1 Wireless-LAN antenna connector (RP-SMA male) x2 Universal Serial Bus 2.0 x1 High Definition Multimedia Interface x1 10/100Megabit RJ45 Port x1 RJ10 (4P4C) x1 Universal Serial Bus On-The-Go x1 Audio-In x1 Audio-Out x1 Serial port x1 Subscriber Identity Module-card slot x1 Secure Digital-card slot |
Expansion Ports
Mini-PCI Express |
In the package
Power Source (cf. Power Specifications section) Installation Guide WLAN antenna (RP-SMA female) |
Documents & Drivers
Acrobat Reader | External website |
3D design | Download 3D design |
Data-sheet | Download Data-sheet |
Short User Manual | Short User Manual |
Drivers for capacitive touch (Linux excluded) | Capacitive Touch Drivers (RAR) | Rar conversion to ZIP online |
Driver for WiFi | WiFi driver (RAR) | Rar conversion to ZIP online |
V40 Image – Buildroot & Browser – SD card installer | Download V40_IMG_SD (RAR) |
V40 Image – Ubuntu mate 18.04 LTS – SD card installer | Download V40_UB_IMG_SD (RAR) |
